Honda XL250K3 Parts

My library of photos of Honda XL250K3 parts or 'what does it really look like?'

Sometimes when you want a part or want to refinish a part, it is hard to get a picture of what it looks like, and there is only the line drawing in the parts book to go by. Getting pictures of new items, or used original items is time consuming so I am going to list here the ones I have put in my on-line library and put them in Honda Part Number order. This is a bit tedious so it will take a while, and I will add new ones as and when I find them or can take them. Click a part number to see a picture. To save a picture, right click and select 'save image as'. Some photos are quite high resolution so be patient while they load especially if you have a slow internet connection.

There is a good explanation of Honda Parts Codes in the front of the Parts List (green book above) or HERE . As many parts are from the earlier XL250 they will have the middle number 329, and parts made specifically in the first instance for the K3 have middle number 385, and so on. If I have a good picture of an earlier part or a 350 part, I have included it anyway. When I can I try to show new parts often with the Honda parts label, but this isn't always possible.

To make this page bigger and easier to read press contol (ctrl) and + once or twice.

This is not a complete list (there are 1244 parts in the UK green book!) but I keep adding to it when I find a new one. I sometimes include the USA variant.They are meant to be for reference, and to aid part recognition. Sometimes I have only a poor piccy so when I find a better one I update it.

According to CMSL only 156 of the parts are unavailable. That's pretty amazing.

Lots of Honda bikes use the same parts, but on one bike the part may be painted black, and on another the same part may be zinc plated, so the last part of the part number would be different. You can always paint a zinc one black.....


If you have a photo of a part to add send it to me rich.prentice (at) and I will add it with pleasure.

Shhh! secret tip.....I refer to this a lot so to save myself time scrolling down the homepage, you can get here by clicking Stan and Ollie too.

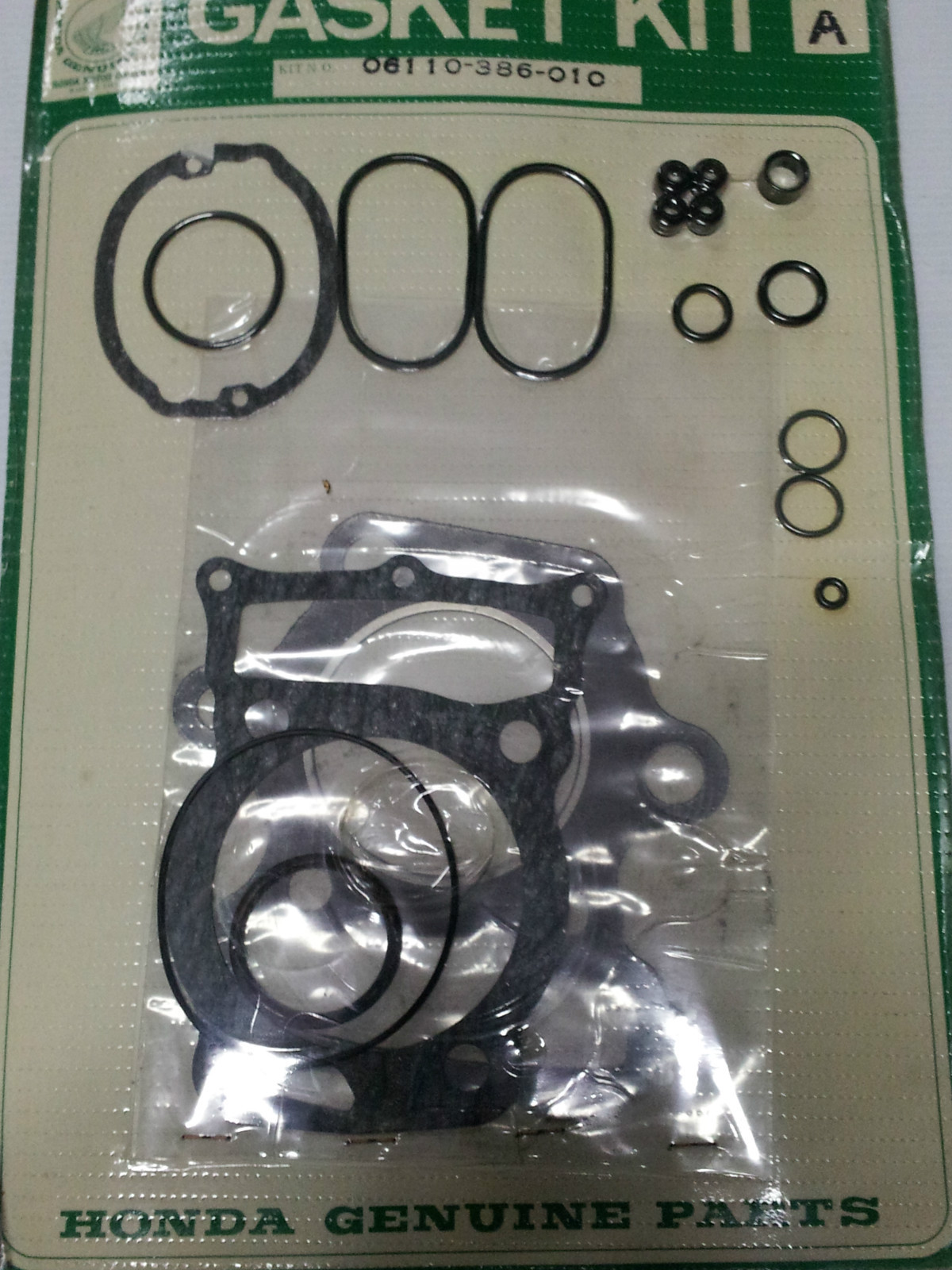

06110-386-010 gasket set A

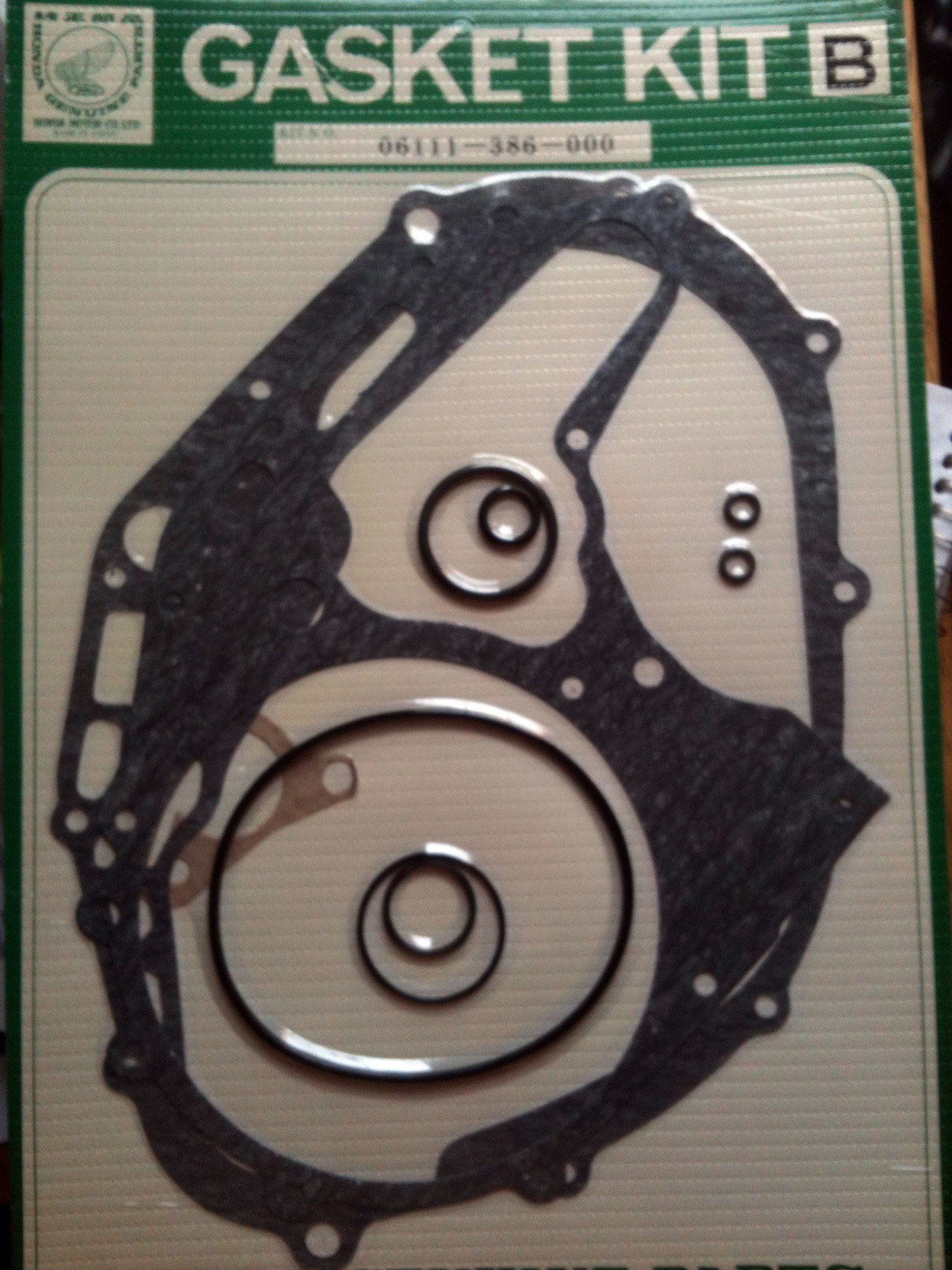

06111-386-000 gasket set B

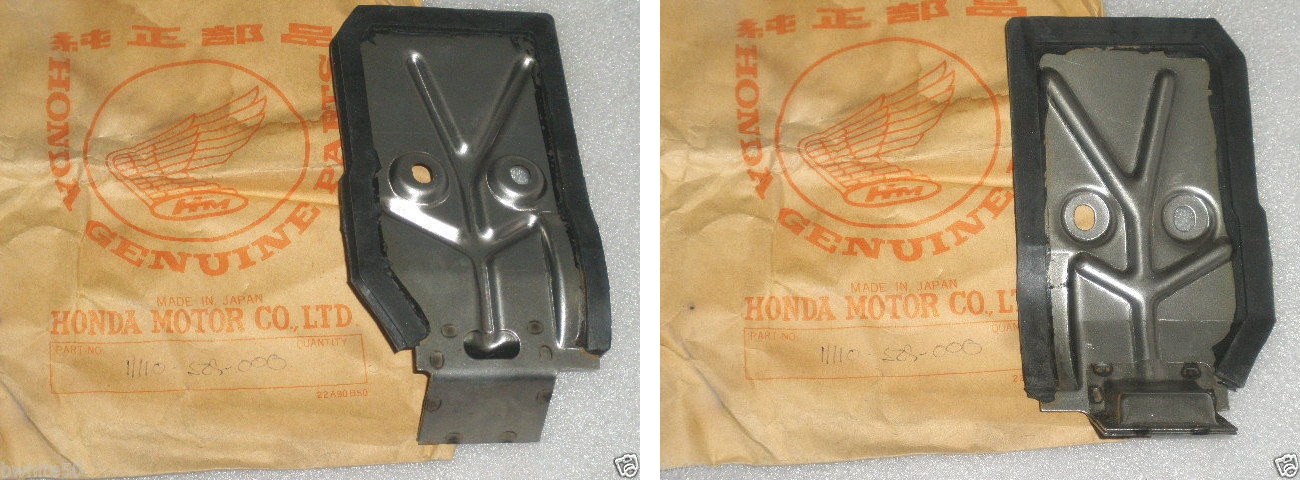

11110-329-770 breather plate

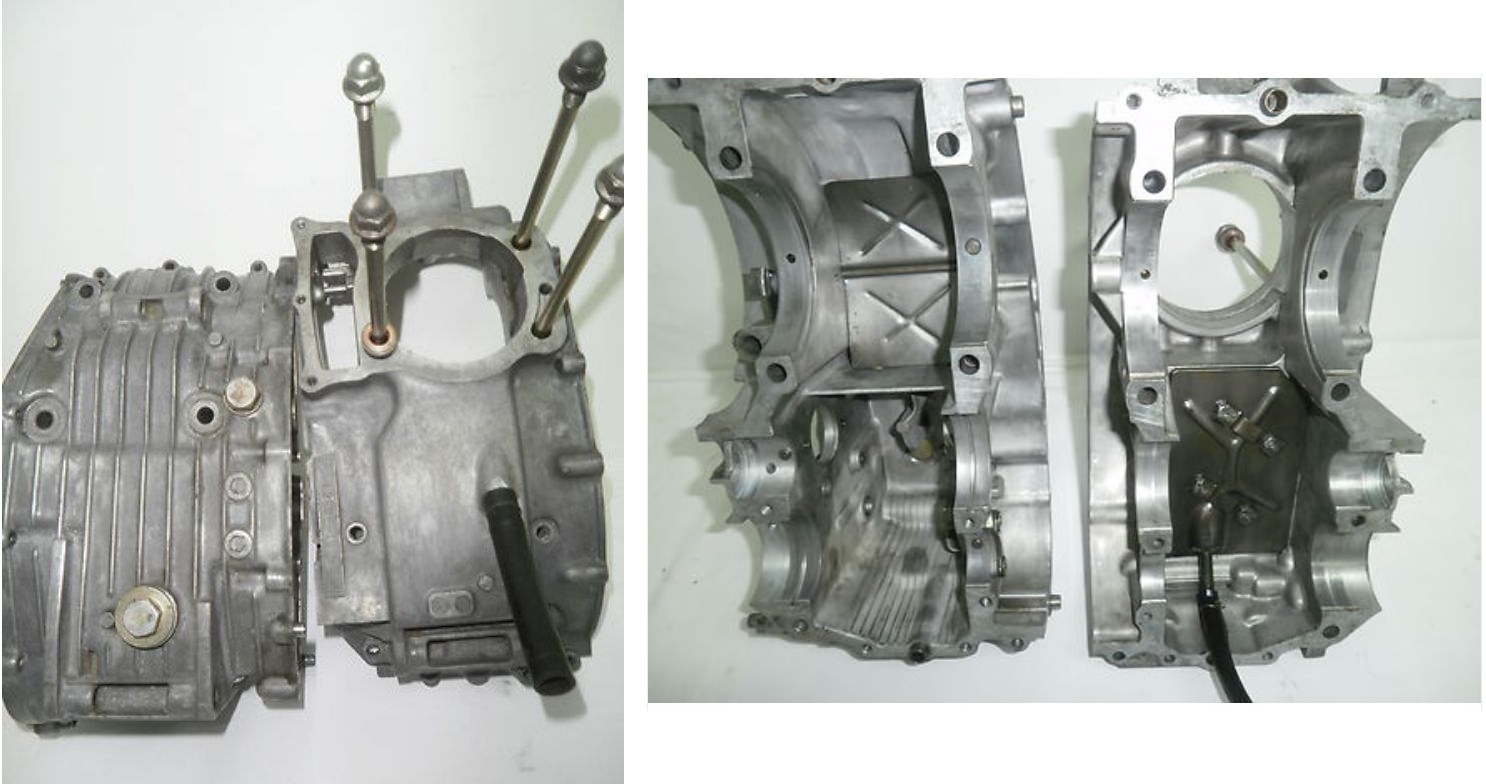

11100-386-000 and 1200-386-000 top and bottom crankcases

11330-385-000 Right side crankcase cover brand new

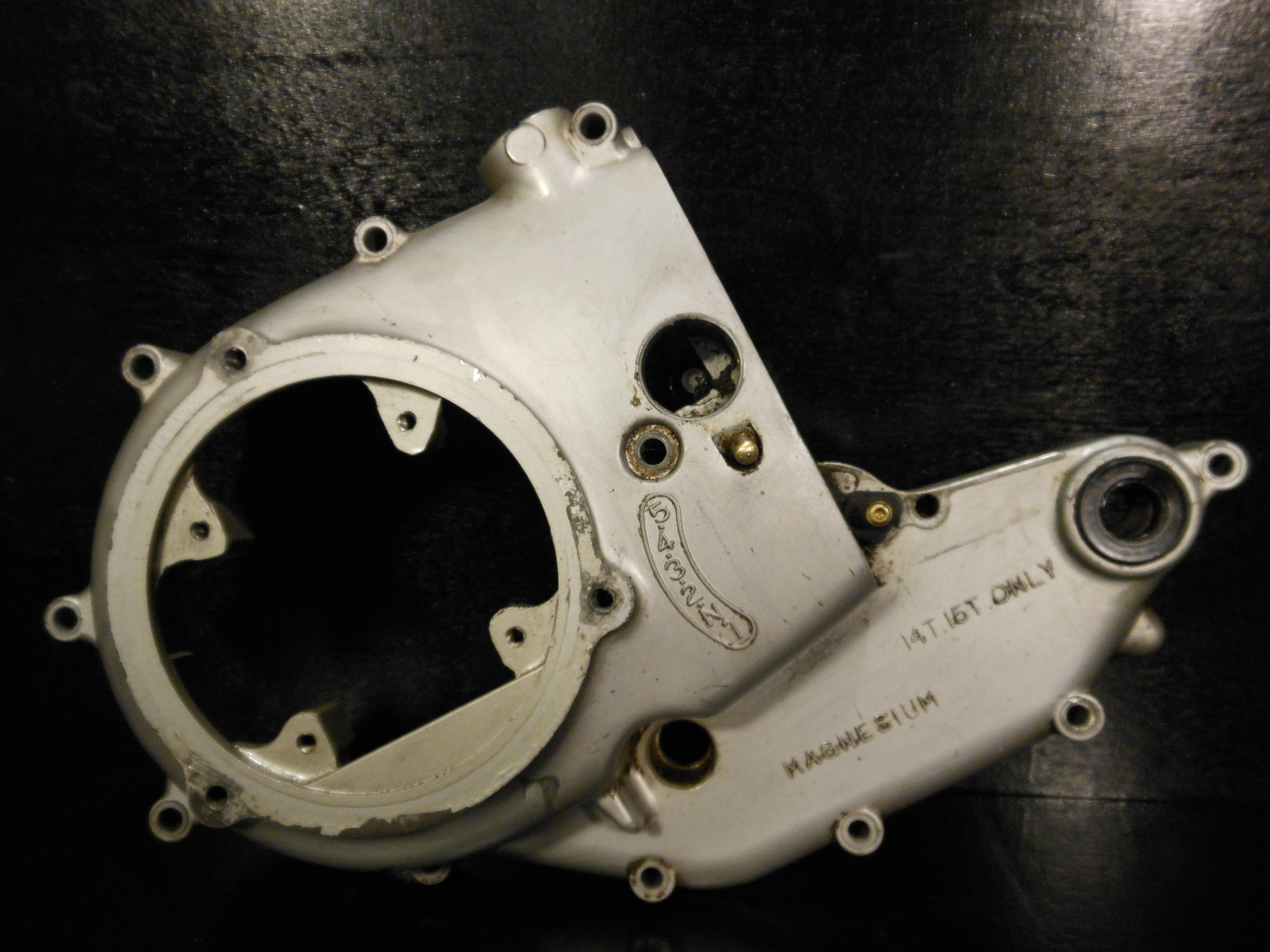

11342-385-000 stator side cover

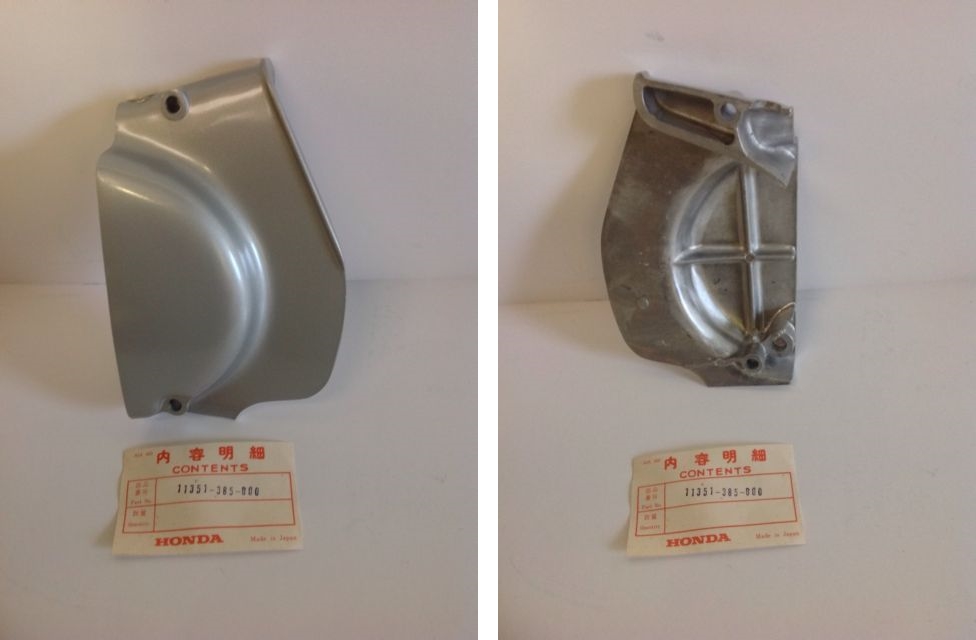

11351-385-000 sprocket cover

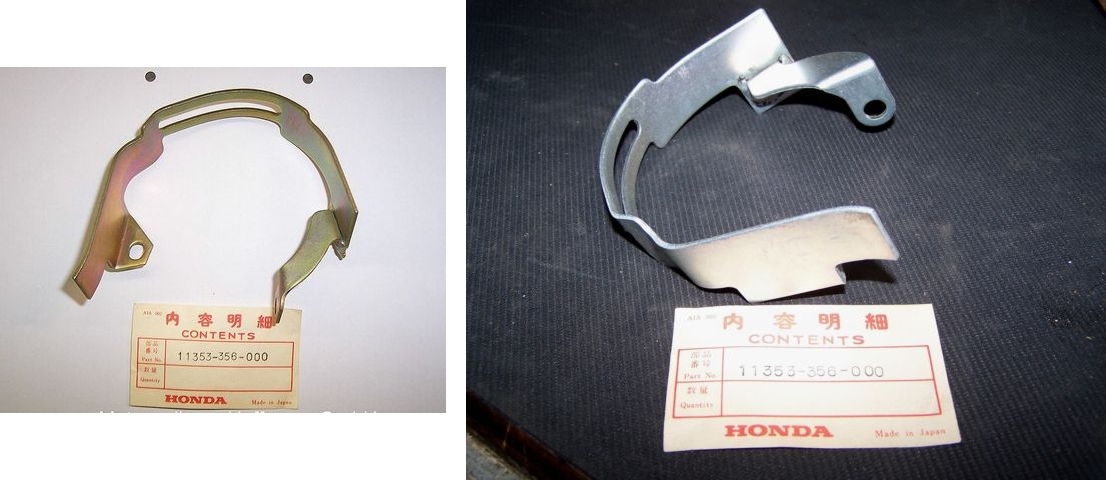

11353-356-000 crankcase guard as can be seen there are different finishes used

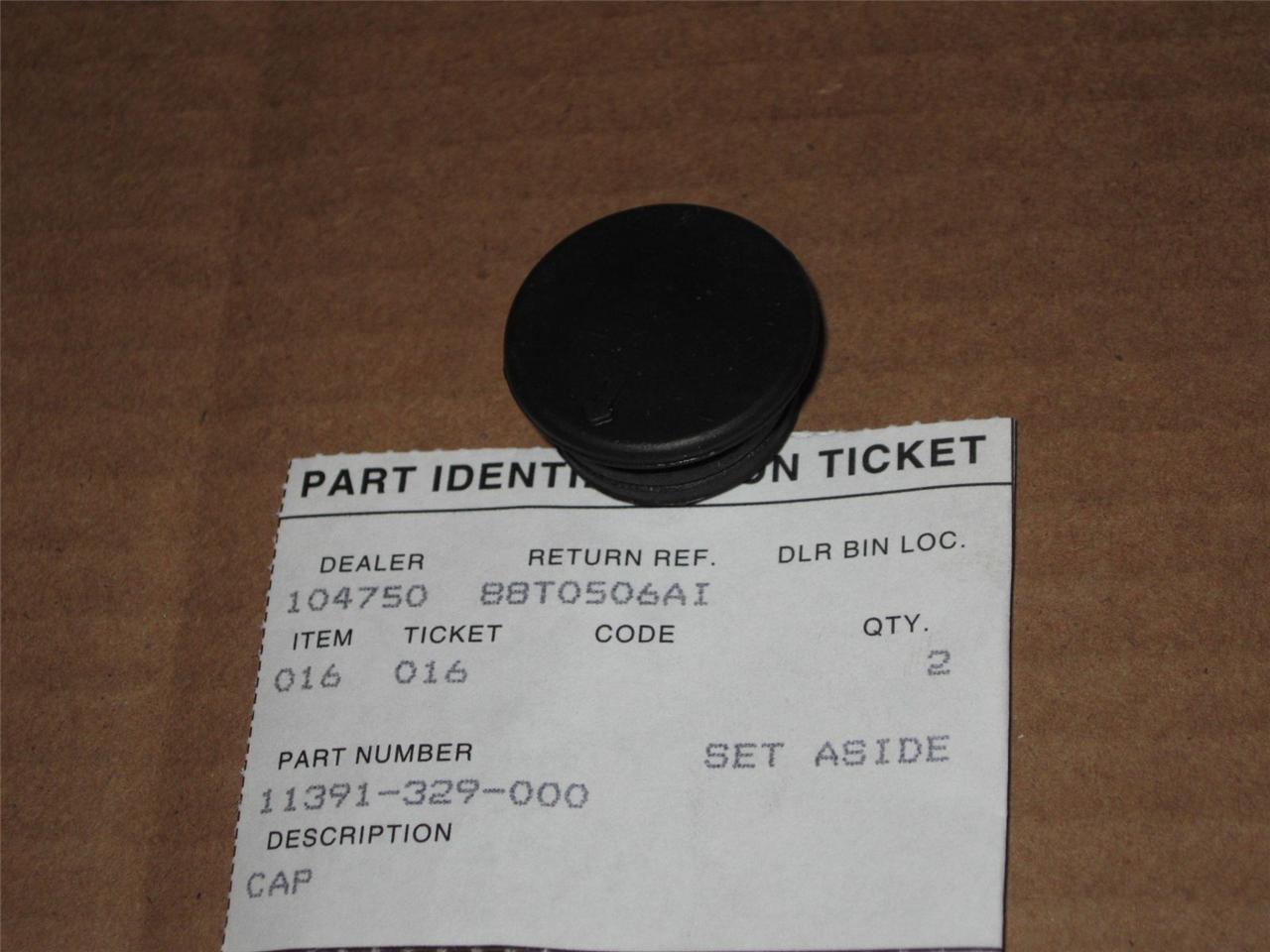

11391-329-000 clutch adjuster rubber bung

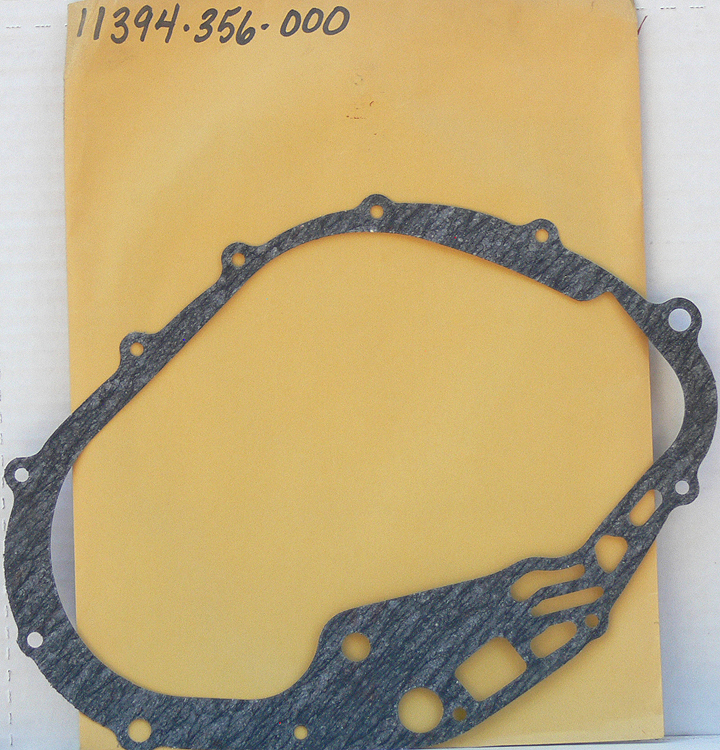

11394-356-000 gasket

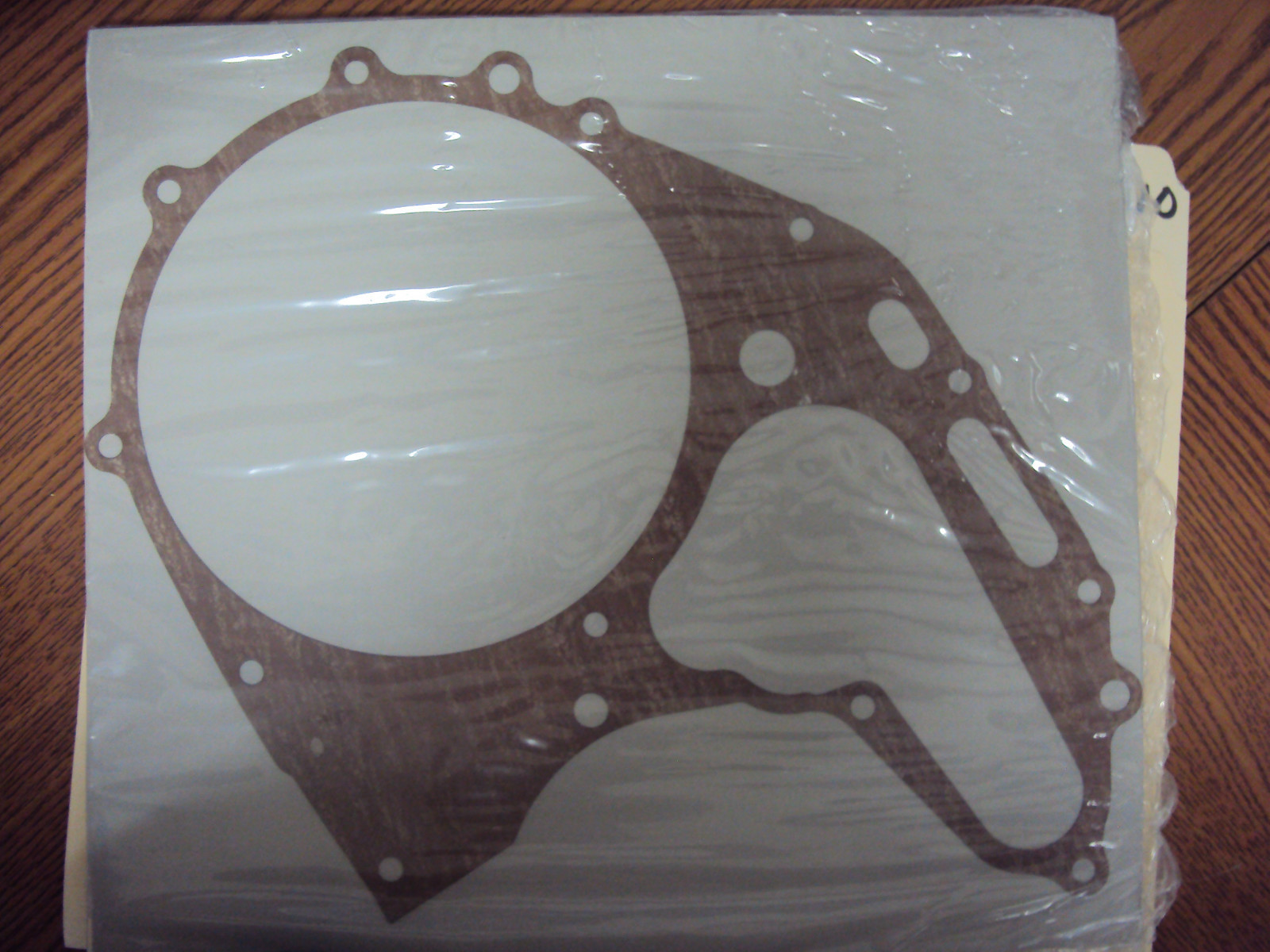

11395-329-306 gasket

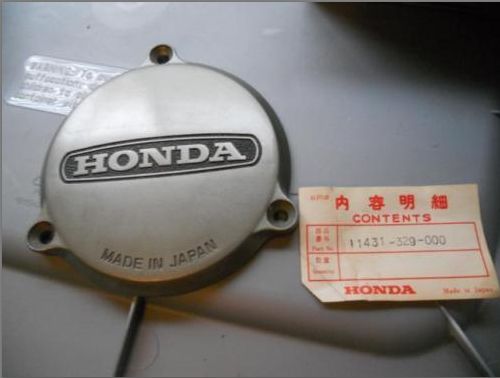

11431-376-000 stator cover

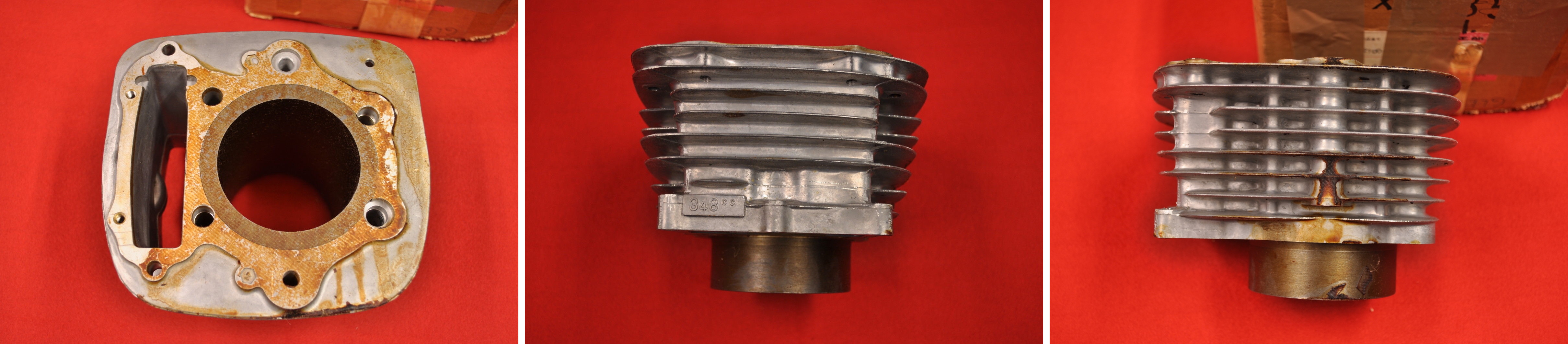

12100-356-010 brand new XL350 head

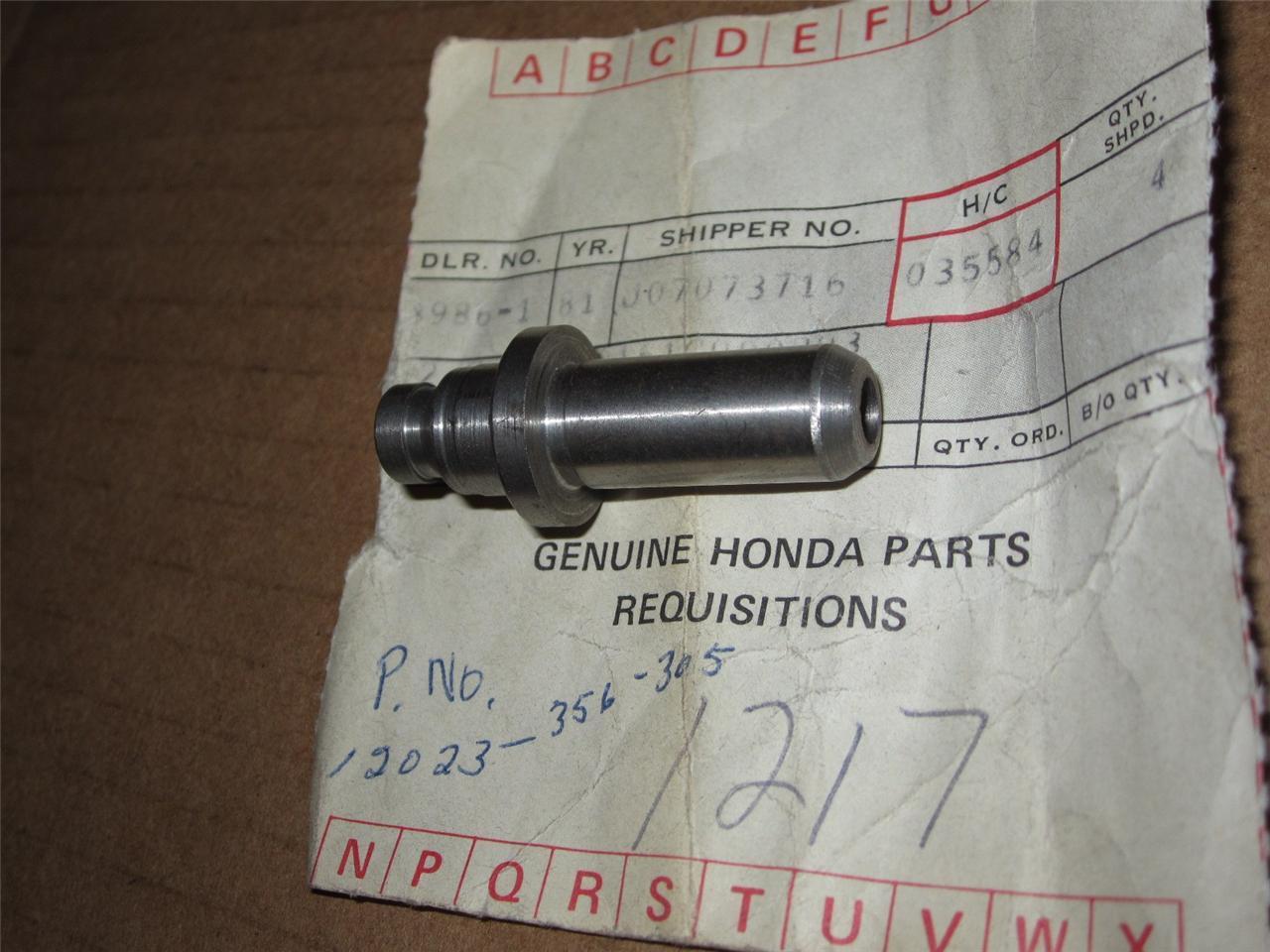

12023-356-305 valve guide

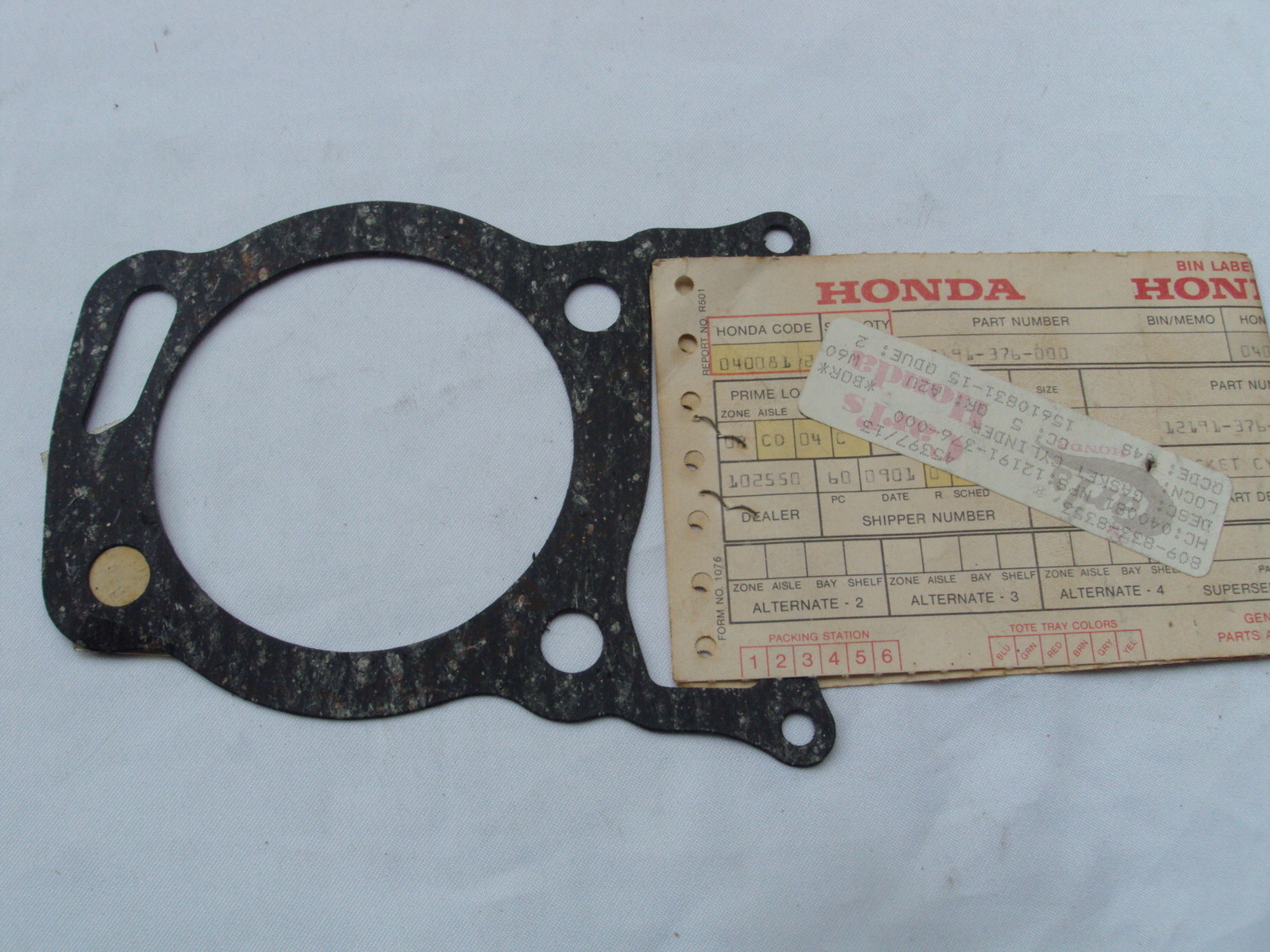

12191-376-000 gasket

12209-329-000 sealing cap inside head

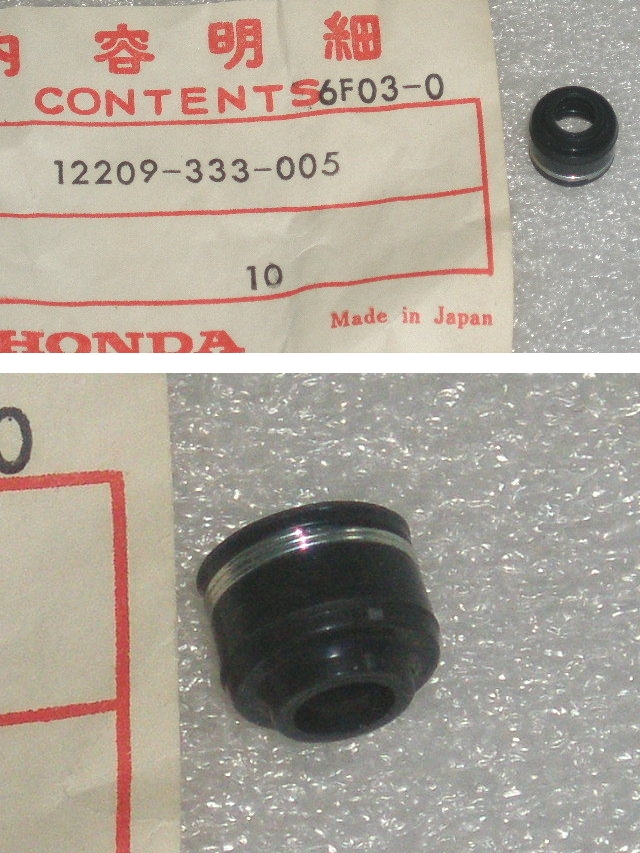

12209-333-005 valve stem oil seal

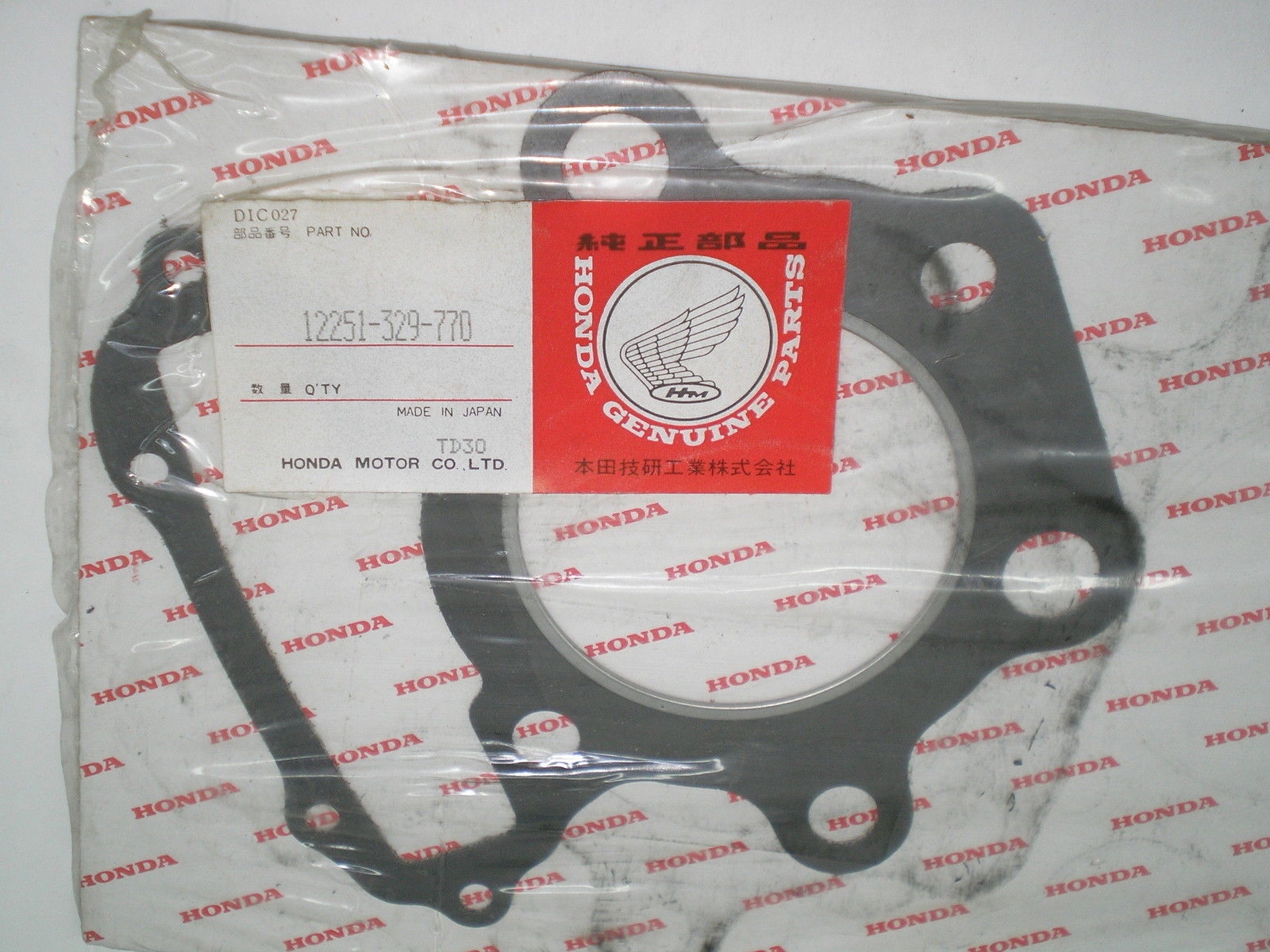

12251-329-770 head gasket

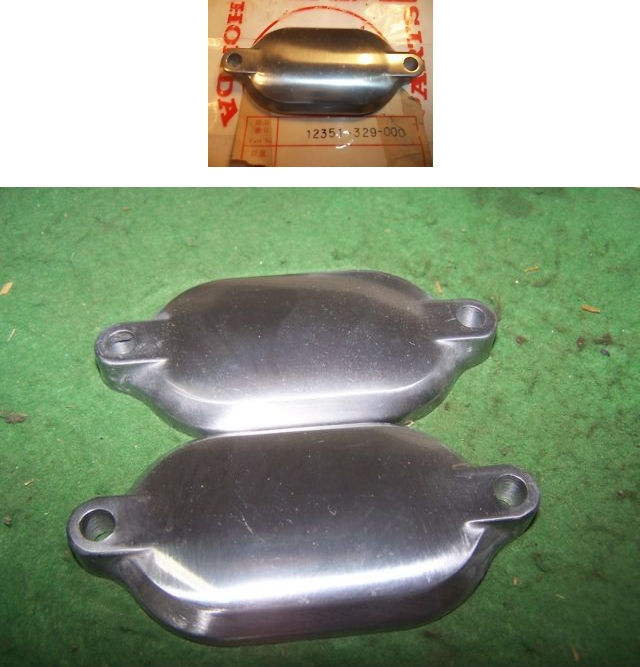

12351-329-000 tappet cover

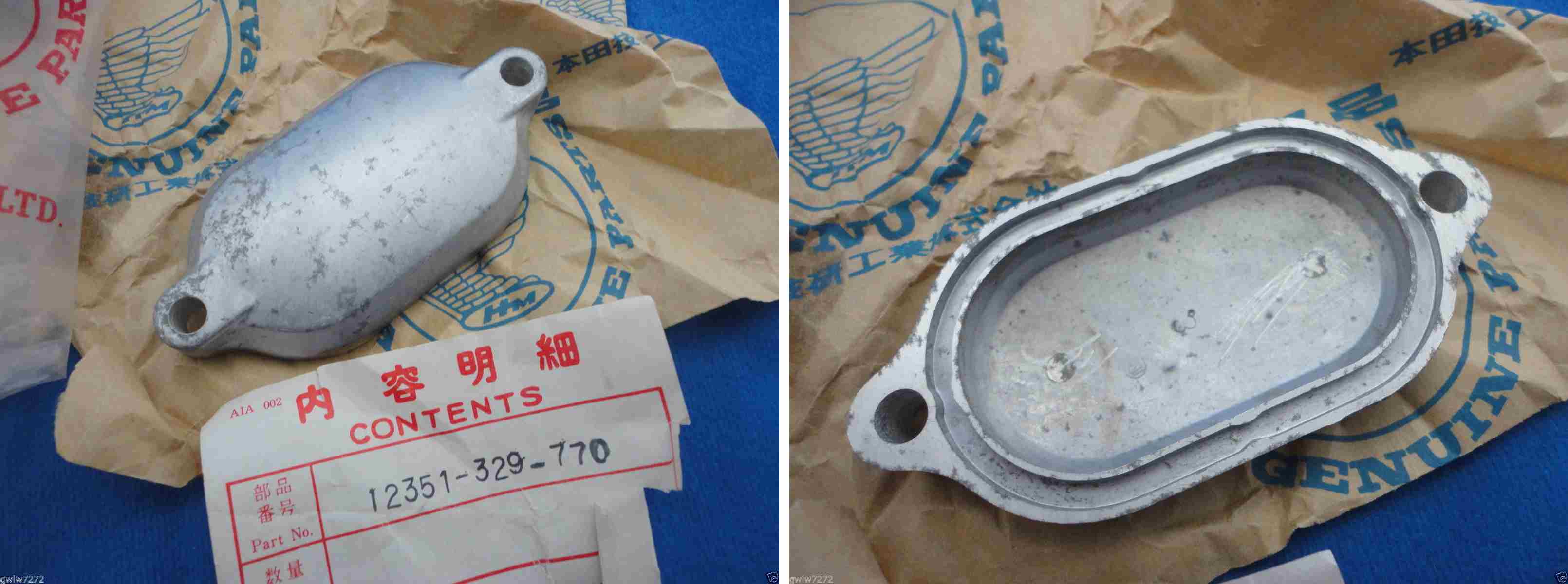

12351-329-770 earlier K0 tappet cover 770 means silver painted not polished

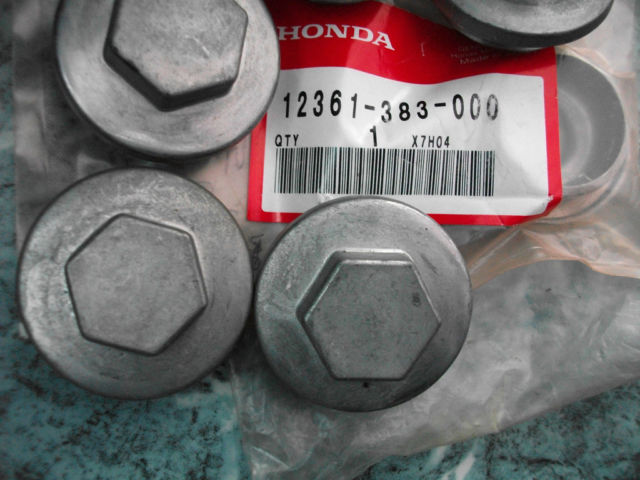

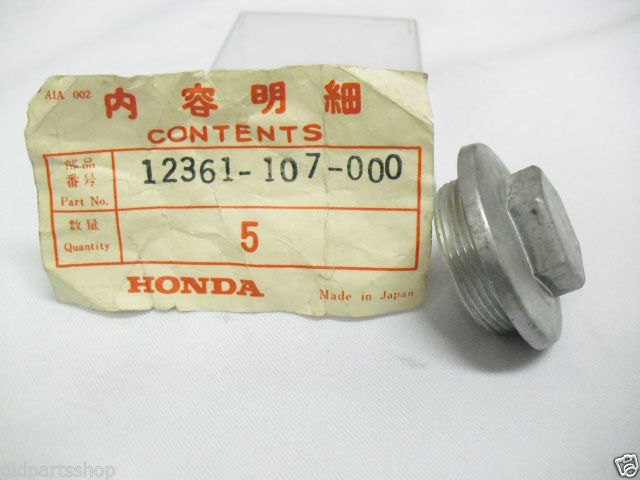

12361-107-000 Oil filter cover now superceded by 12361-383-000

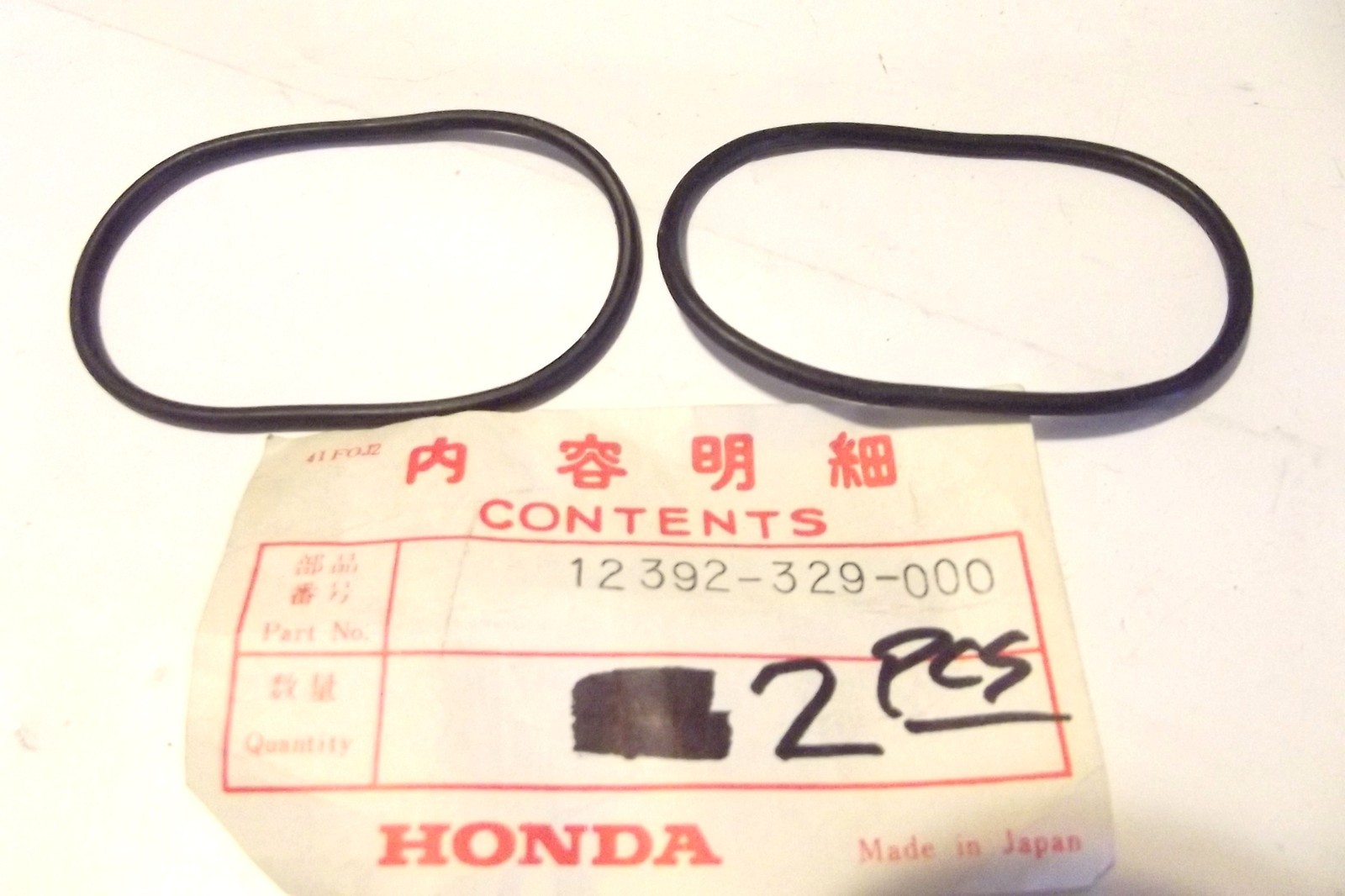

12392-329-000 tappet cover O ring

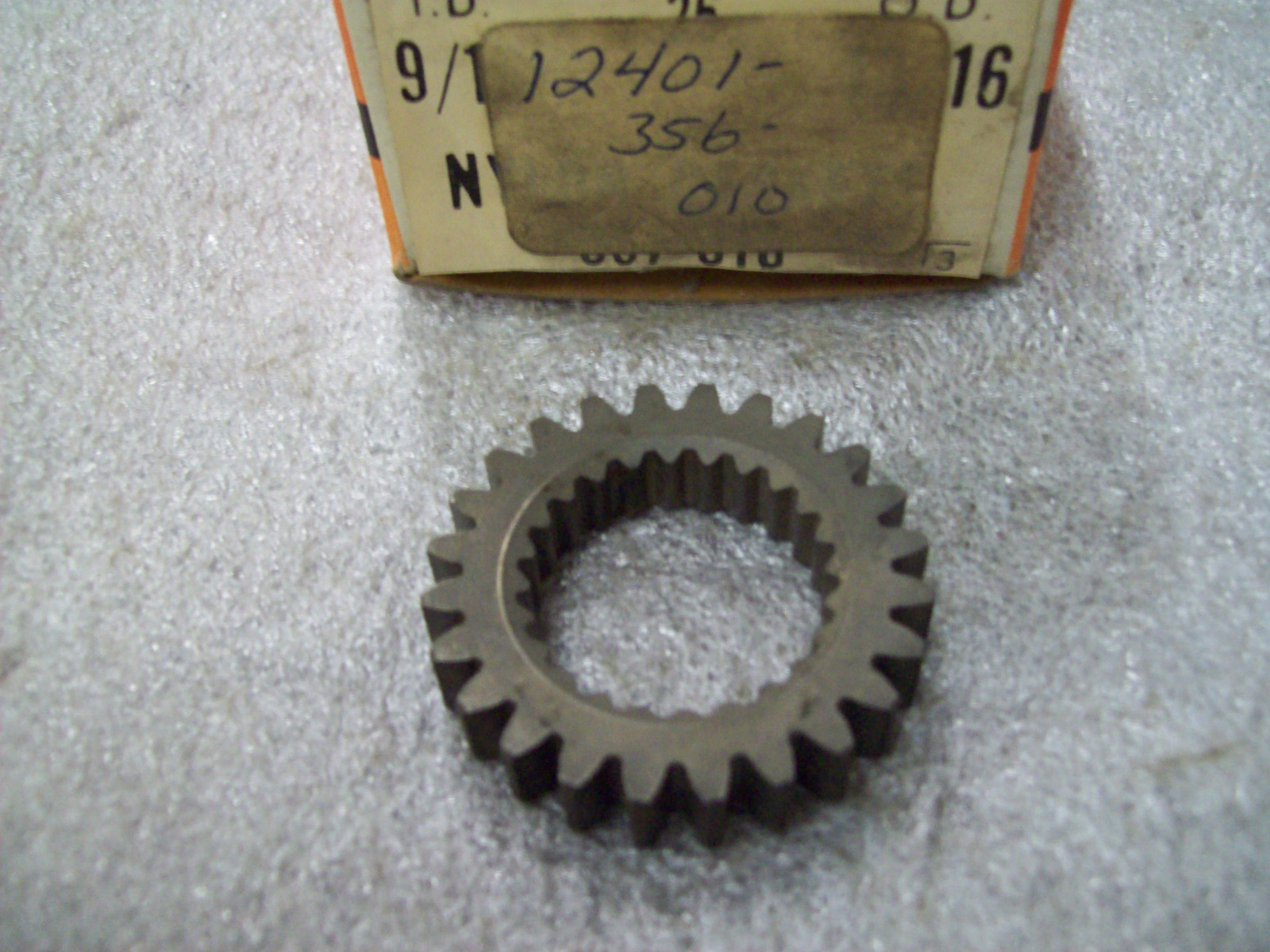

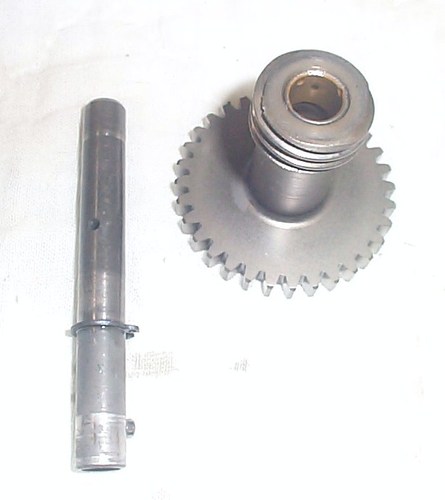

12401-356-010 tacho idler gear

12420-329-700 and 12410-385-000 tacho drive

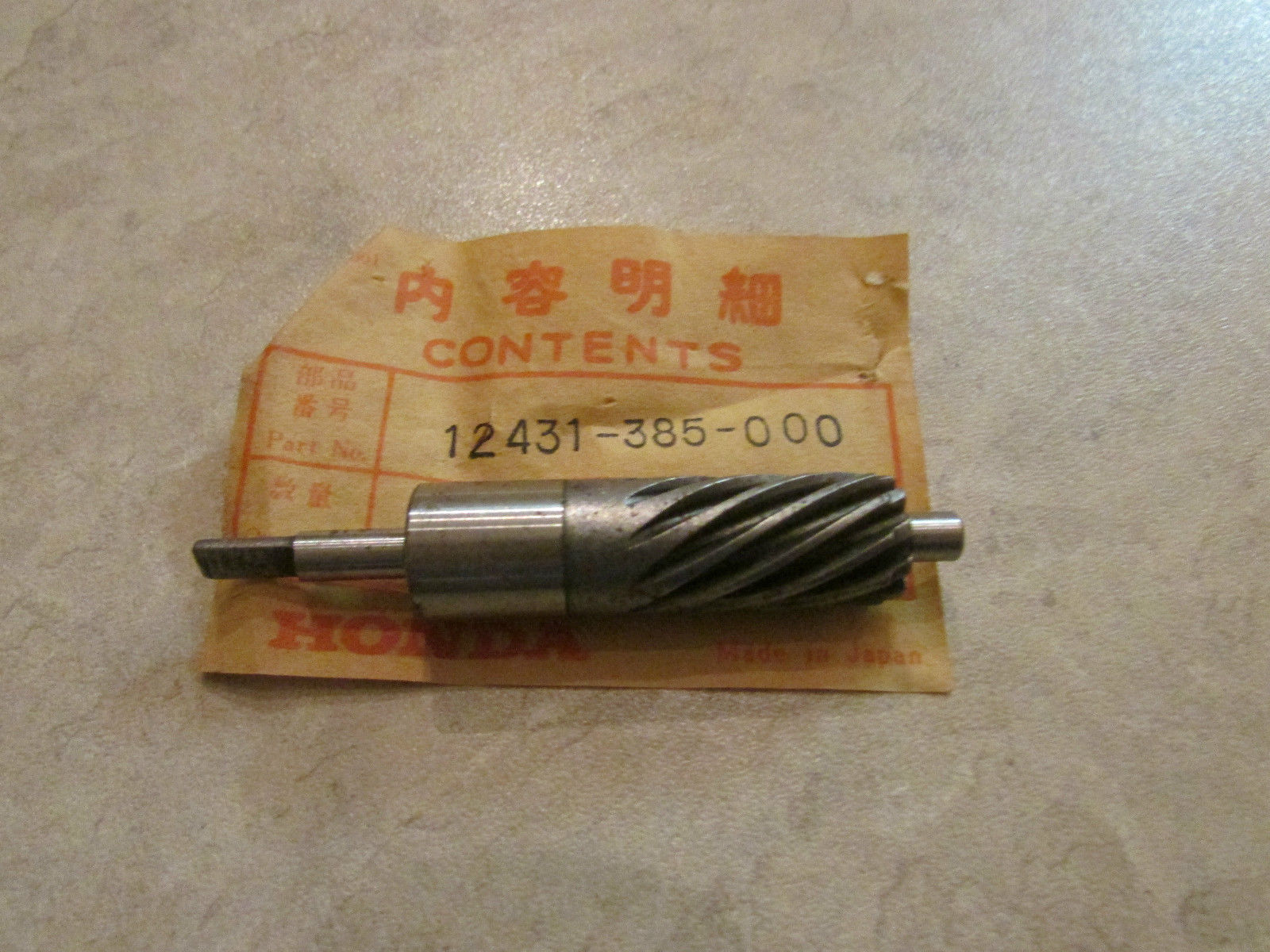

12431-385-000 Tacho drive pinion

12431-385-000 and 93700-06025-02 tacho driveshaft and screw

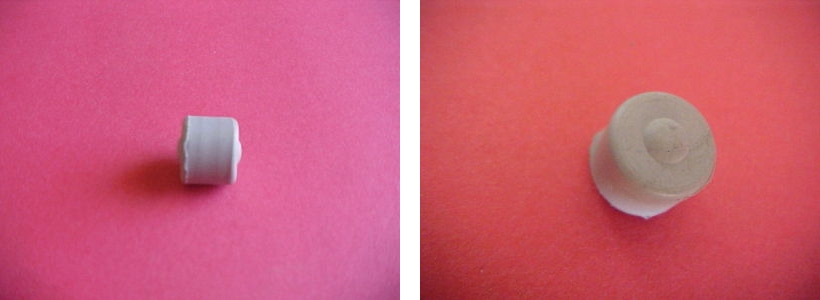

12620-329-000 anti ringing head fins damper

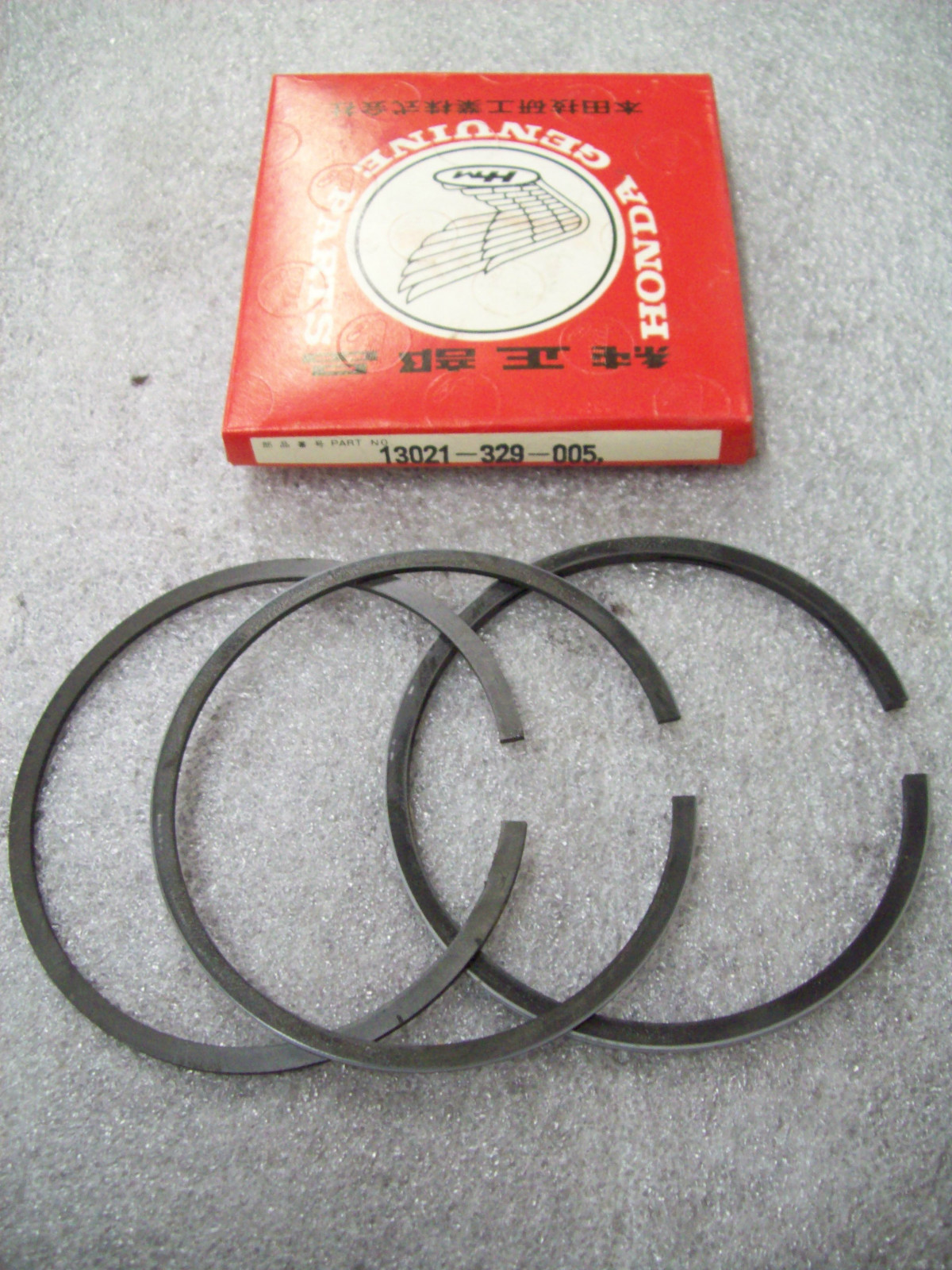

13021-329-005 piston rings

13101-329-000 piston

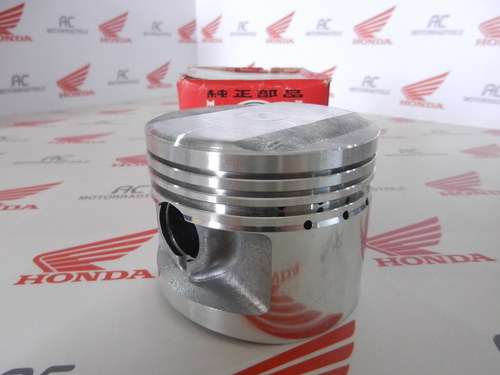

13102-329-000 piston

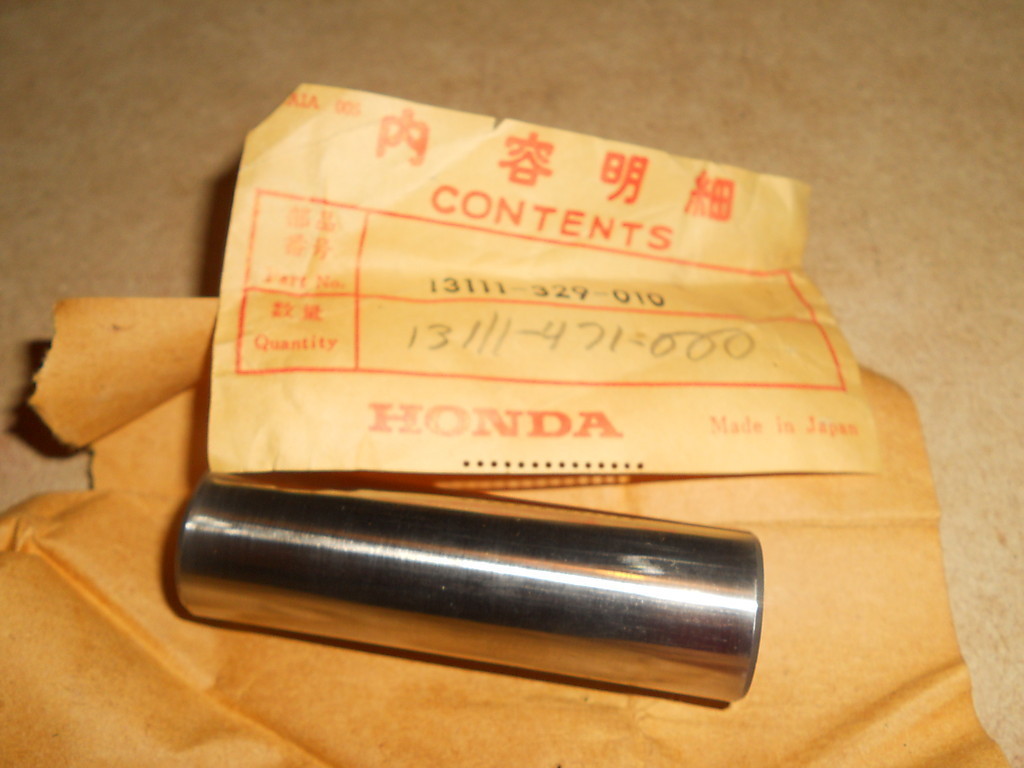

13111-329-010 gudgeon pin

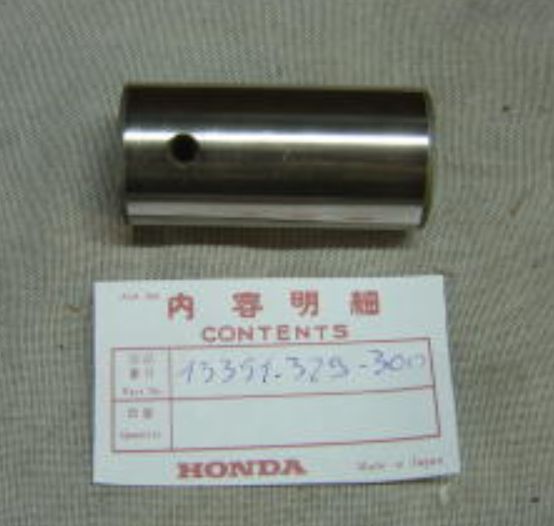

13351-329-300 crankshaft pin

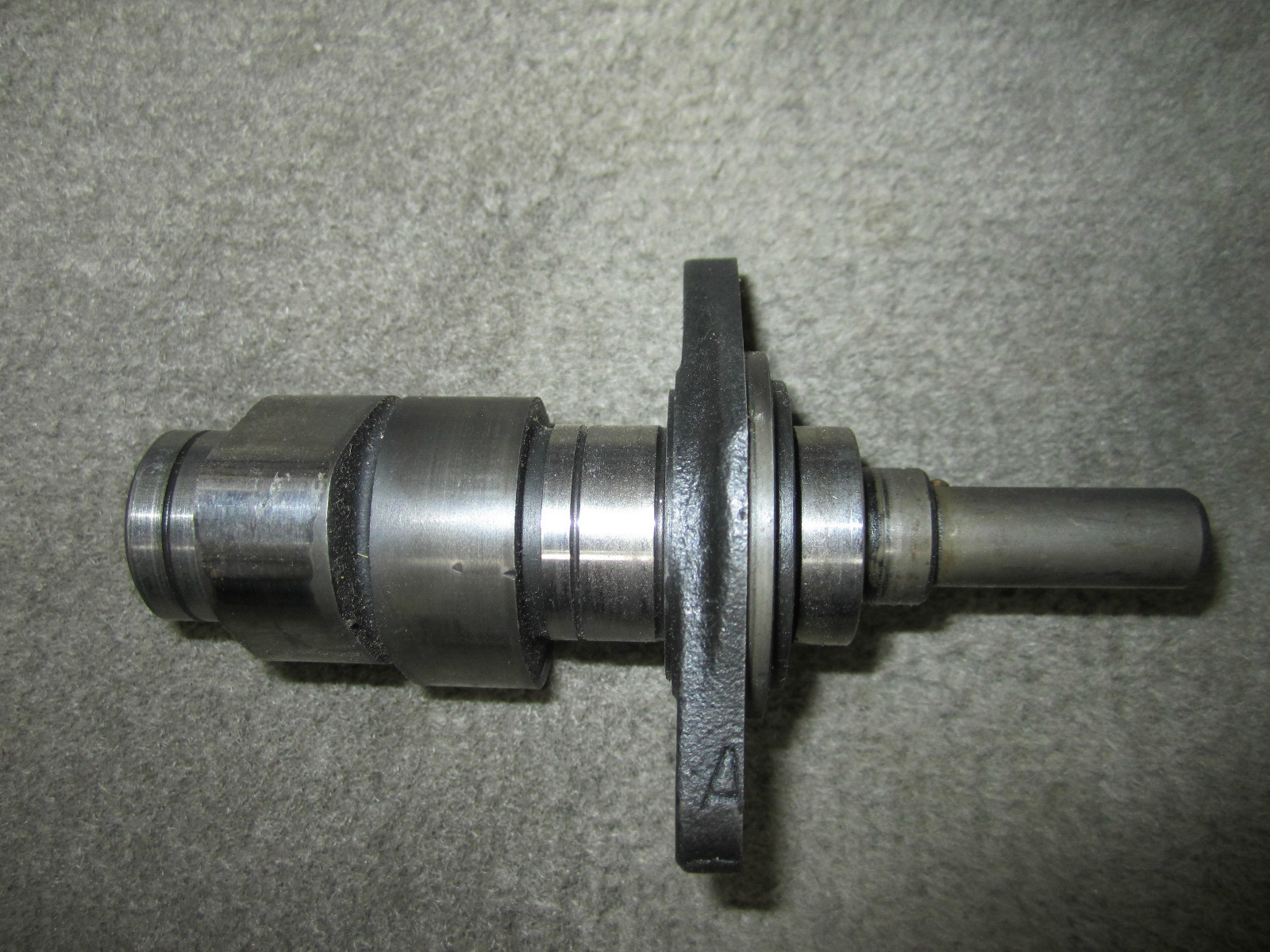

14101-329-040 camshaft

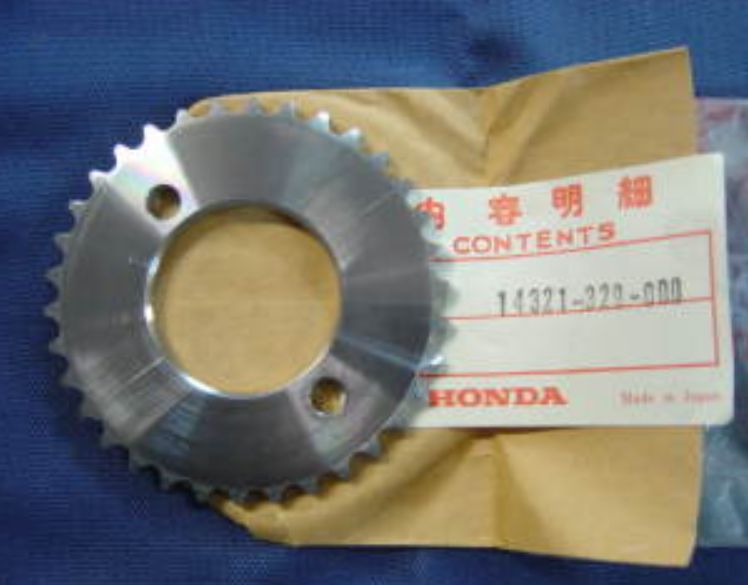

14321-329-000 camshaft sprocket

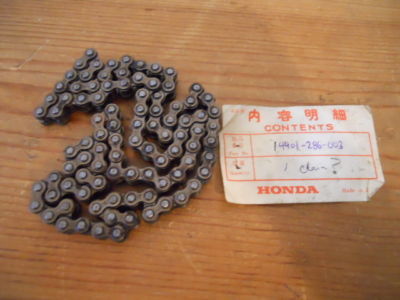

14401-286-000 camchain

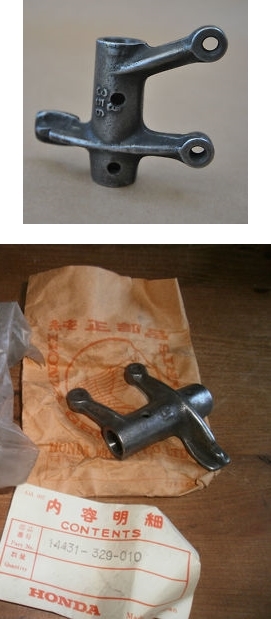

14431-329-010 rocker

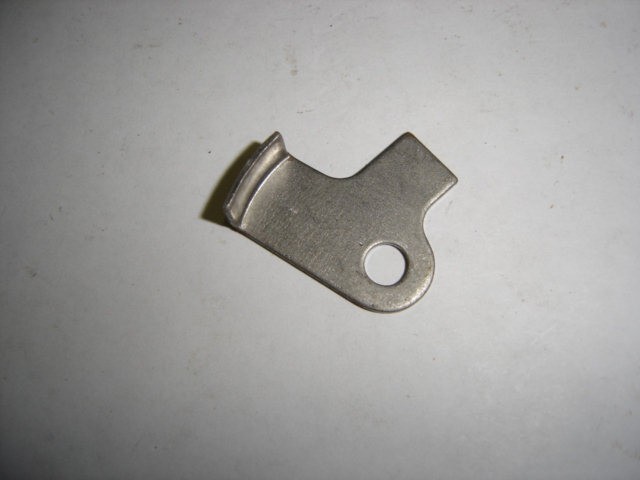

14414-329-000 cam chain set plate

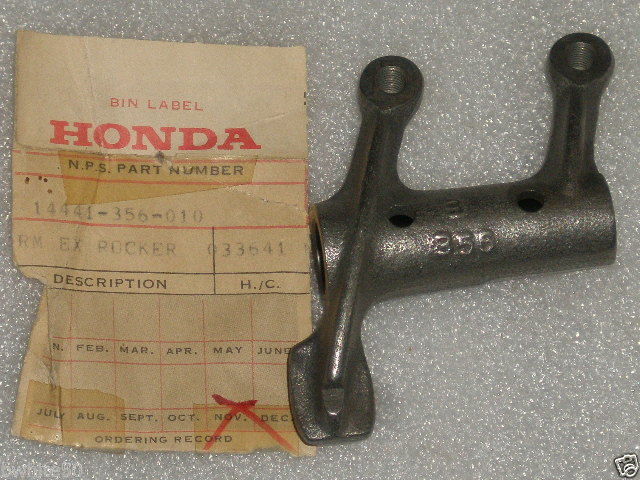

14441-386-000 rocker

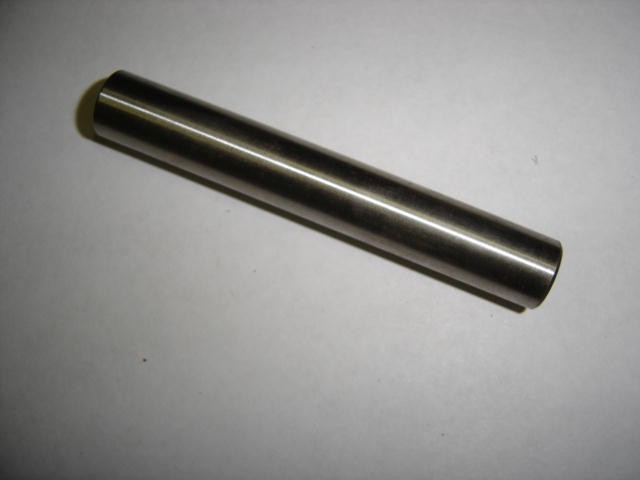

14451-385-000 rockershaft

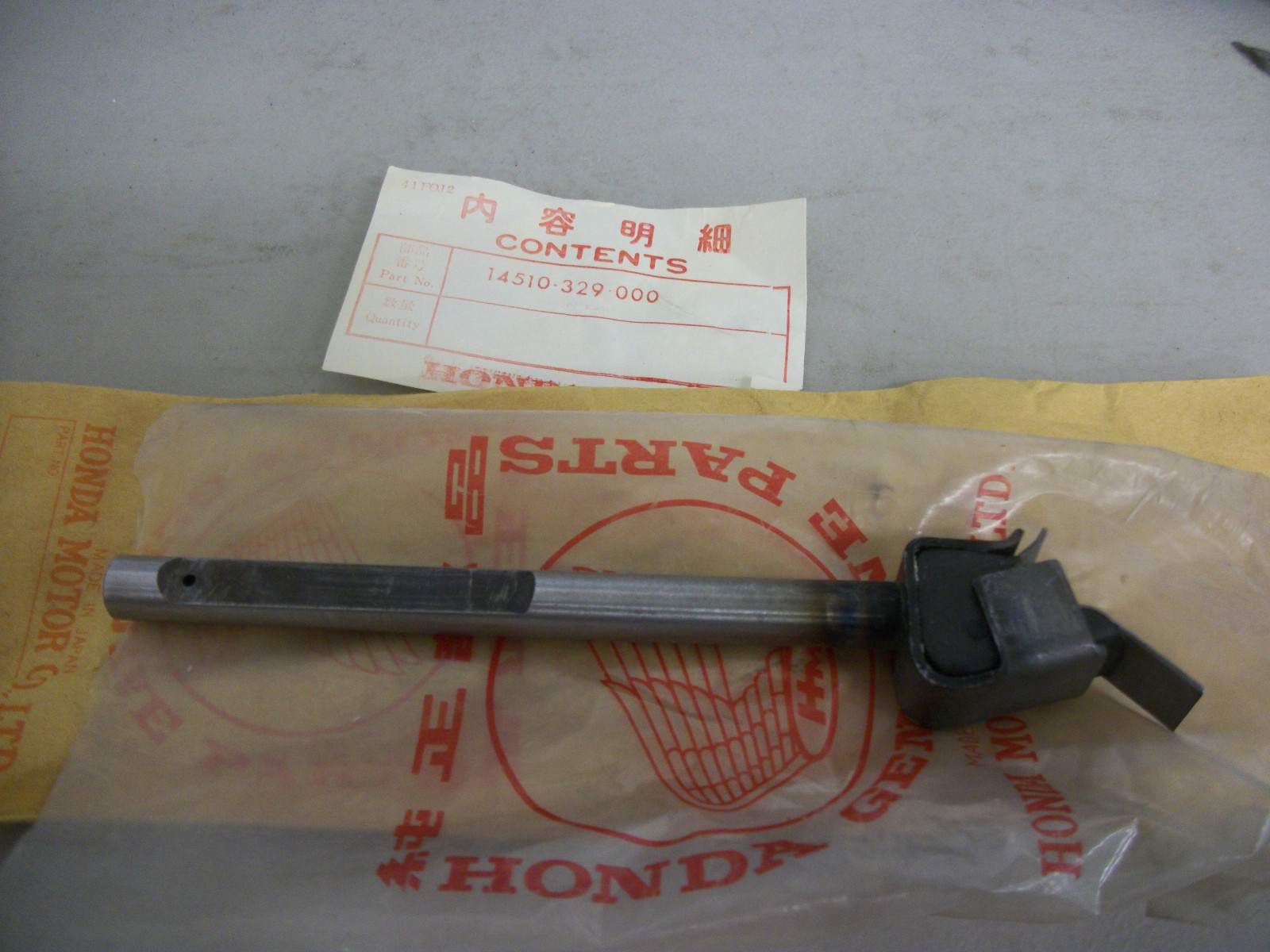

14510-329-000 camchain tensioner

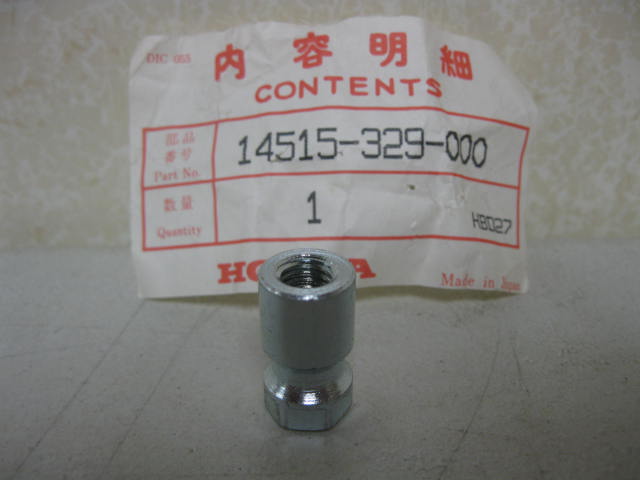

14515-329-000 camchain tensioner setting nut

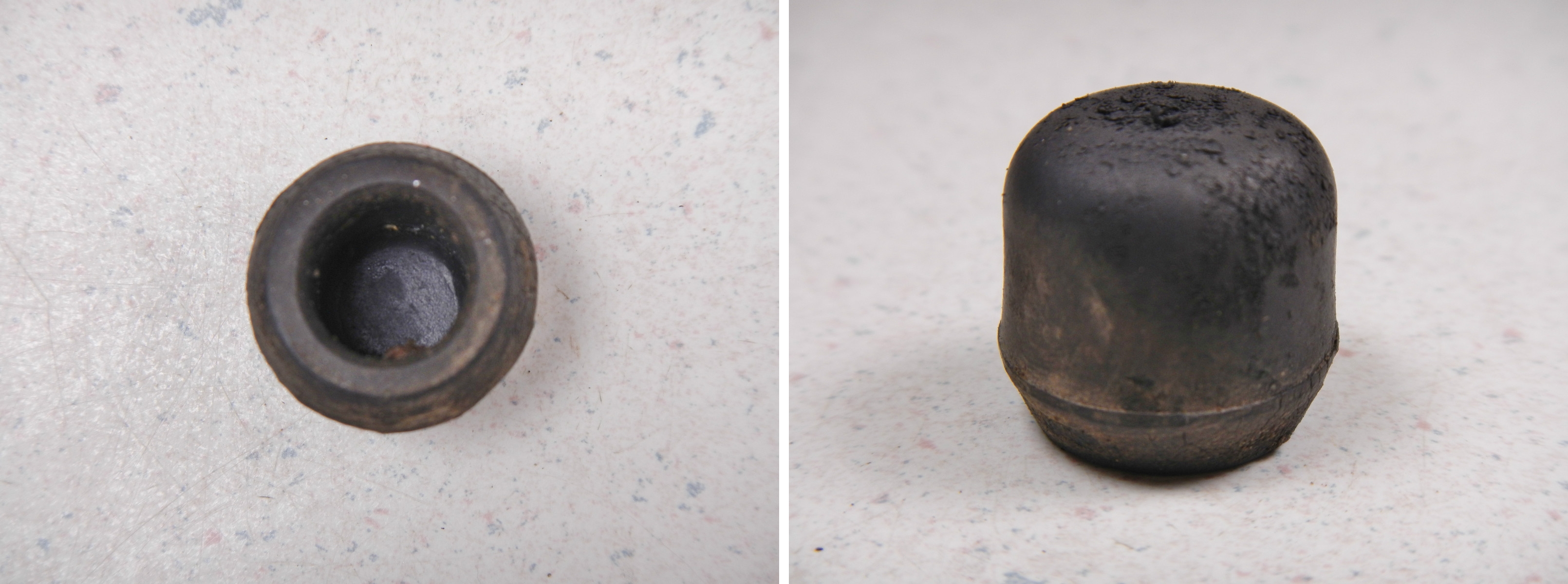

14561-391-000 rubber cover cam chain tensioner adjuster

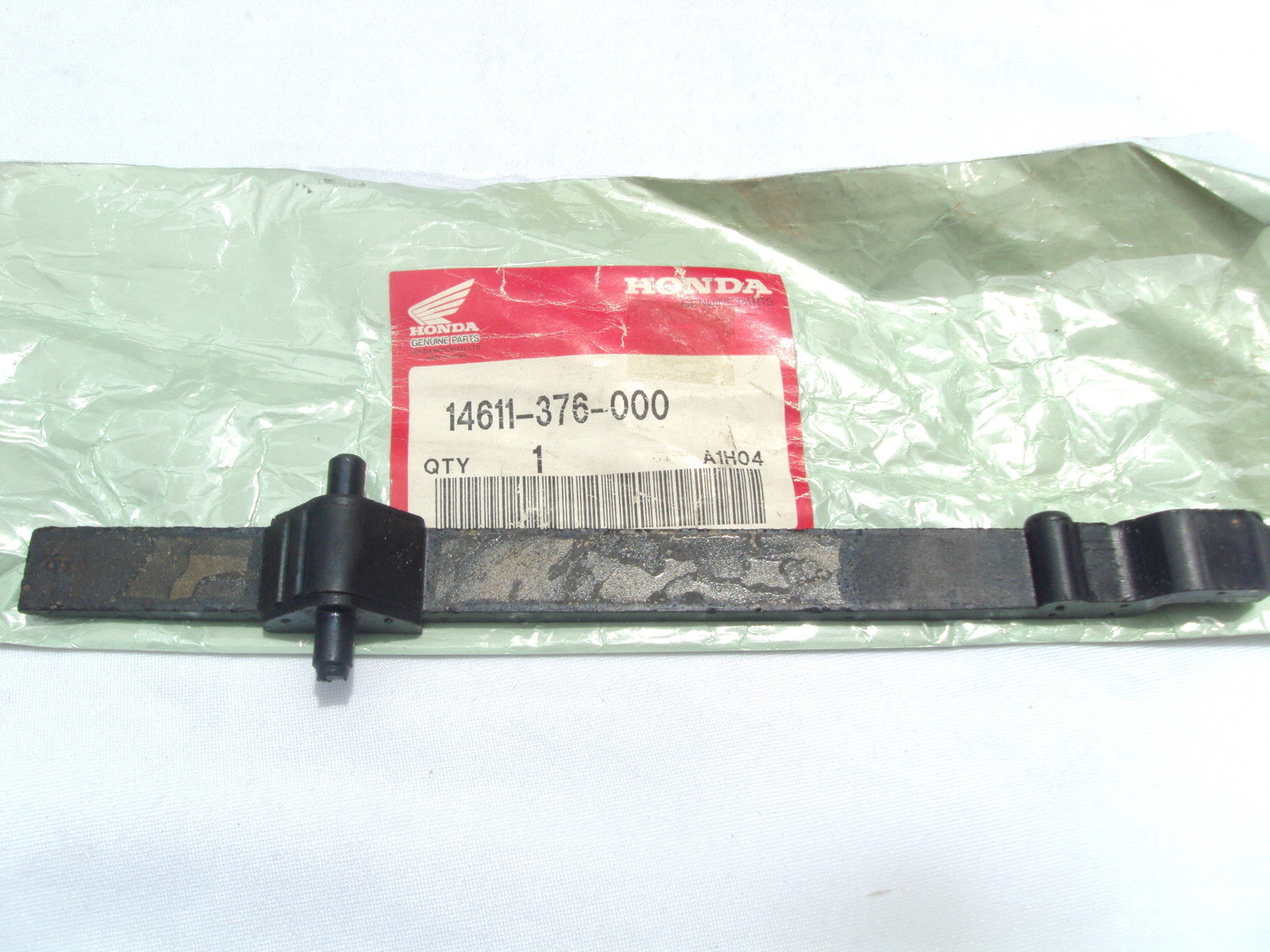

14611-376-000 camchain tensioner guide

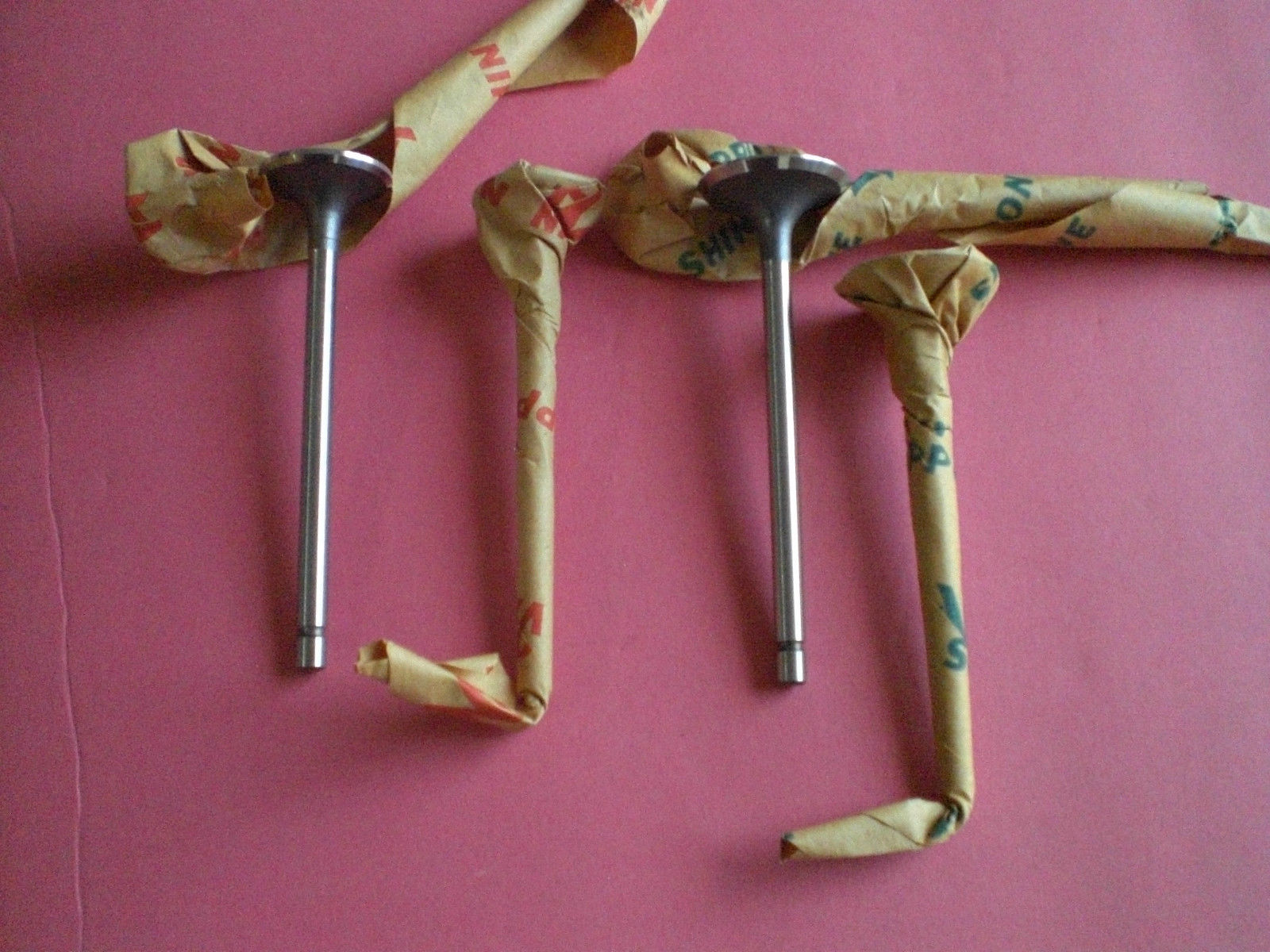

14711-329-010 and 14721-320-000 valve set

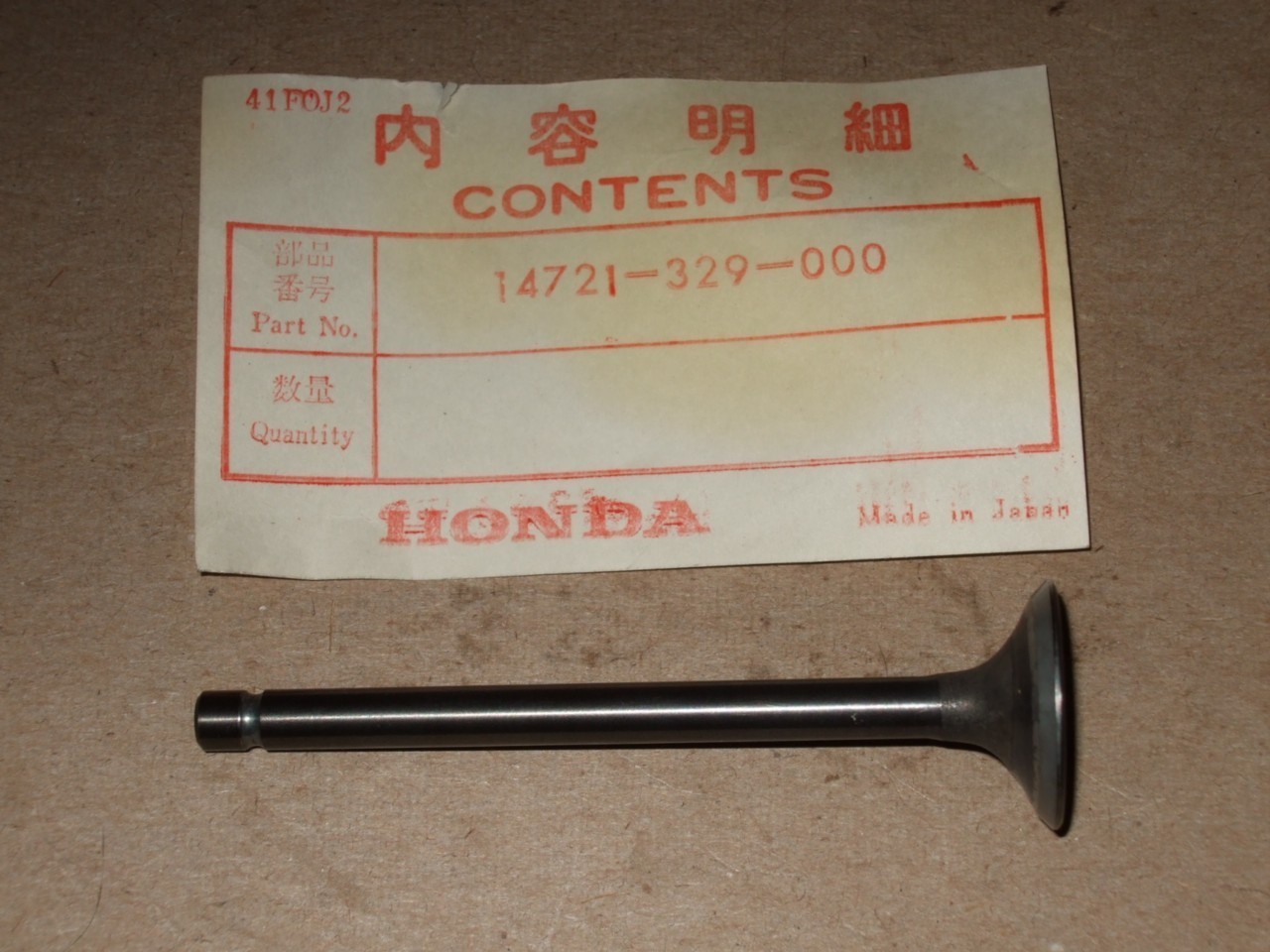

14721-329-000 valve

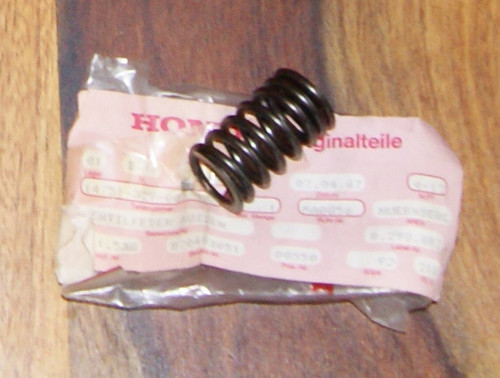

14751-329-005 valve spring

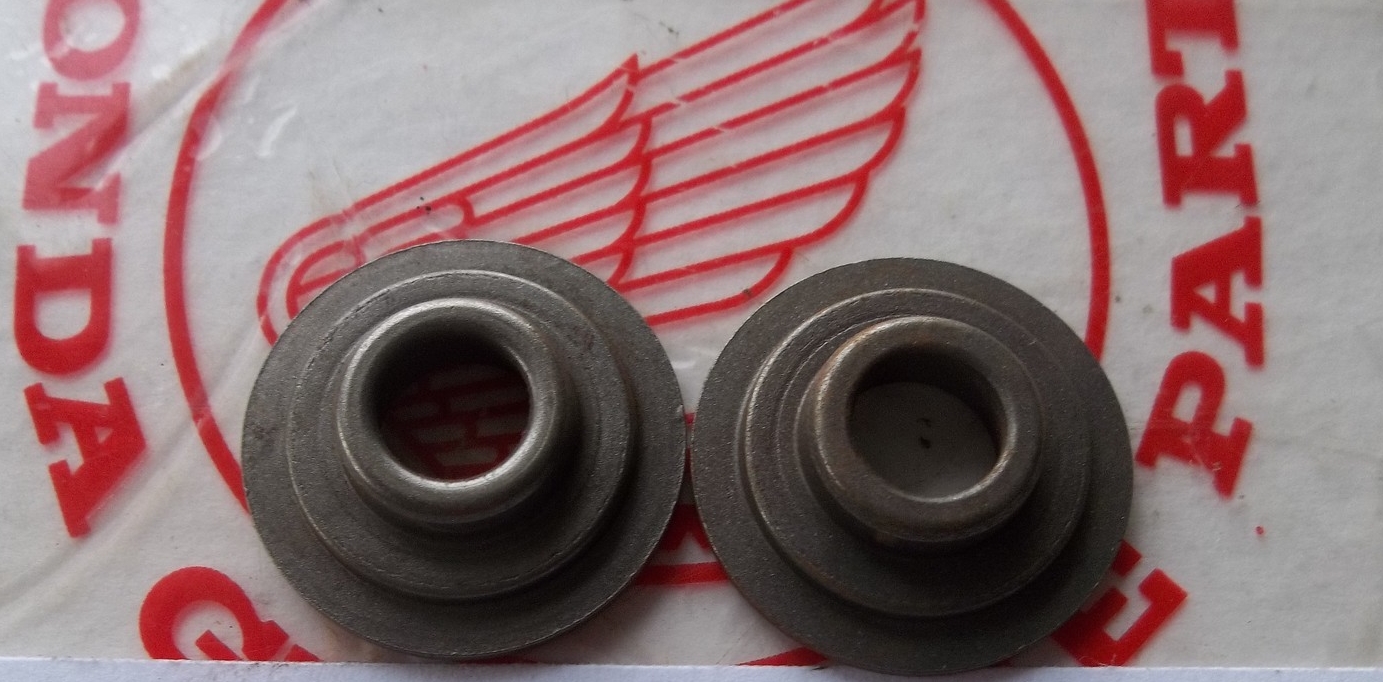

14771-329-000 valve spring seats

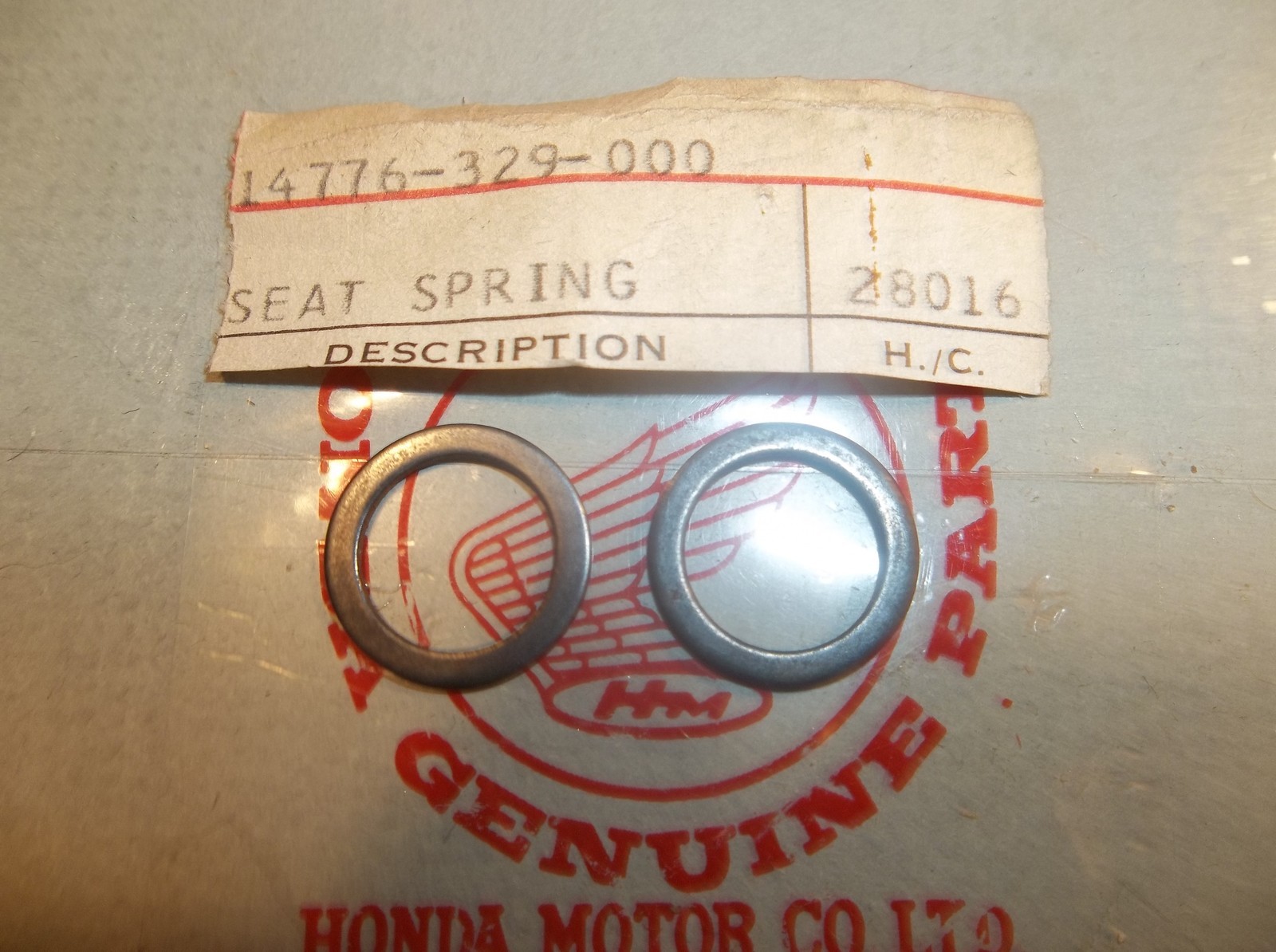

14776-329-000 valve spring seat washer

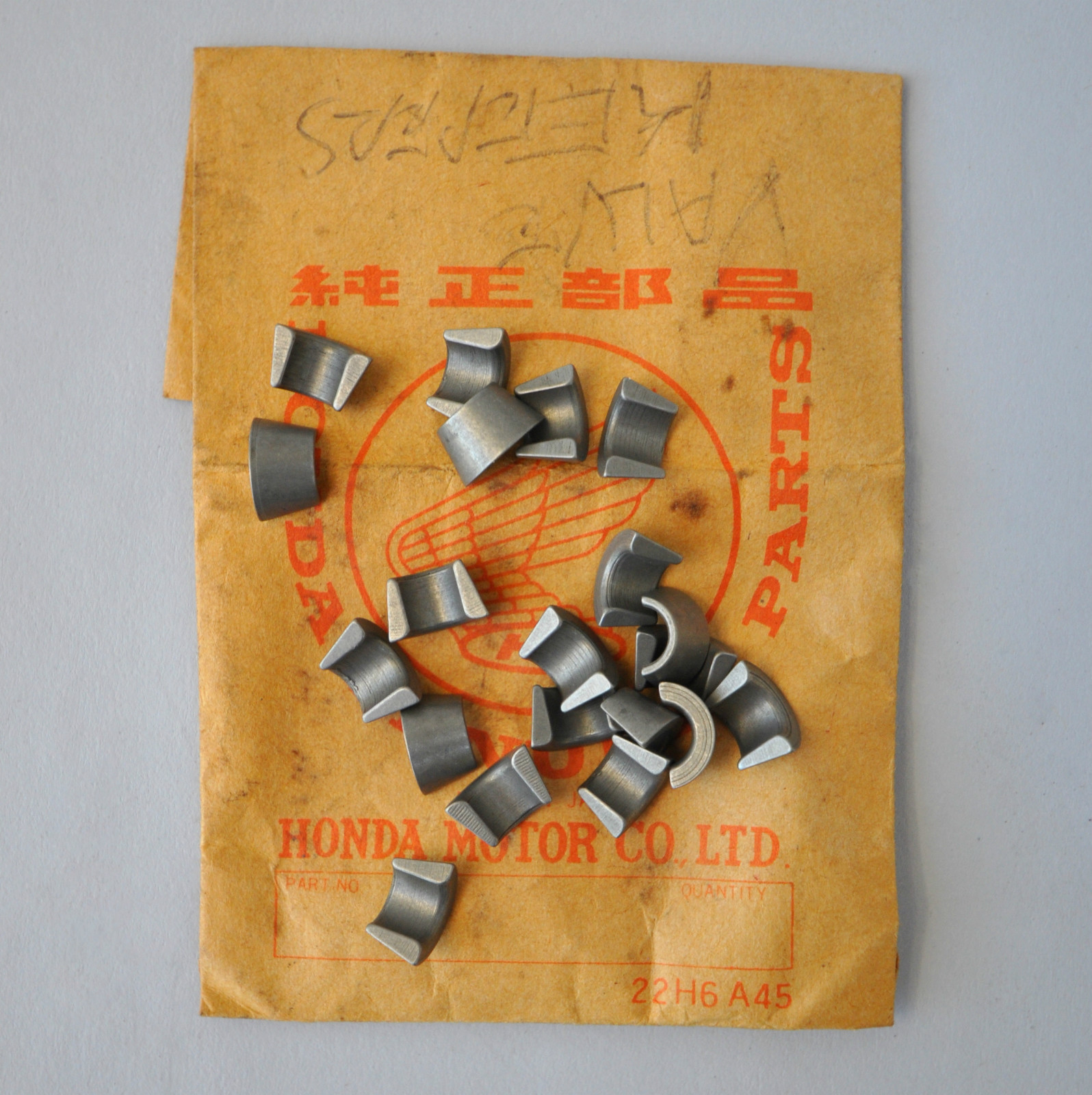

14781-107-003 valve collets

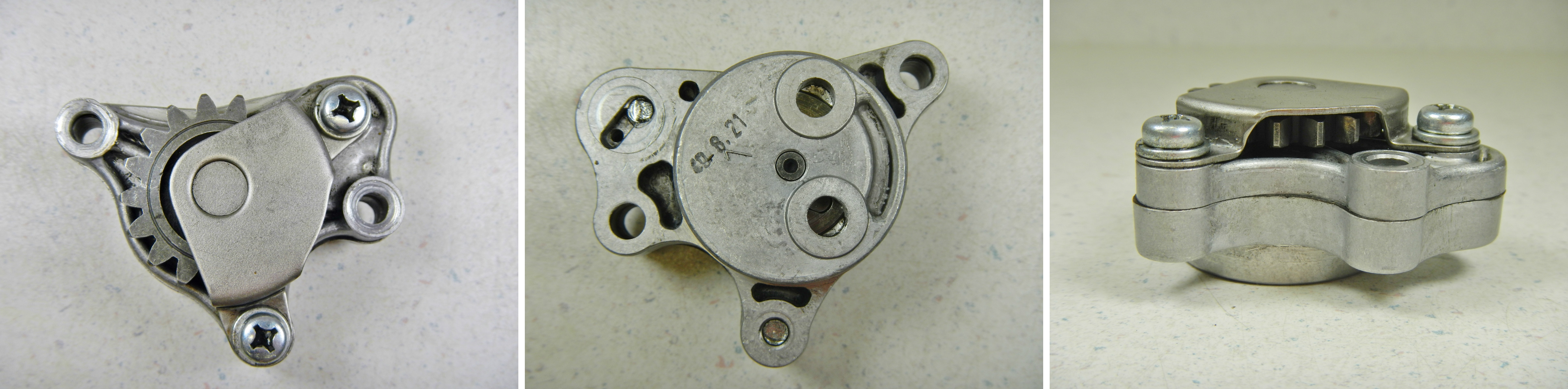

15100-356-000 oil pump complete

15111-329-010 oil pump body

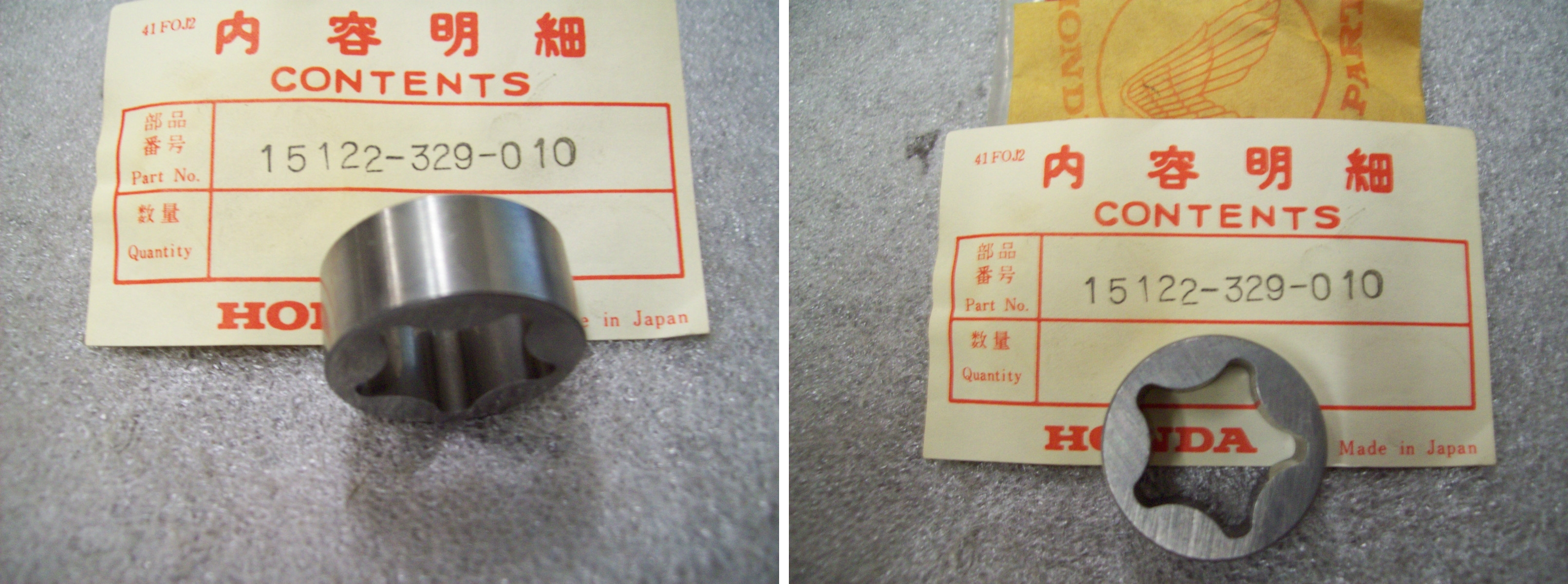

15122-329-010 oil pump rotor

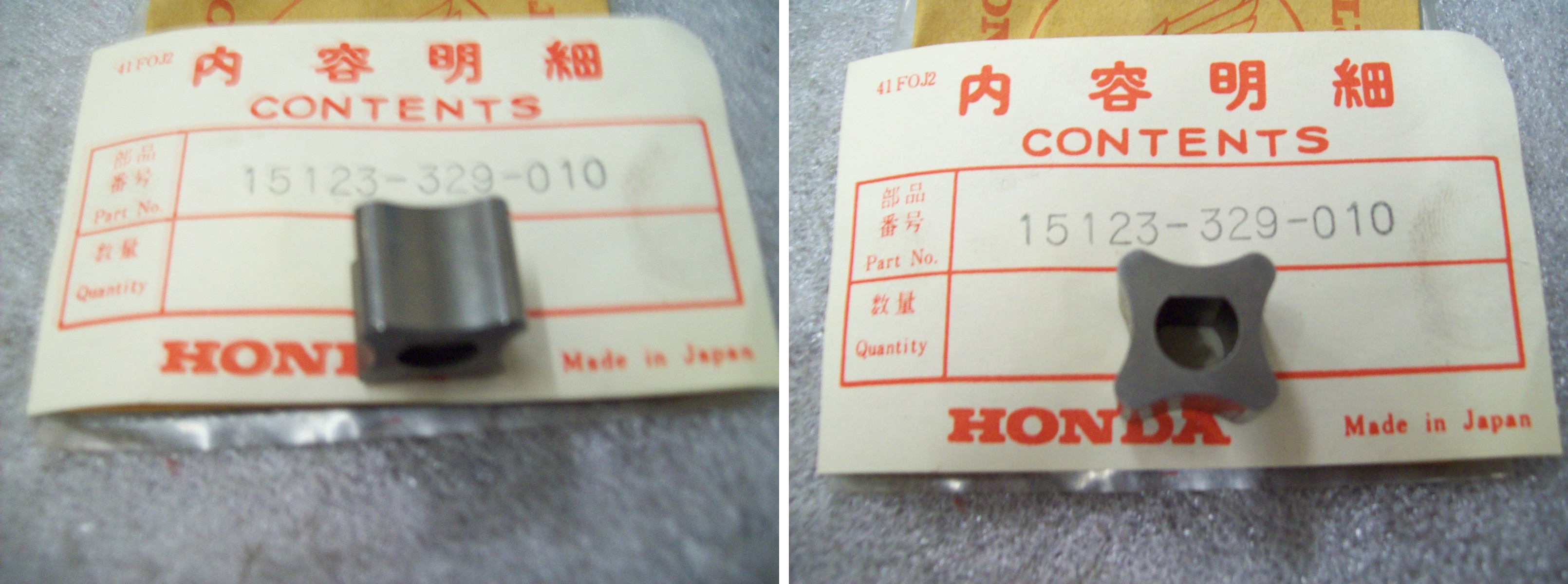

15123-329-010 oil pump impeller

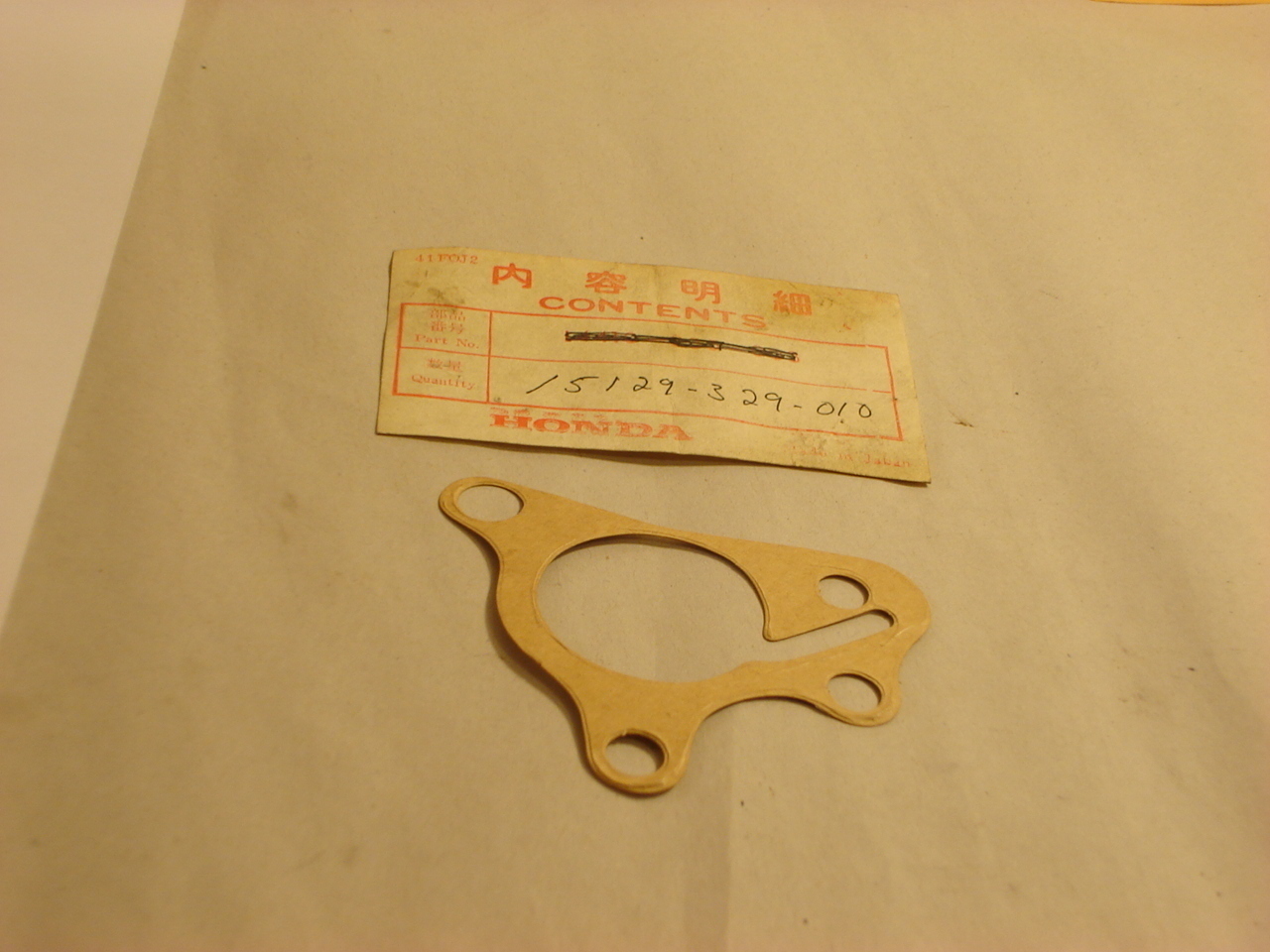

15129-329-010 oil pump gasket

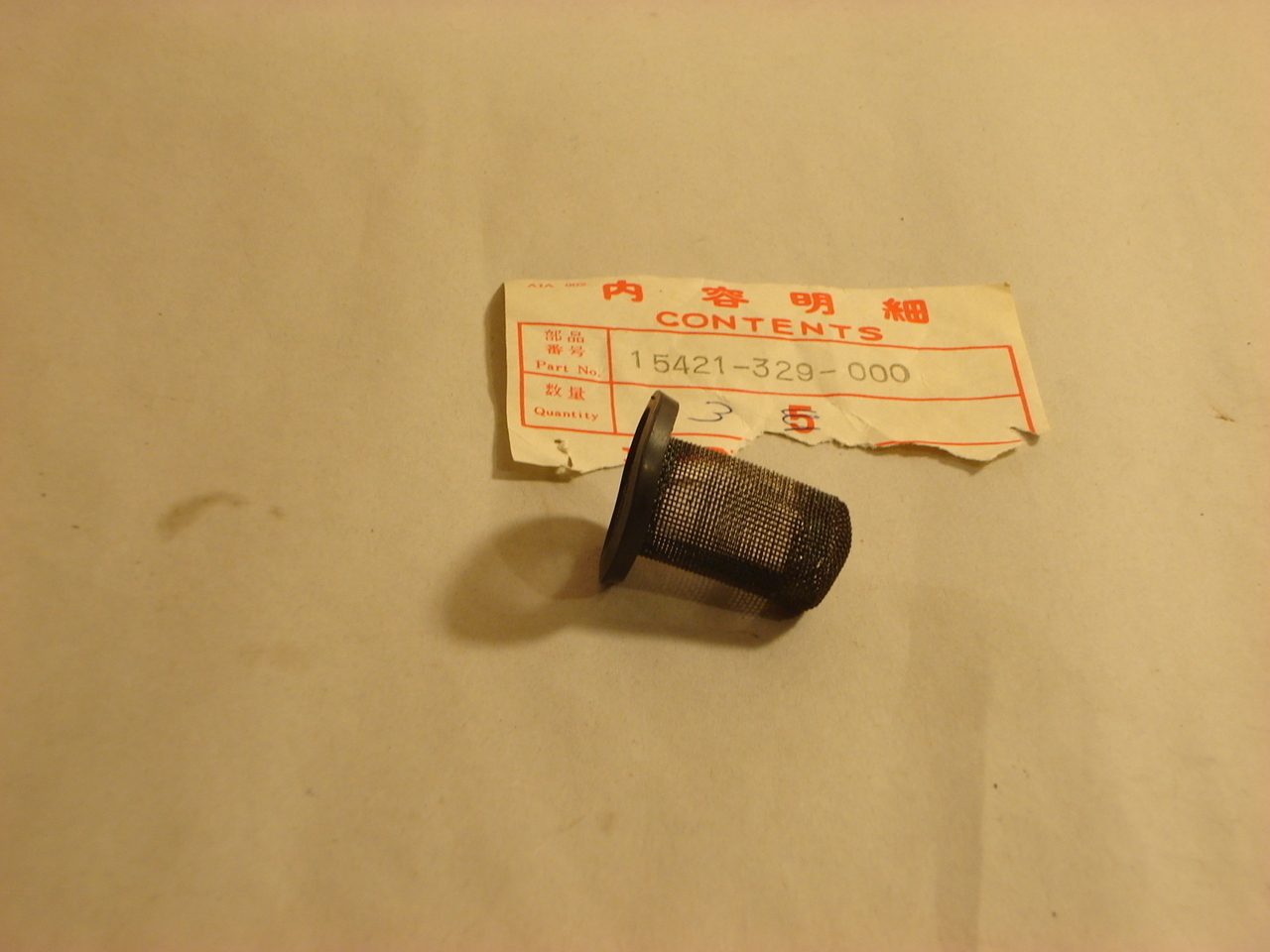

15421-329-000 oil strainer

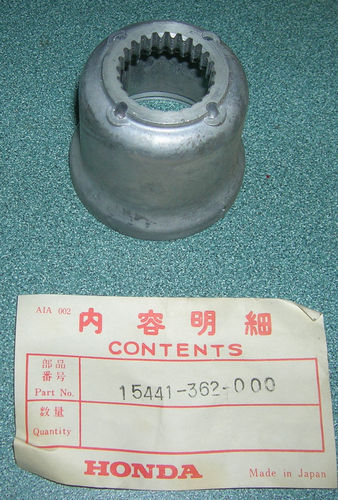

15441-362-000 oil filter rotor

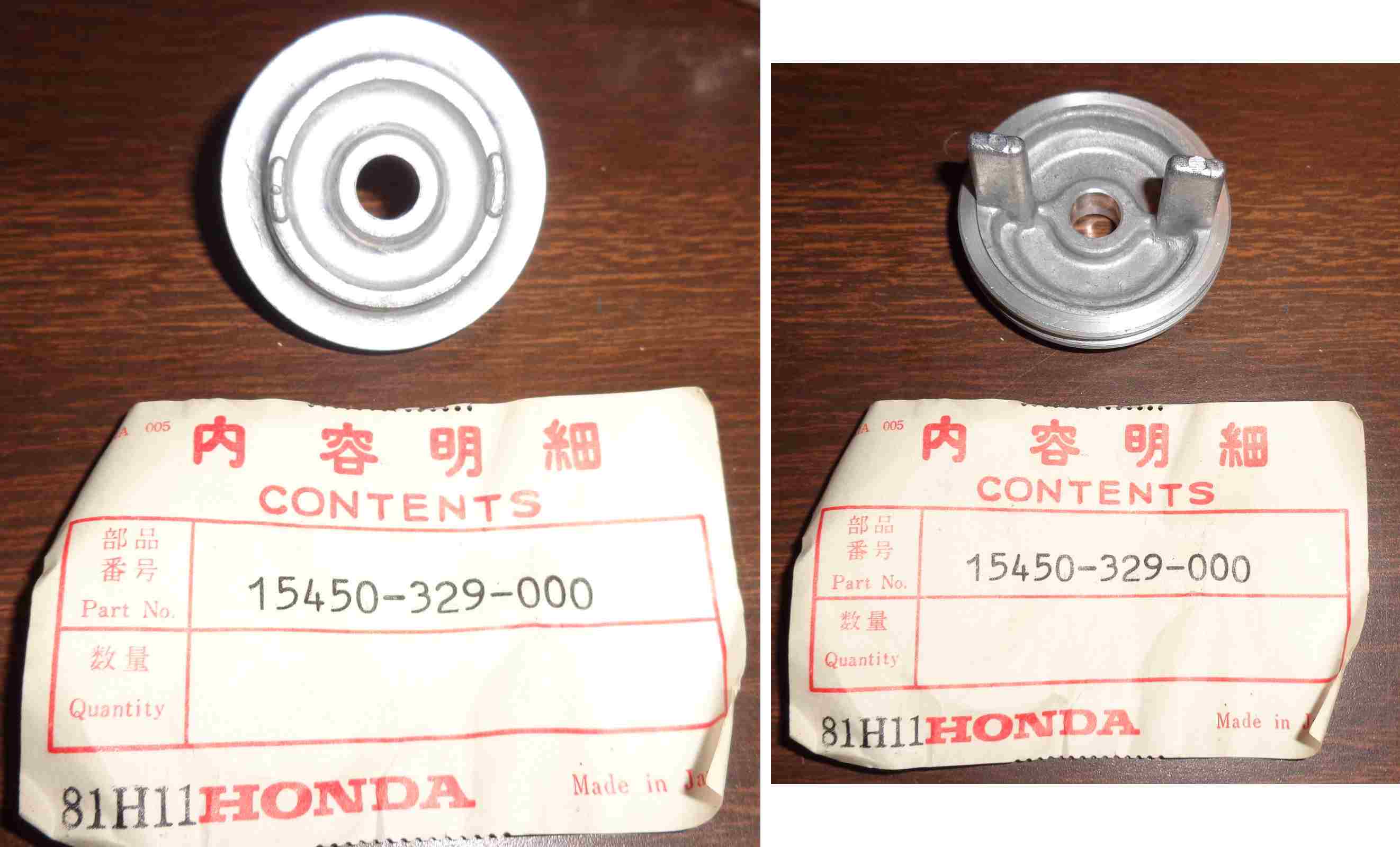

15450-329-000 oil filter cap

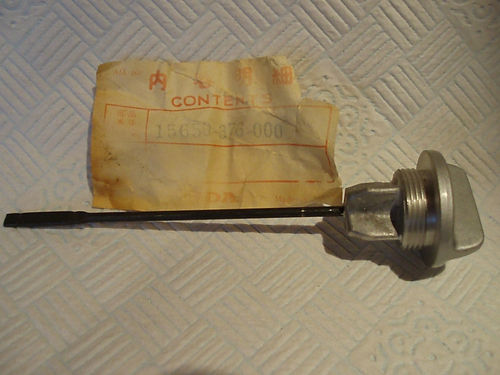

15650-376-000 dipstick

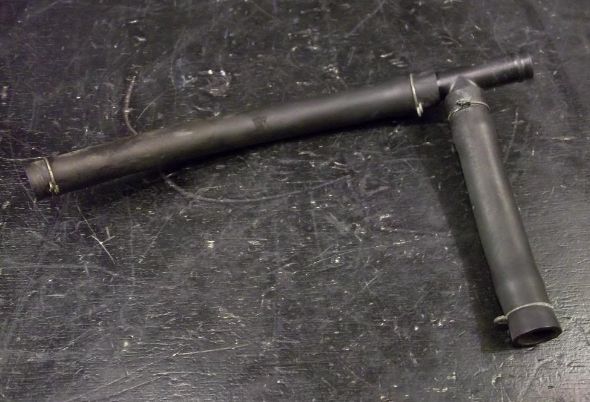

15706-385-000 and associated parts breather tubes etc

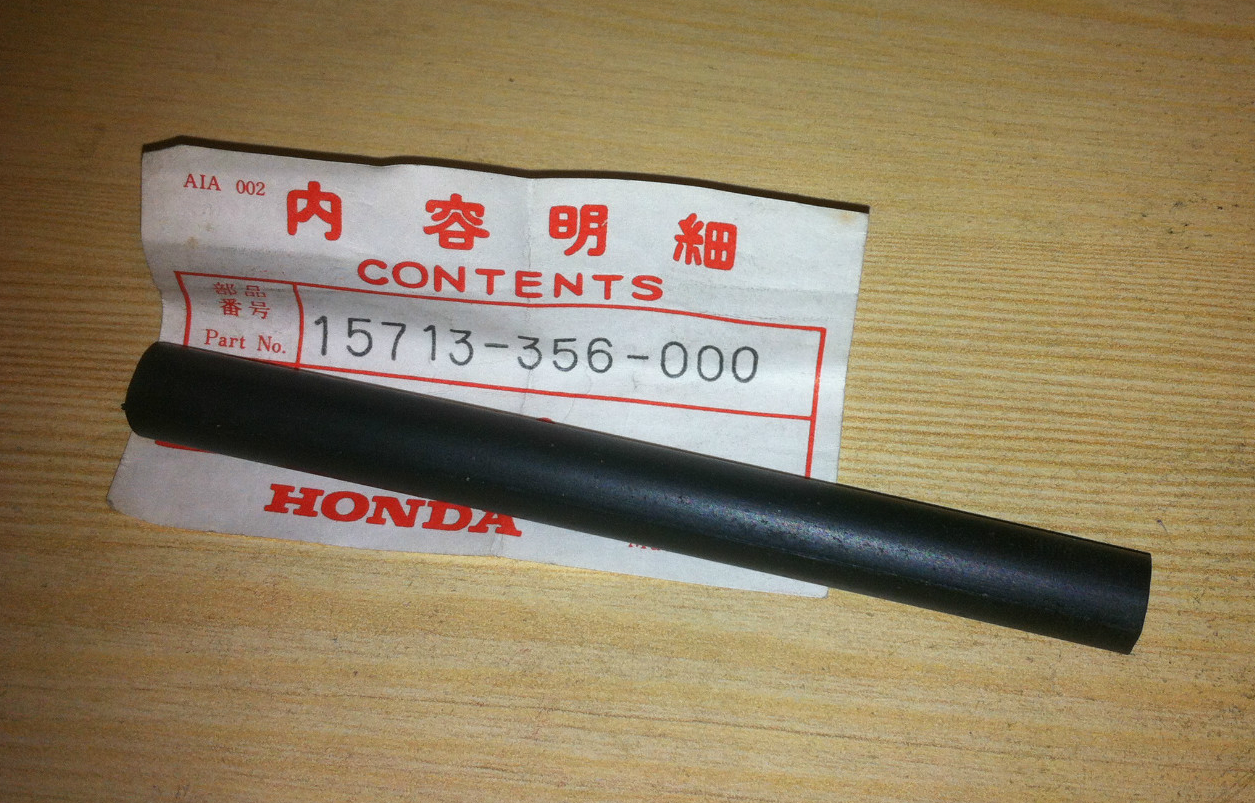

15713-356-000 breather tube

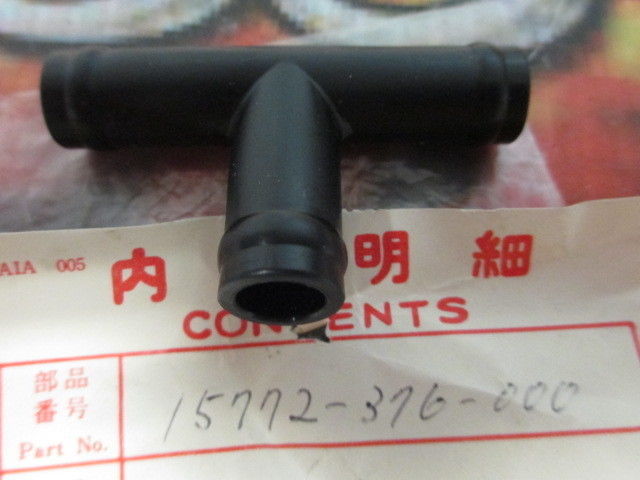

15772-376-000 breather tube 'T' piece

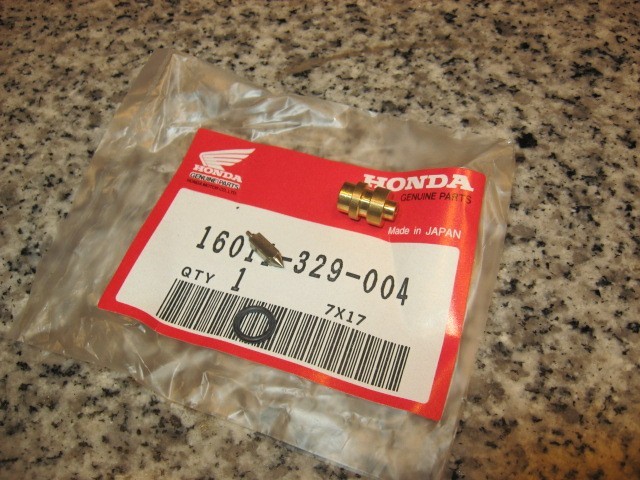

16011-329-004 carb float jet set

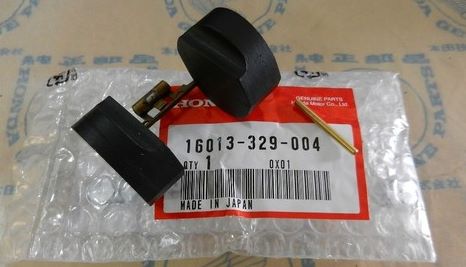

16013-329-004 carb floats

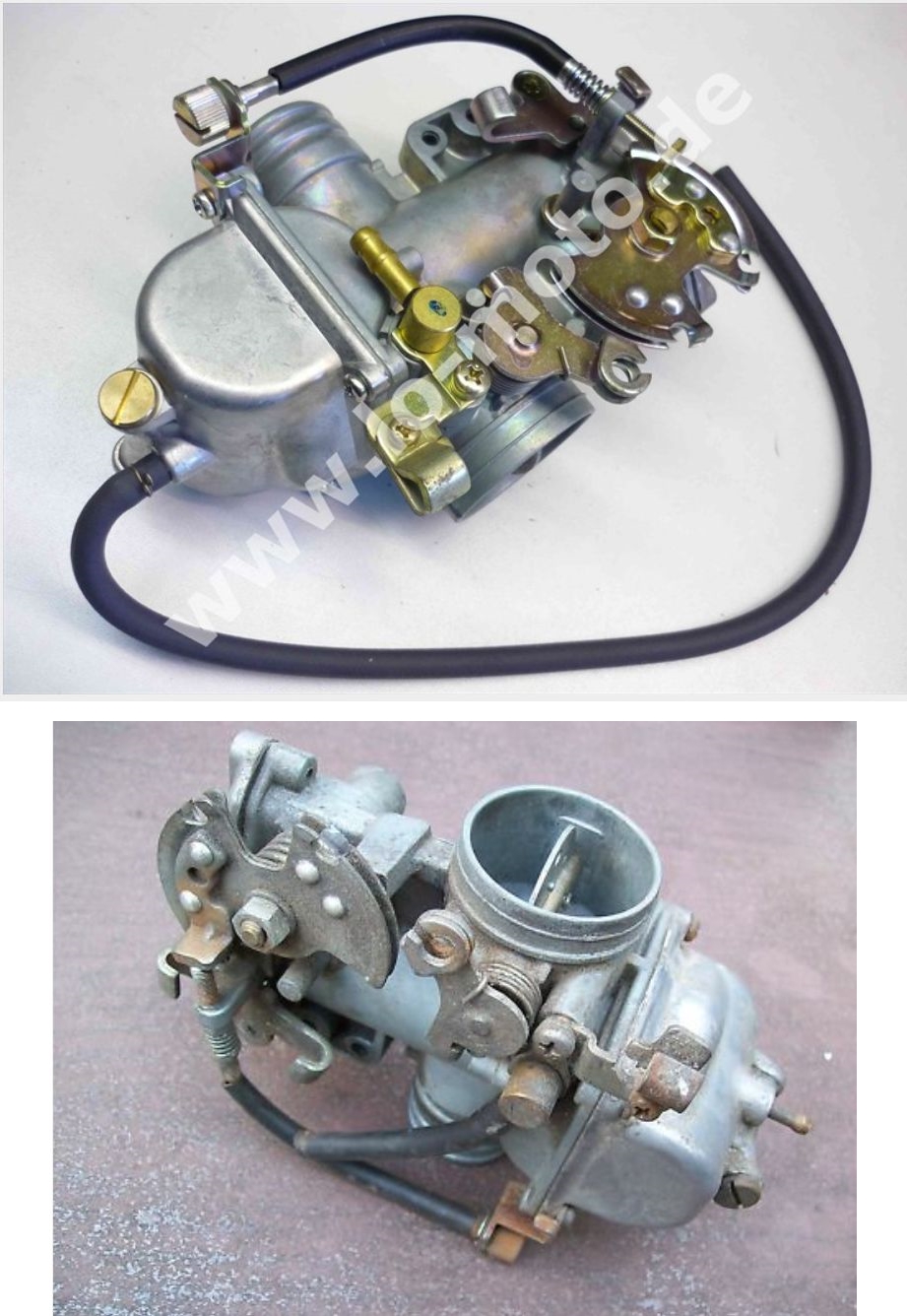

16100-386-004 carburettor

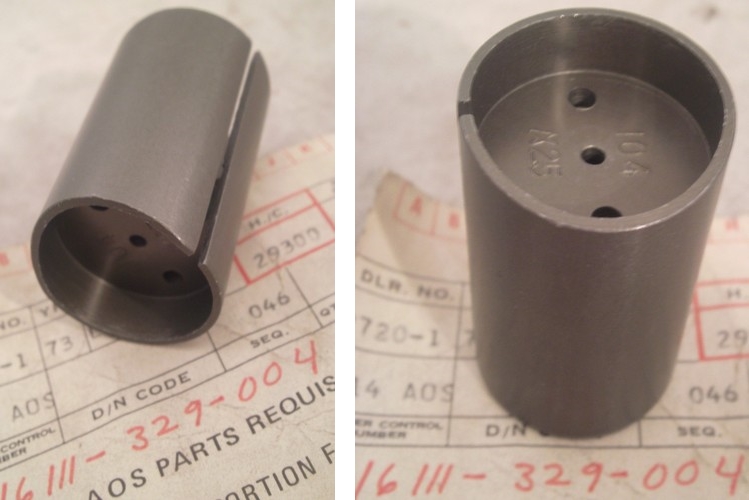

16111-329-004 slide

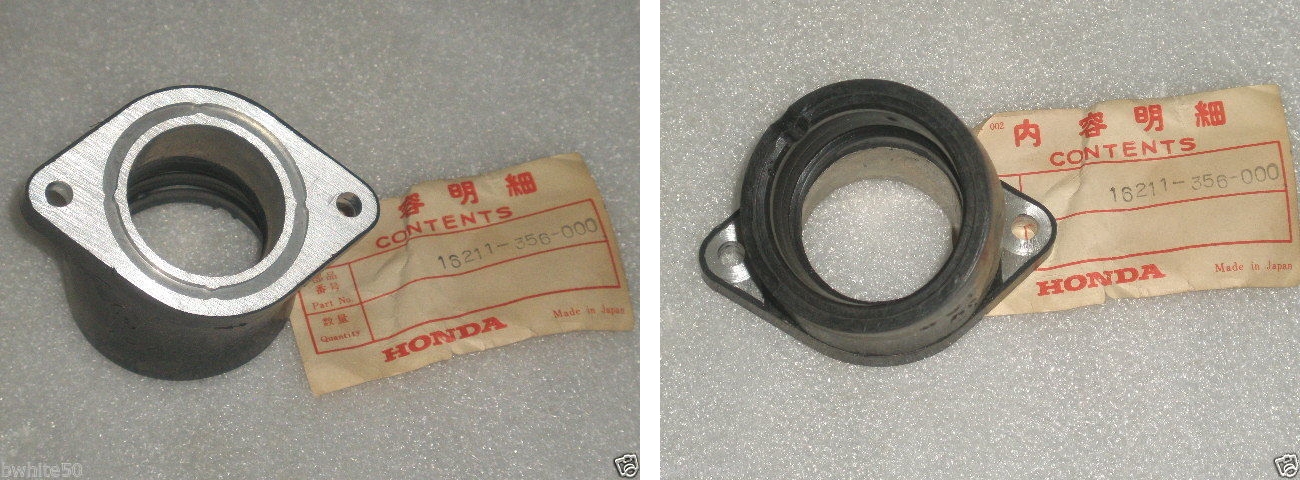

16211-356-000 350 inlet manifold offset bolt holes

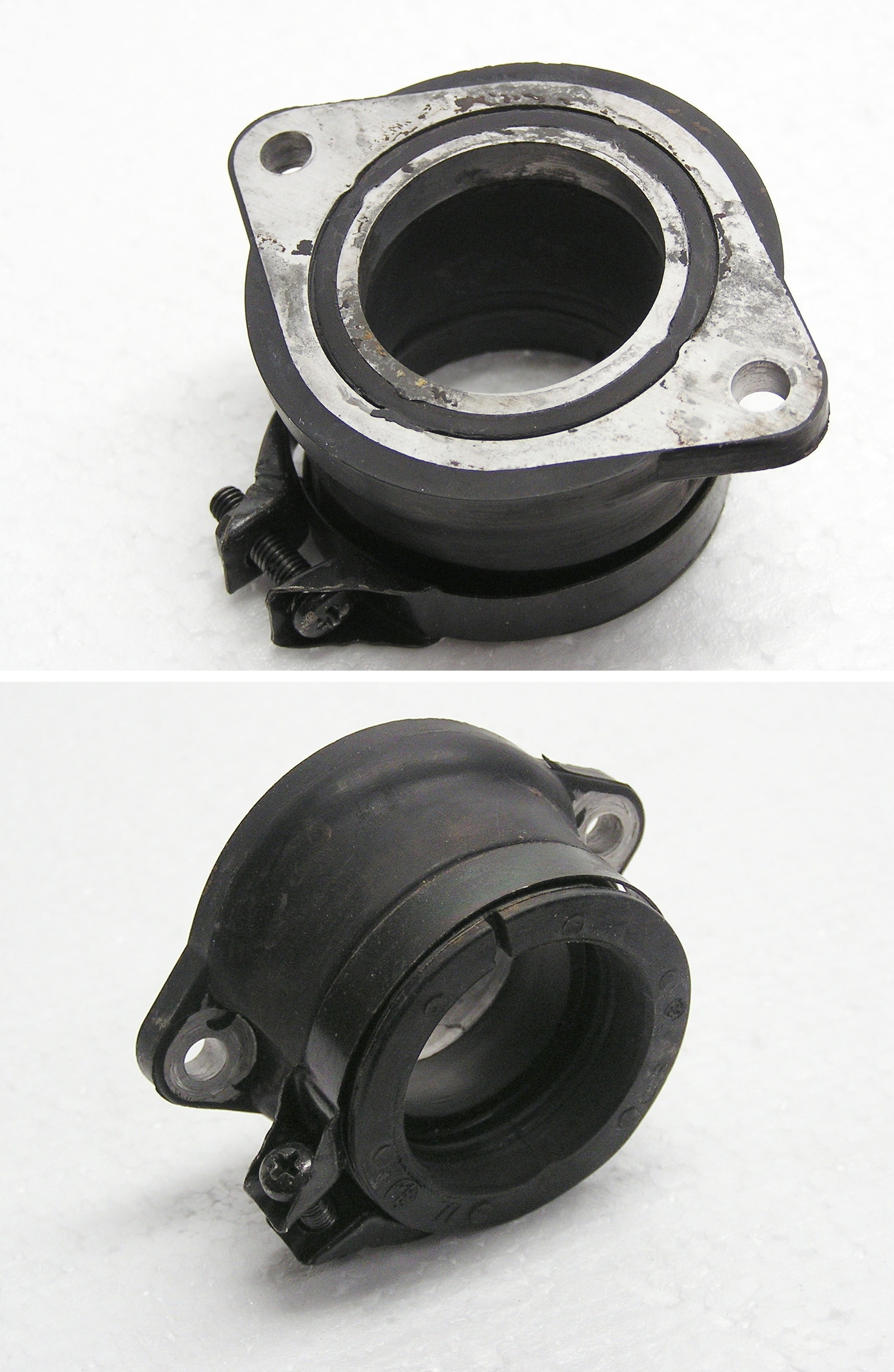

16211-386-000 inlet manifold

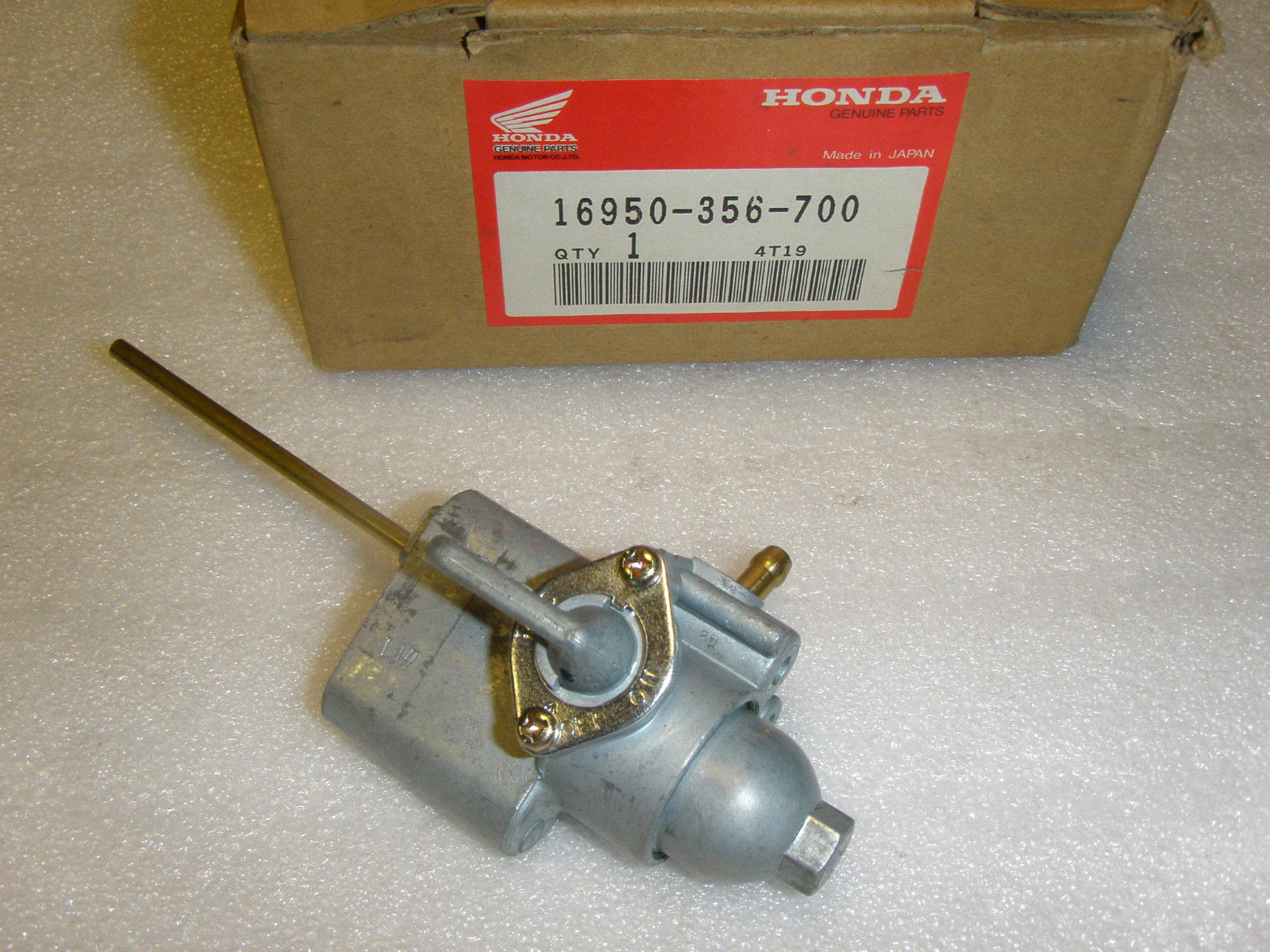

16950-356-700 petrol tap/fuelcock

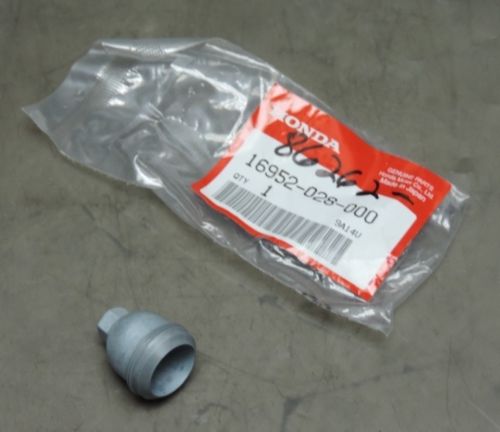

16952-028-000 petrol tap bowl

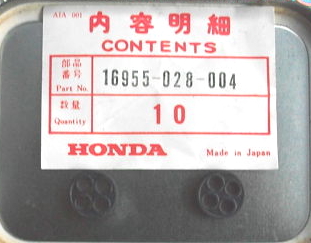

16955-028-004 petrol tap seal

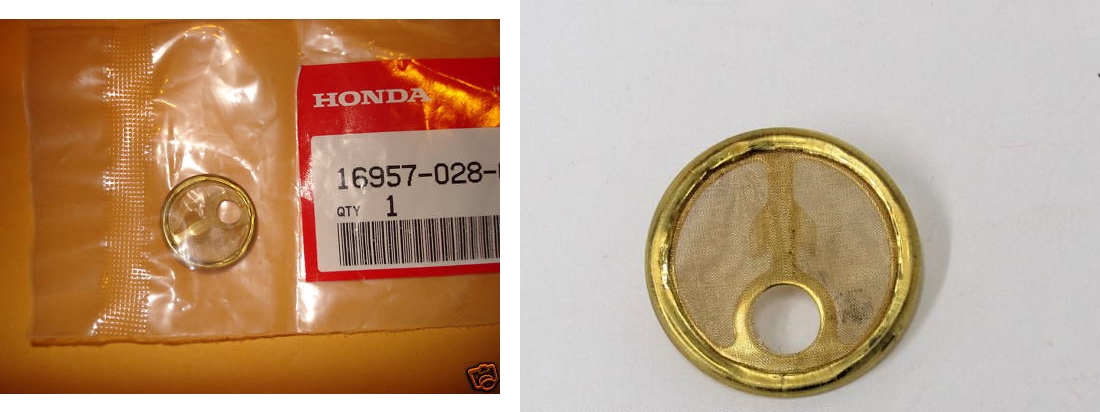

16957-028-000 petrol tap strainer

16997-272-000 seal

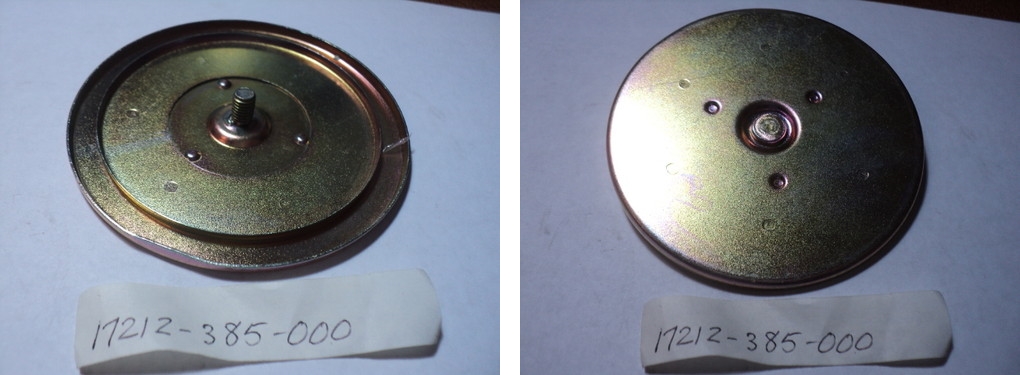

17212-385-000 end, air filter

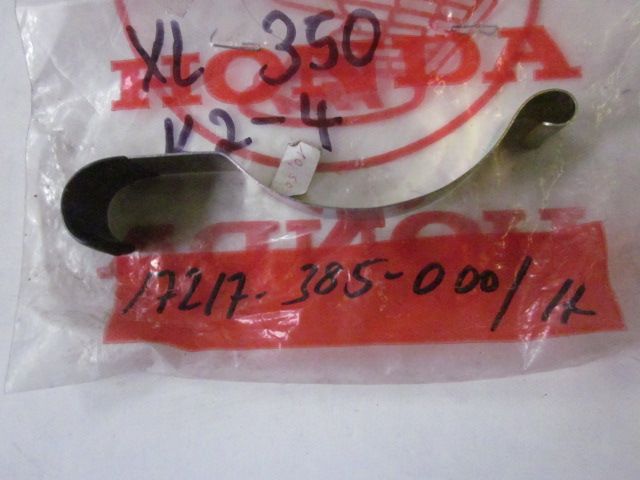

17217-385-000 air filter retaining spring

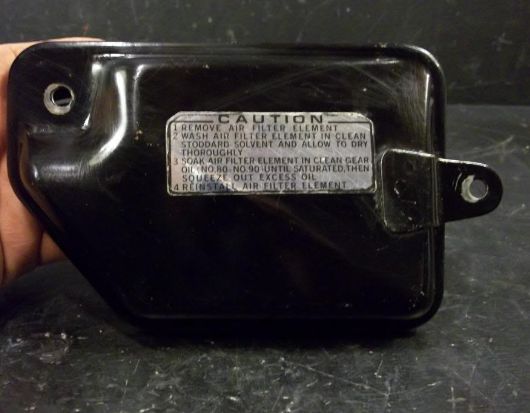

17220-385-000 and 87506-340-670 air filter box cover and label

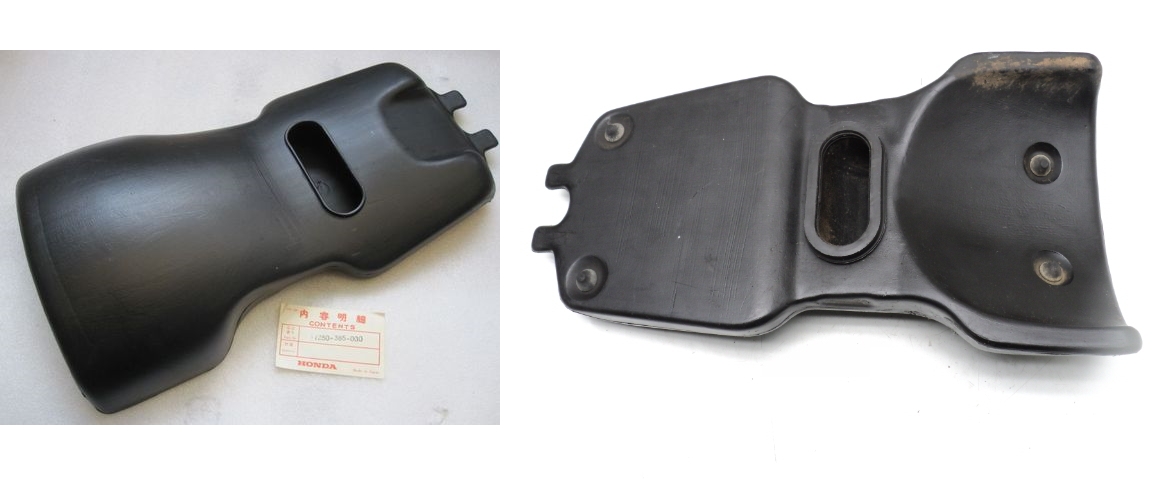

17250-385-000 air chamber

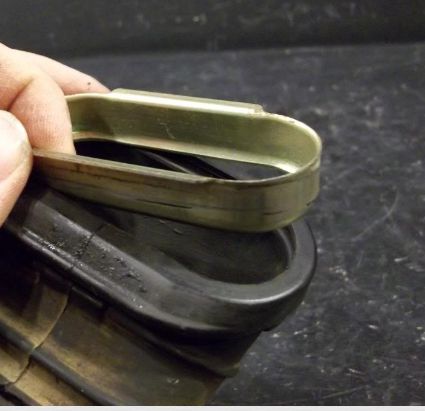

17253-385-000 air chamber guide

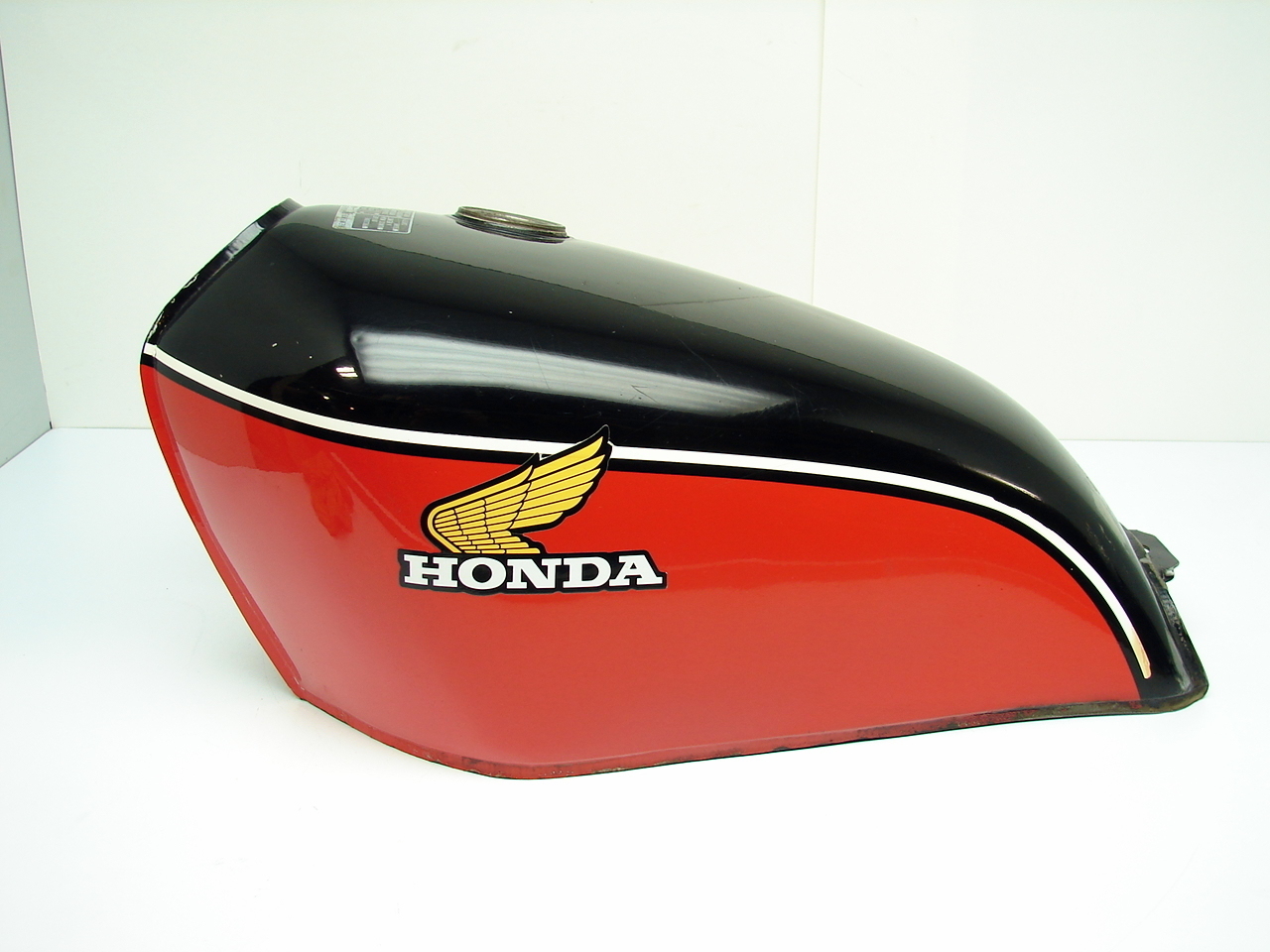

17510-385-305 fuel tank

17611-286-000 tank mount rubber (front)

17613-385-000 tank mount rubber (rear)

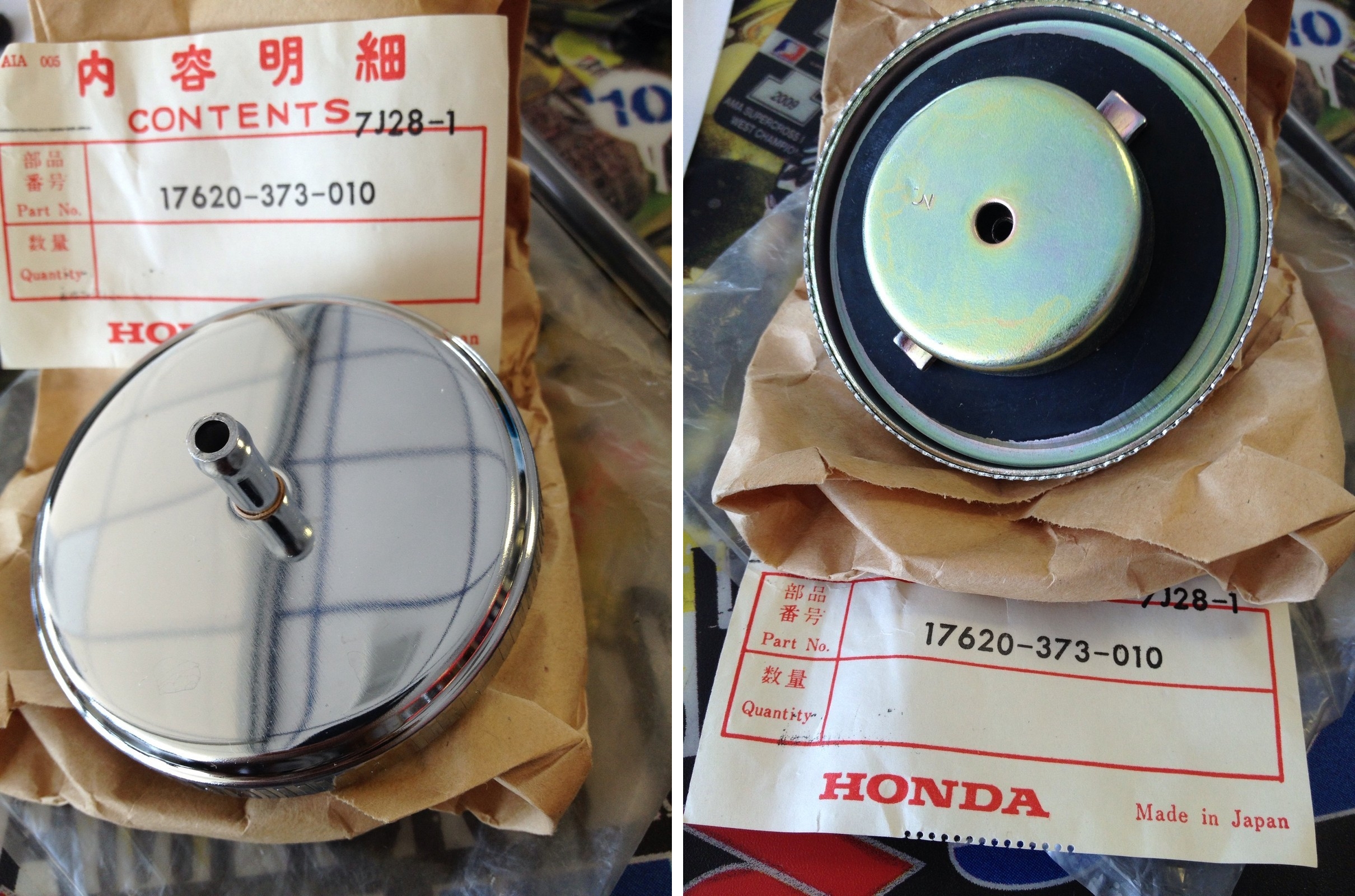

17620-373-010 fuel tank cap

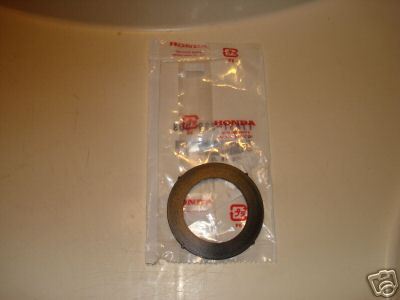

17631-259-000 fuel cap seal

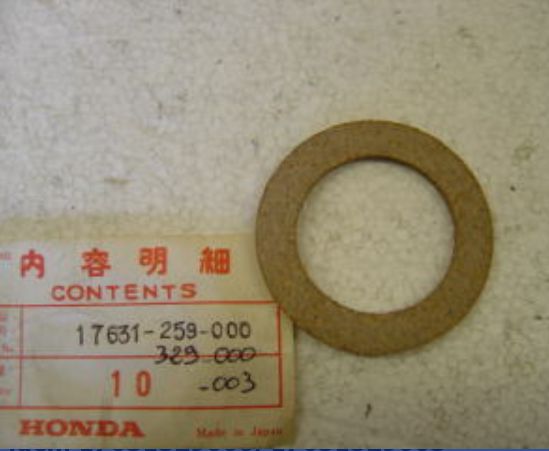

17631-259-000 (older, cork) fuel cap seal

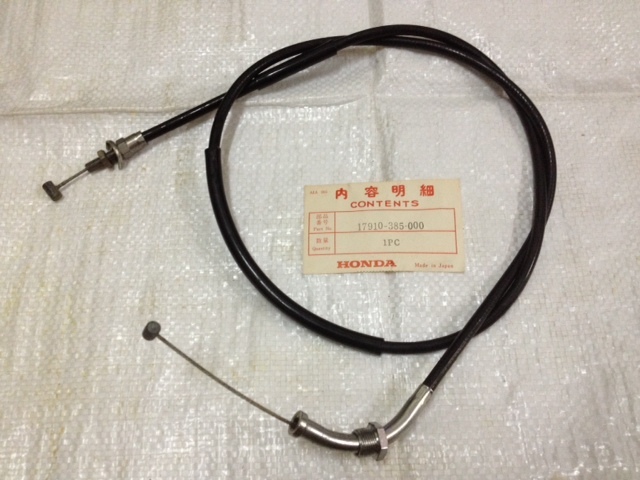

17910-385-000 throttle cable

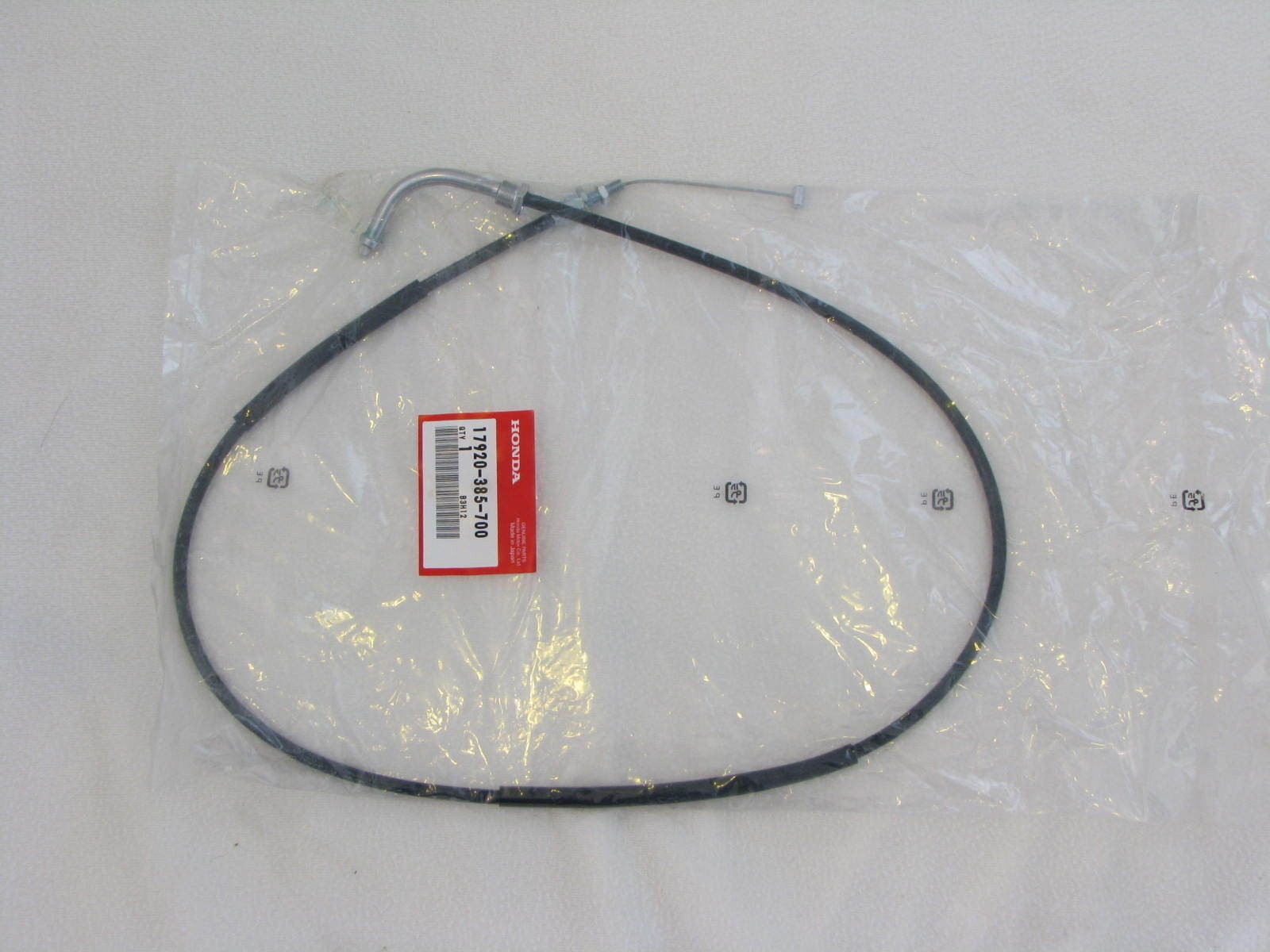

17920-385-700 throttle cable

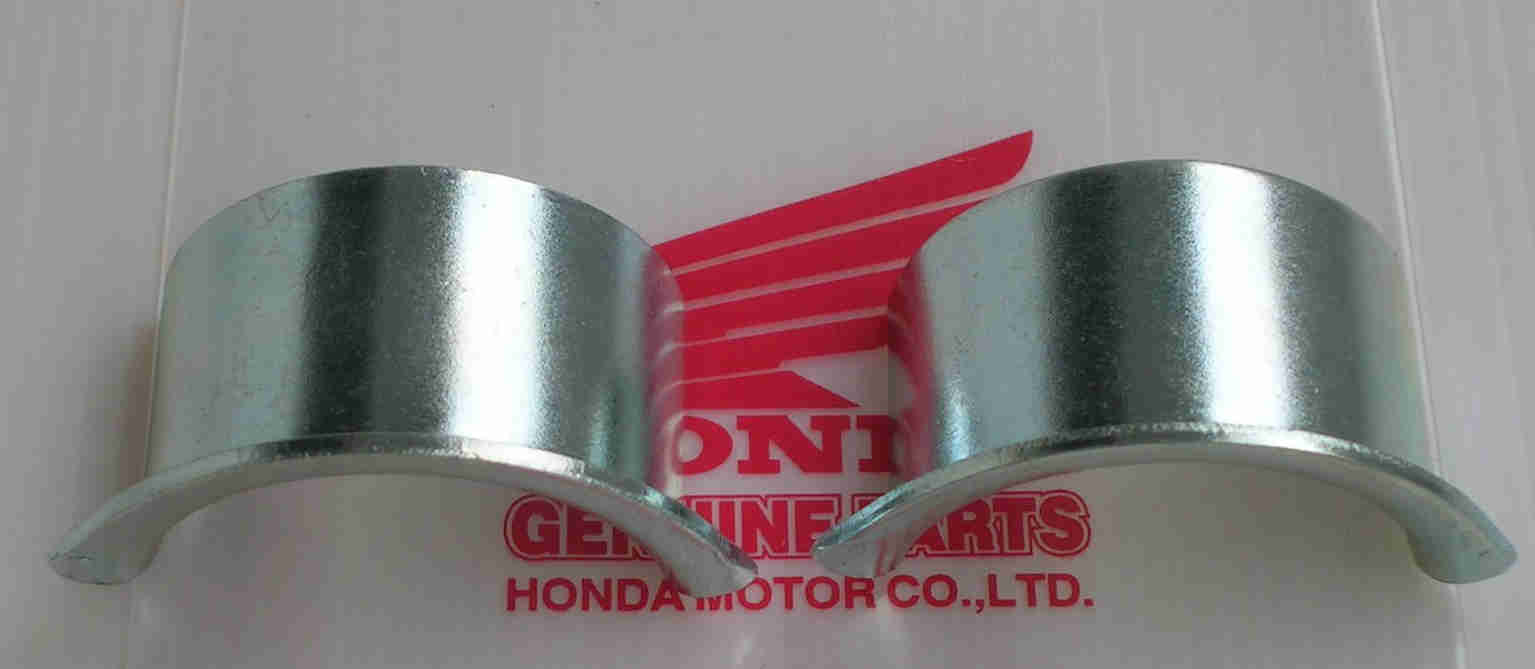

18233-318-000 exhaust collets

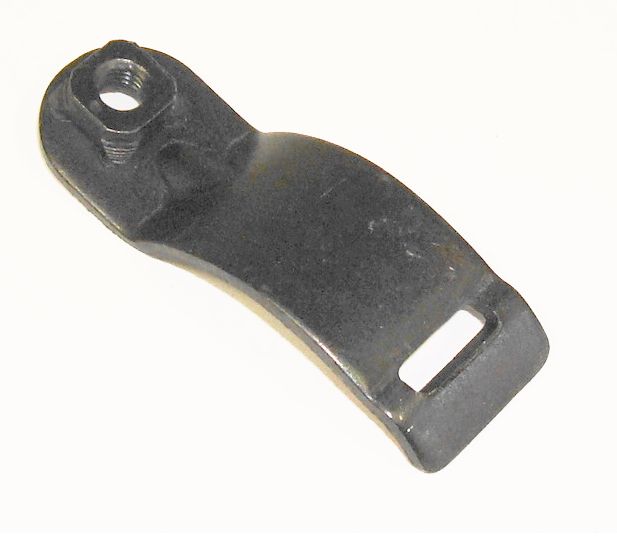

18282-385-000 exhaust stay

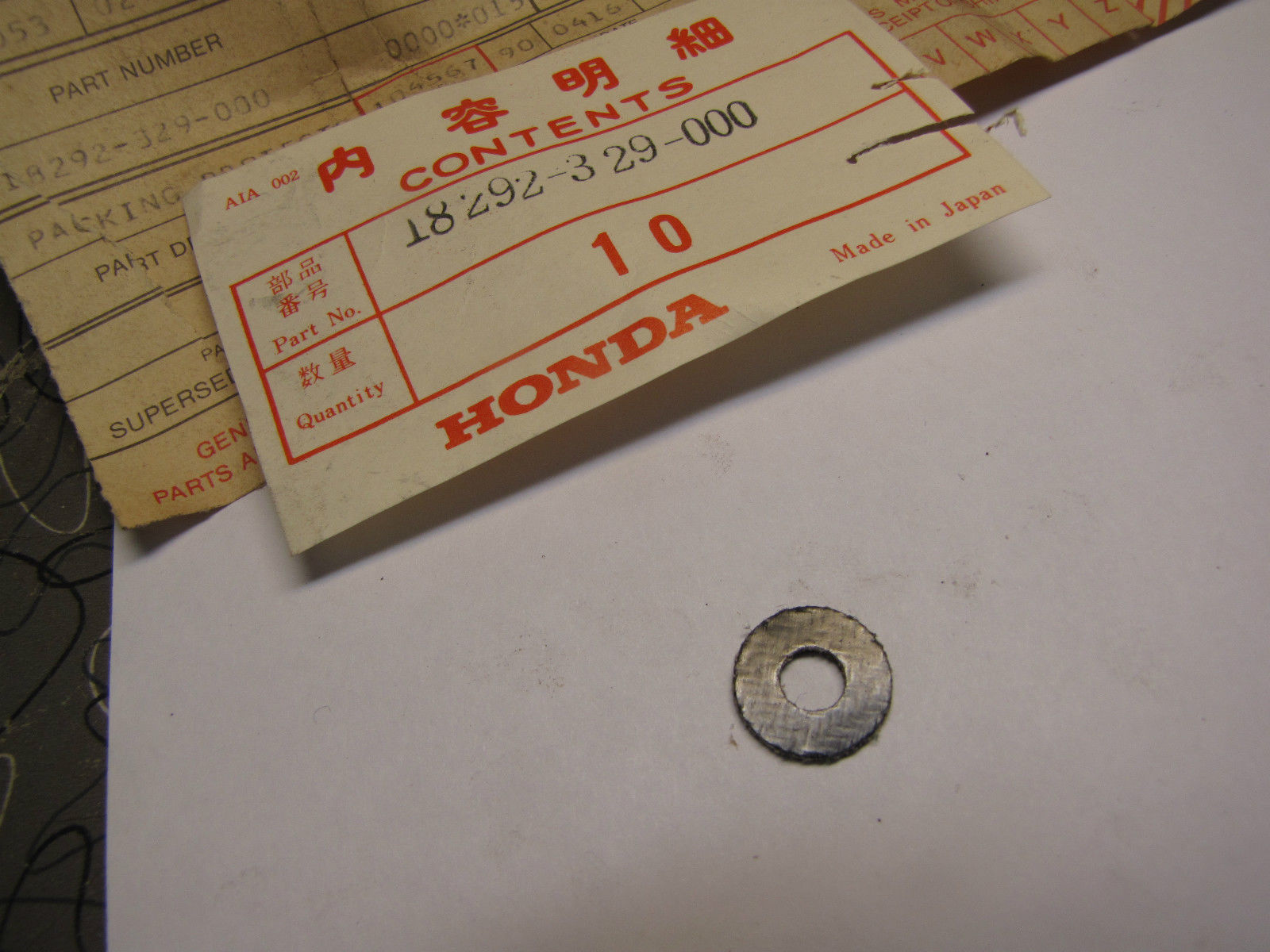

18292-329-000 washer

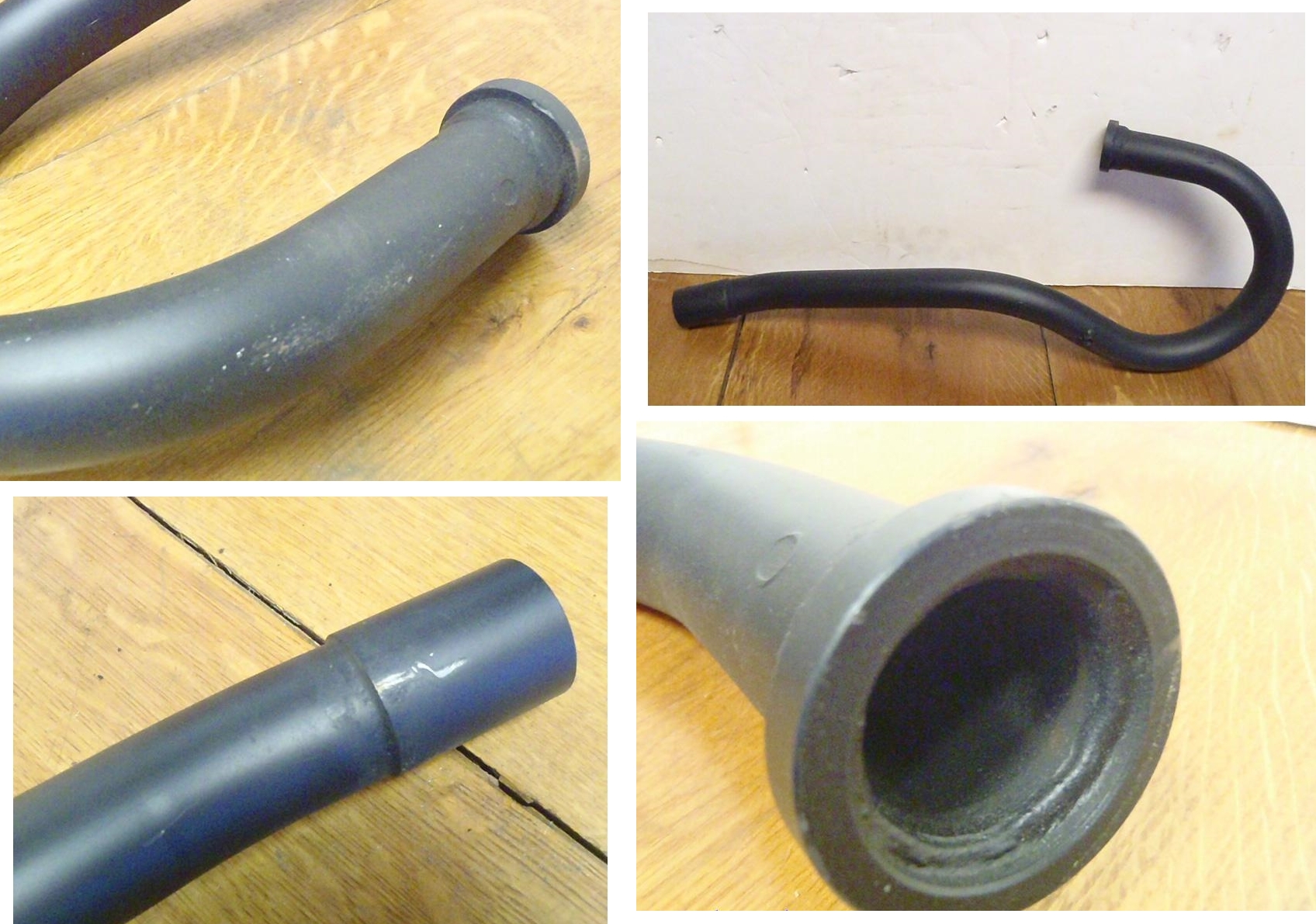

18320-386-000 exhaust pipe

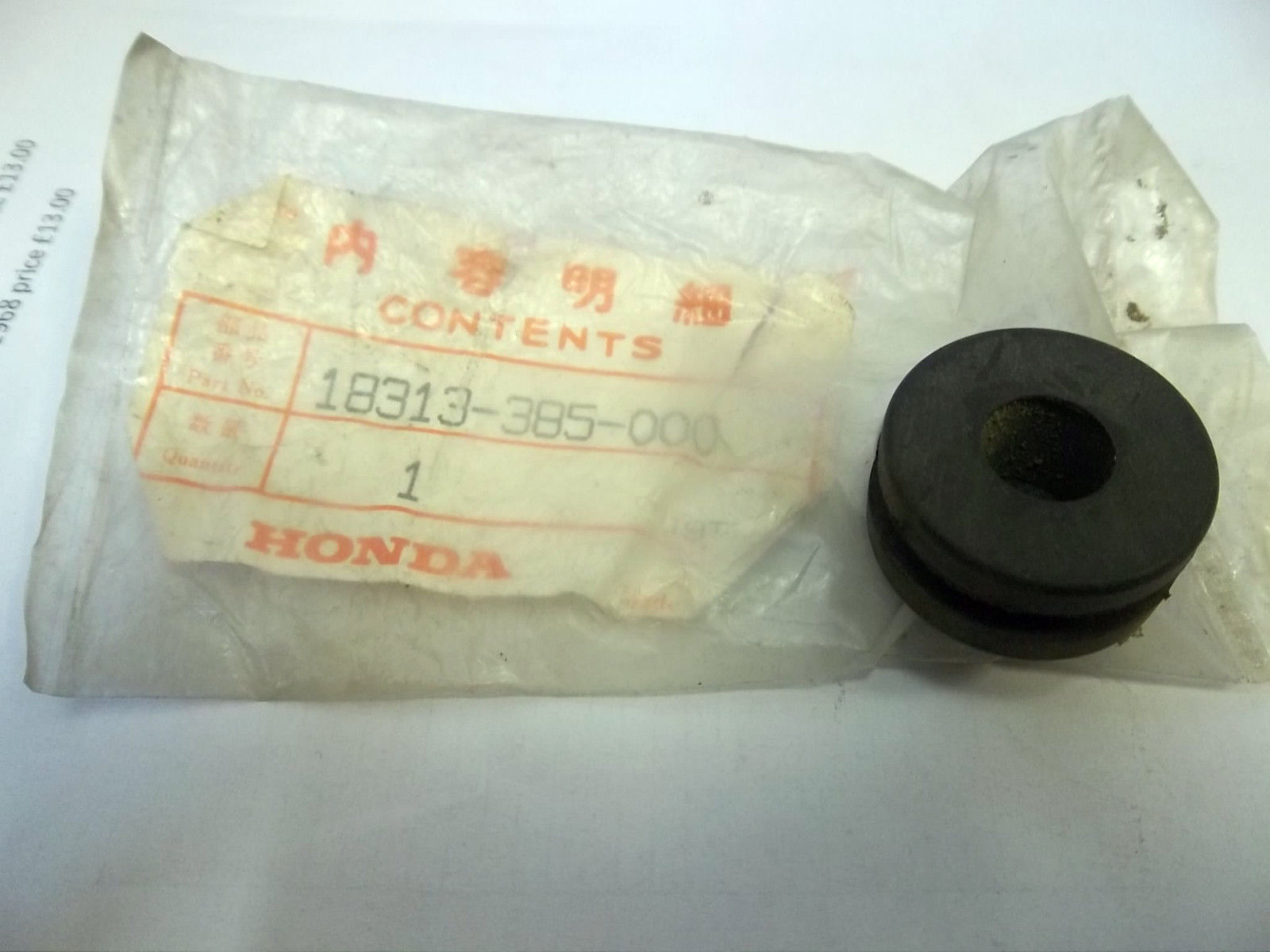

18313-385-000 rubber washer

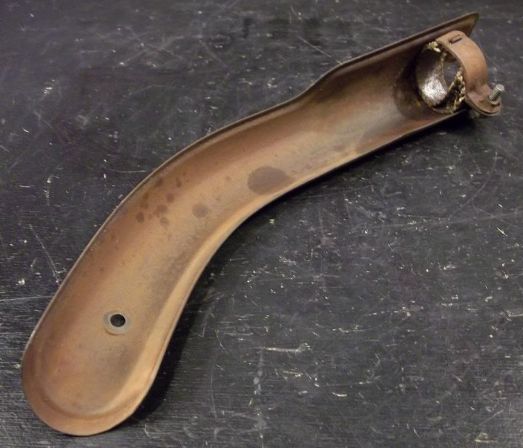

18325-385-000 exhaust pipe heat guard

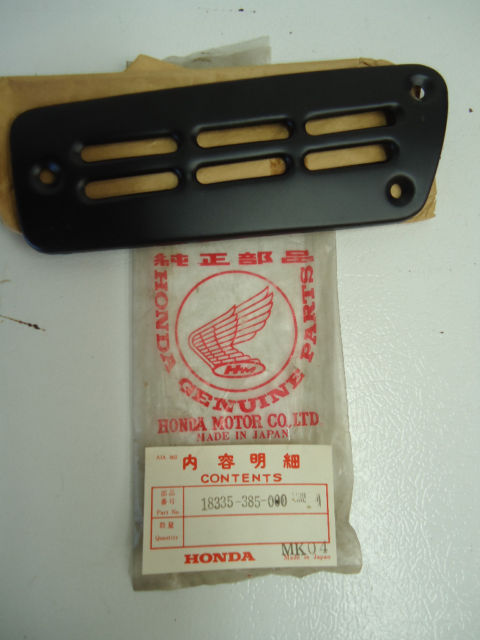

18335-385-000 exhaust rear heat guard

18340-386-000 exhaust front chromed heat guard

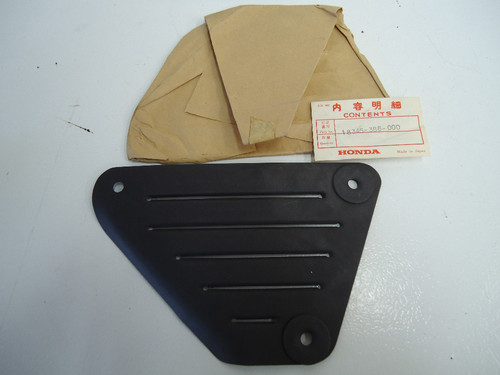

18345-386-000 exhaust under heat guard

18371-385-000 and 90116-391-670 clamp and M8 bolt

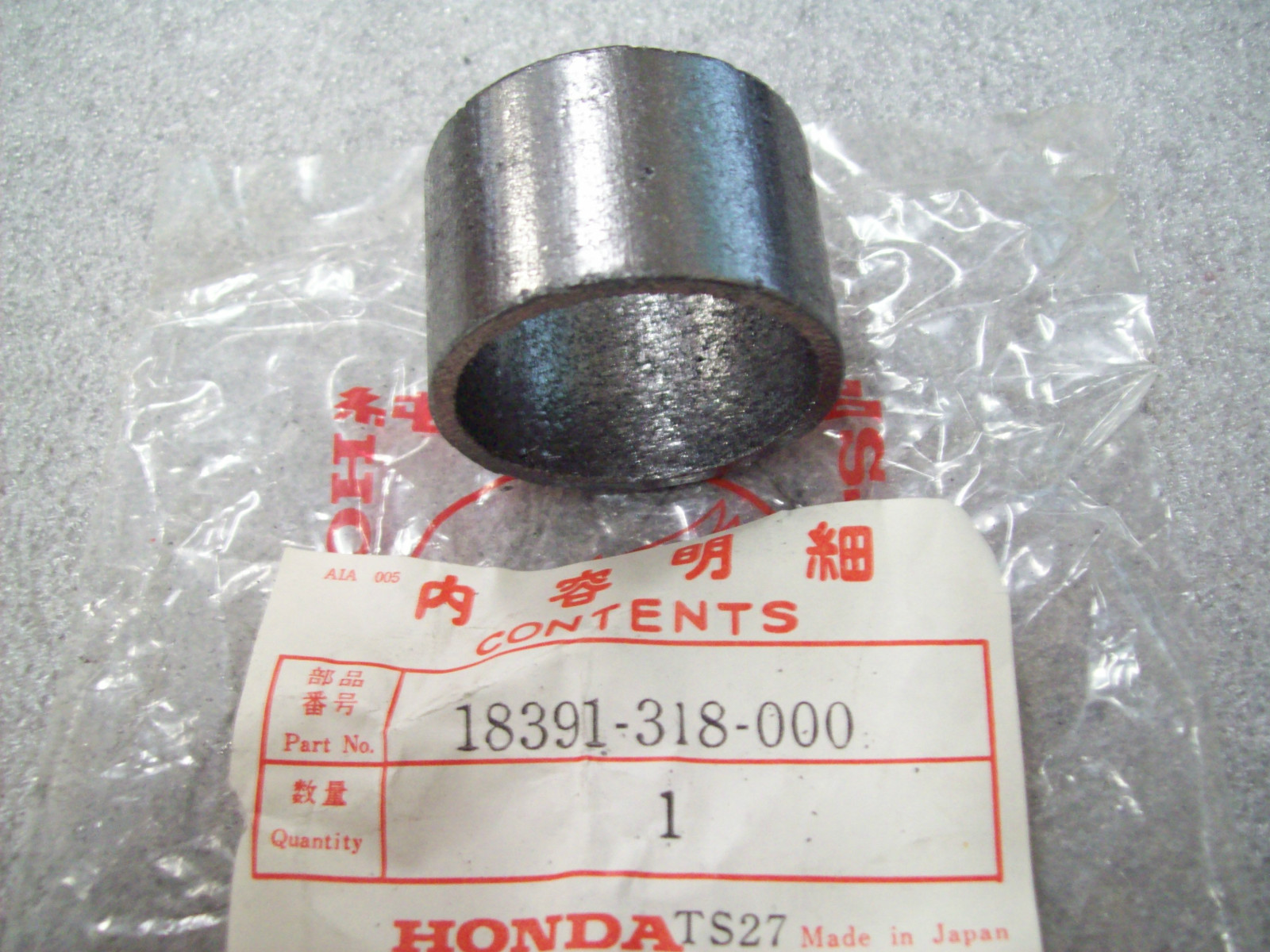

18391-318-000 exhaust pipe gasket

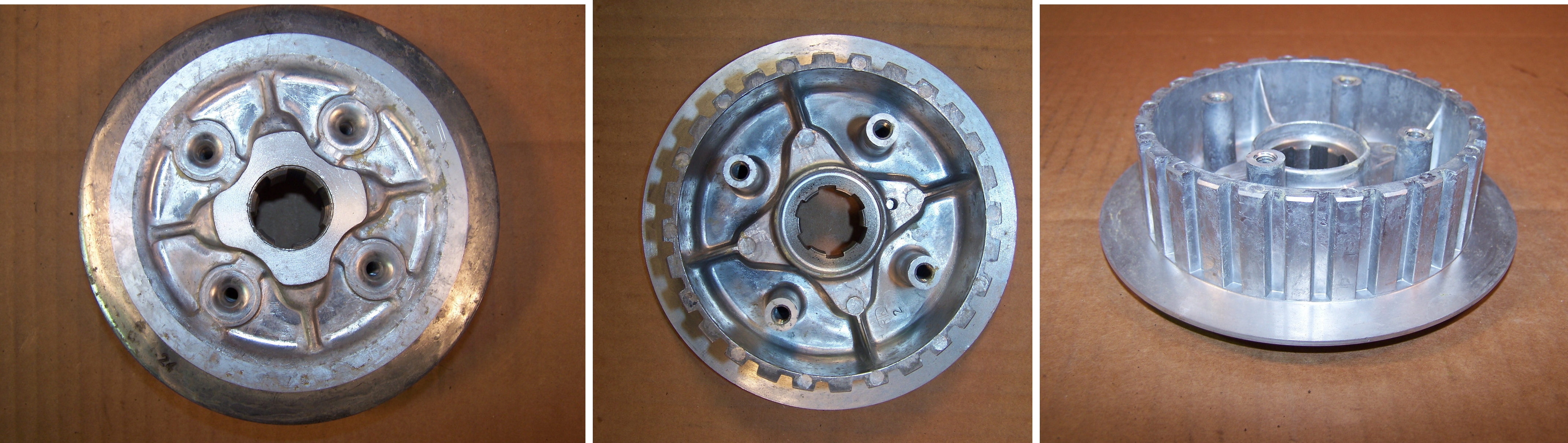

22120-329-010 clutch centre

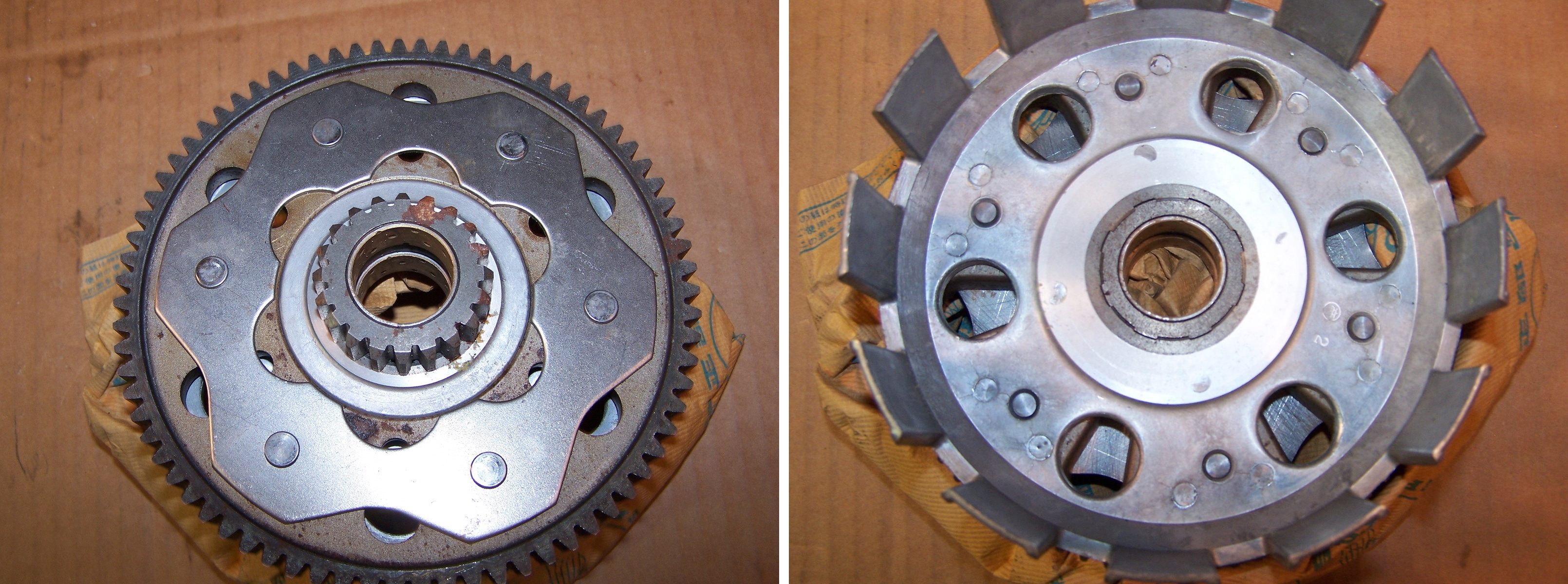

22100-356-000 clutch basket

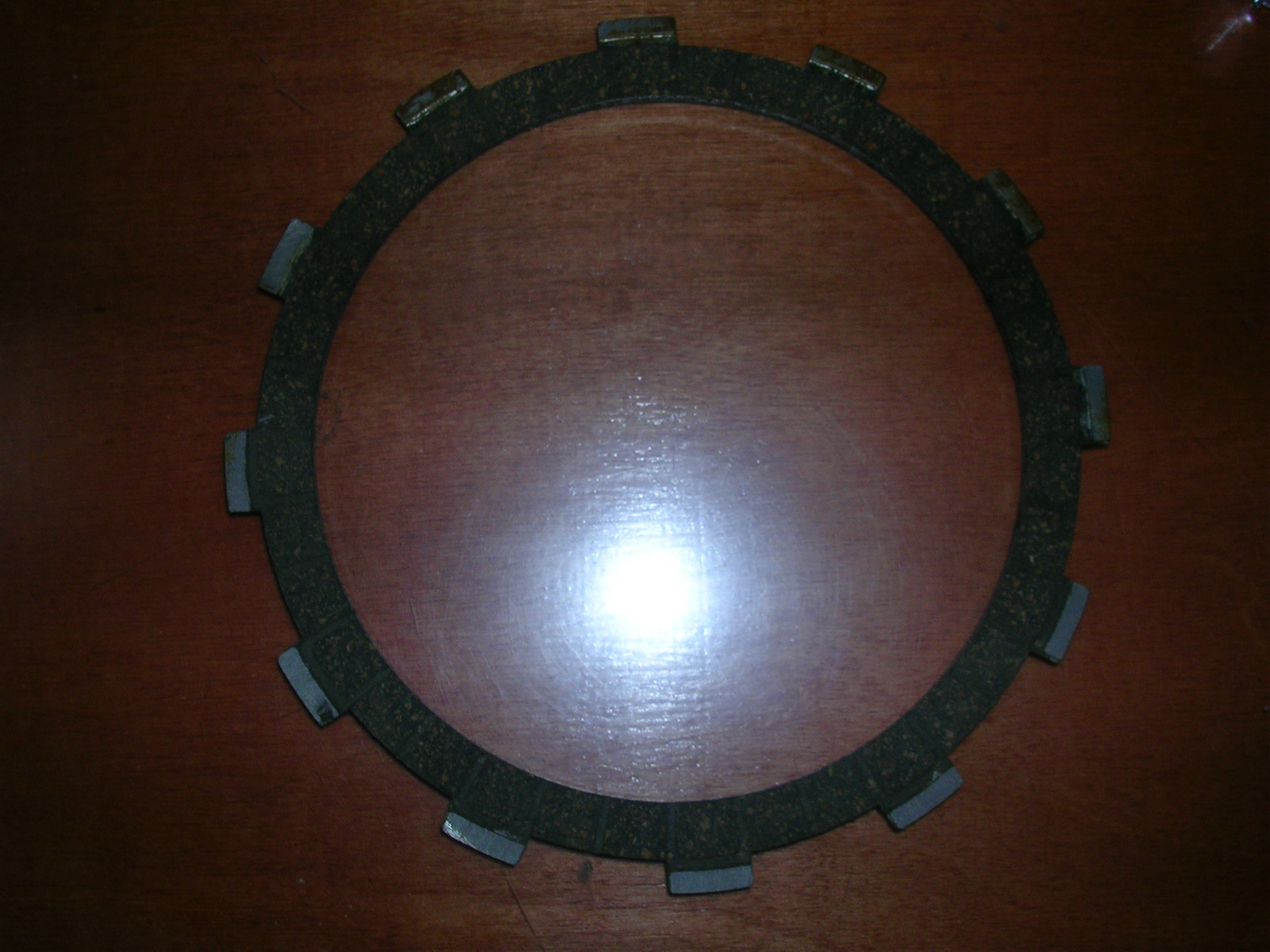

22201-286-010 clutch plate

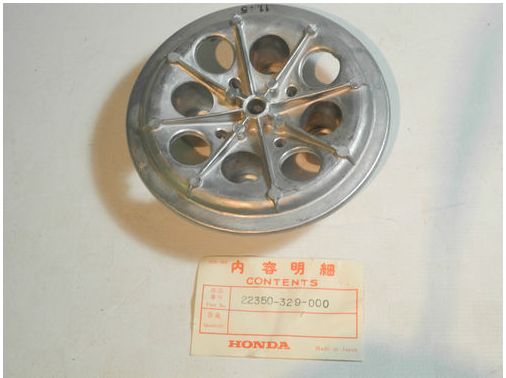

22350-329-000 clutch cover

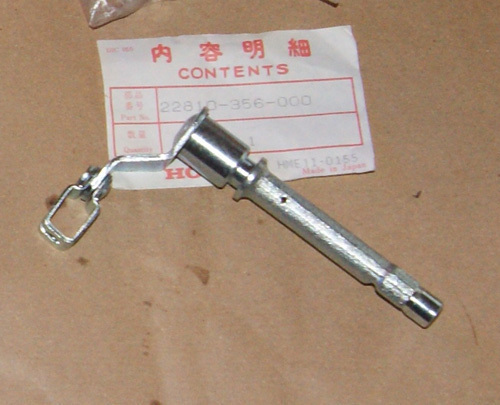

22810-356-000 clutch actuation lever

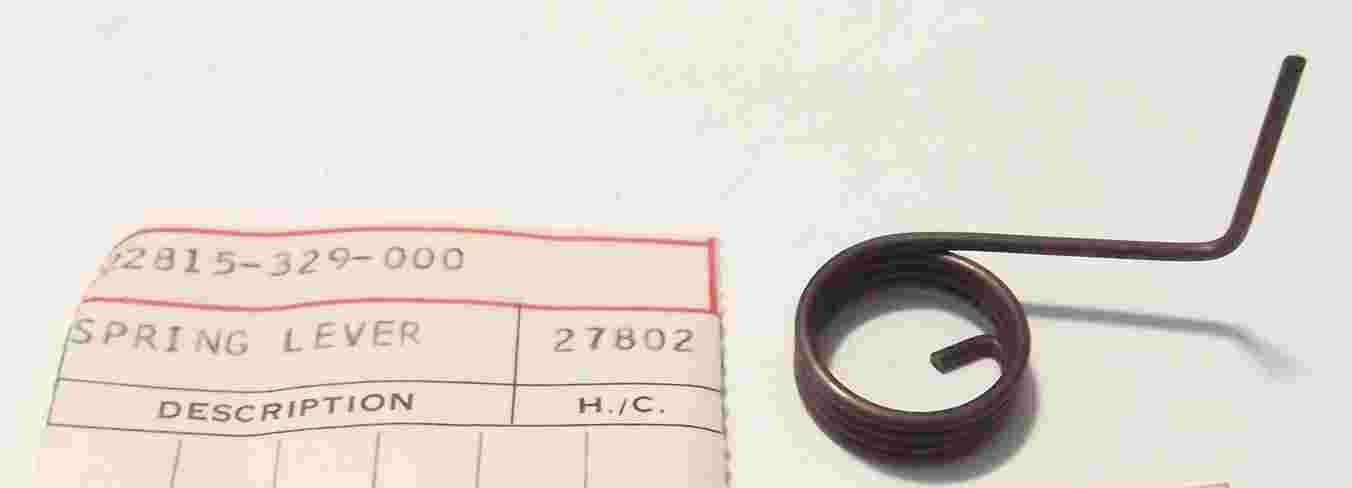

22815-329-000 spring clutch actuation lever

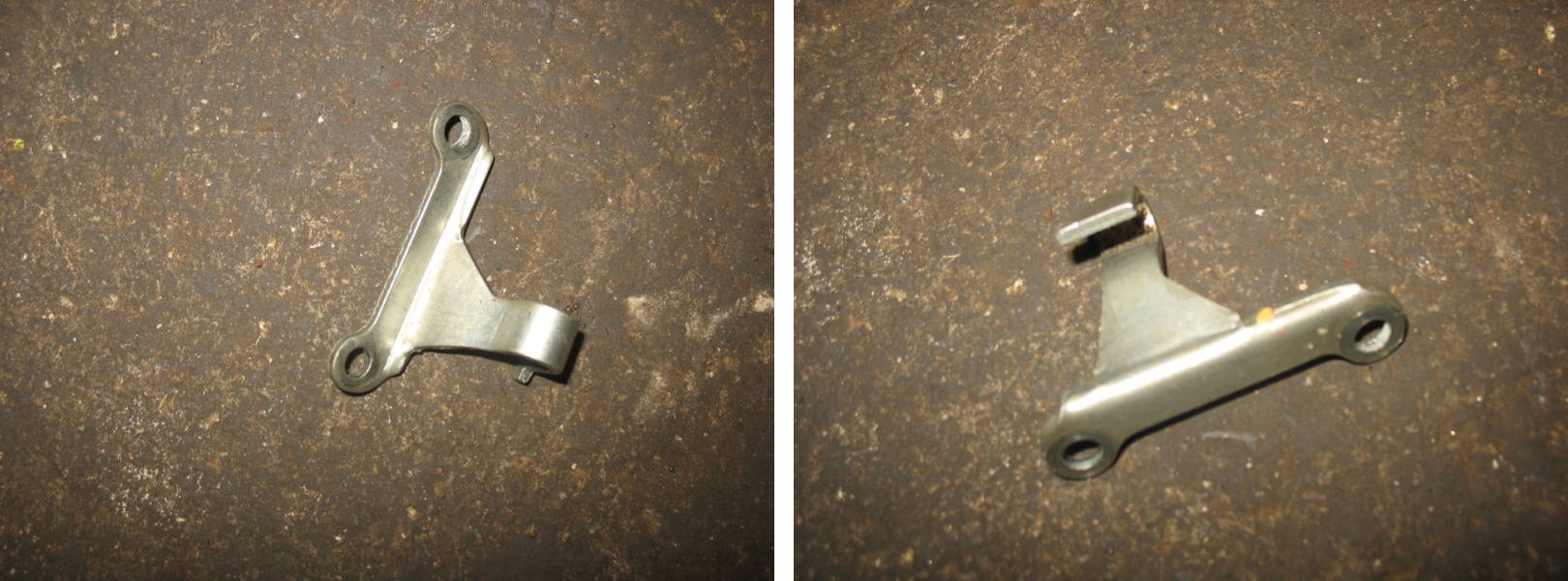

22821-356-000 clutch cable holder

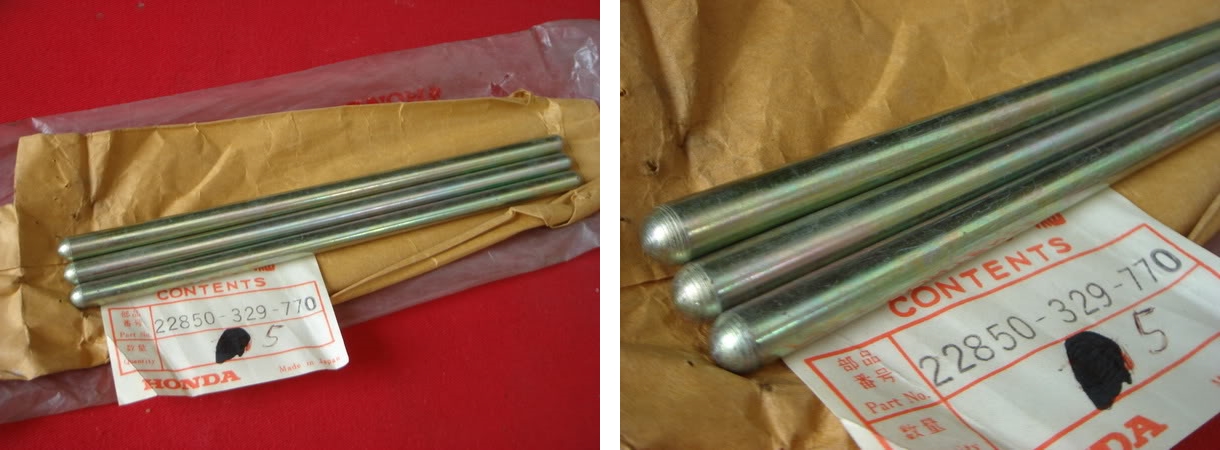

22850-329-770 clutch rod

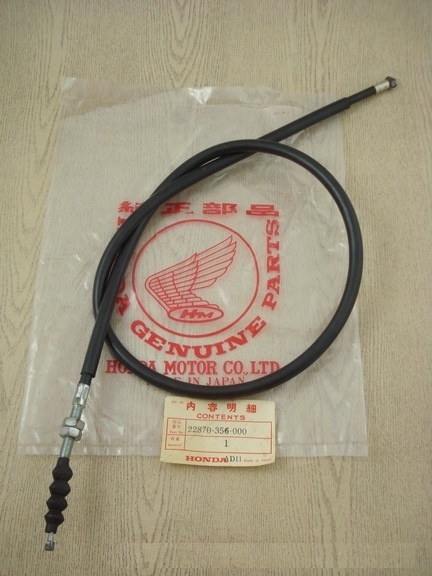

22870-356-000 clutch cable

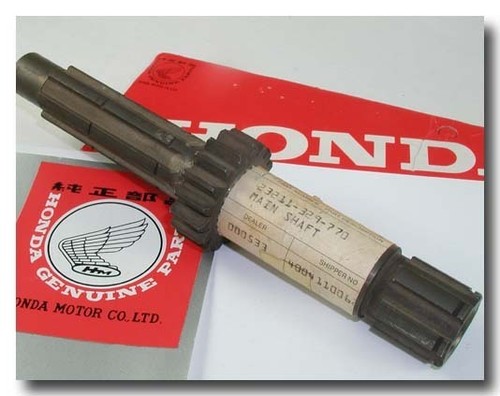

23211-327-770 main shaft

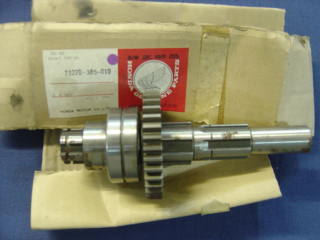

23220-385-010 output shaft

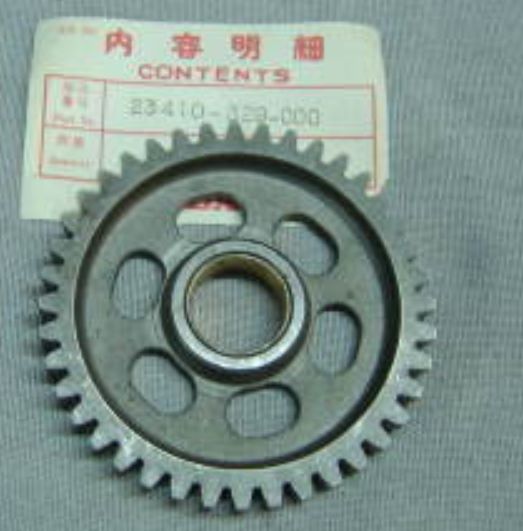

23410-329-000 gear

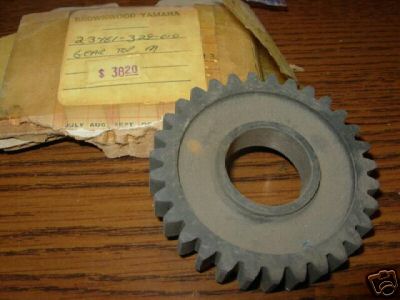

23481-329-010 gear

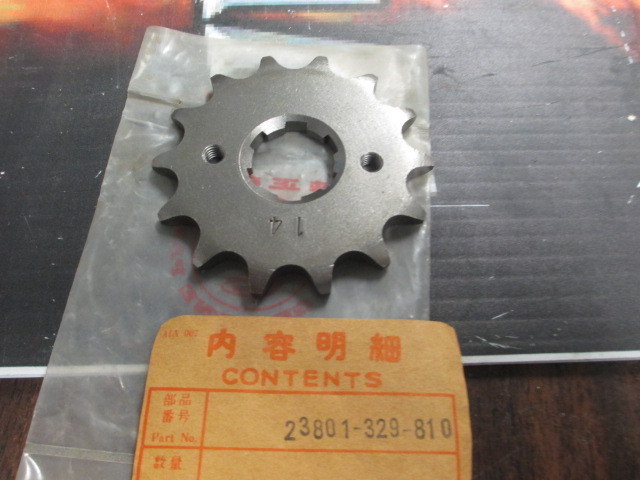

23801-329-810 gearbox sprocket 14T

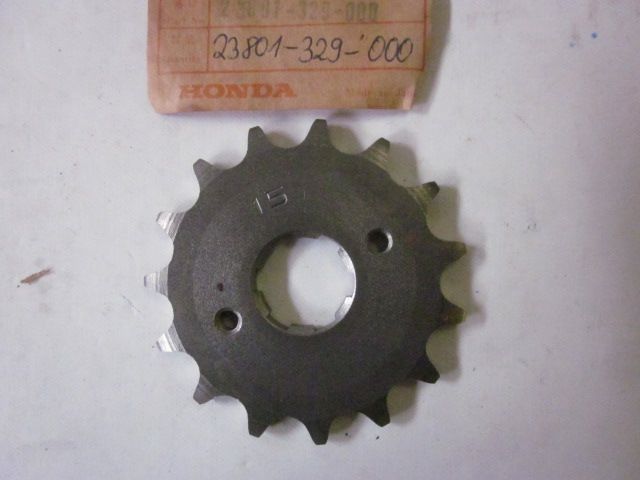

23801-329-000 gearbox sprocket 15T

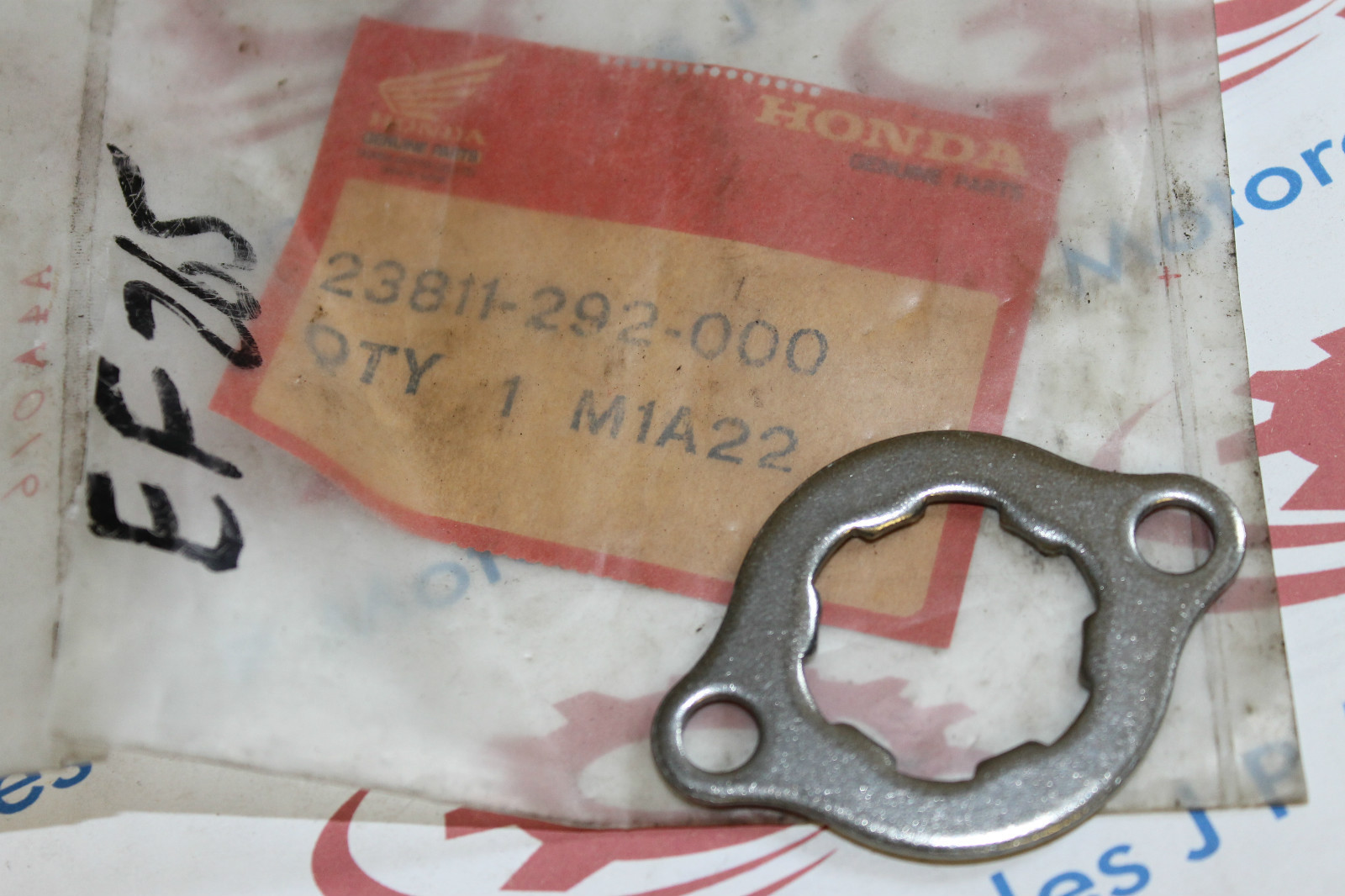

23811-292-000 final sprocket retaining washer

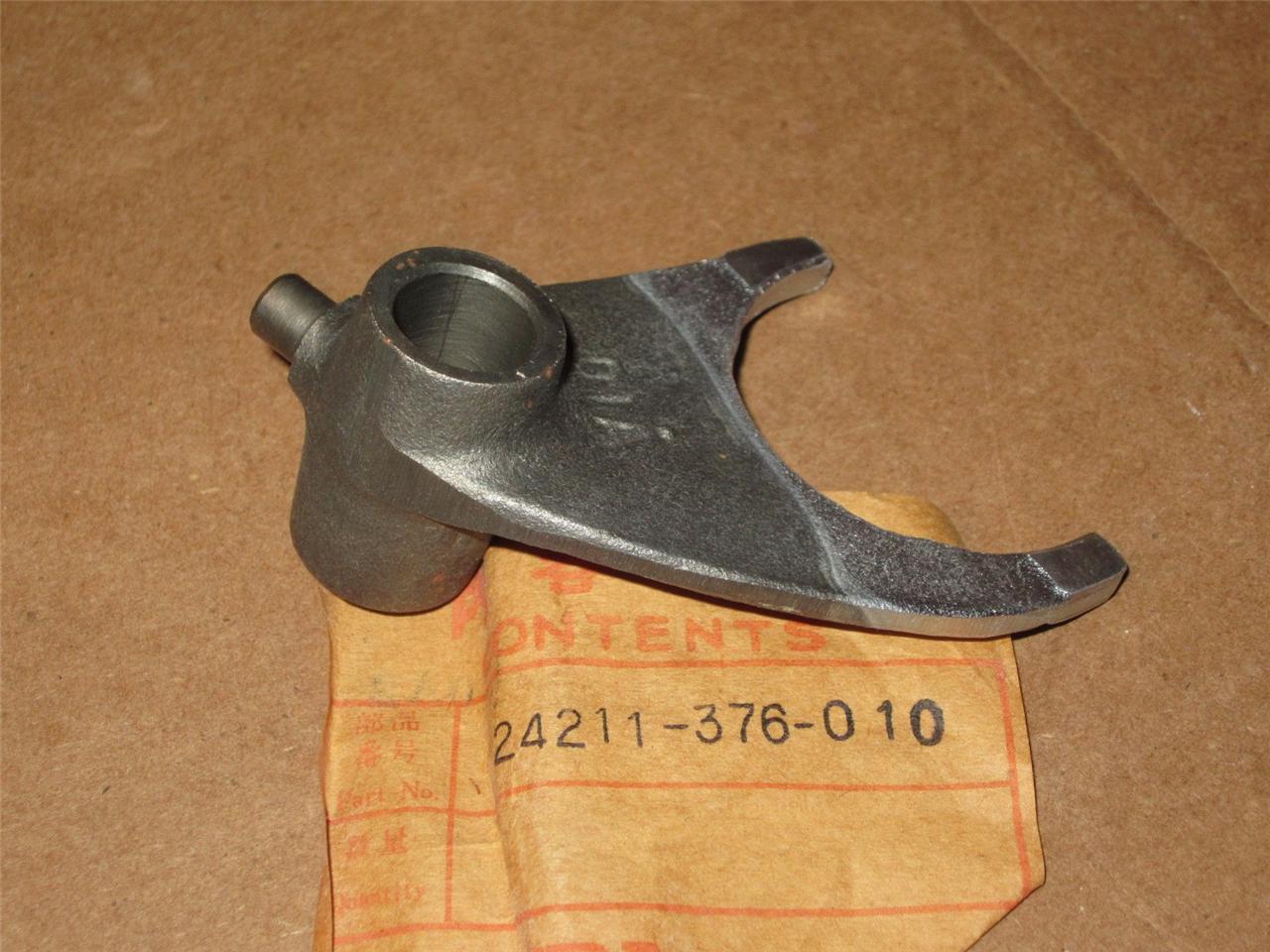

24211-376-010 selector fork

24212-376-000 selector fork

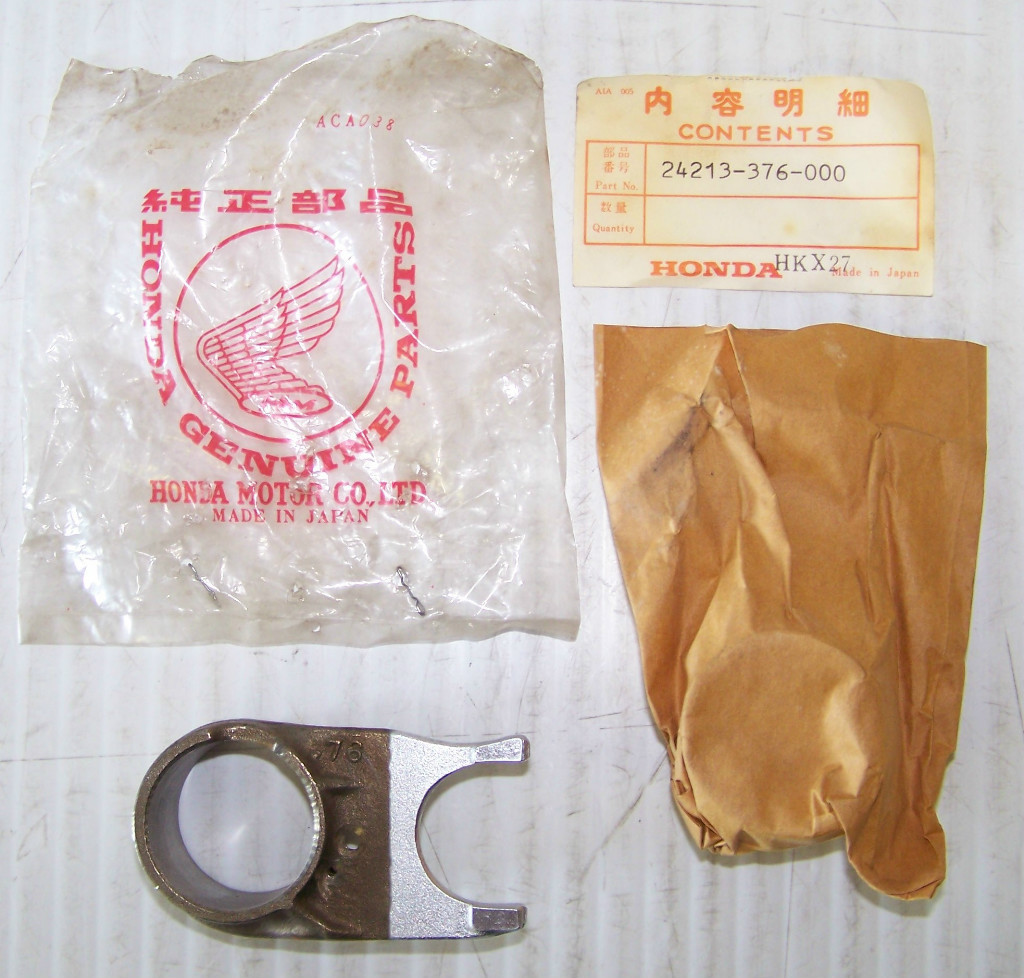

24213-376-000 selector fork

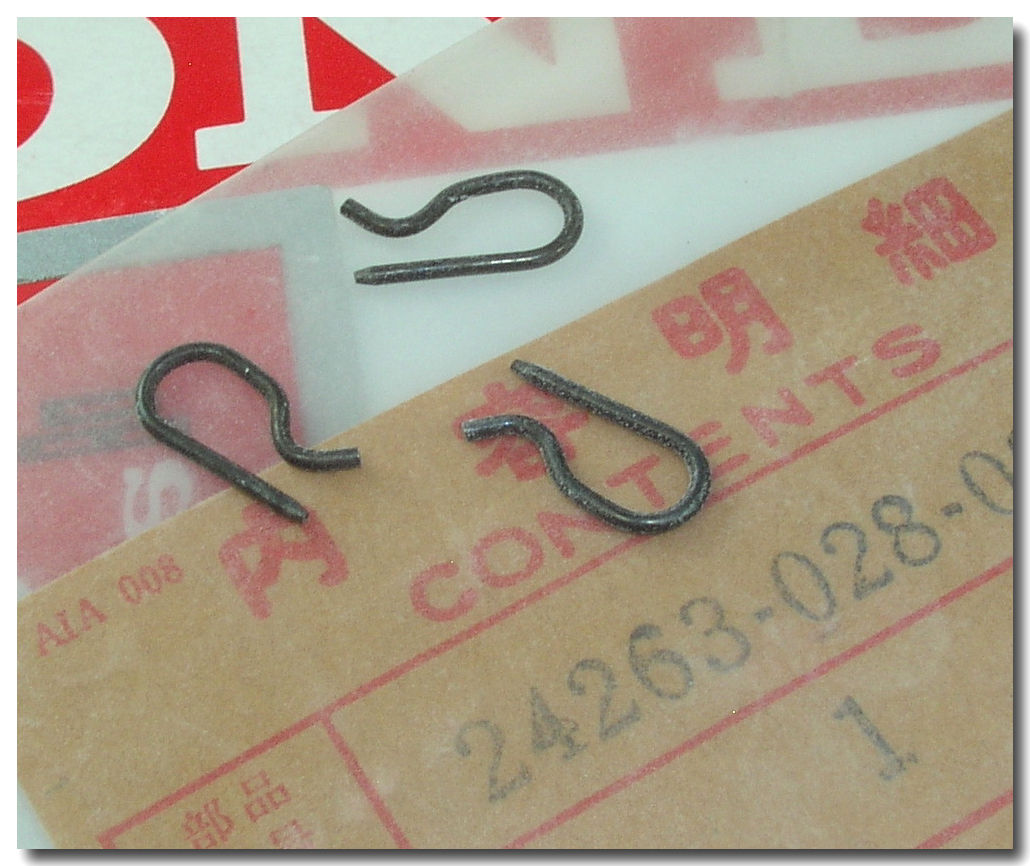

24263-028-000 Gearshift fork clip

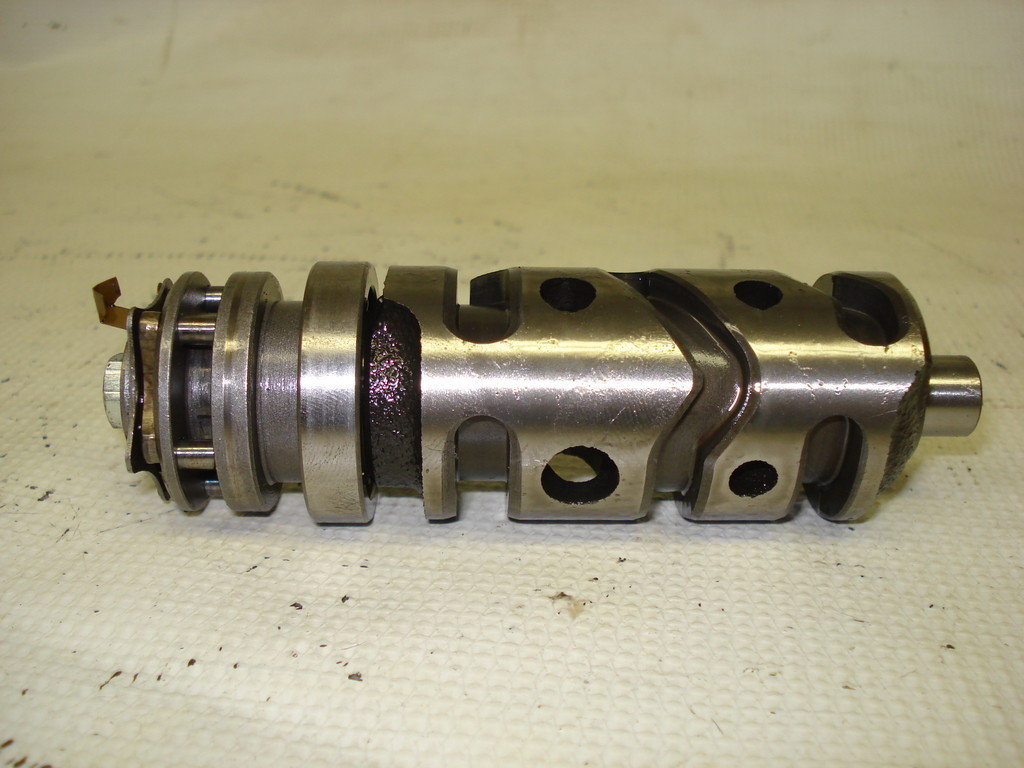

24301-329-010 gear shift drum

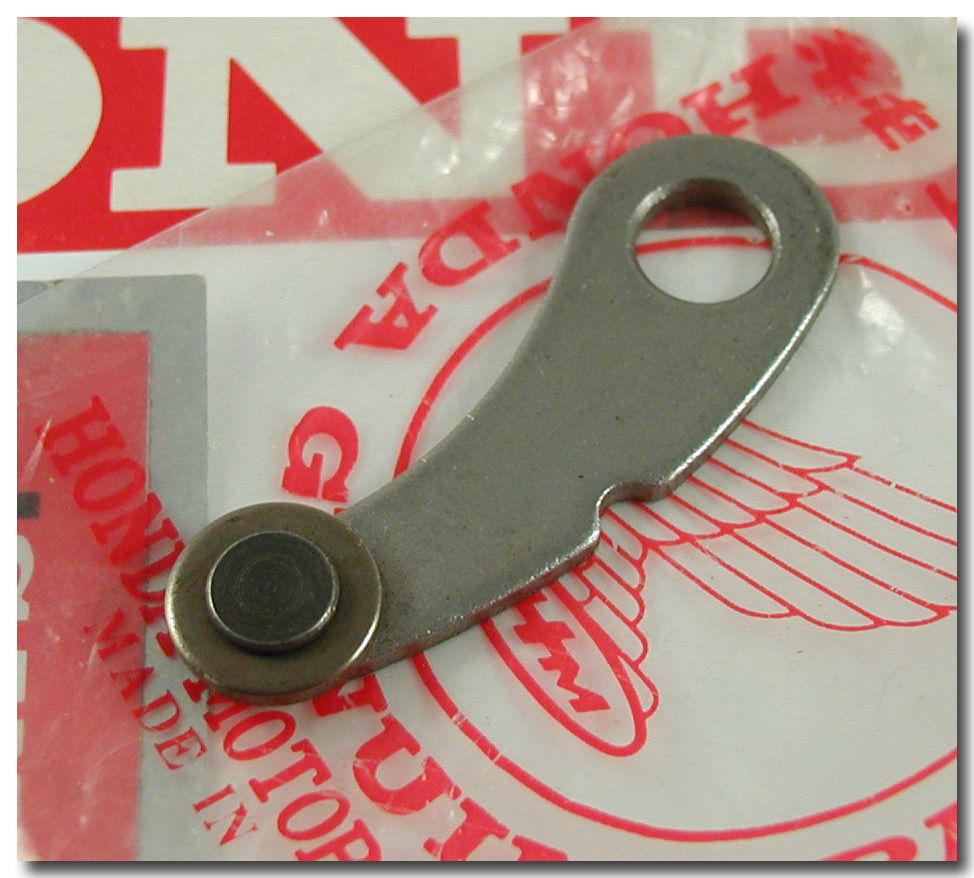

24420-329-000 neutral stopper arm

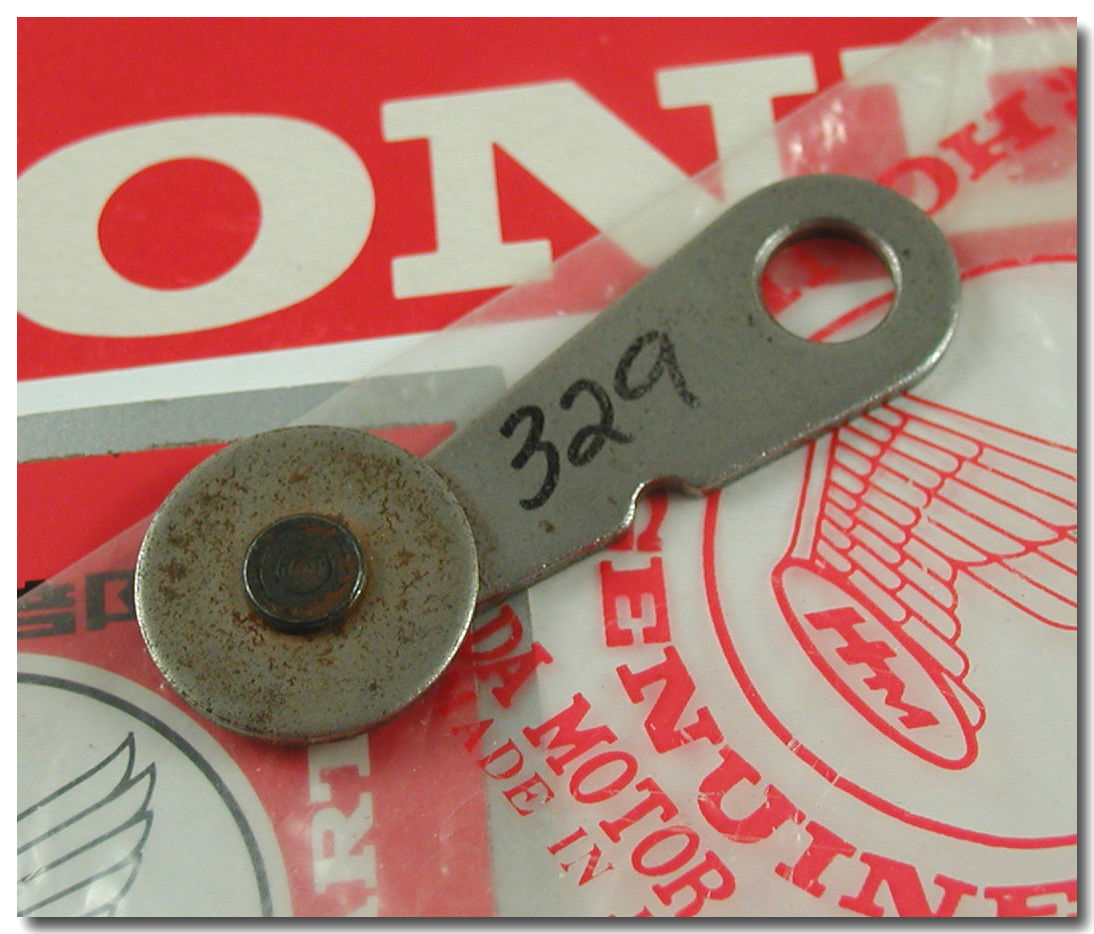

24430-329-030 gear shift drum stopper

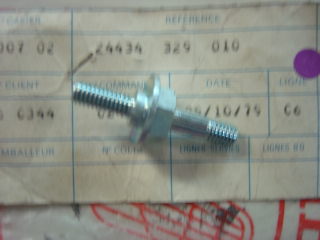

24434-329-010 shift drum stopper

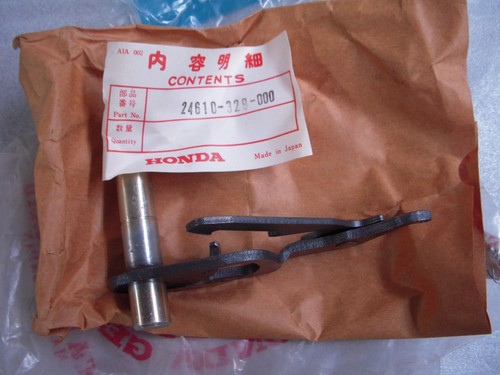

24610-329-000 gear shift spindle complete

24701-385-000 gear lever

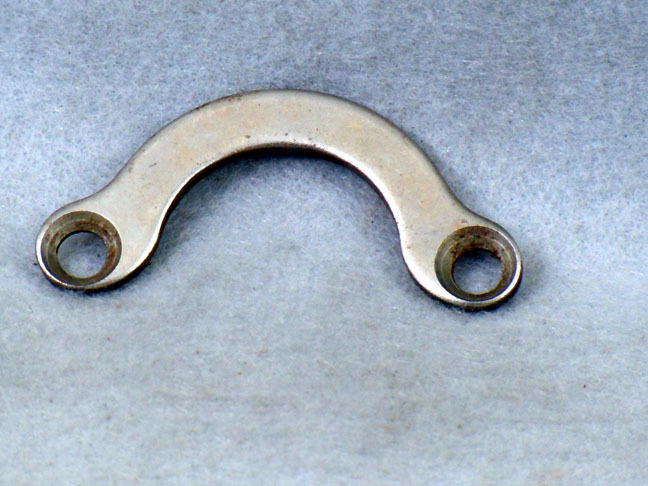

24710-329-000 washer

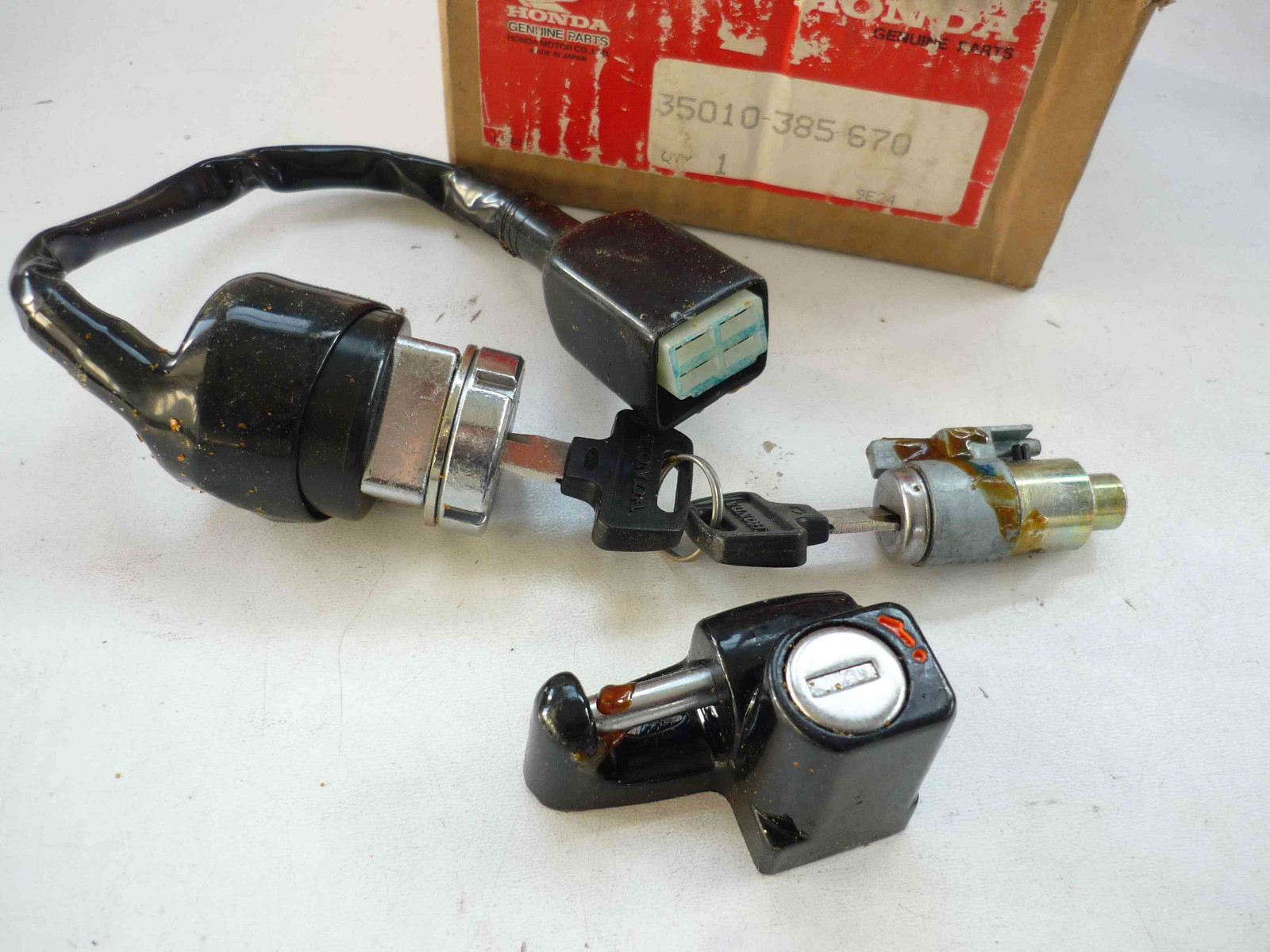

25020-385-670 lock set

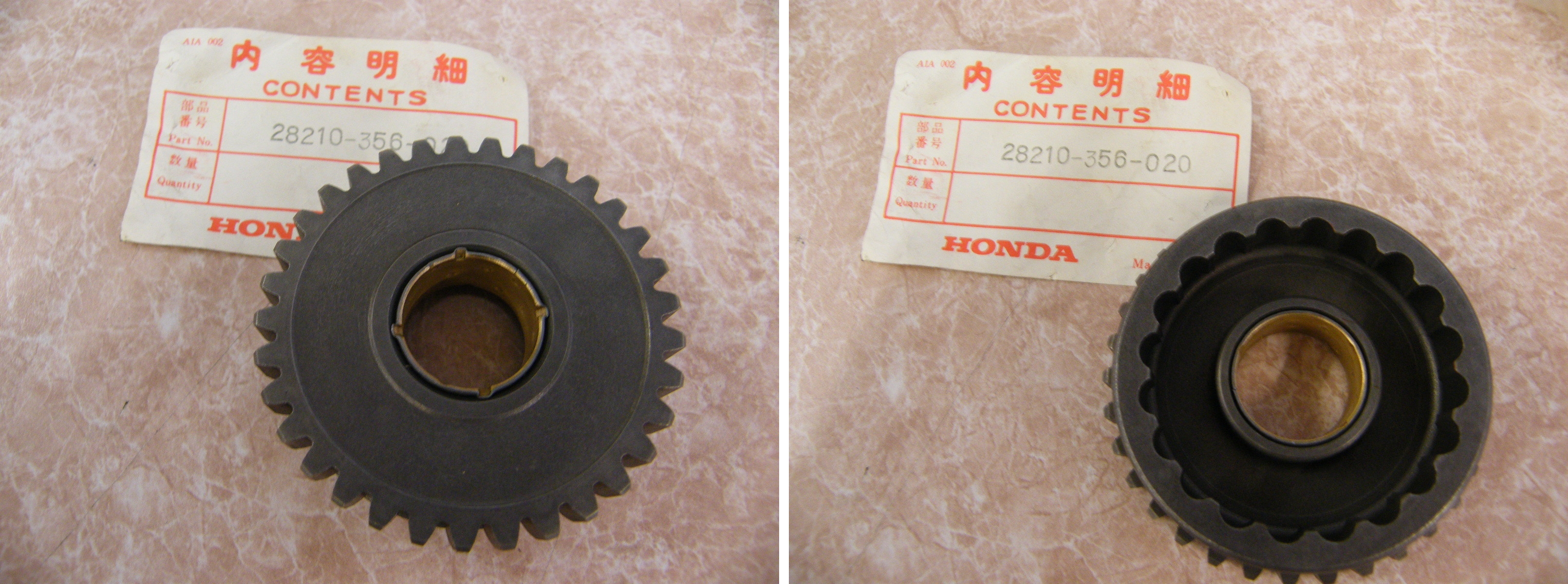

28210-356-020 kick start pinion gear

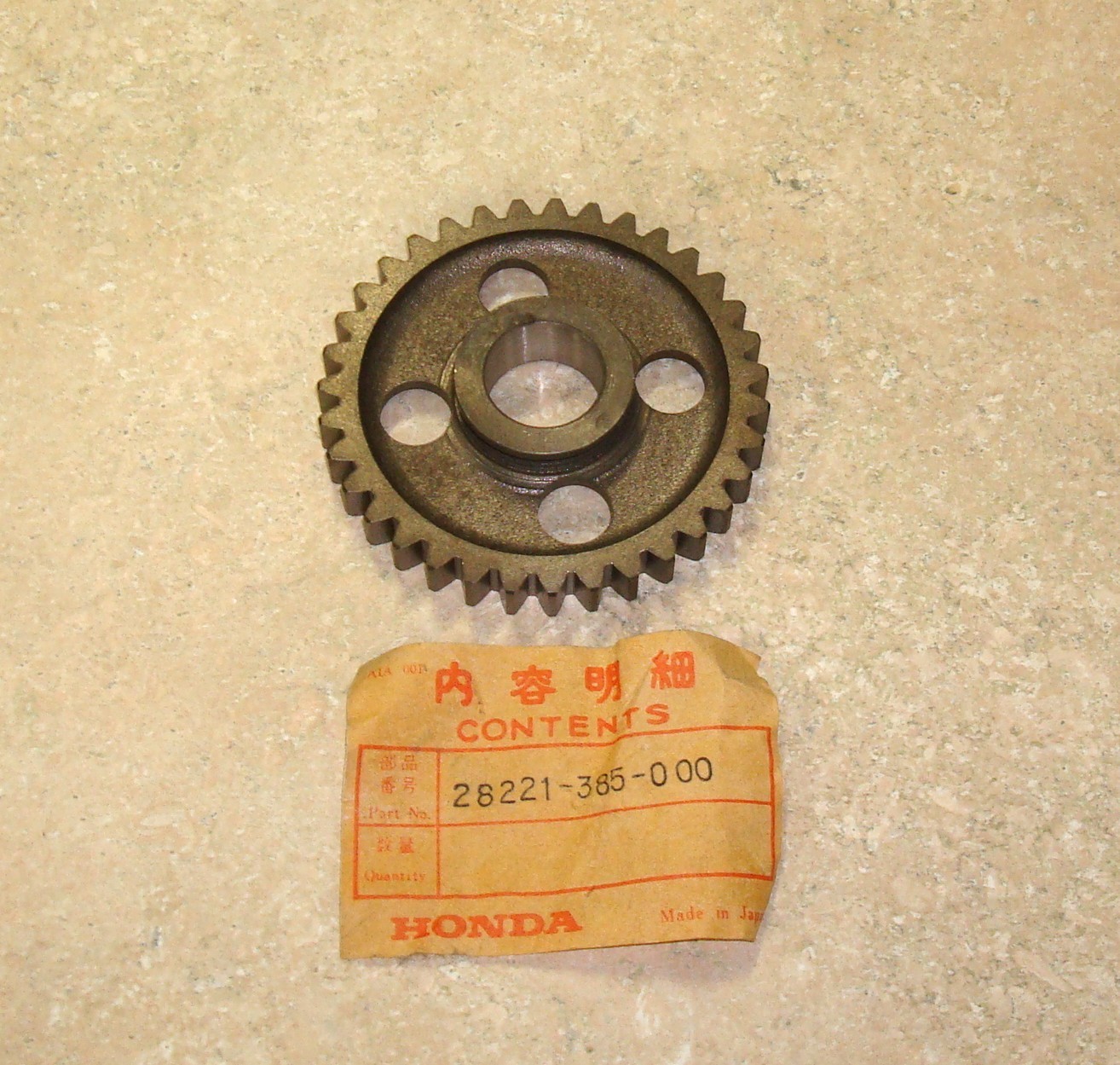

28221-385-000 Kickstarter Idle Gear (35T)

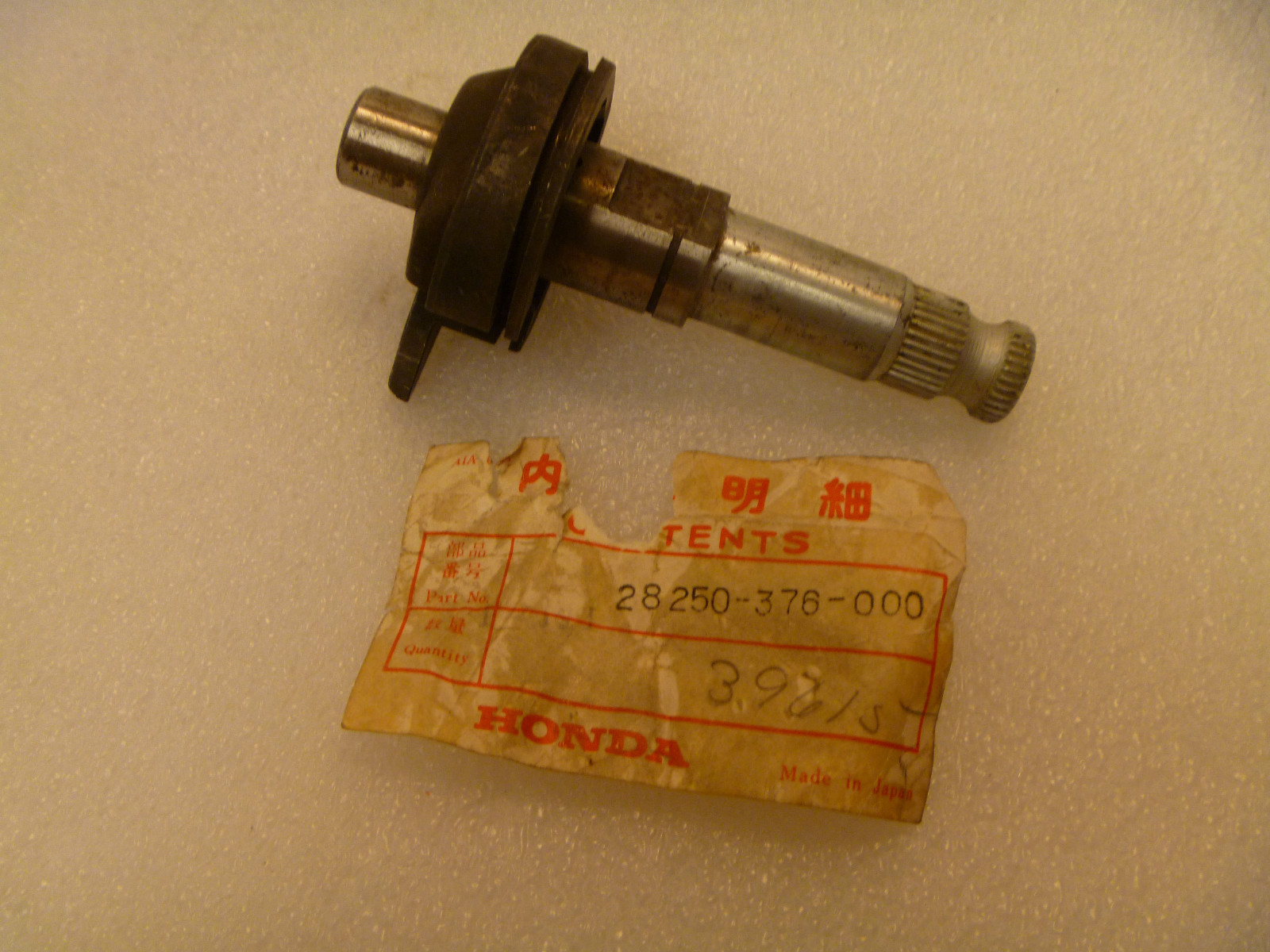

28250-376-000 kickstarter shaft

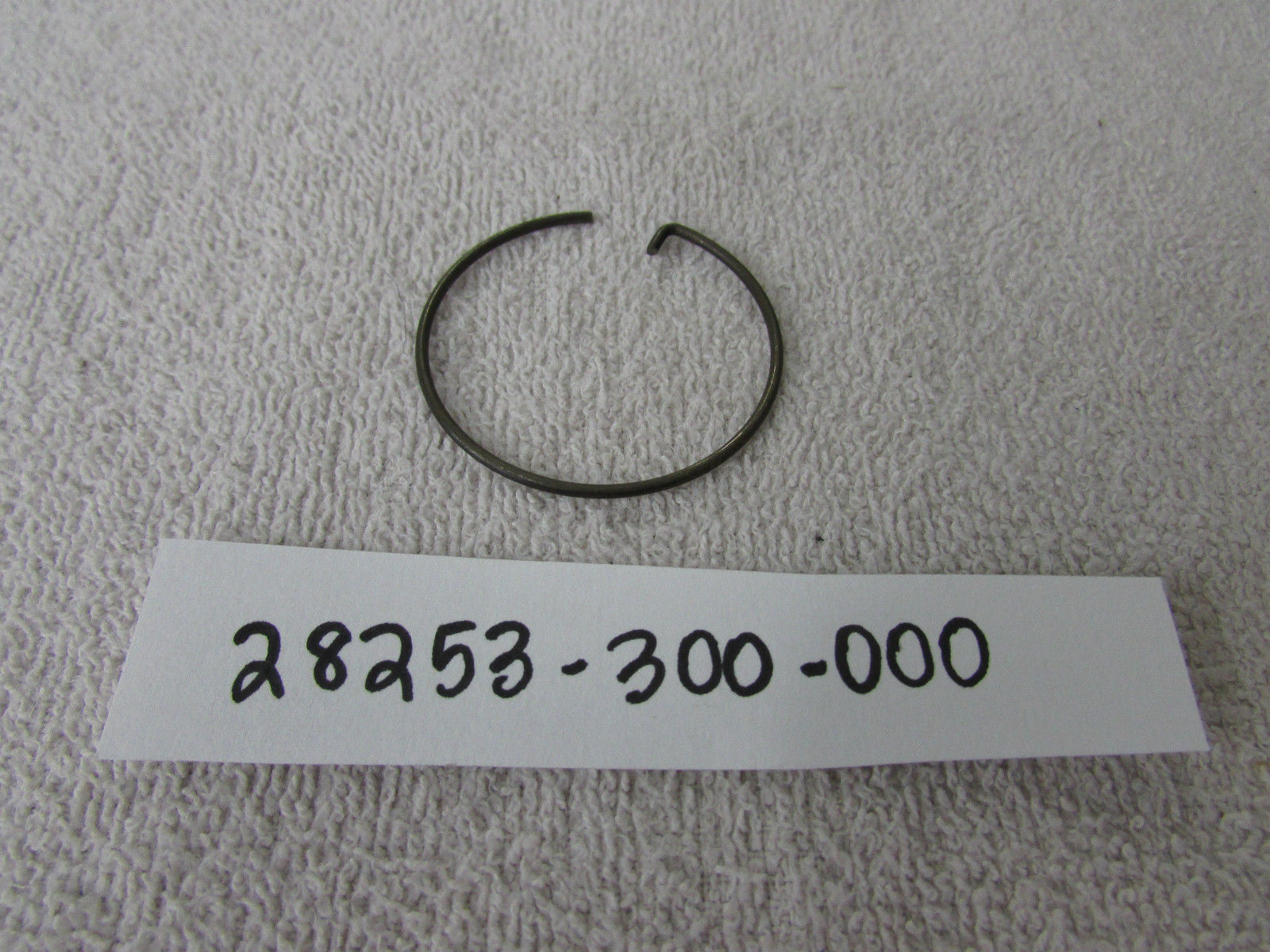

28253-300-000 Kickstarter spring

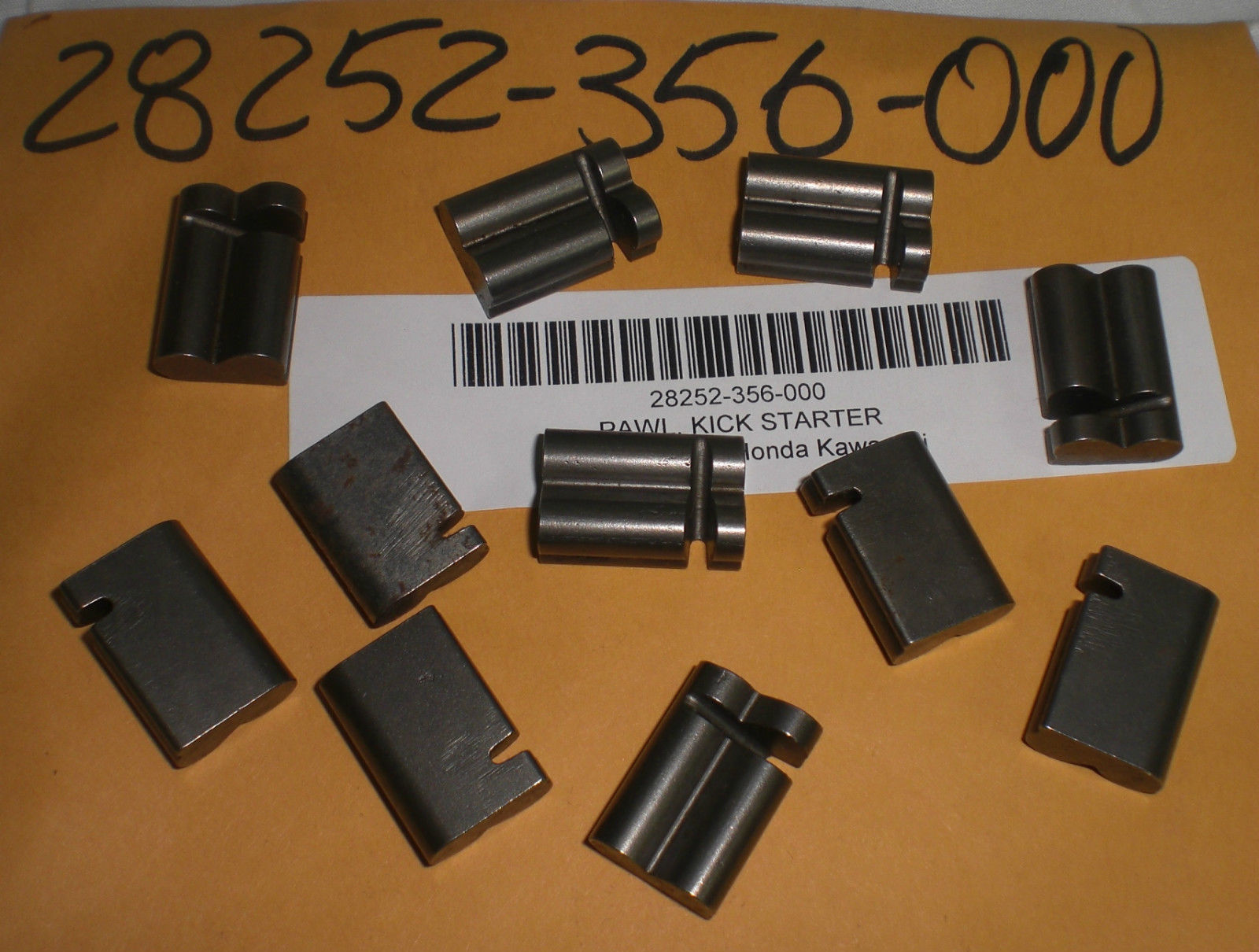

28252-356-000 kickstarter pawl

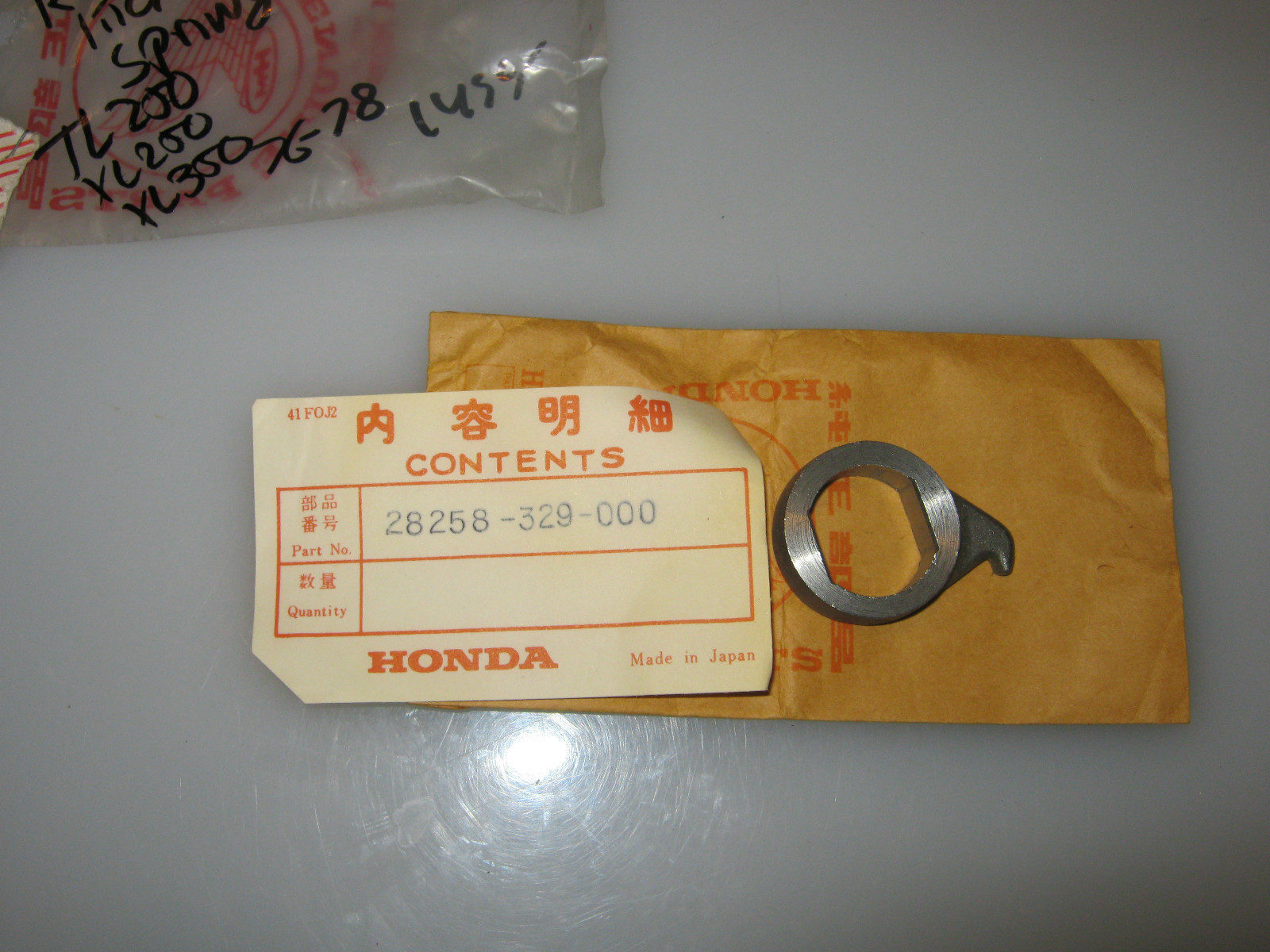

28258-329-000 kick starter spring retainer

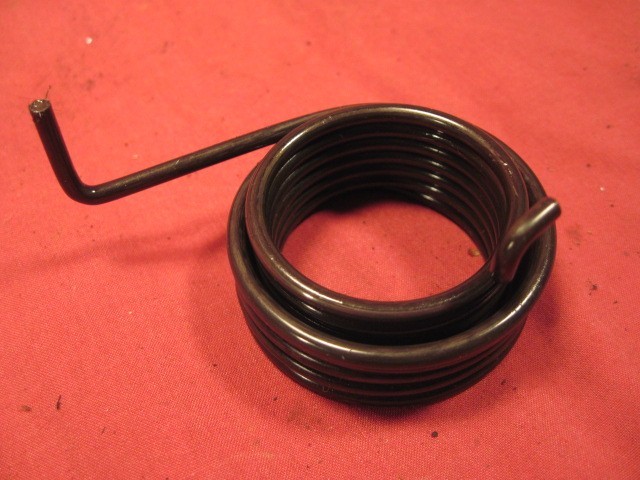

28261-376-000 kick starter spring

28300-385-000 kick starter

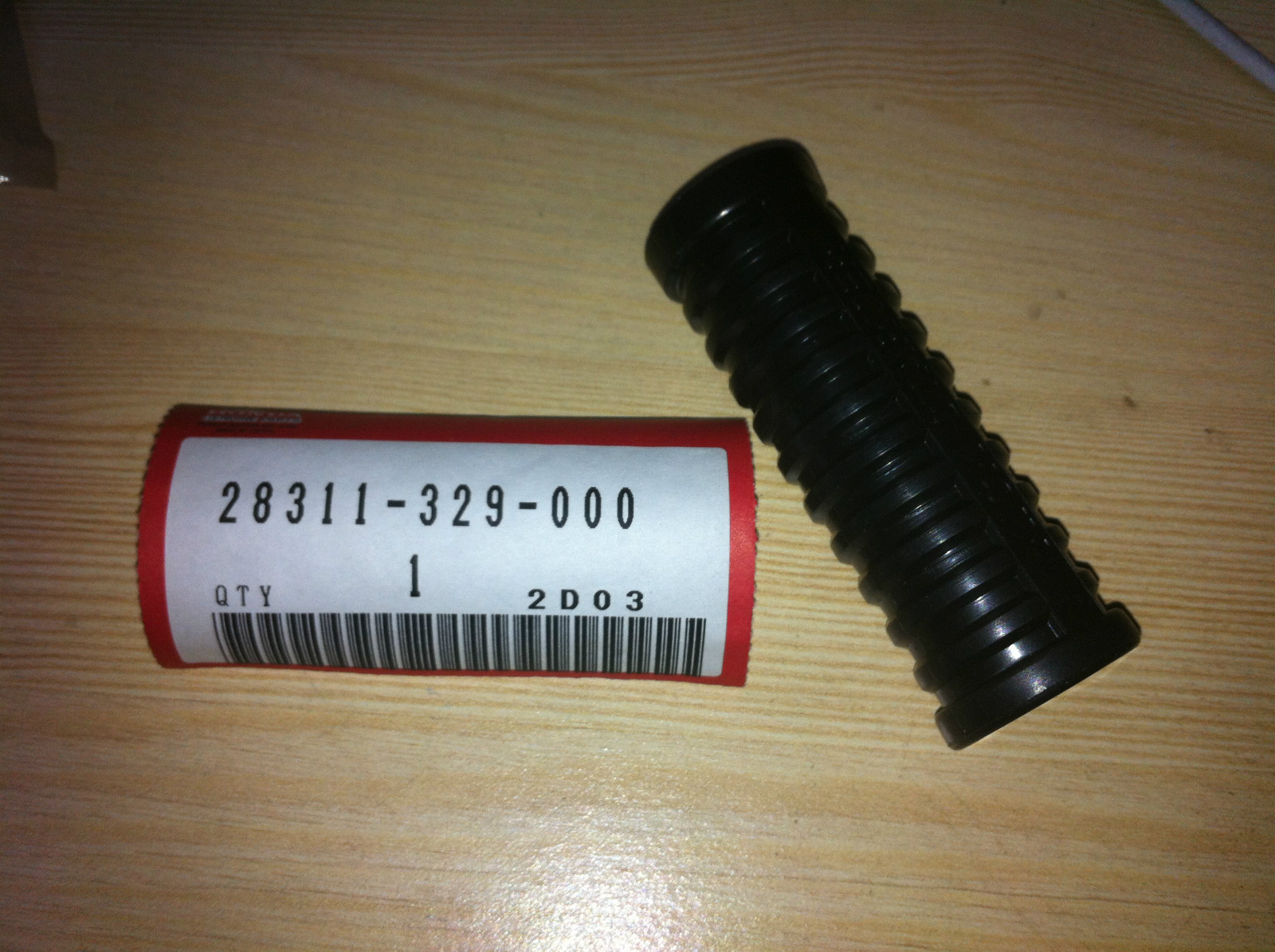

28311-329-000 kick starter rubber

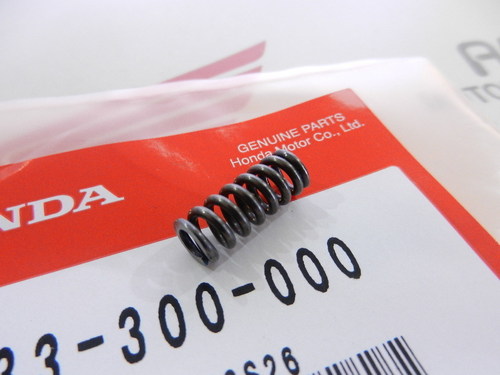

28333-300-000 kick starter spring

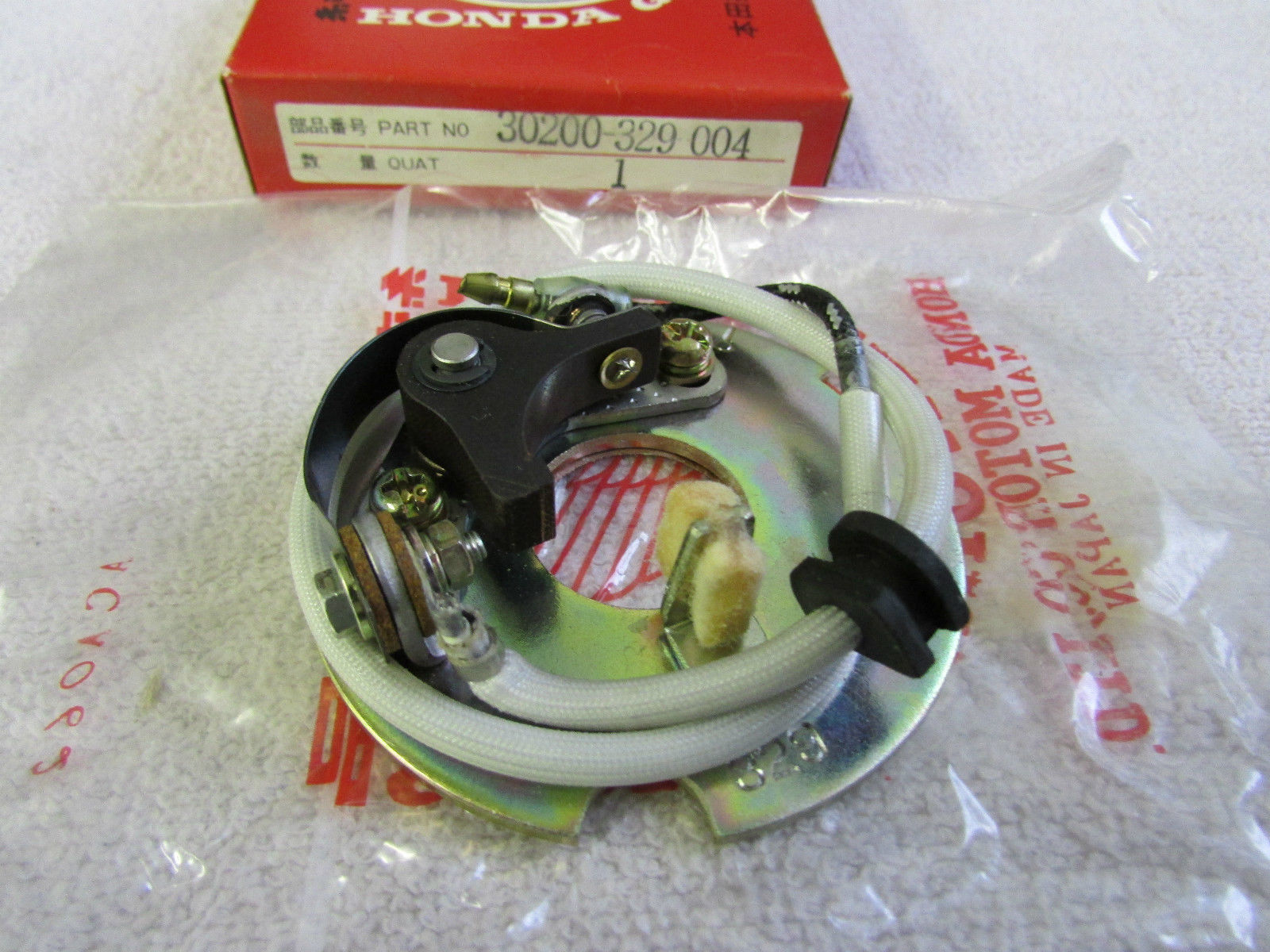

30200-329-000 points plate complete

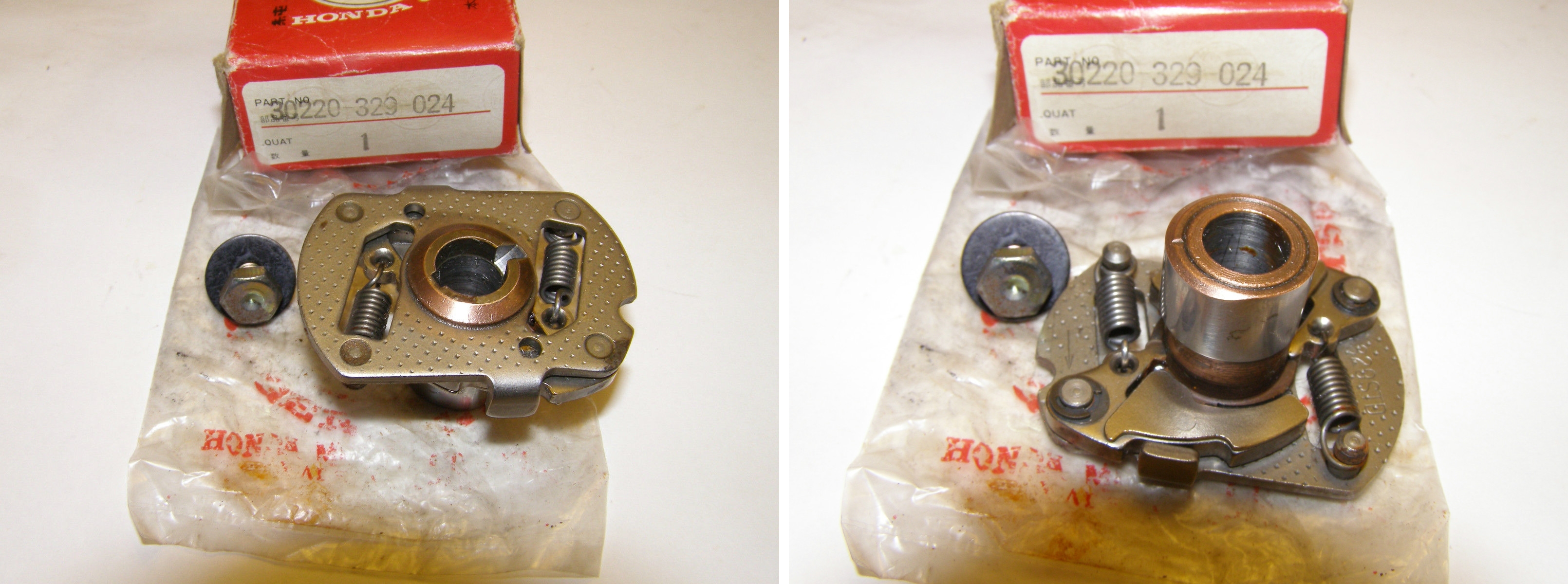

30220-329-024 spark advance unit

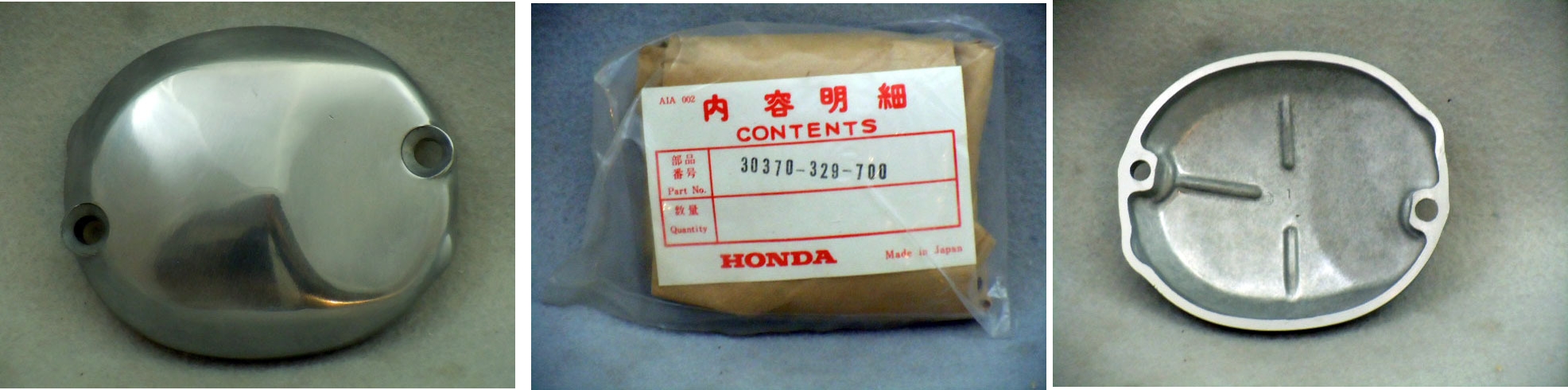

30370-329-700 points cover

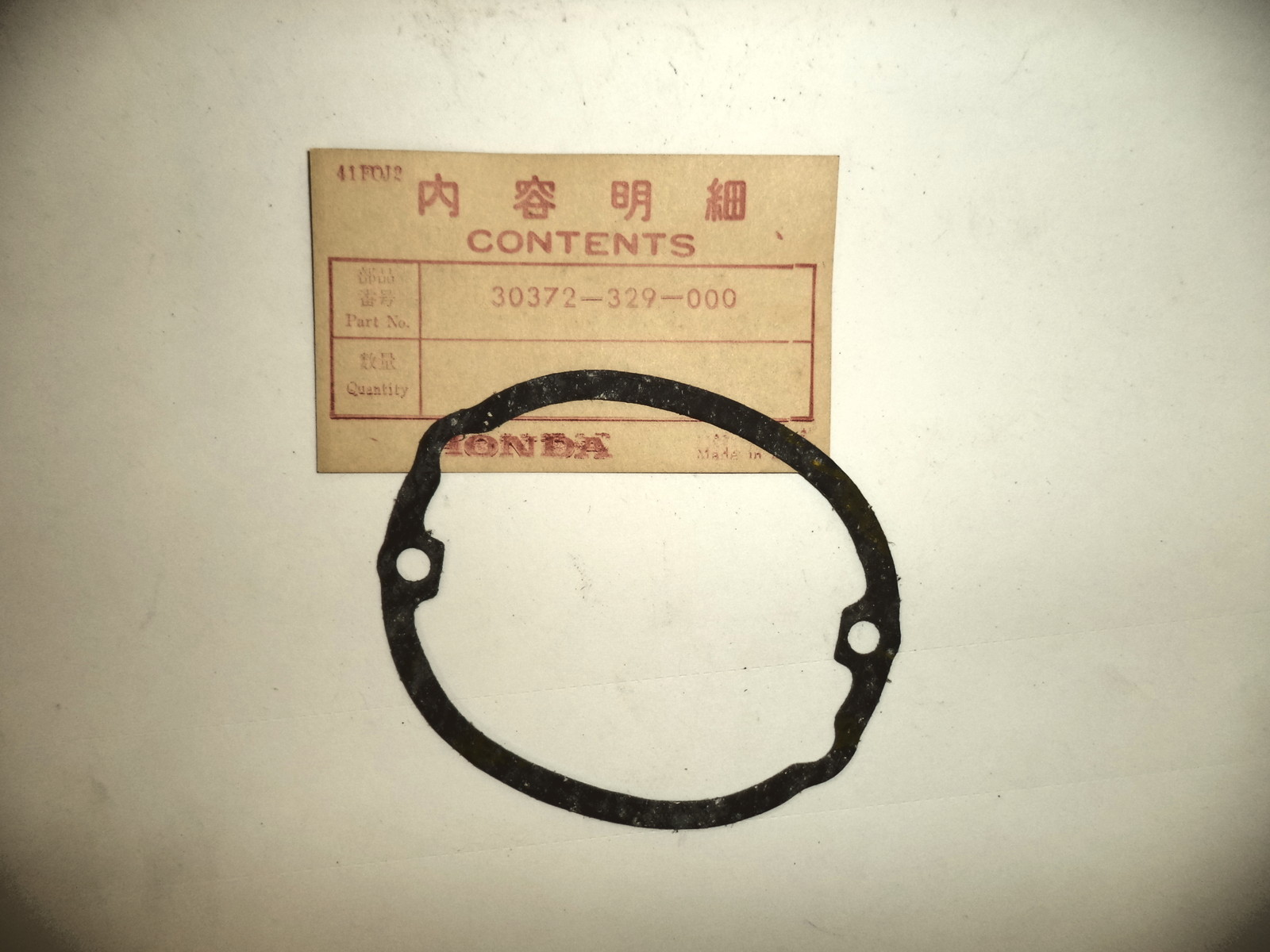

30372-329-000 points cover gasket

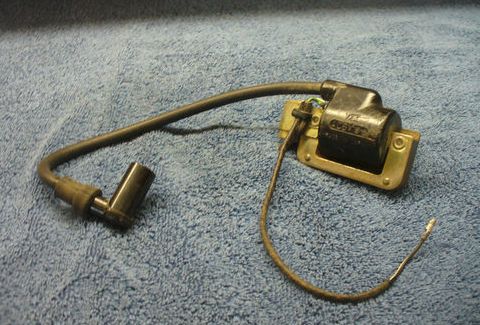

30530-376-405 coil

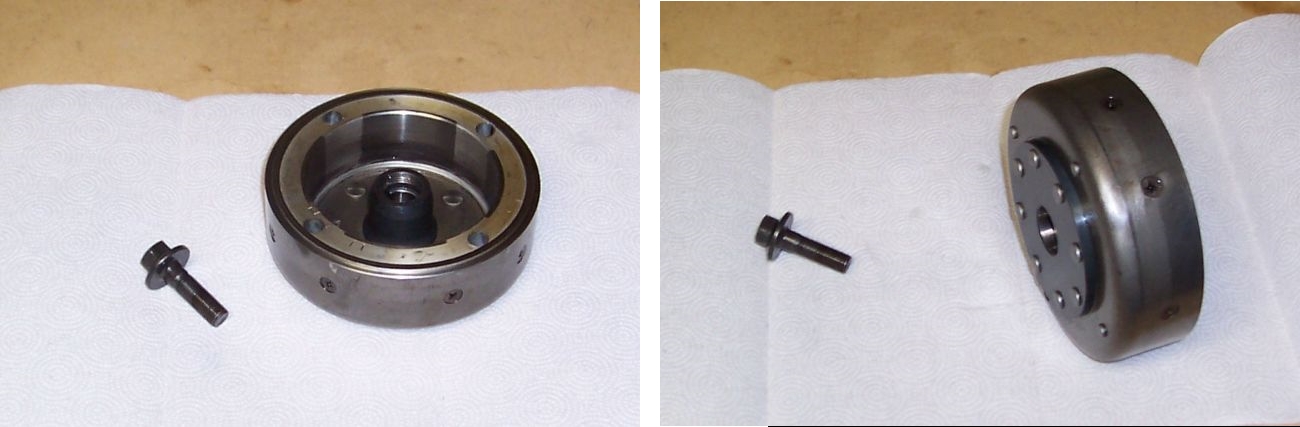

31121-329-774 stator

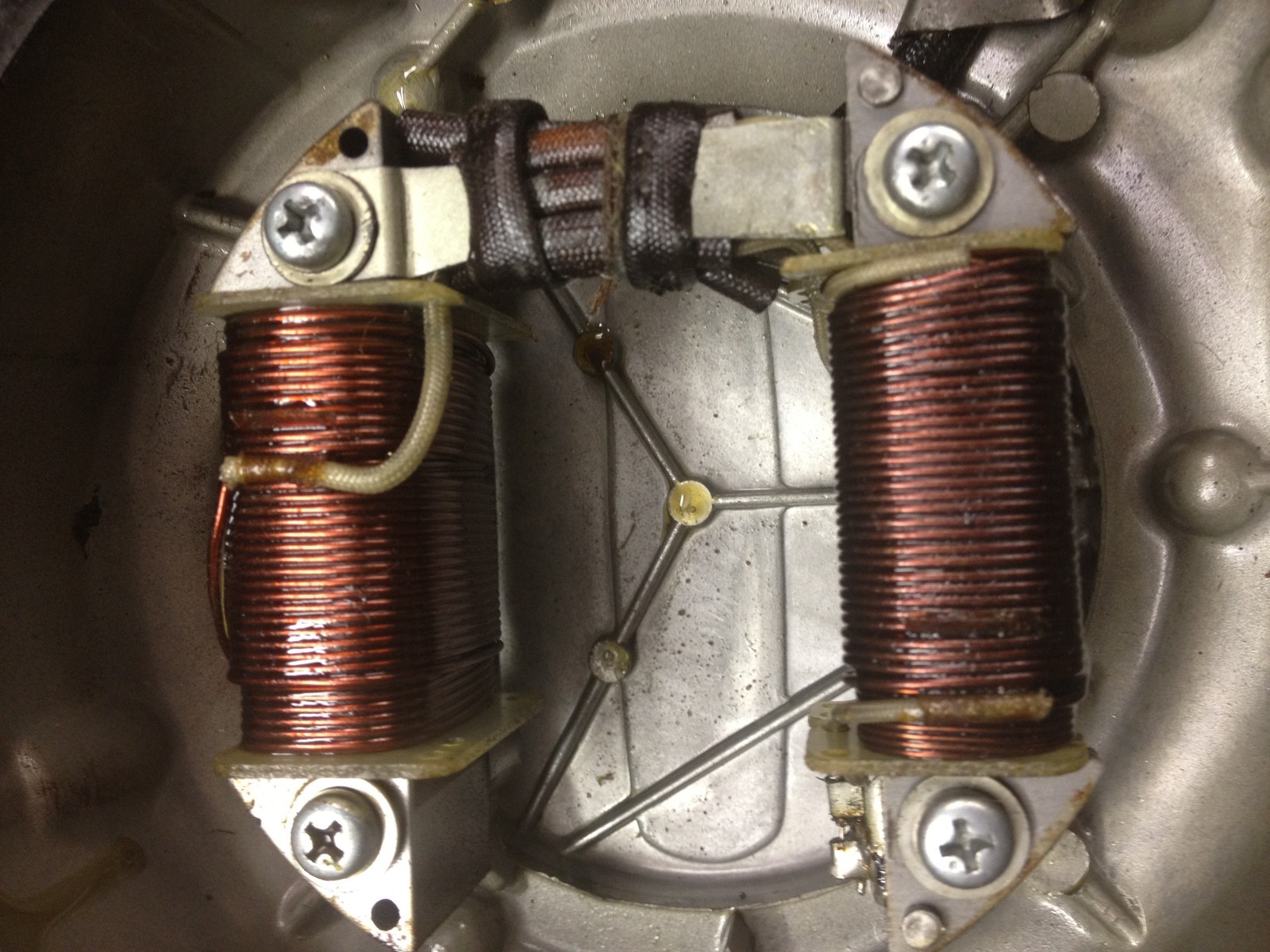

3141-329-004 stator coils

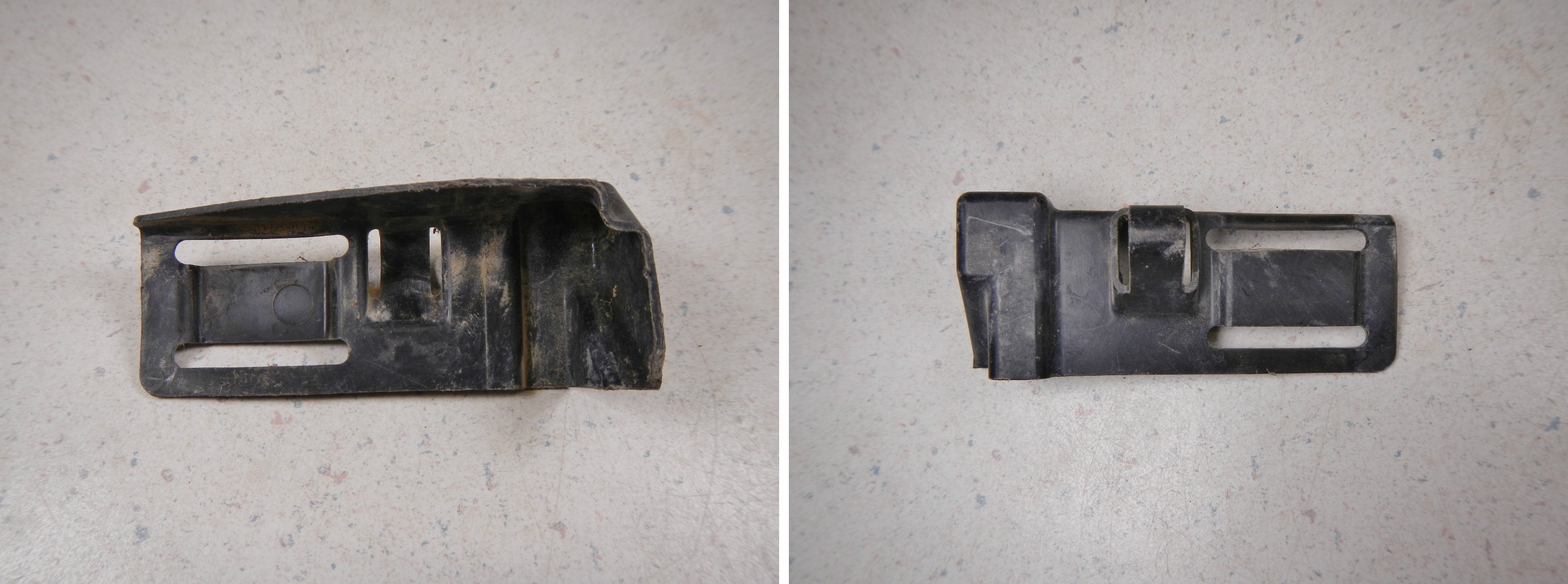

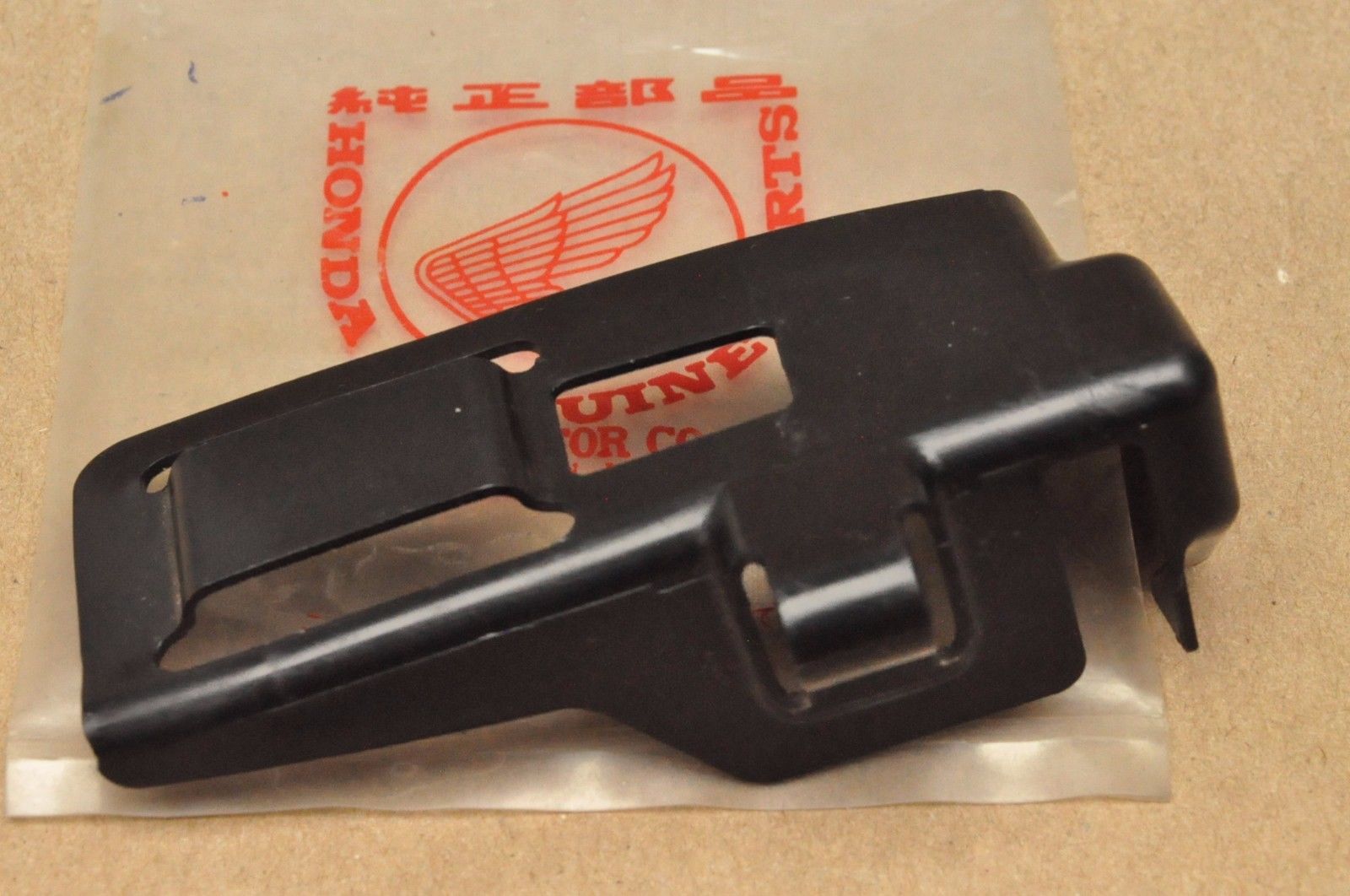

31532-385-000 used terminal cover - see also new one 31532-385-000

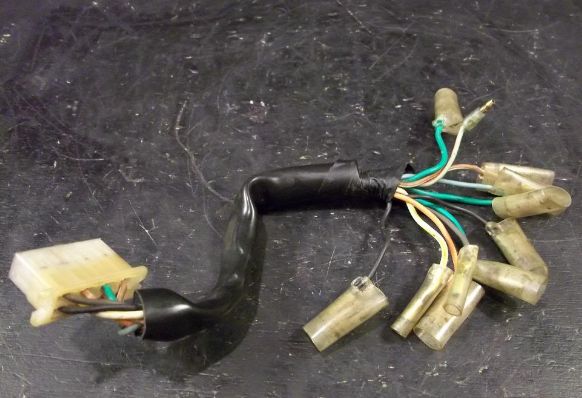

32105-385-000 sub harness

32108-046-000 connector cover

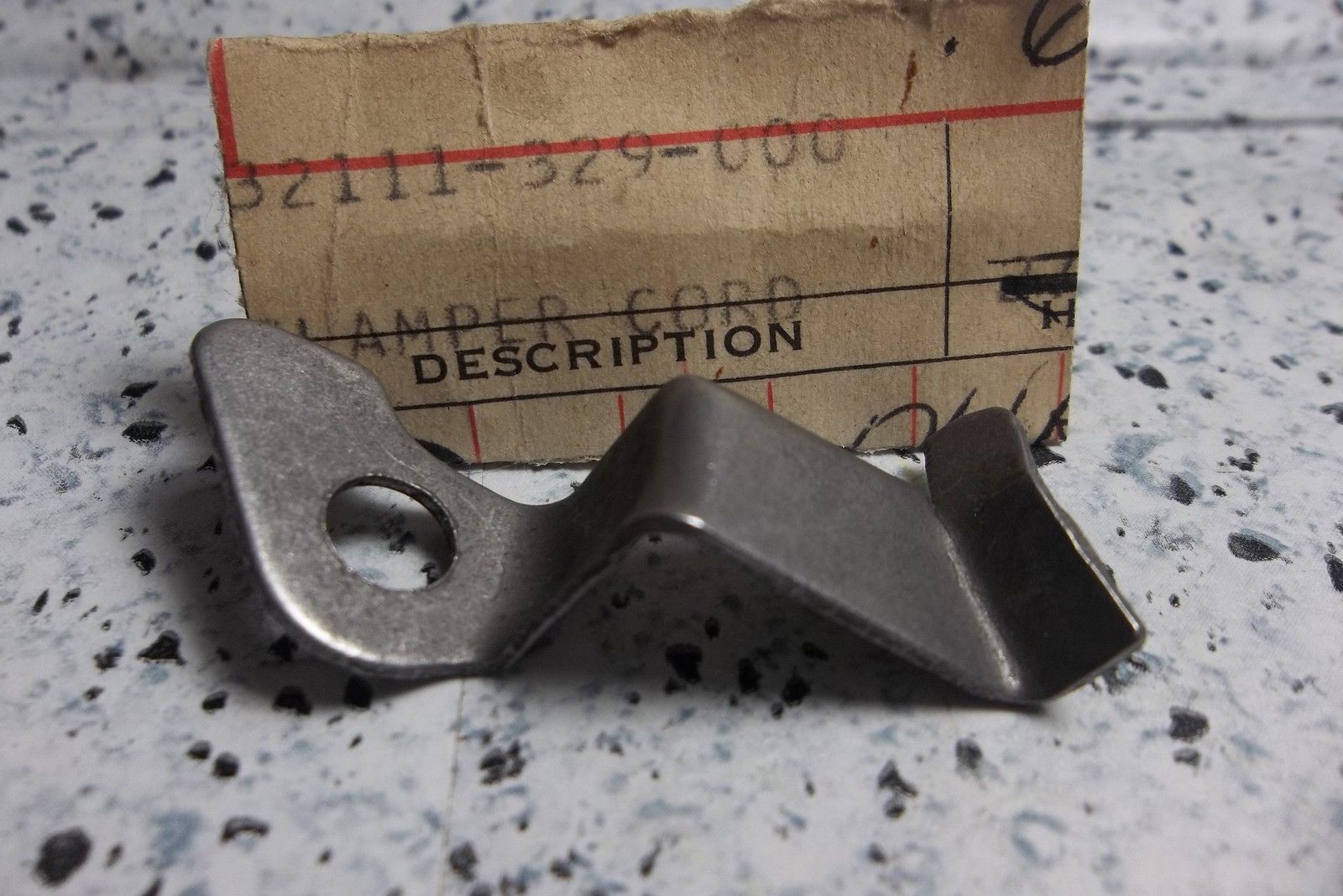

32111-329-000 stator wire clamper, cord

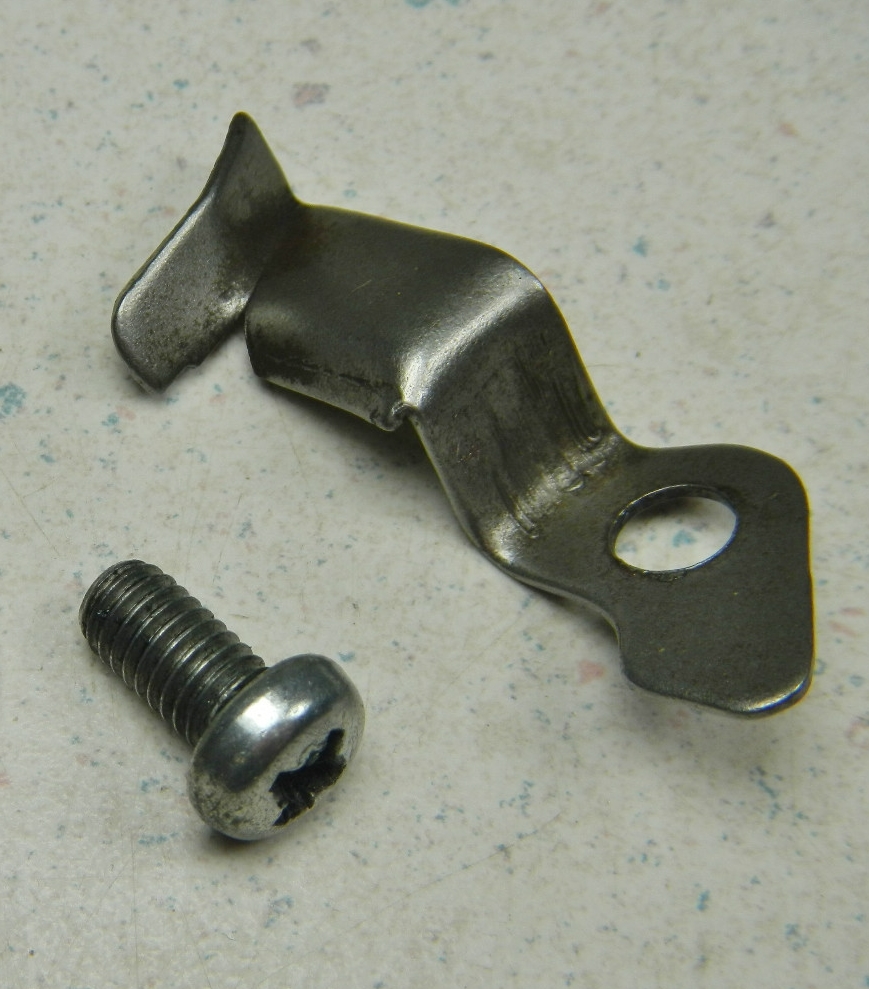

32111-329-000 stator wire clamper, cord with screw 93500-060120A

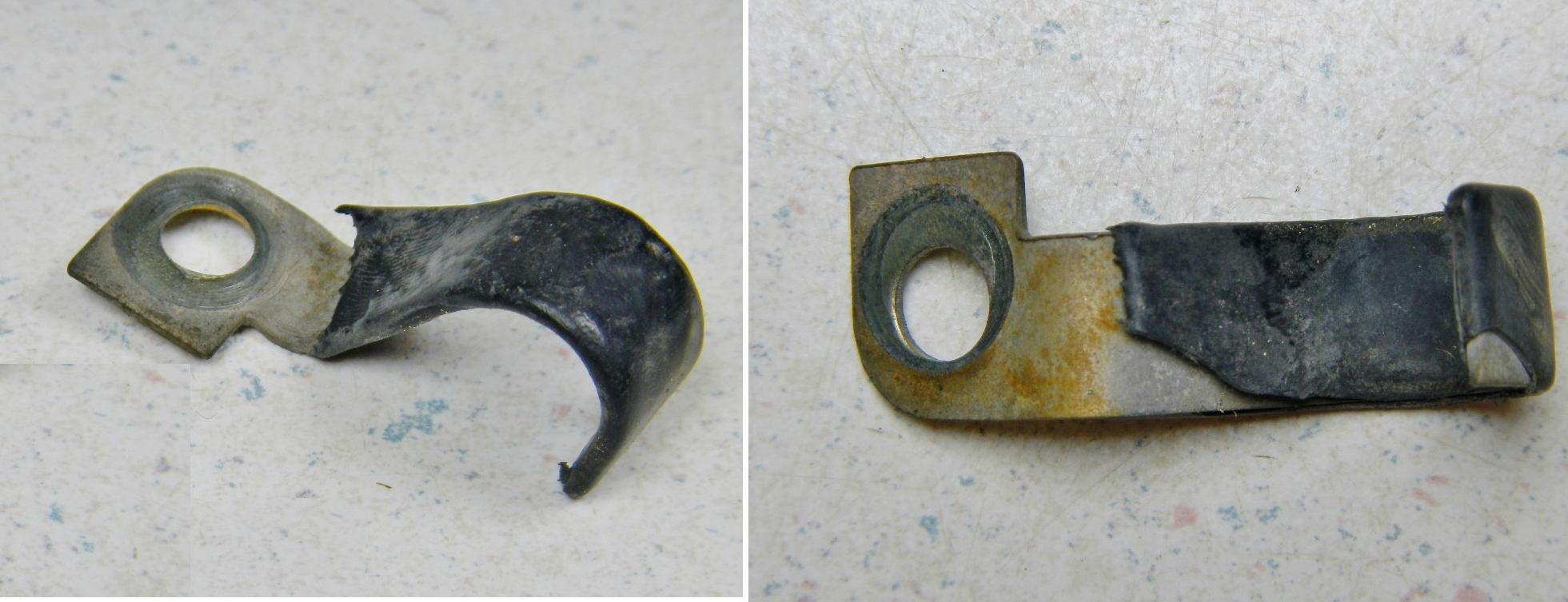

32112-333-000 wire clamp

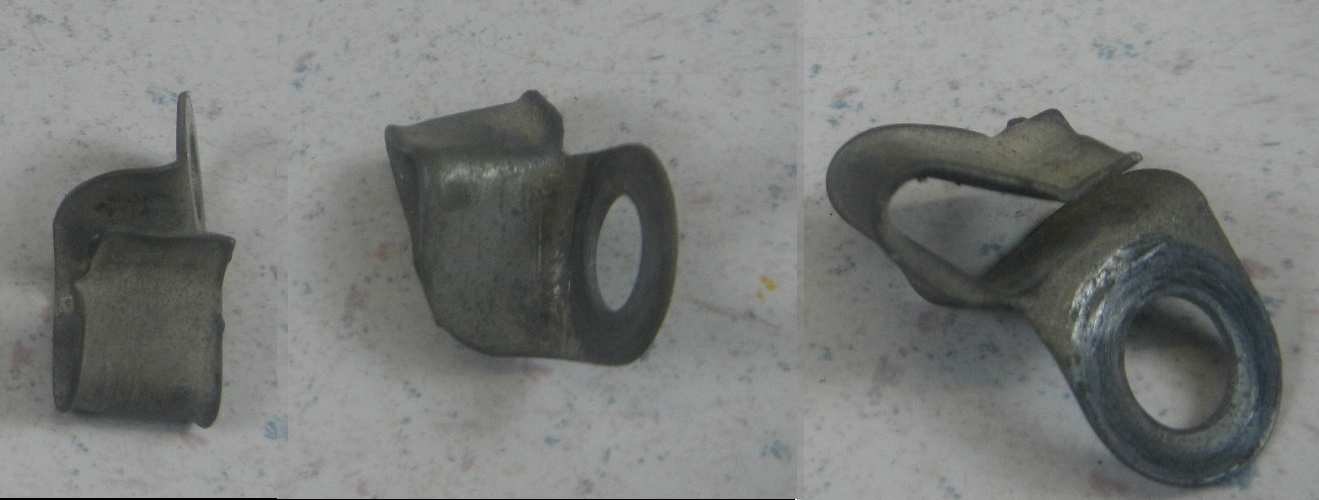

32111-333-000 cable guide points cable

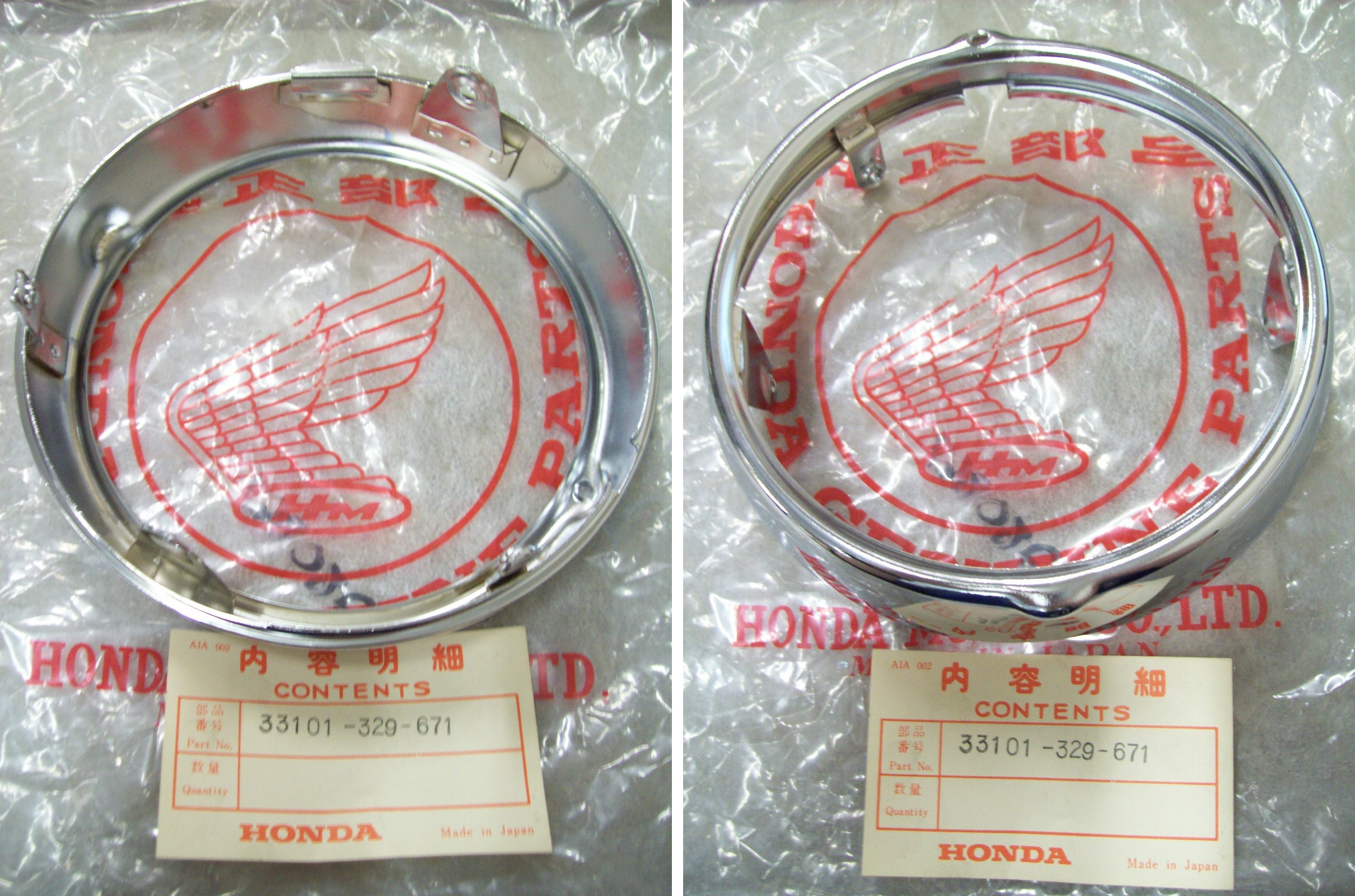

33101-329-671 (USA) headlight rim

33108-028-013 'W' clip headlight rim

33120-329-671 (USA) sealed beam headlight lamp

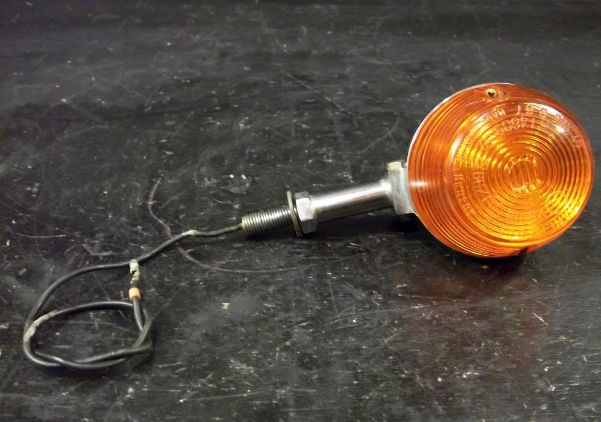

33400-361-679 rear indicator (and stalk)

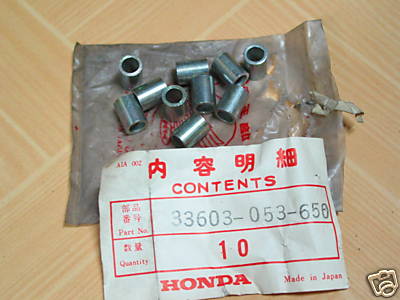

33603-053-650 dowels

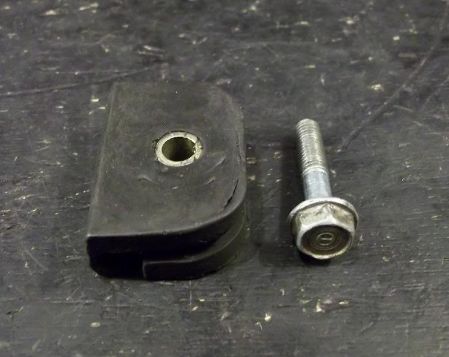

33603-385-000 indicator rubber mount, collet and bolt set (33603-385-000, 95701-0602500)

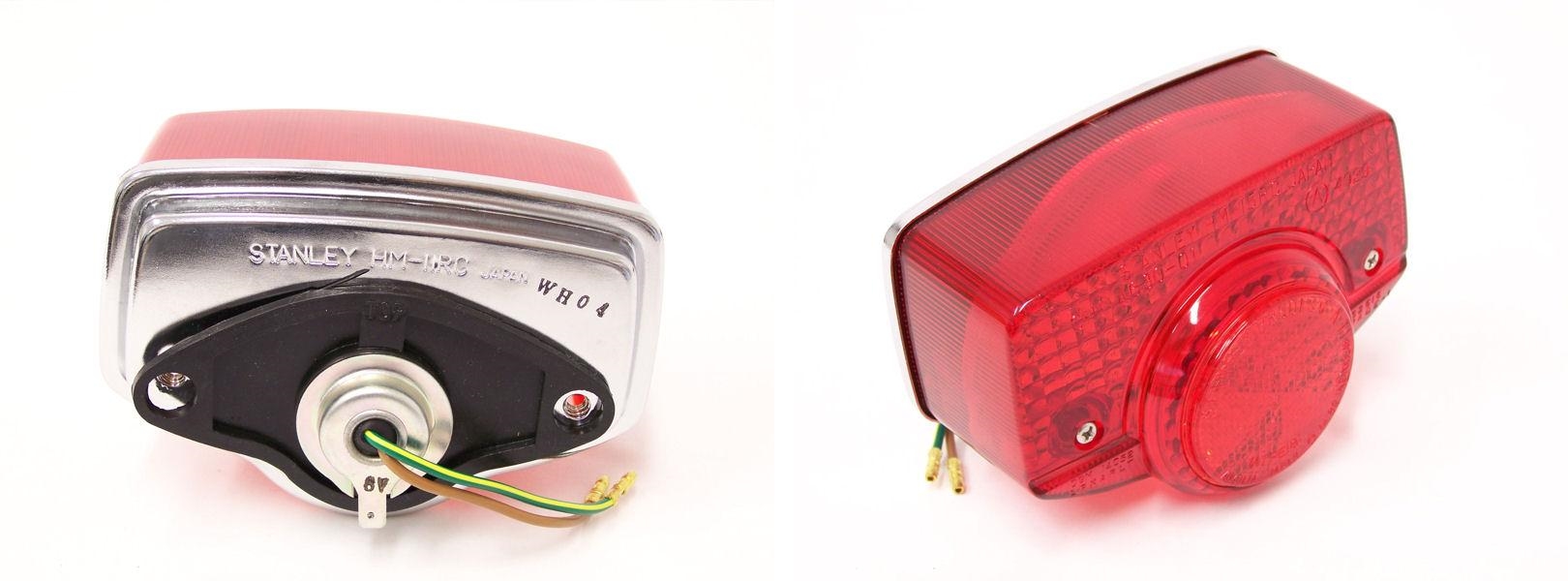

33701-098-633 rear light complete

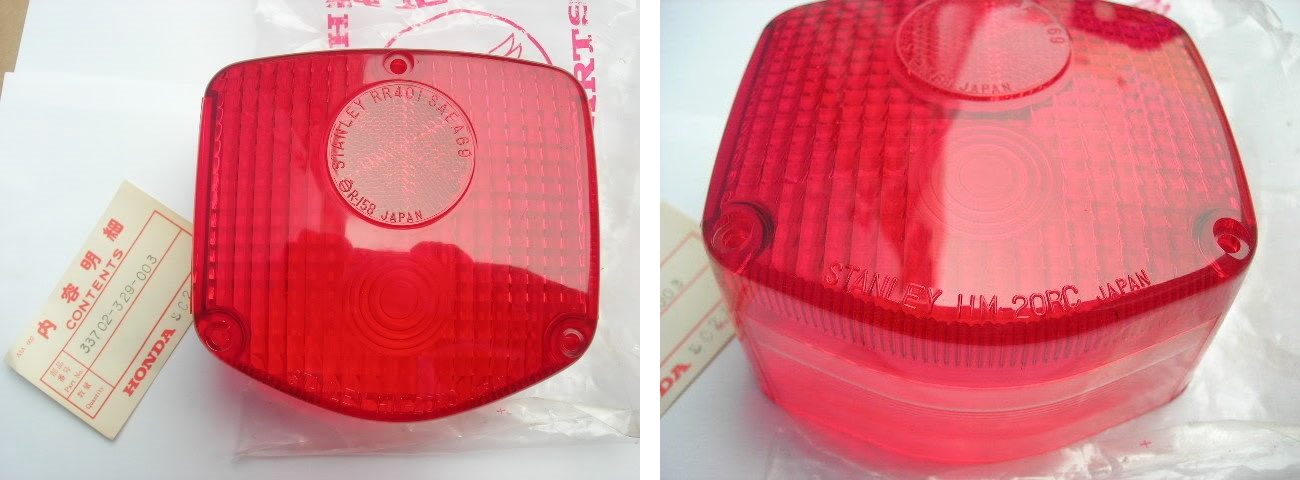

33702-329-003 rear light lens

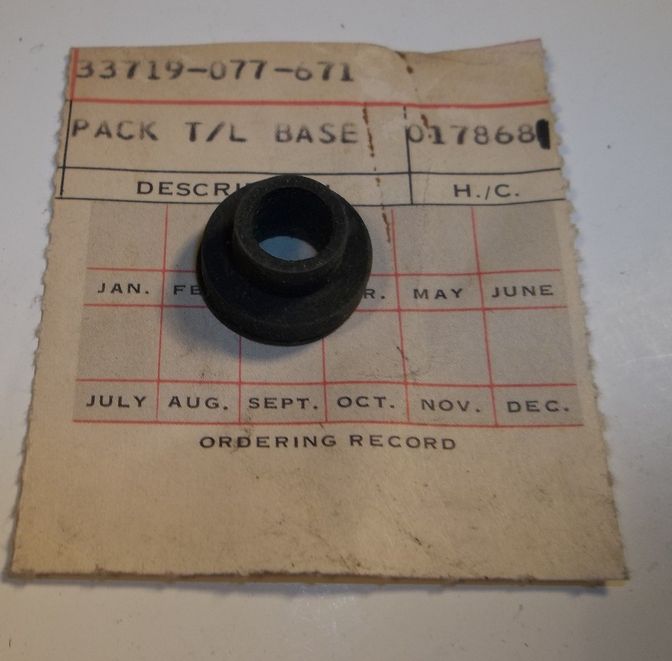

33719-077-671 mounting rubber

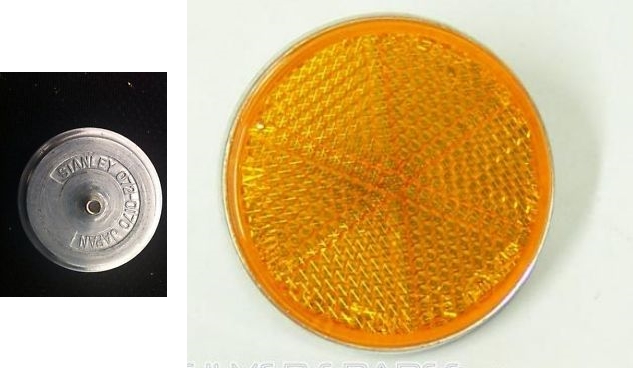

33741-340-670 front reflector

34701-340-670 (USA version) tail light bracket and light

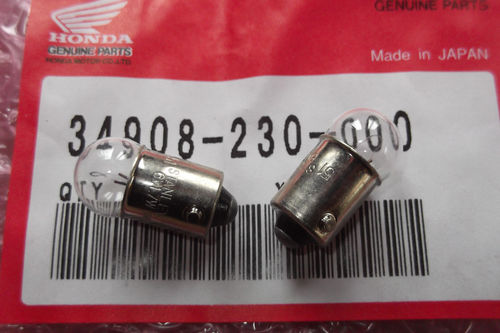

34908-230-000 bulb

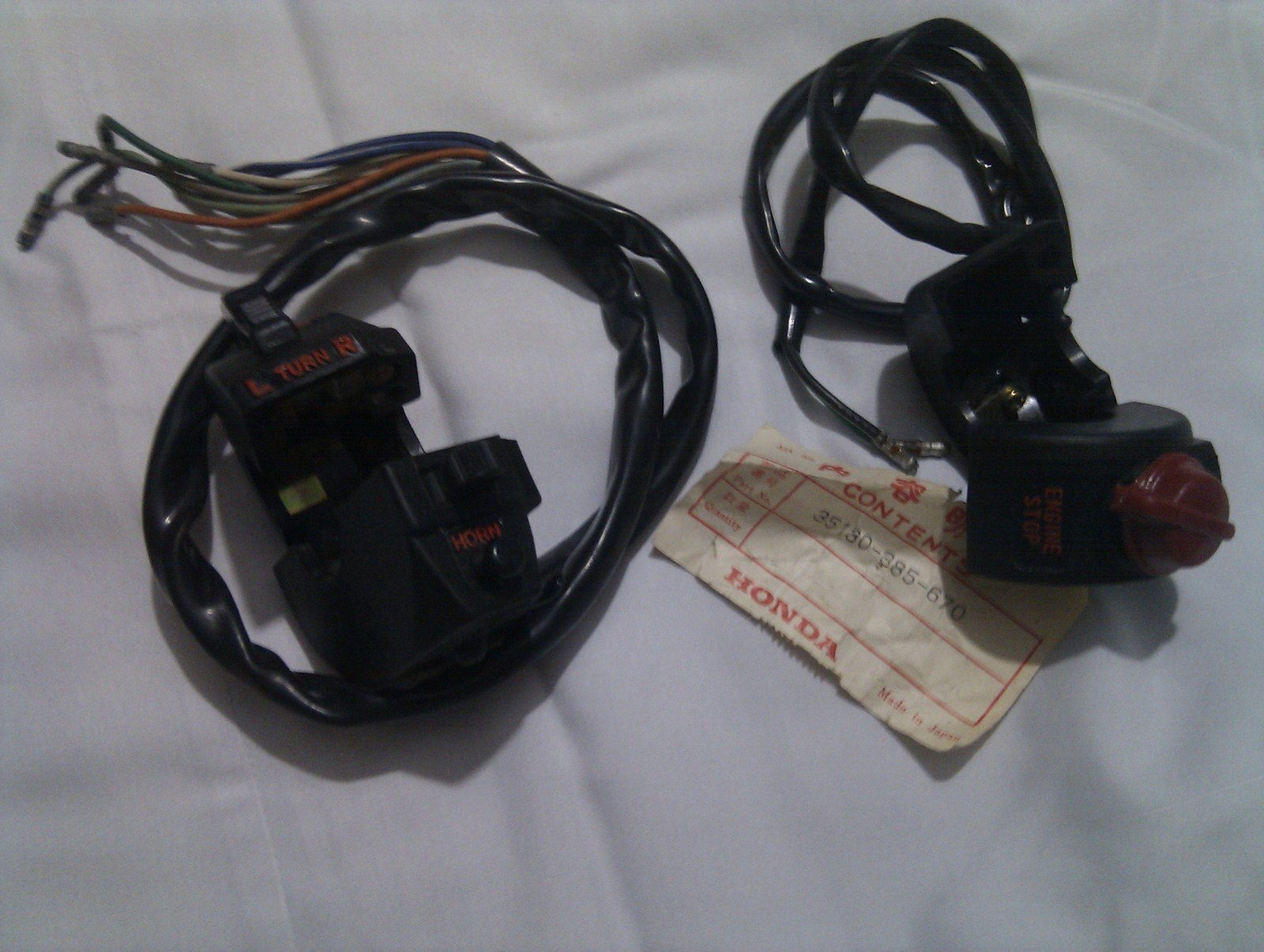

35130-385-670 and 35200-358-003 handlebar switches

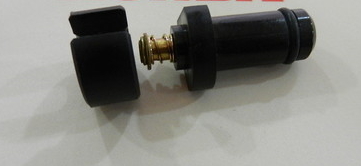

35750-028-000 neutral switch

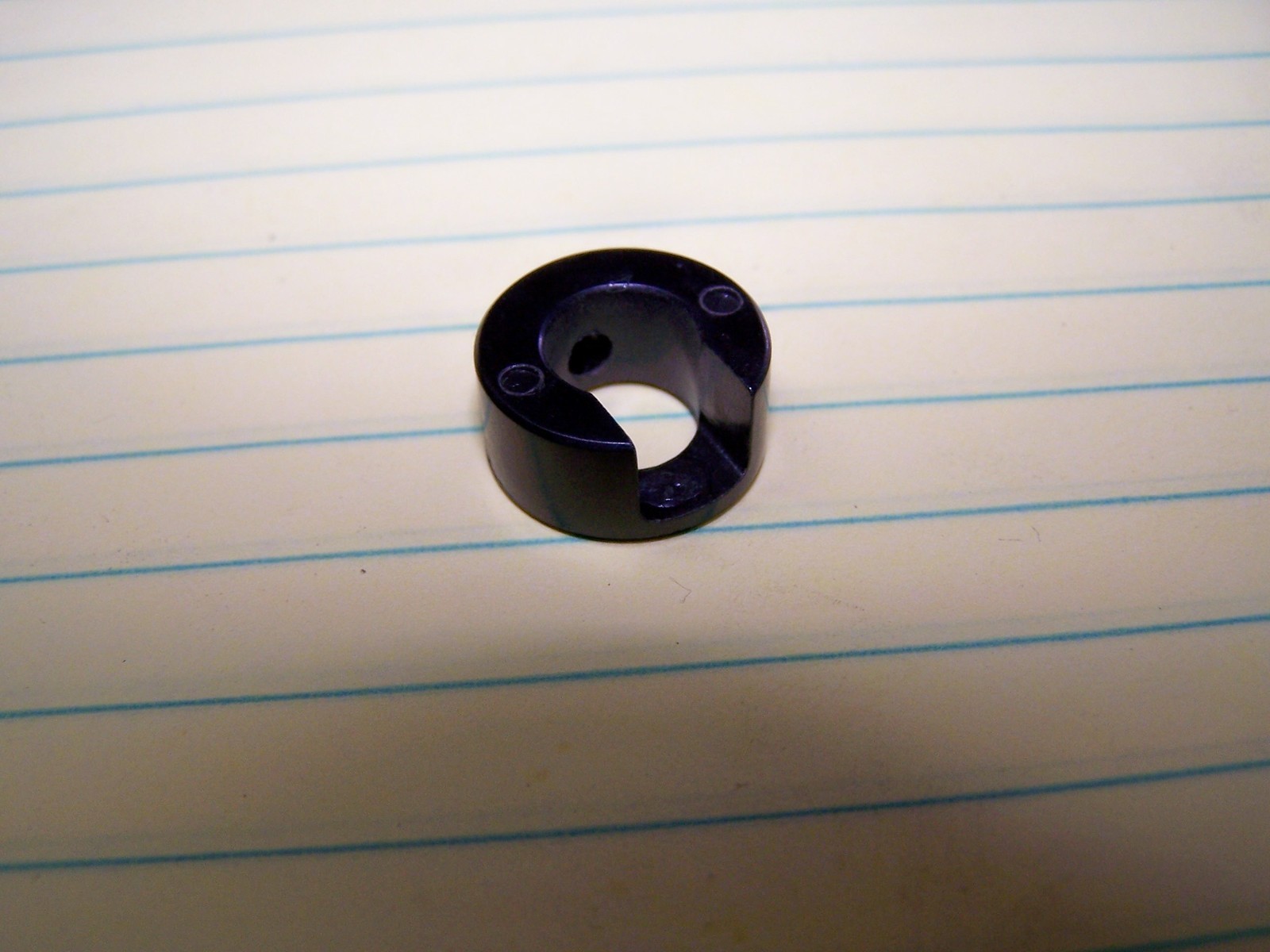

35752-329-300 neutral switch washer alone

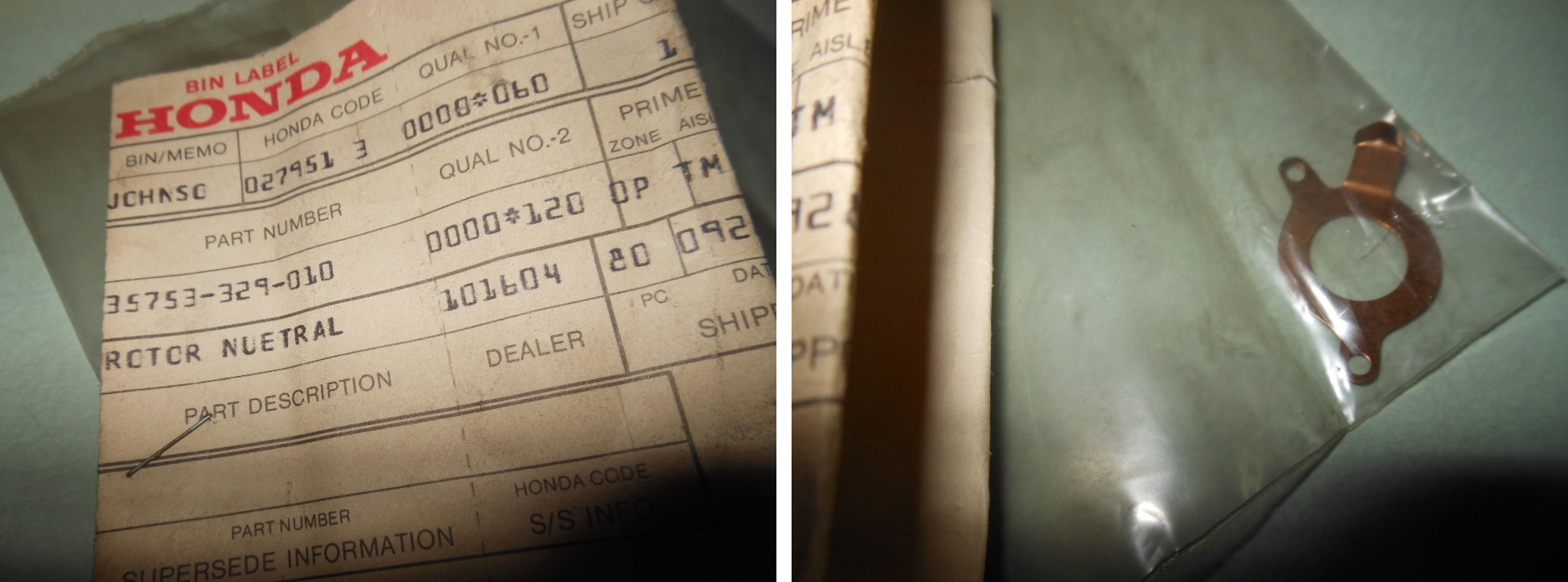

35753-329-010 neutral switch contact

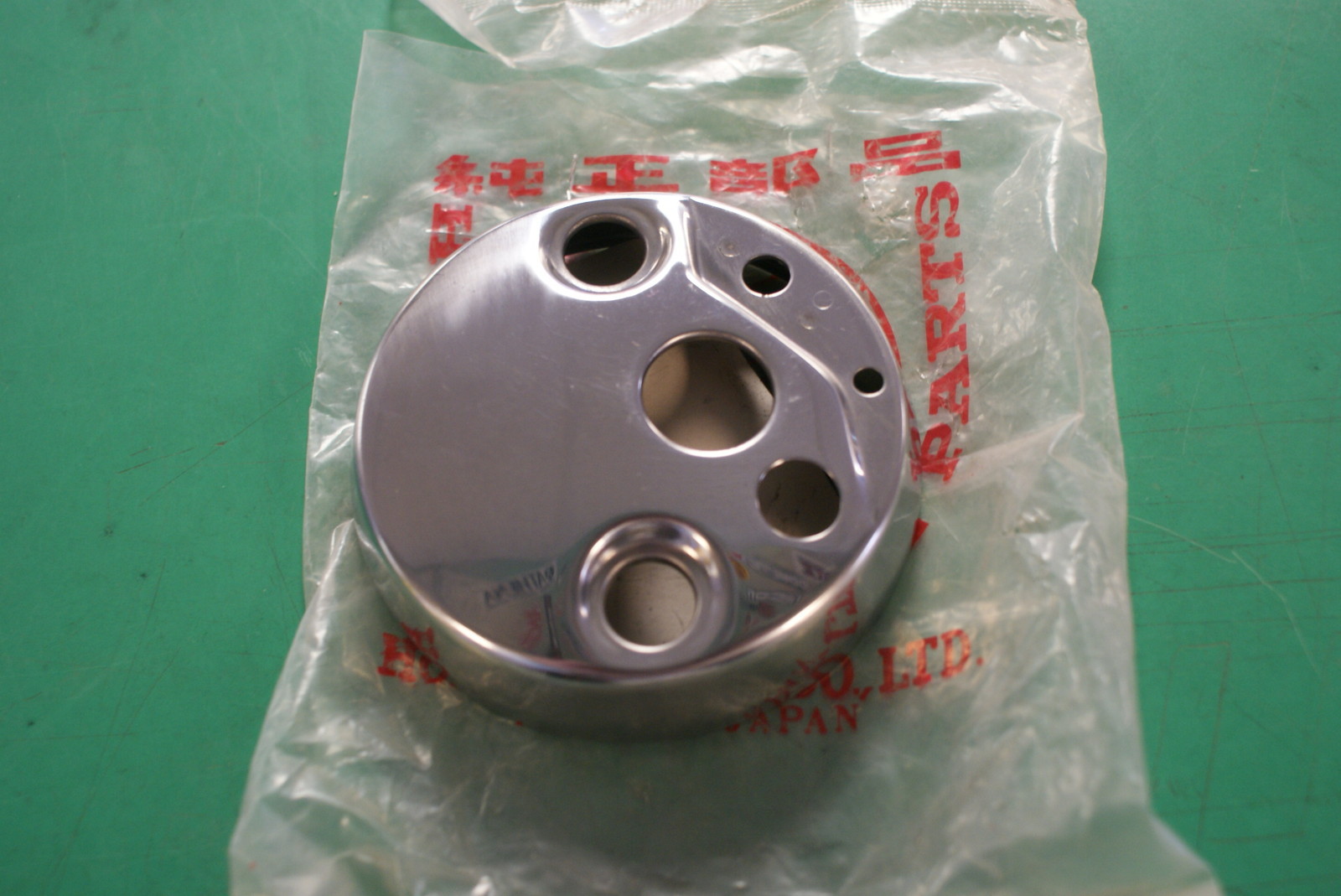

37111-453-008 instument holder

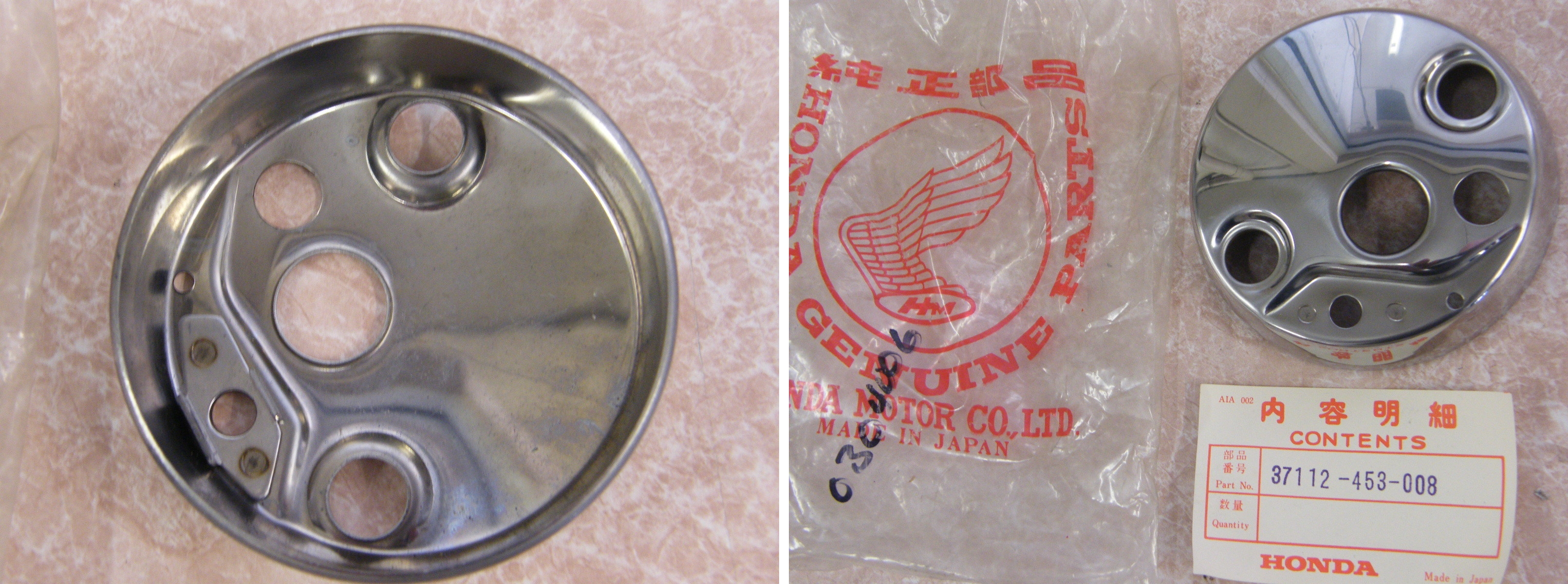

37112-453-008 instument holder

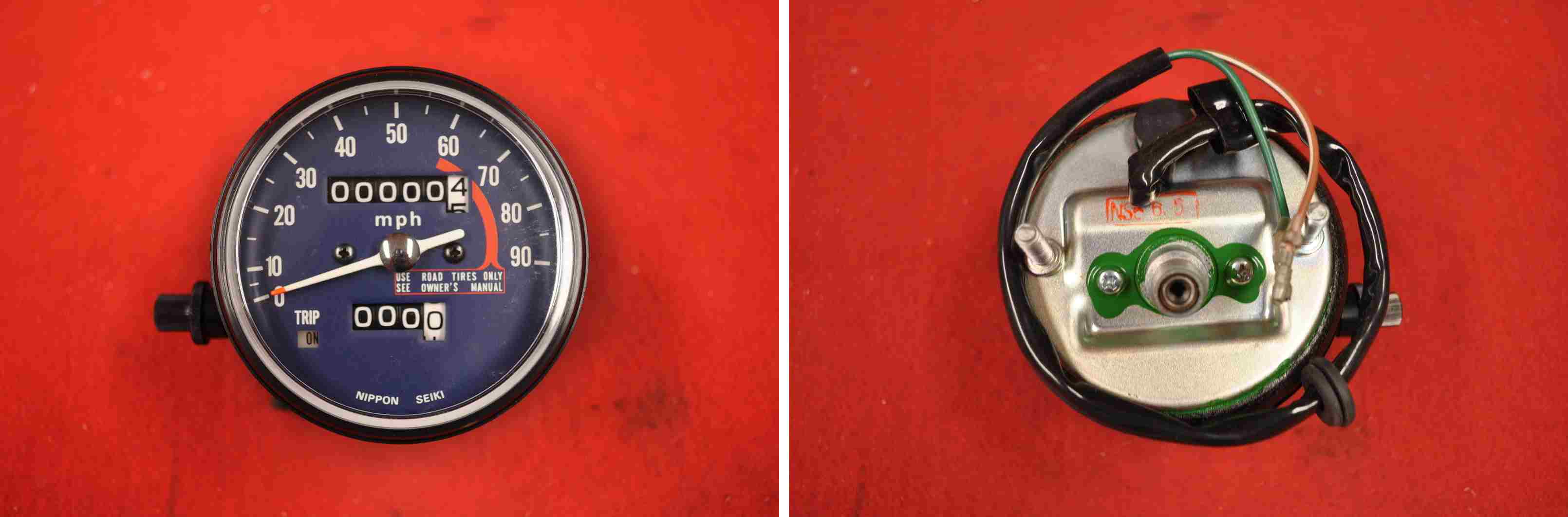

37200-385-671 speedometer

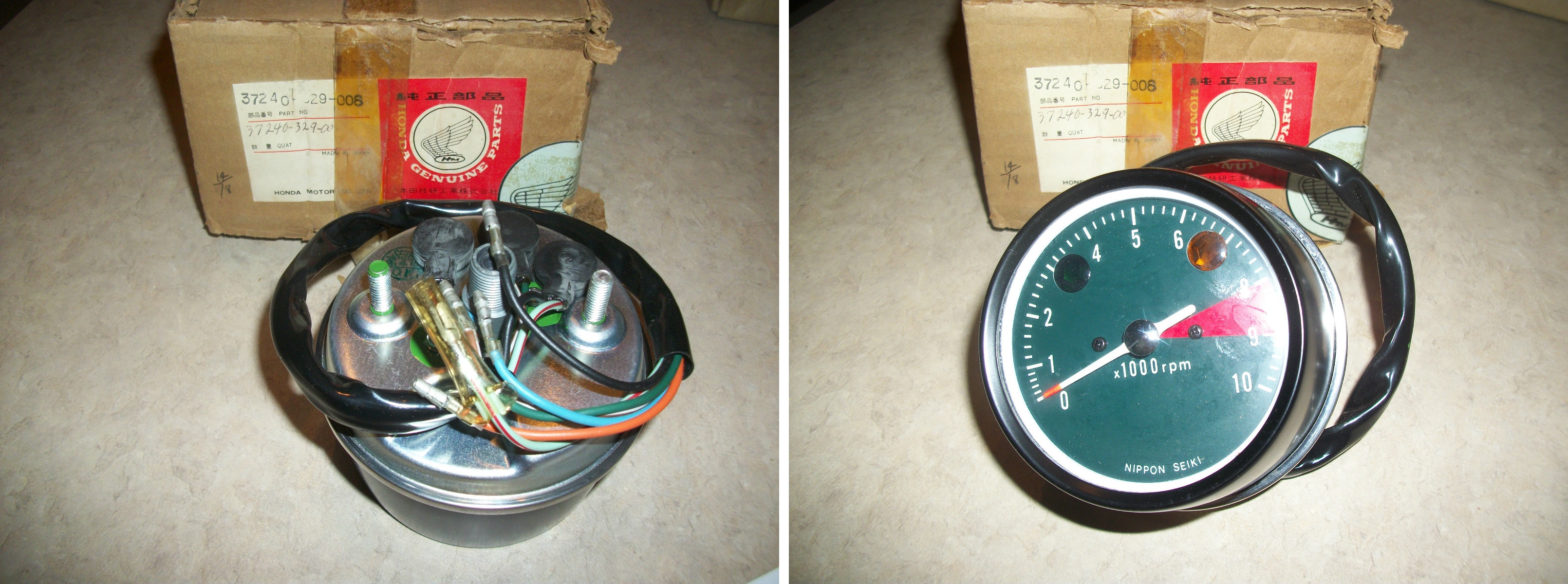

37240-329-008 tachometer

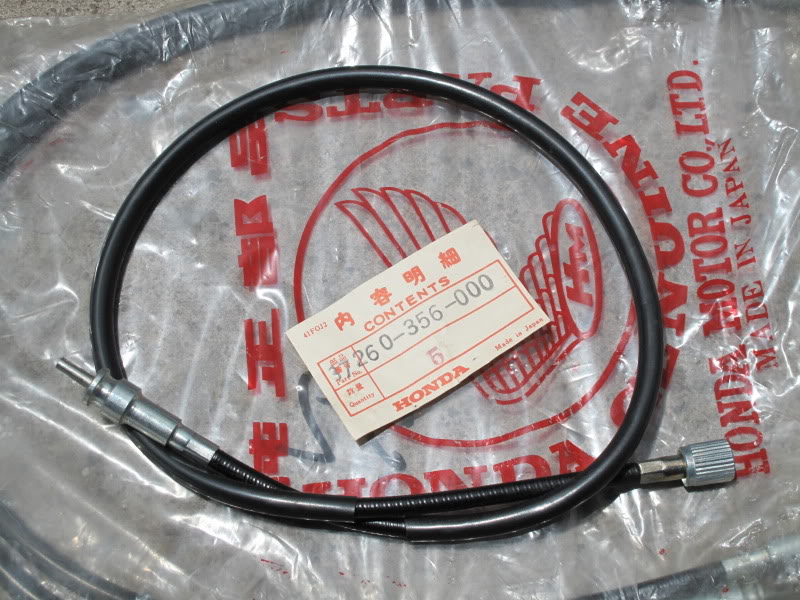

37260-356-000 tacho cable

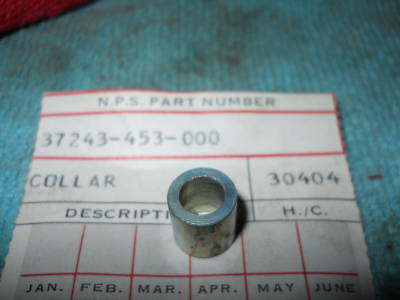

37243-453-000 collar

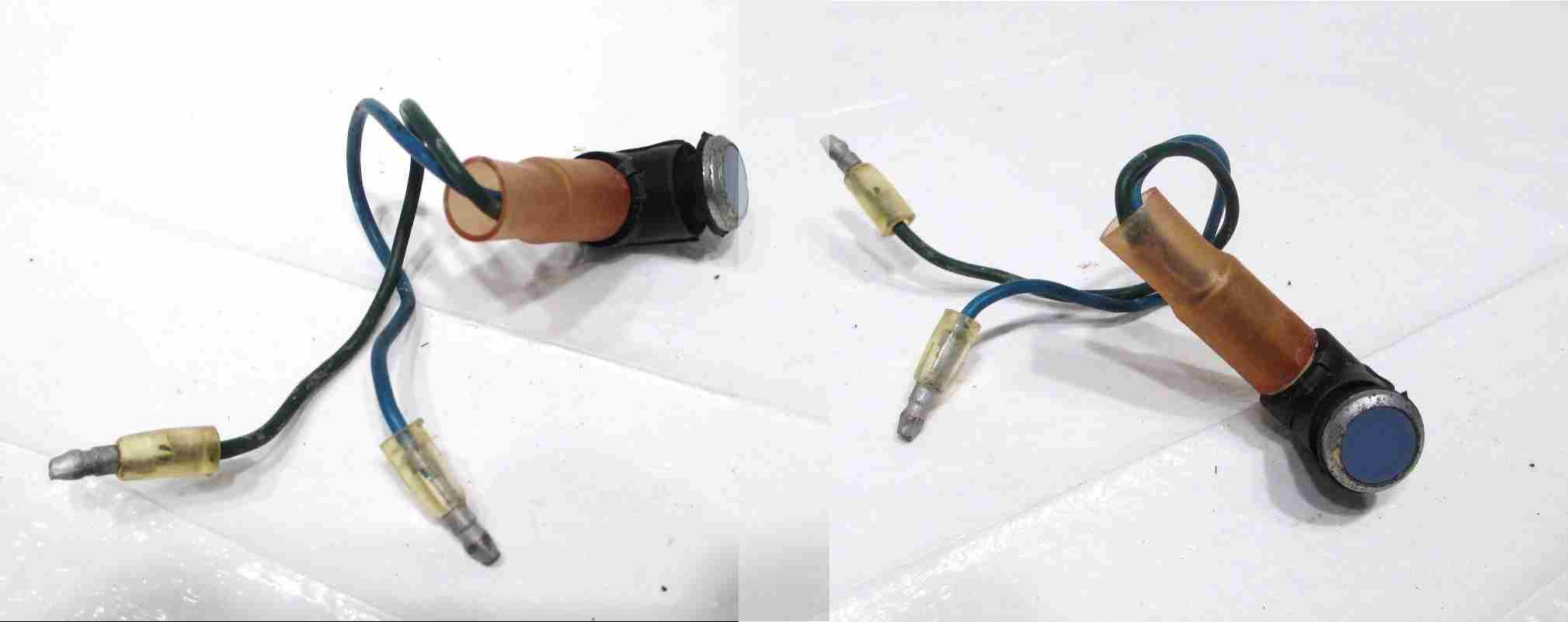

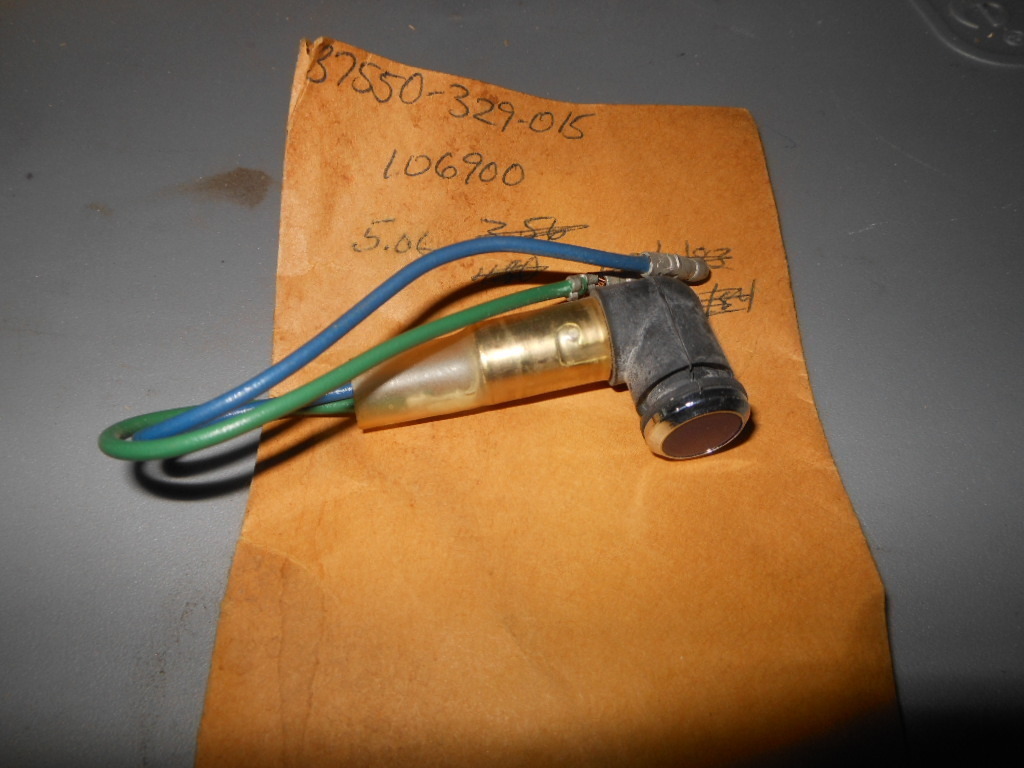

37550-329-680 main beam light set basically exactly the same as the earlier 37550-329-015 but the old green earth/ground wire is now black so a new part number

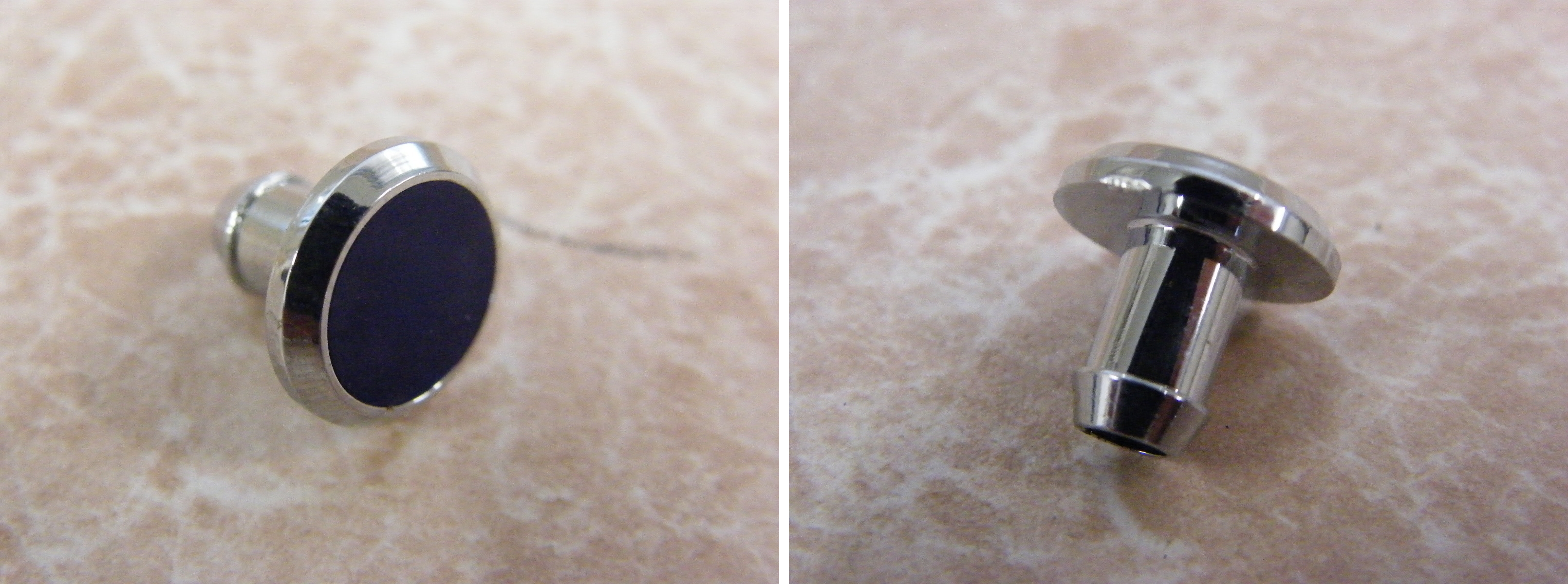

37551-329-680 main beam filter

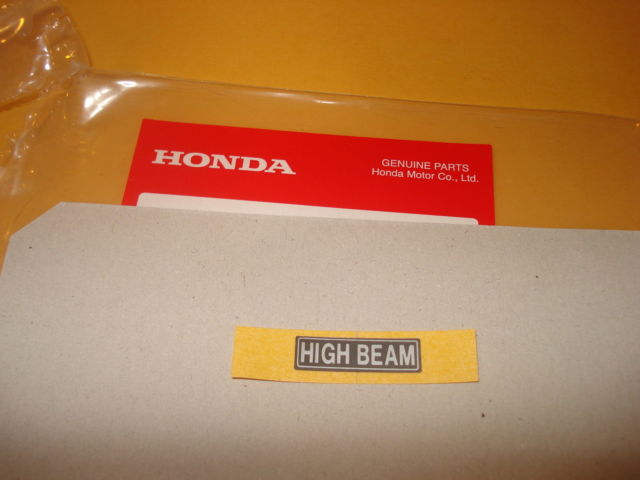

37555-370-740 high beam label

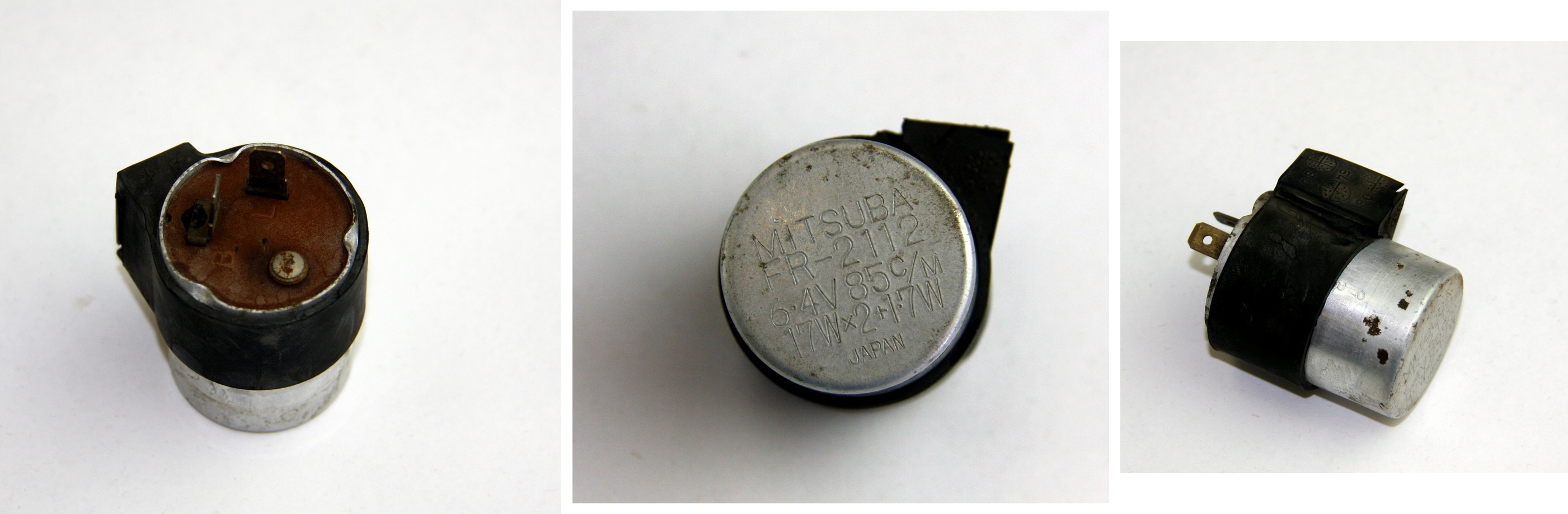

38300-386-000 and 38306-292-000 turn/indicator relay and holder round type europe

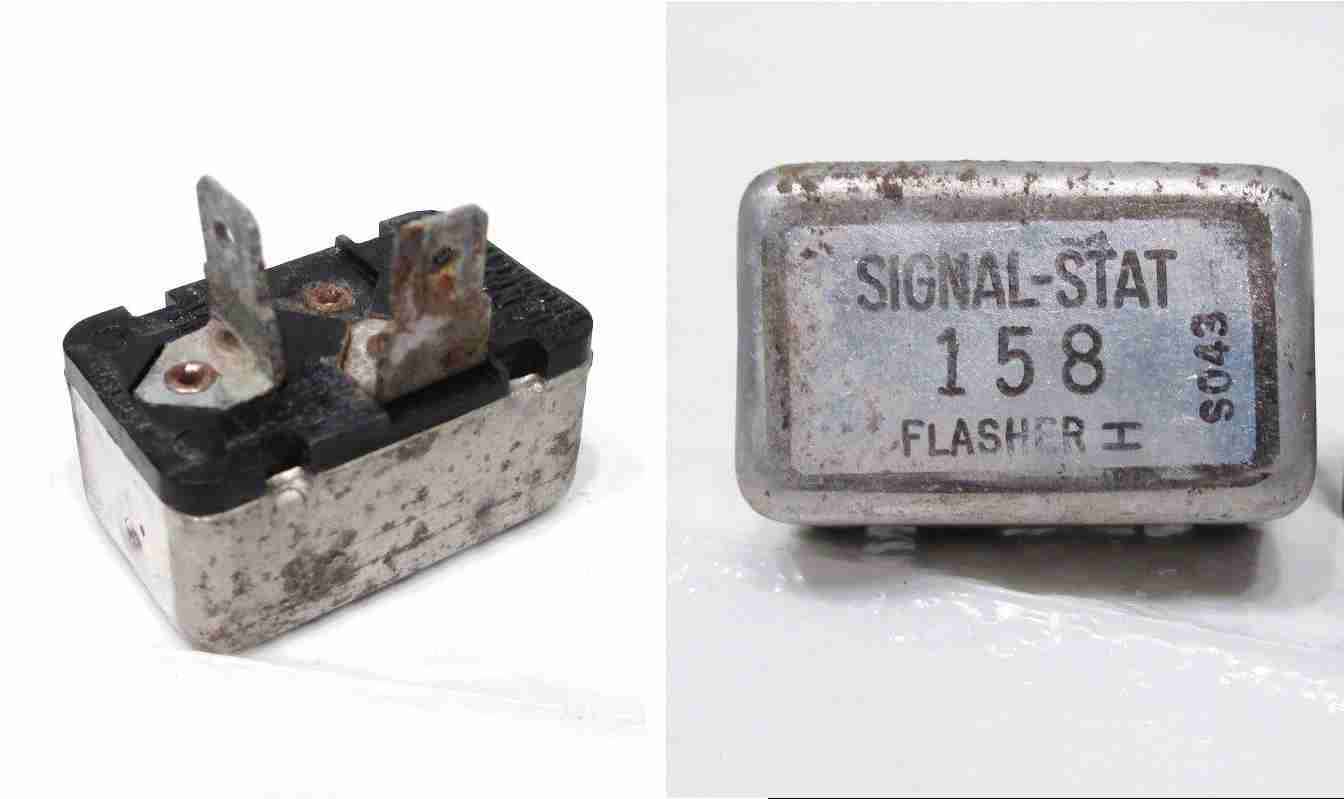

38300-089-671 rectangular US type flasher relay

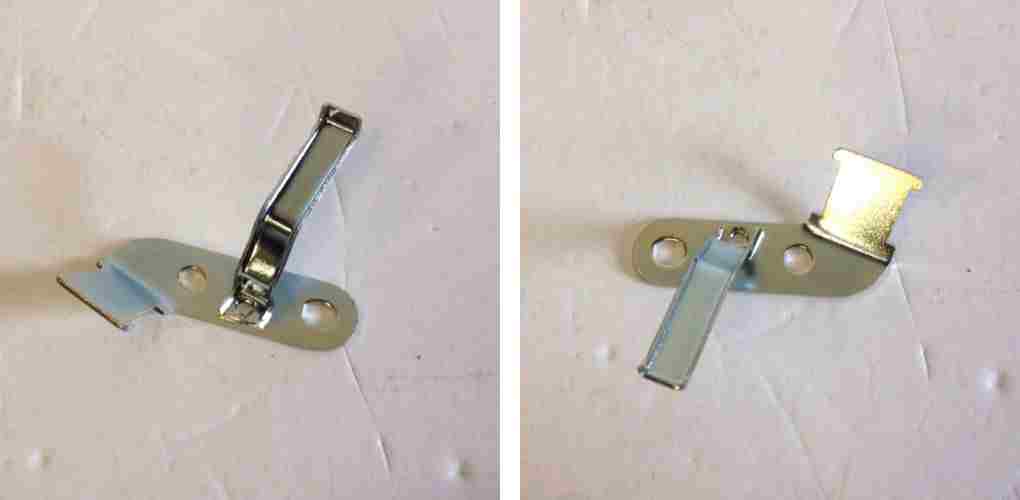

38301-386-000 Wiring Loom/winker Relay Holder

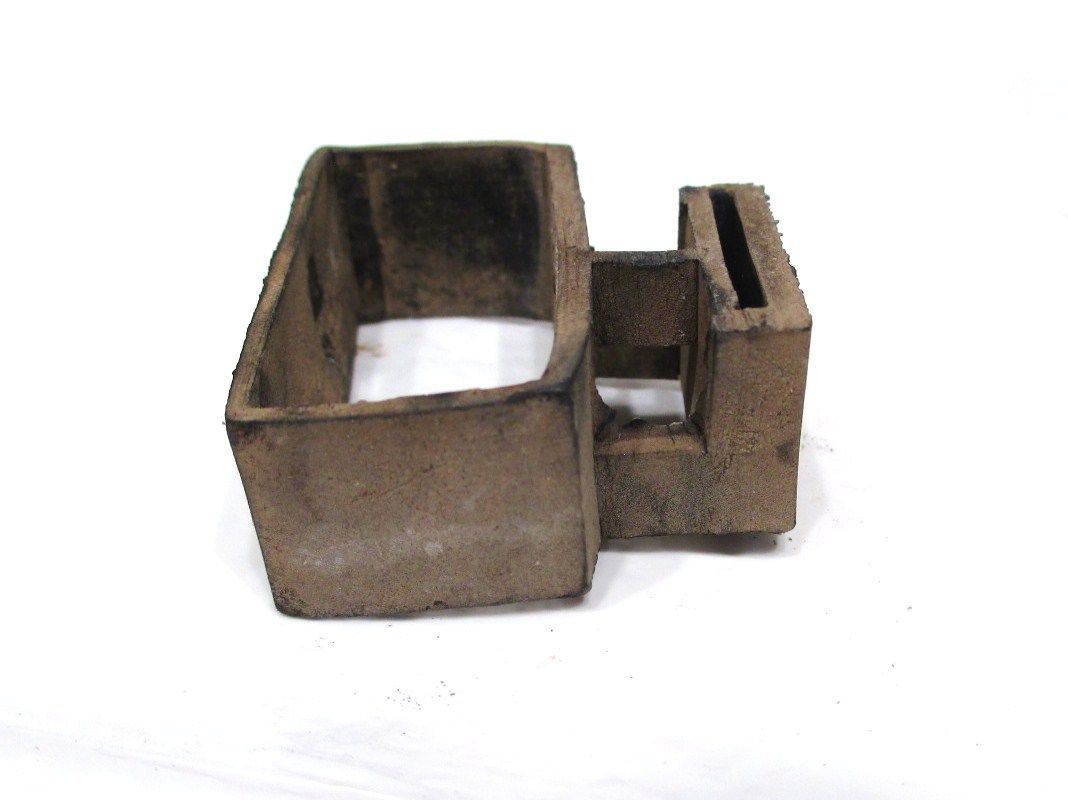

38306-107-670 rectangular US type flasher relay rubber holder

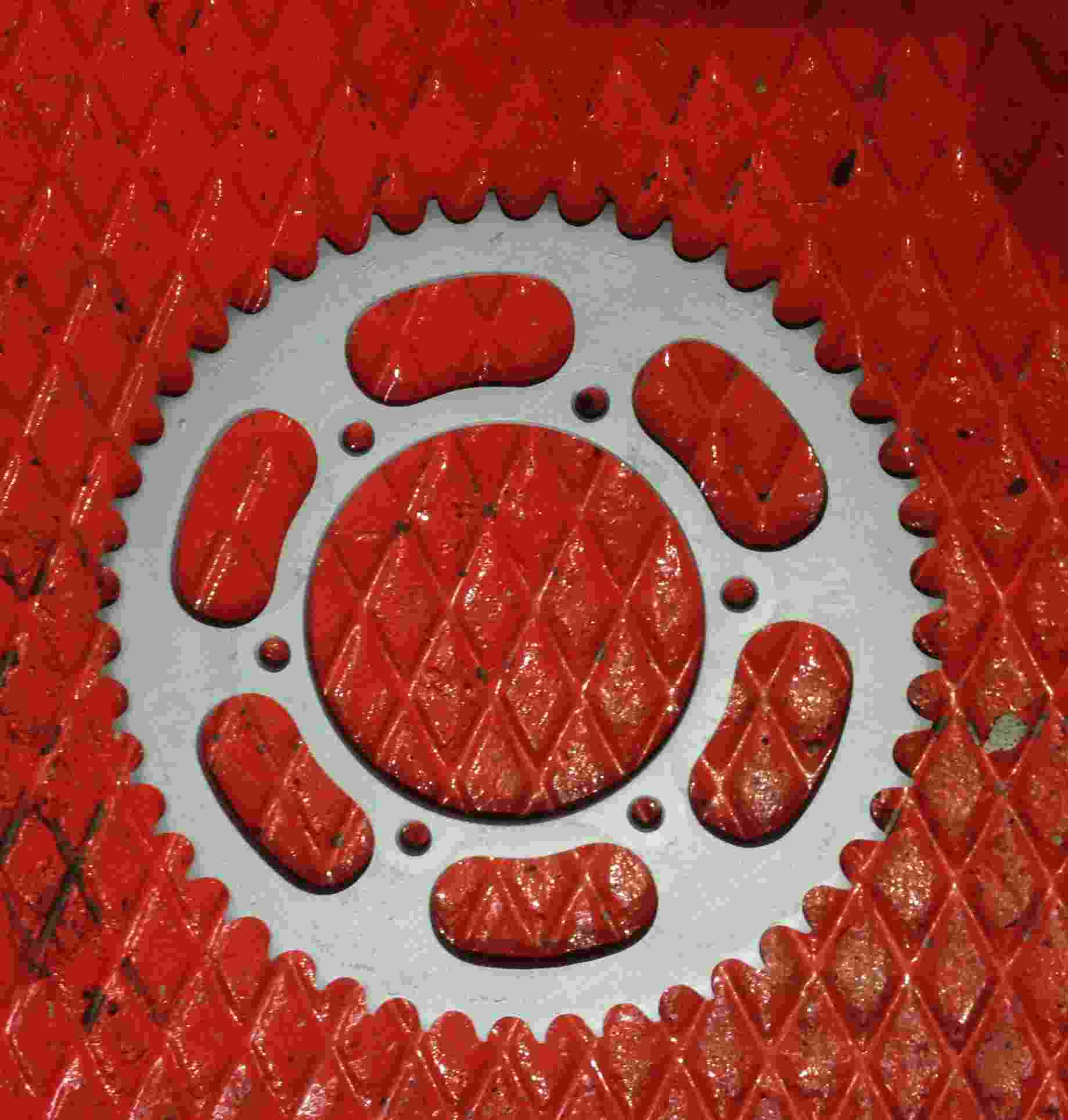

41201-329-730 rear sprocket

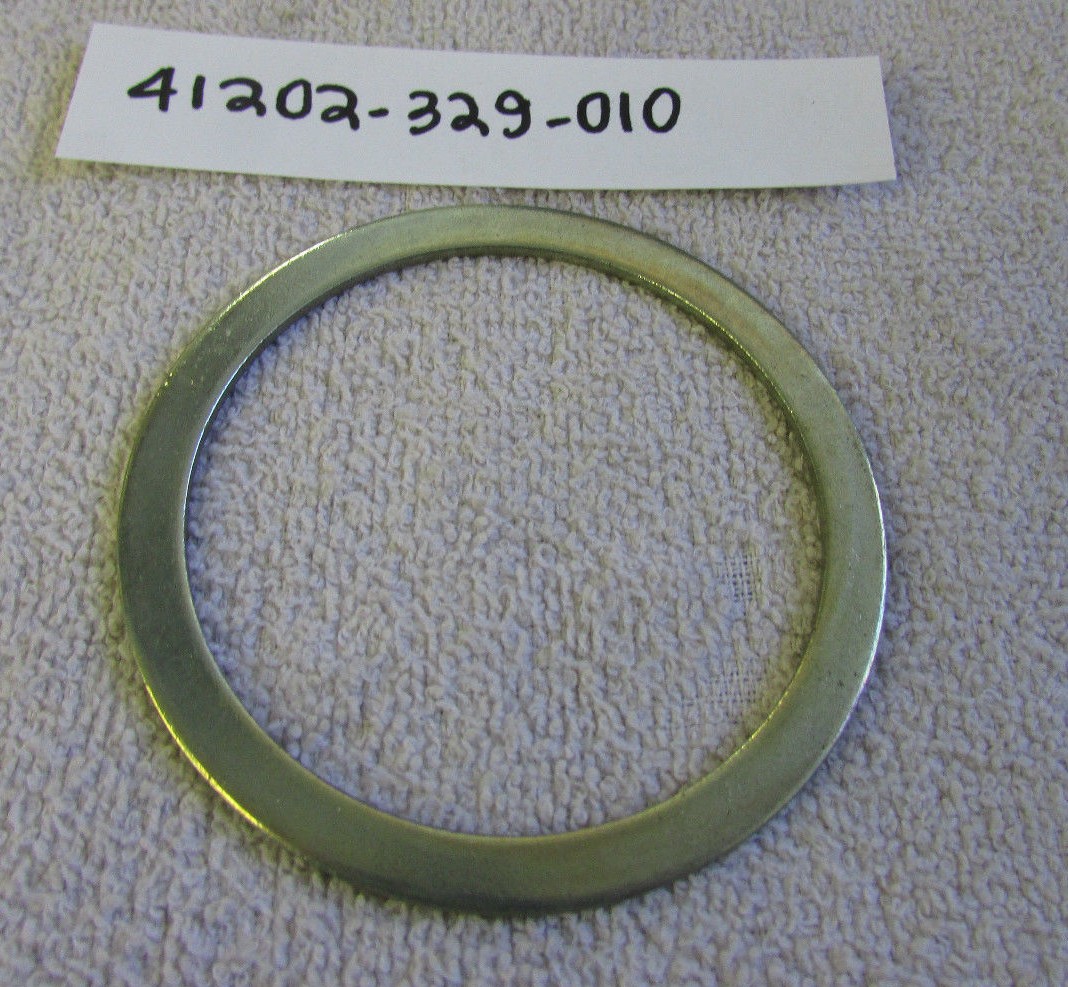

41202-329-010 rear hub washer

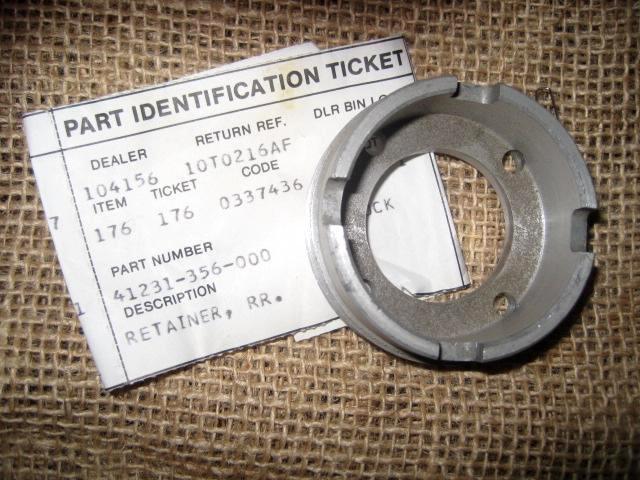

41231-356-000 rear wheel bearing retainer

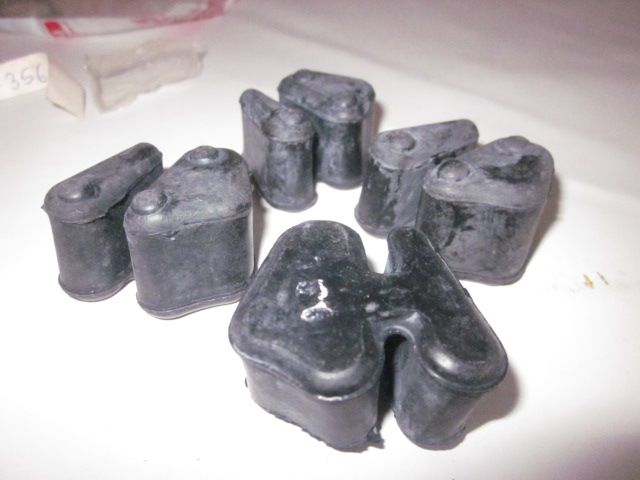

41242-356-000 cush rubber

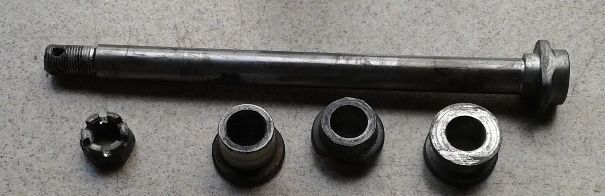

42301-385-000 showing nut and spacers rear axle

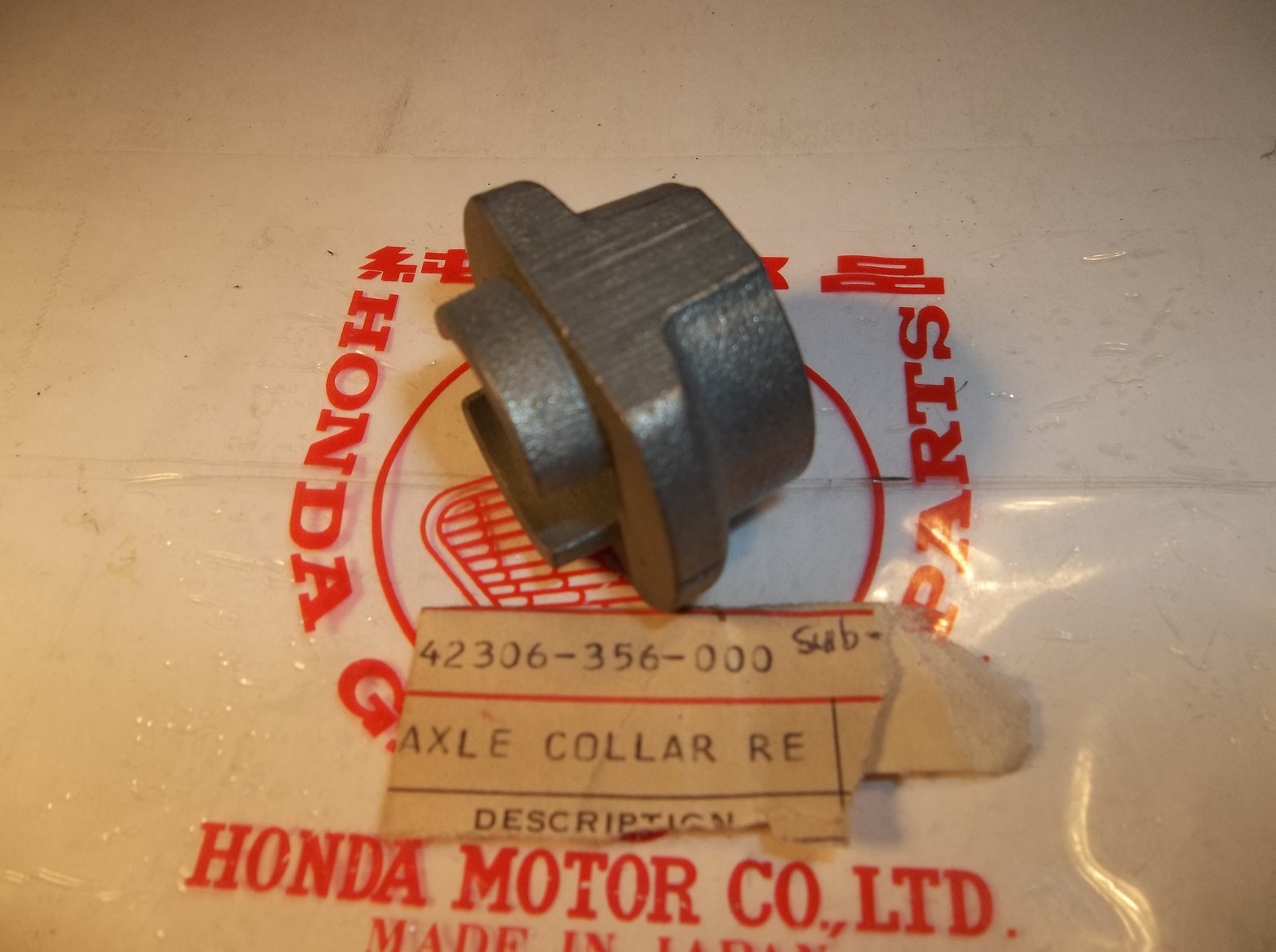

42306-356-000 spacer

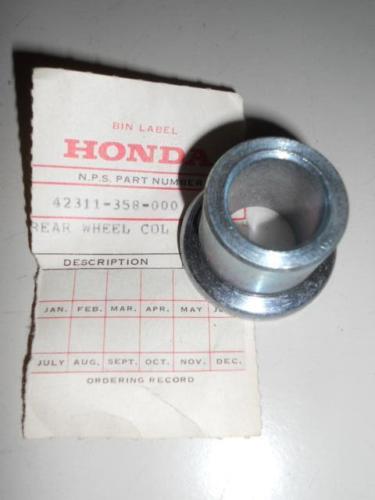

42311-358-000 rear axle sprocket side spacer

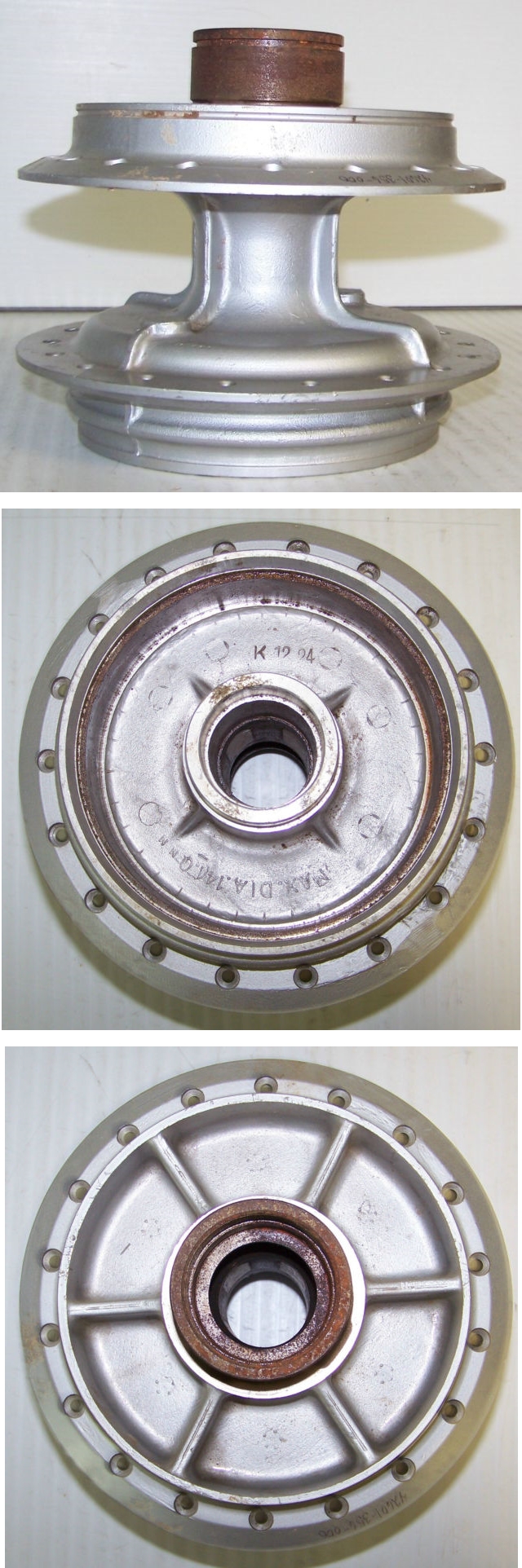

42601-356-000 rear hub

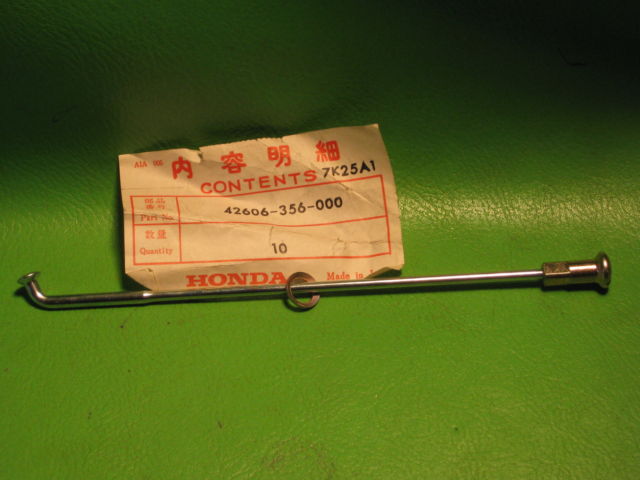

42606-356-000 spoke complete

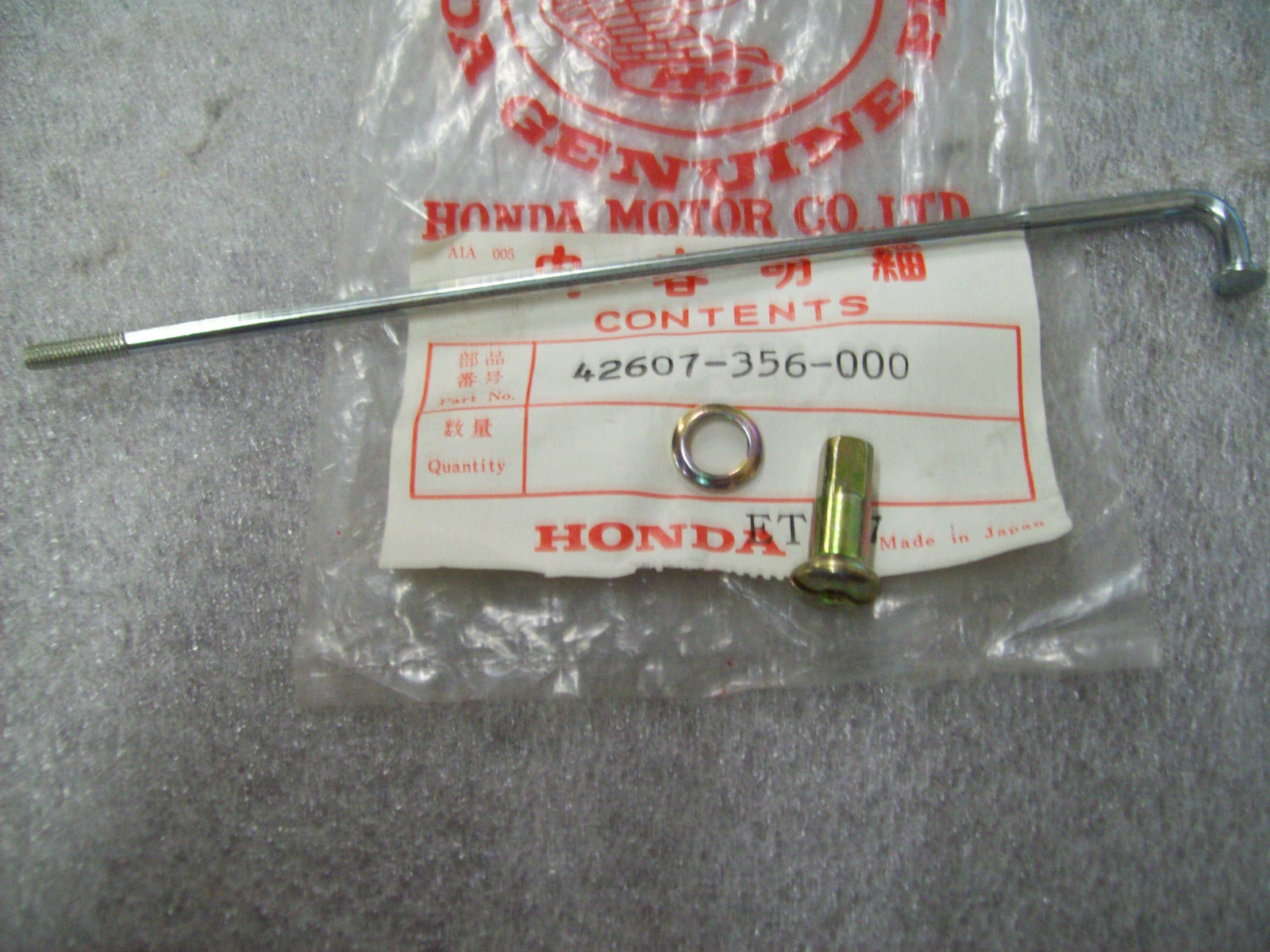

42607-356-000 spoke complete

42615-356-000 sprocket carrier

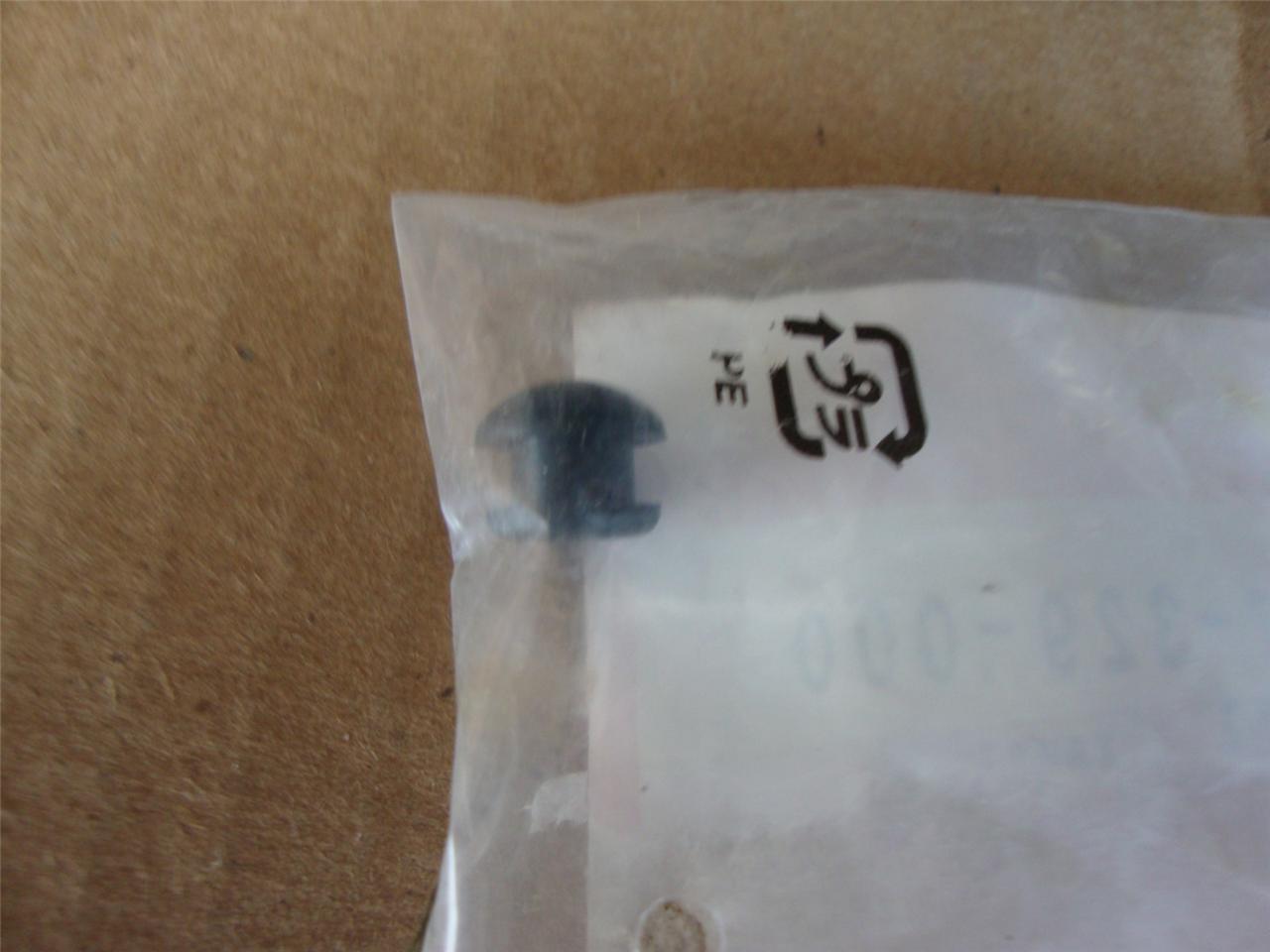

42717-329-000 wheel rim rubber

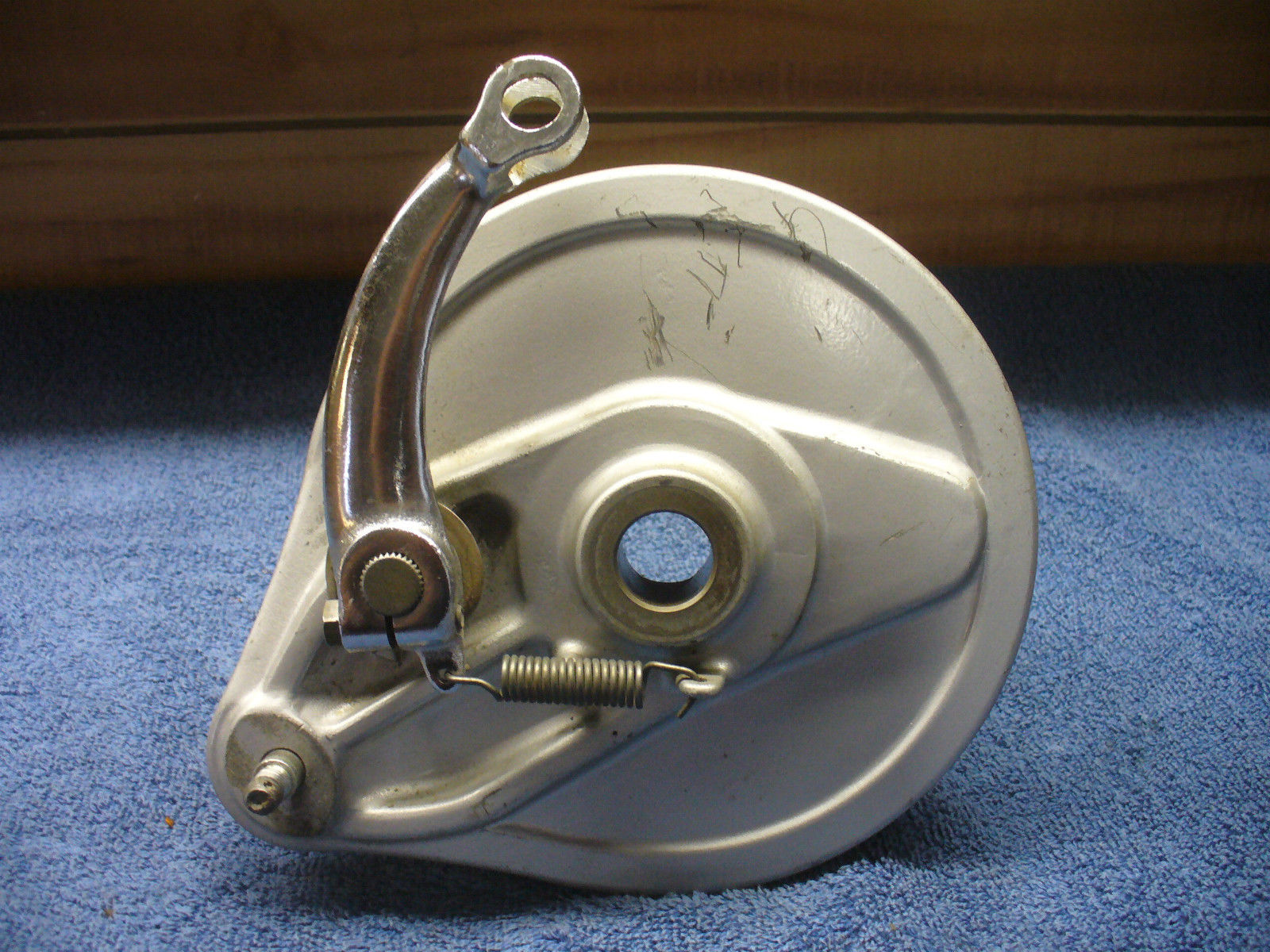

43100-385-010 rear brake plate

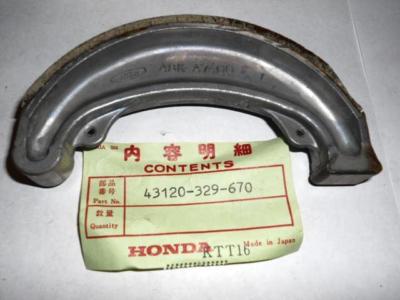

43120-329-670 brake shoe

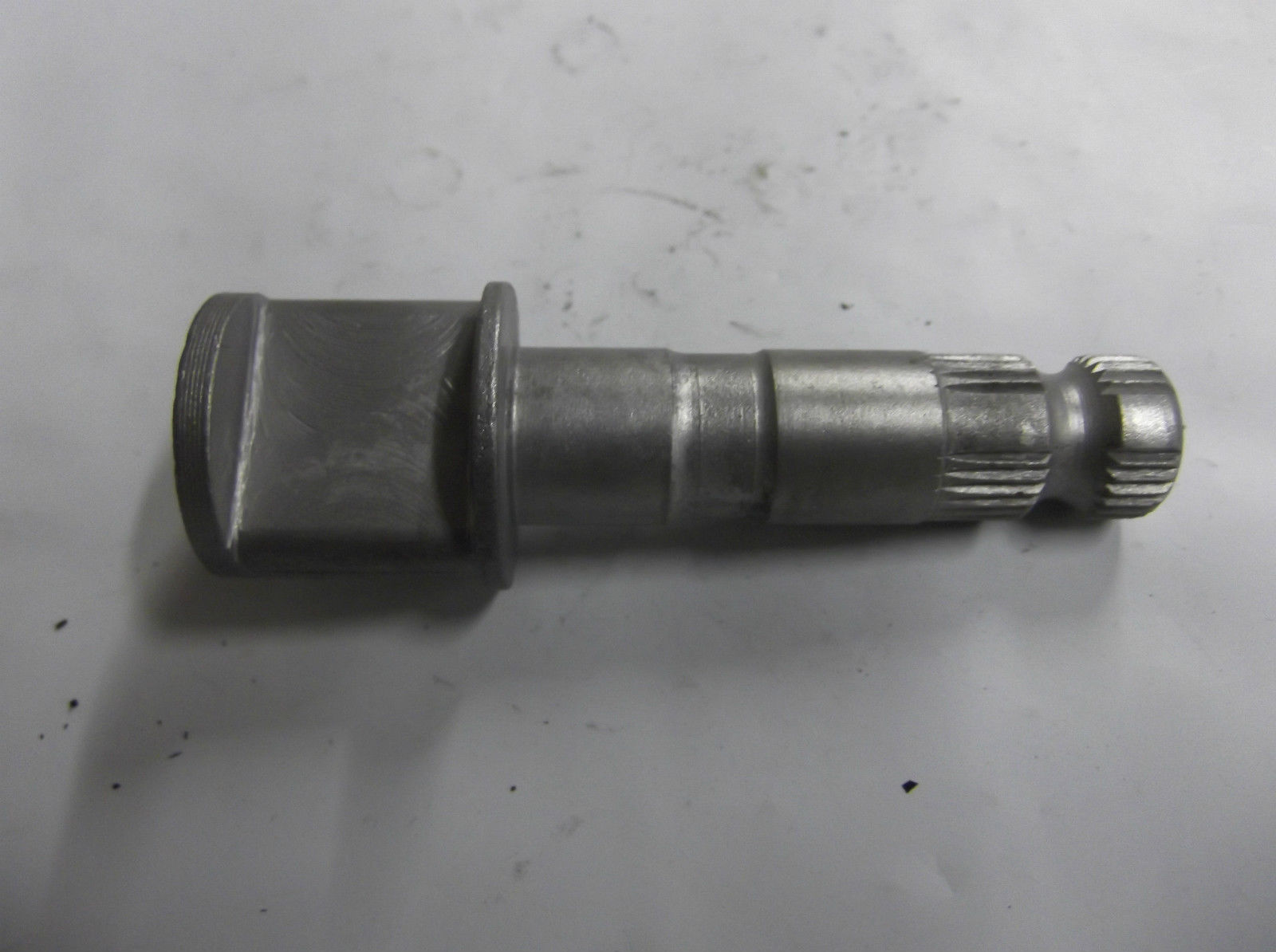

43141-329-770 rear brake cam shaft

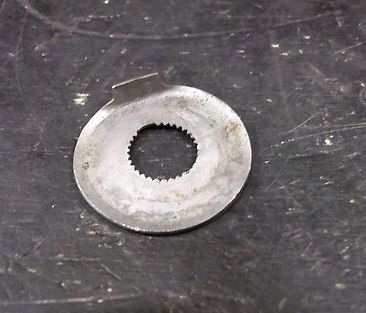

43145-329-770 wear indicator

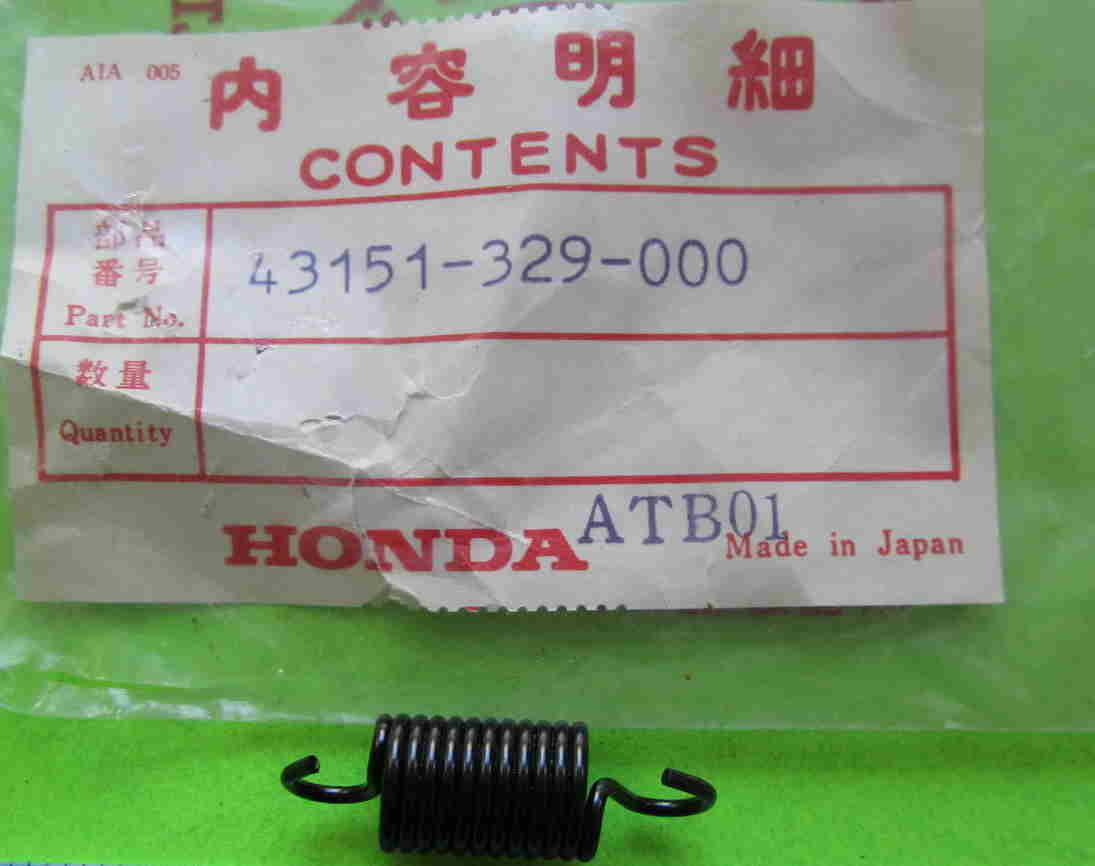

43151-329-000 brake shoe spring

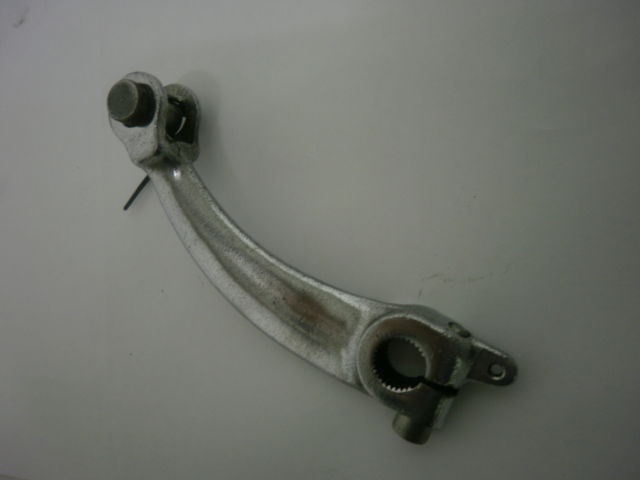

43410-385-010 rear brake arm (screw is wrong should not be an Allen head and shows 9501-532-001 too)

43431-355-000 rear brake stay

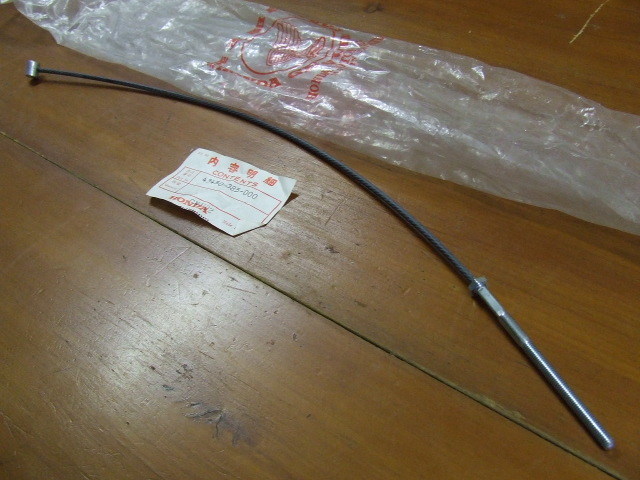

43450-385-000 rear brake cable

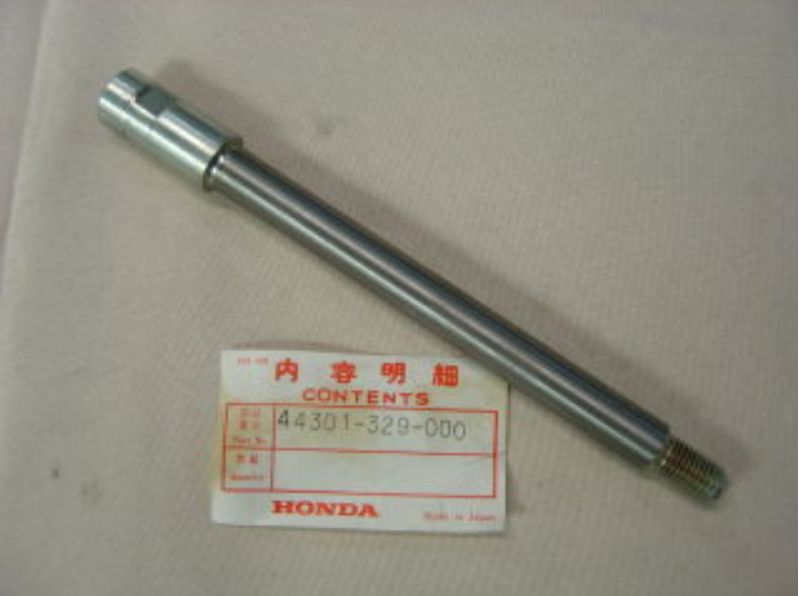

44301-329-000 front axle

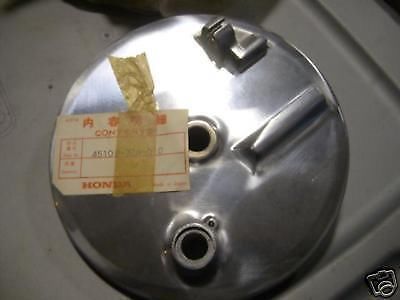

45100-329-010 front brake plate (not K3)

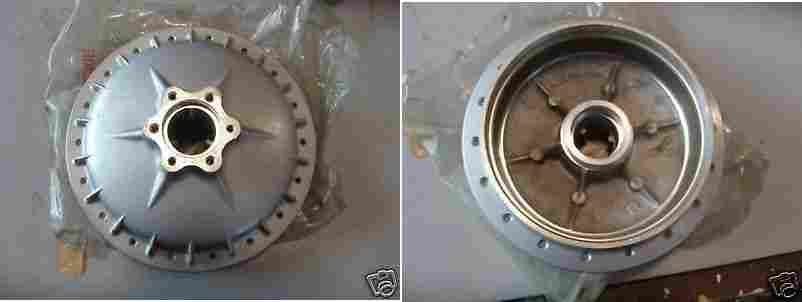

44601-329-010 front hub (not K3)

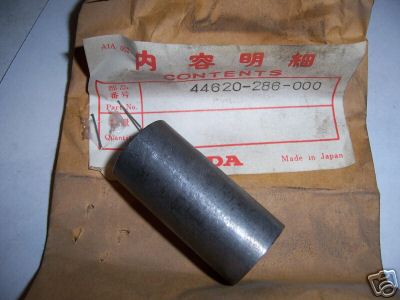

44620-286-000 front axle distance collar

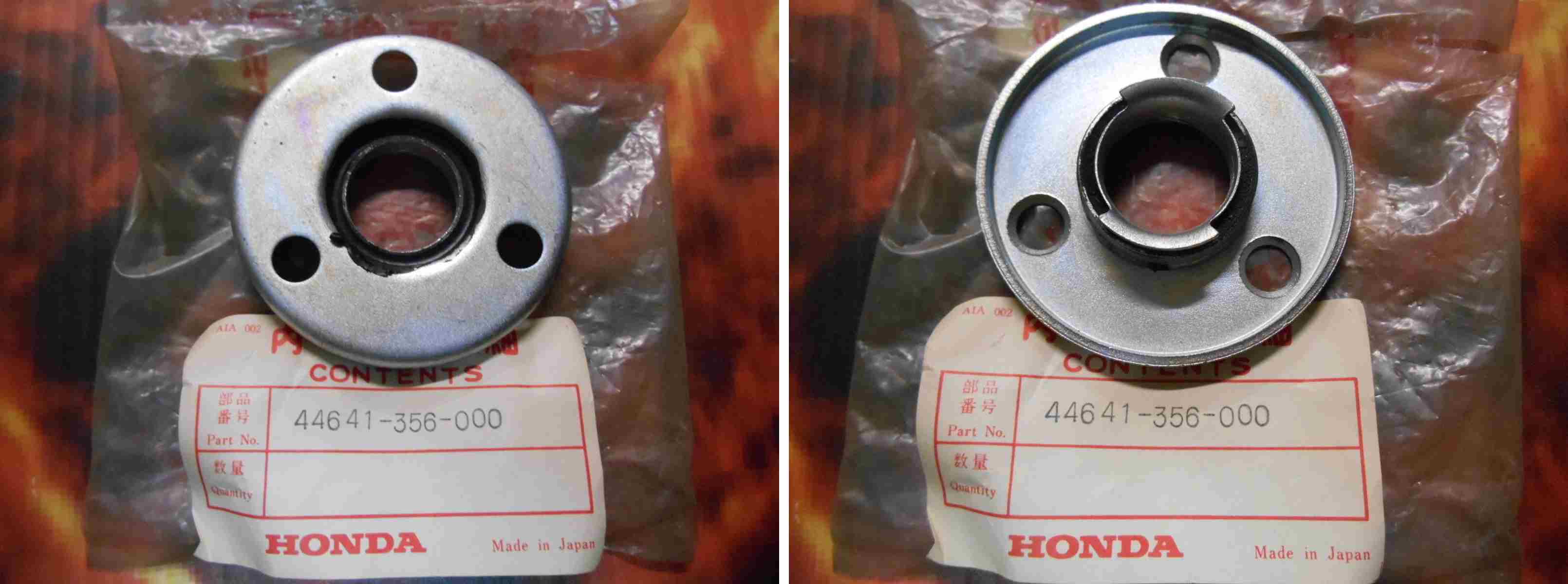

44641-356-000 front hub speedo gearbox retainer ring

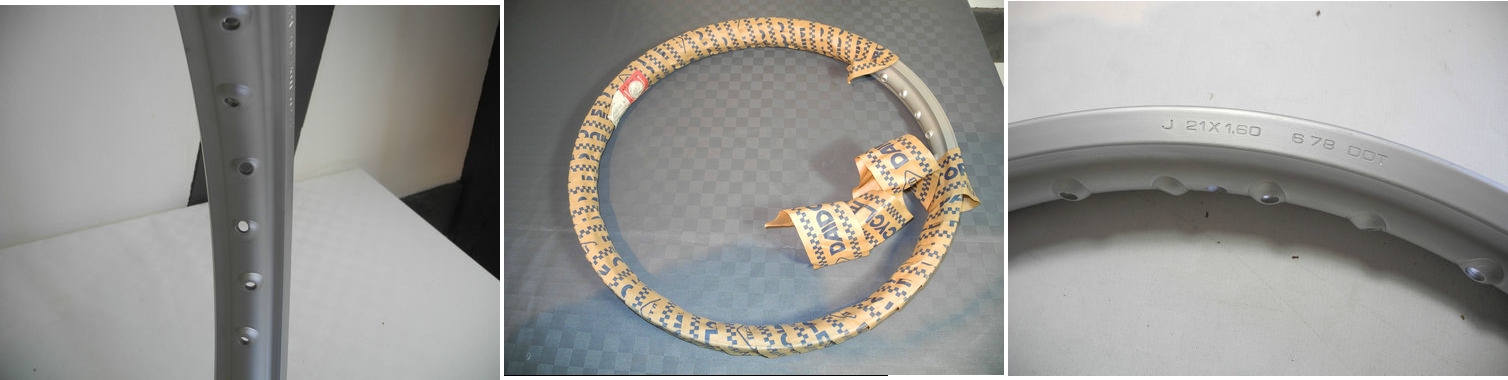

44701-385-003 front rim

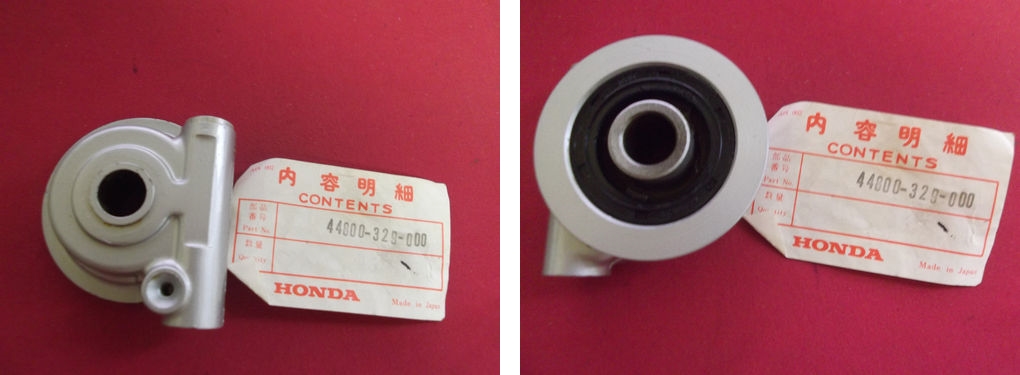

44800-329-000 speedo drive

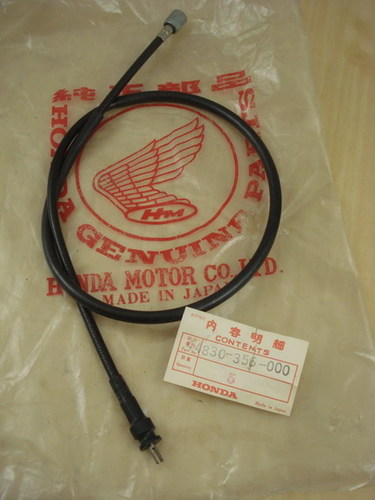

44830-356-000 speedo cable

44832-329-000 speedo cable guide

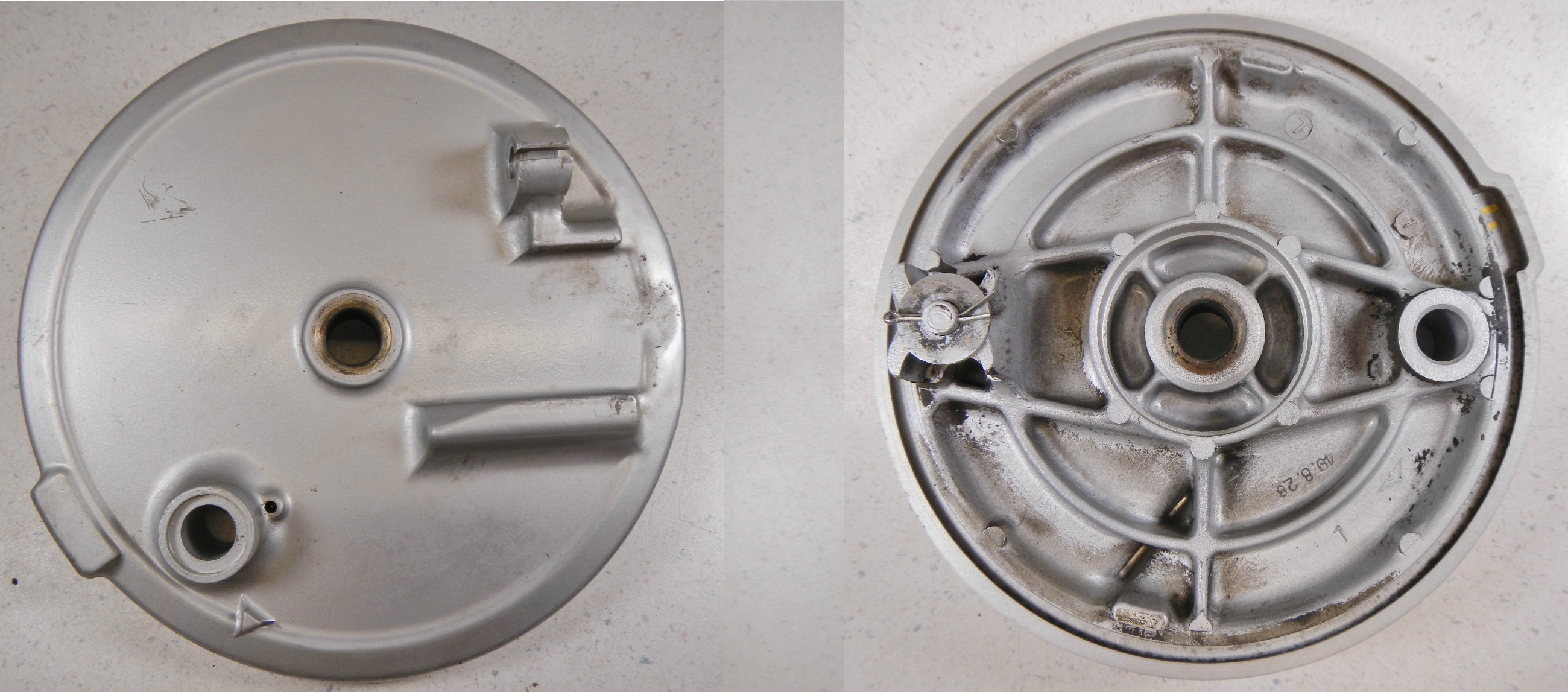

45100-329-770 front brake plate early

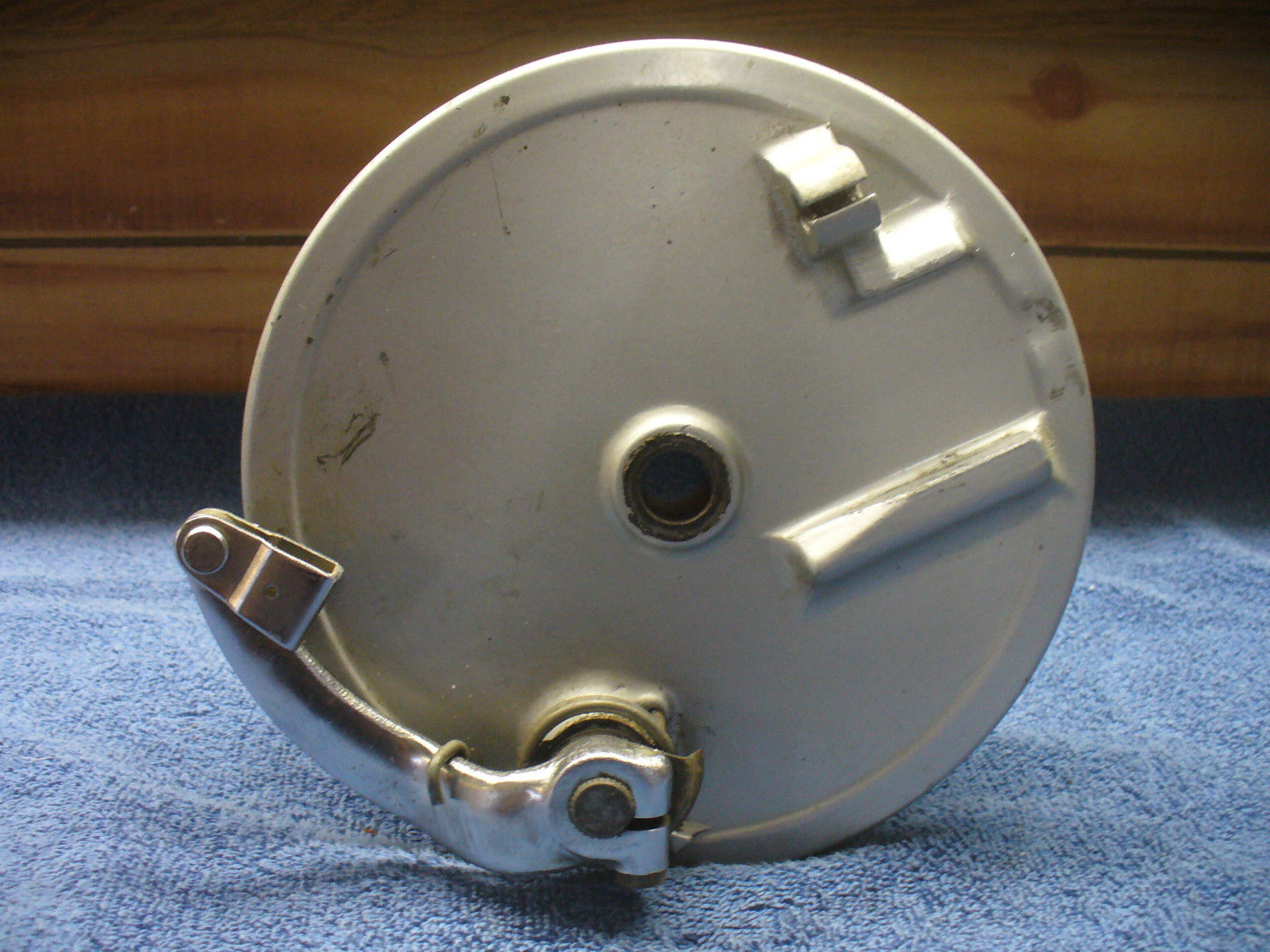

45100-385-010 front brake plate complete

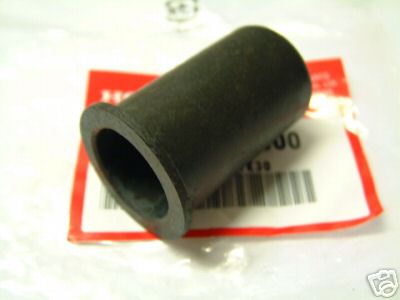

45108-457-300 swinging arm bush

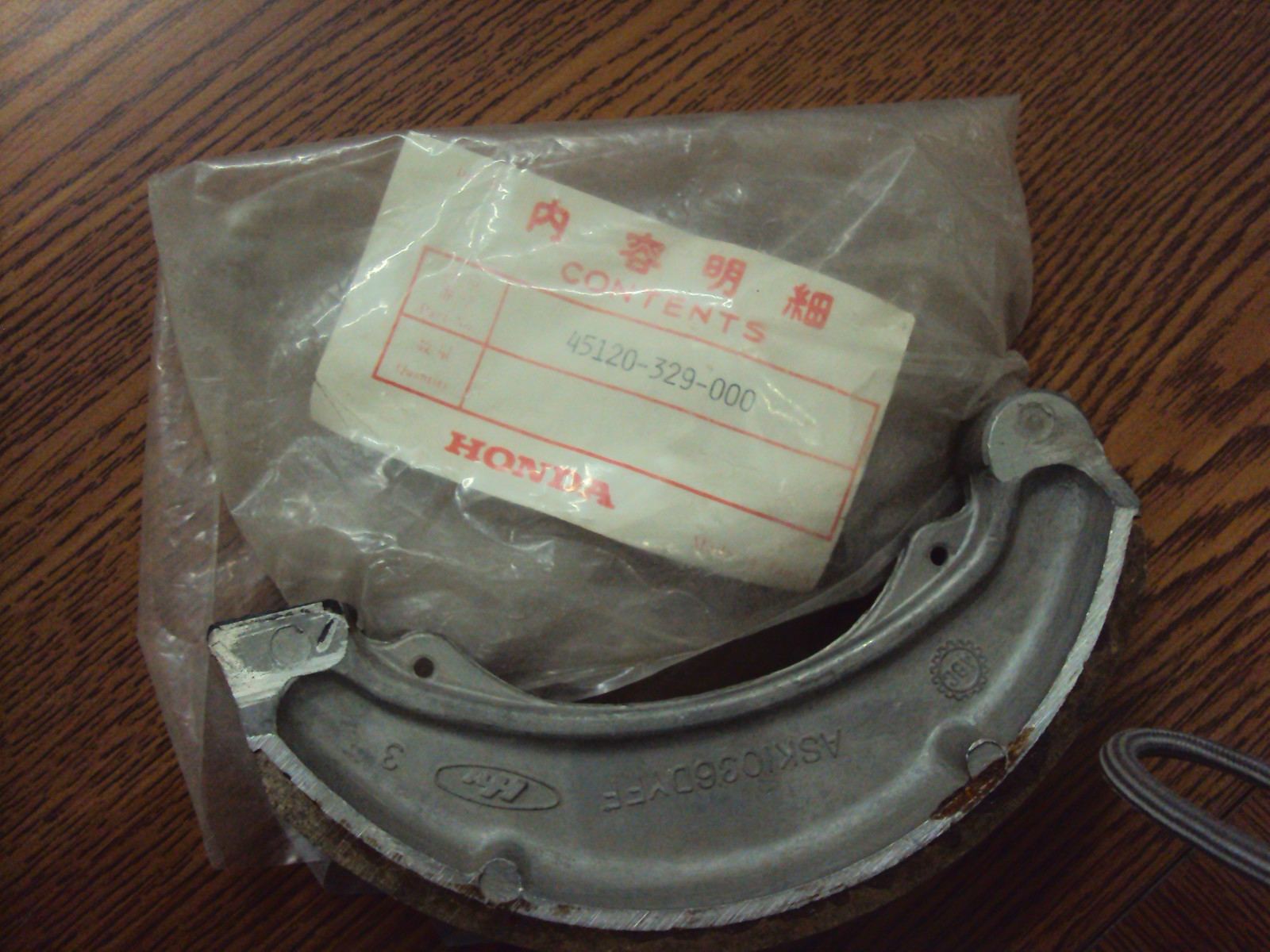

45120-329-670 brake shoe

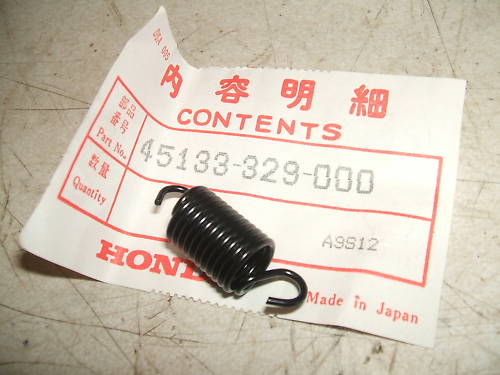

45133-329-000 brake shoe spring

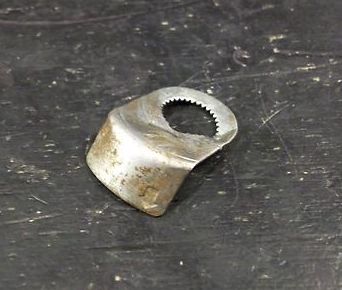

45145-329-770 front brake wear indicator

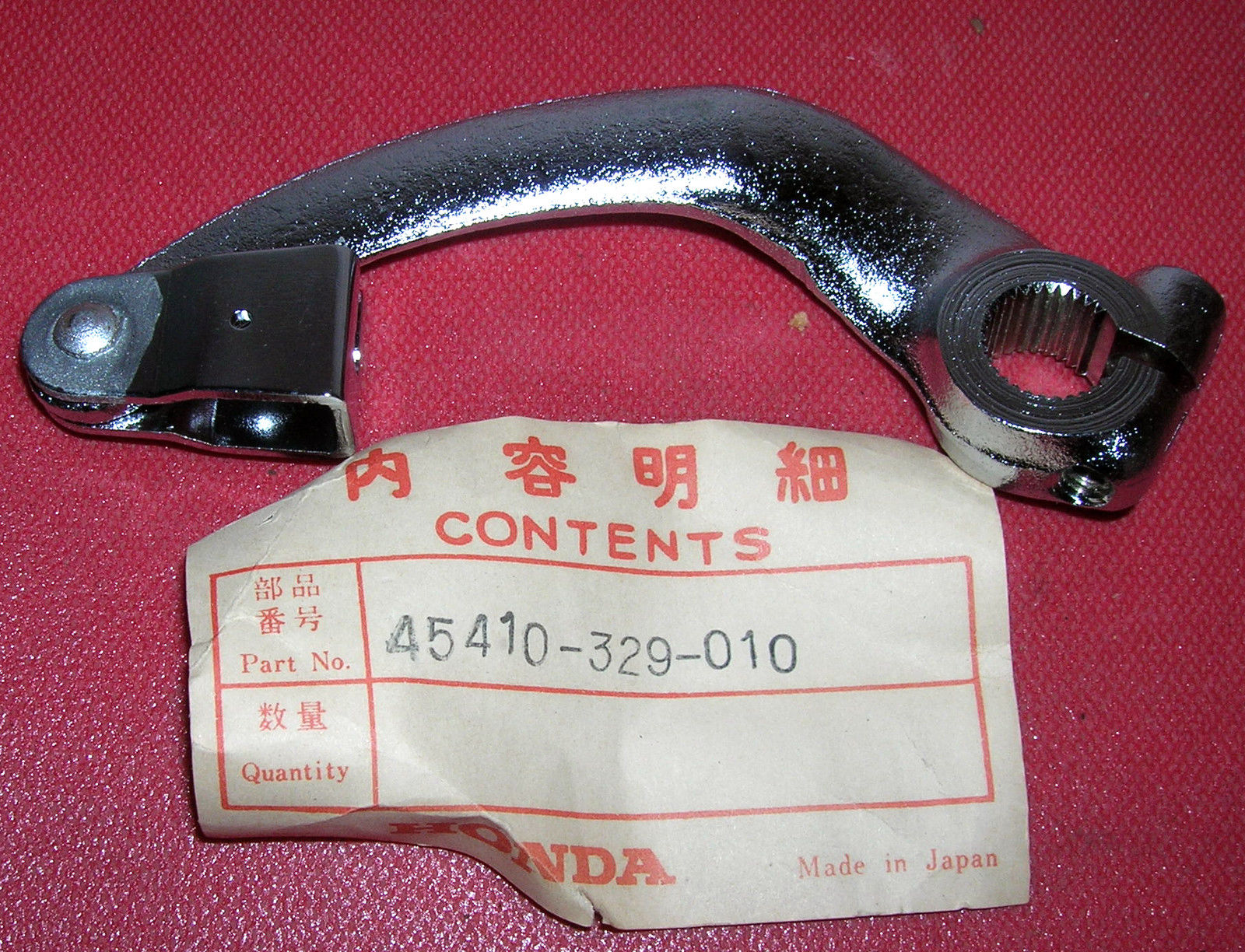

45410-329-010 front brake arm

45435-357-000 rear brake arm spring

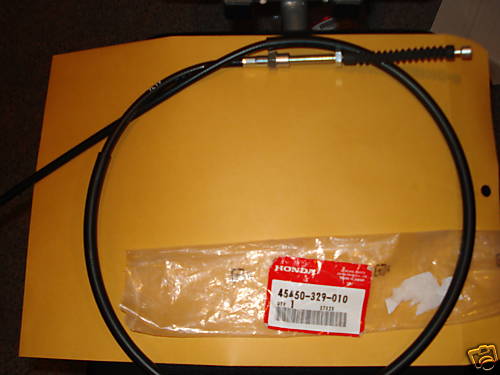

45450-329-010 front brake cable

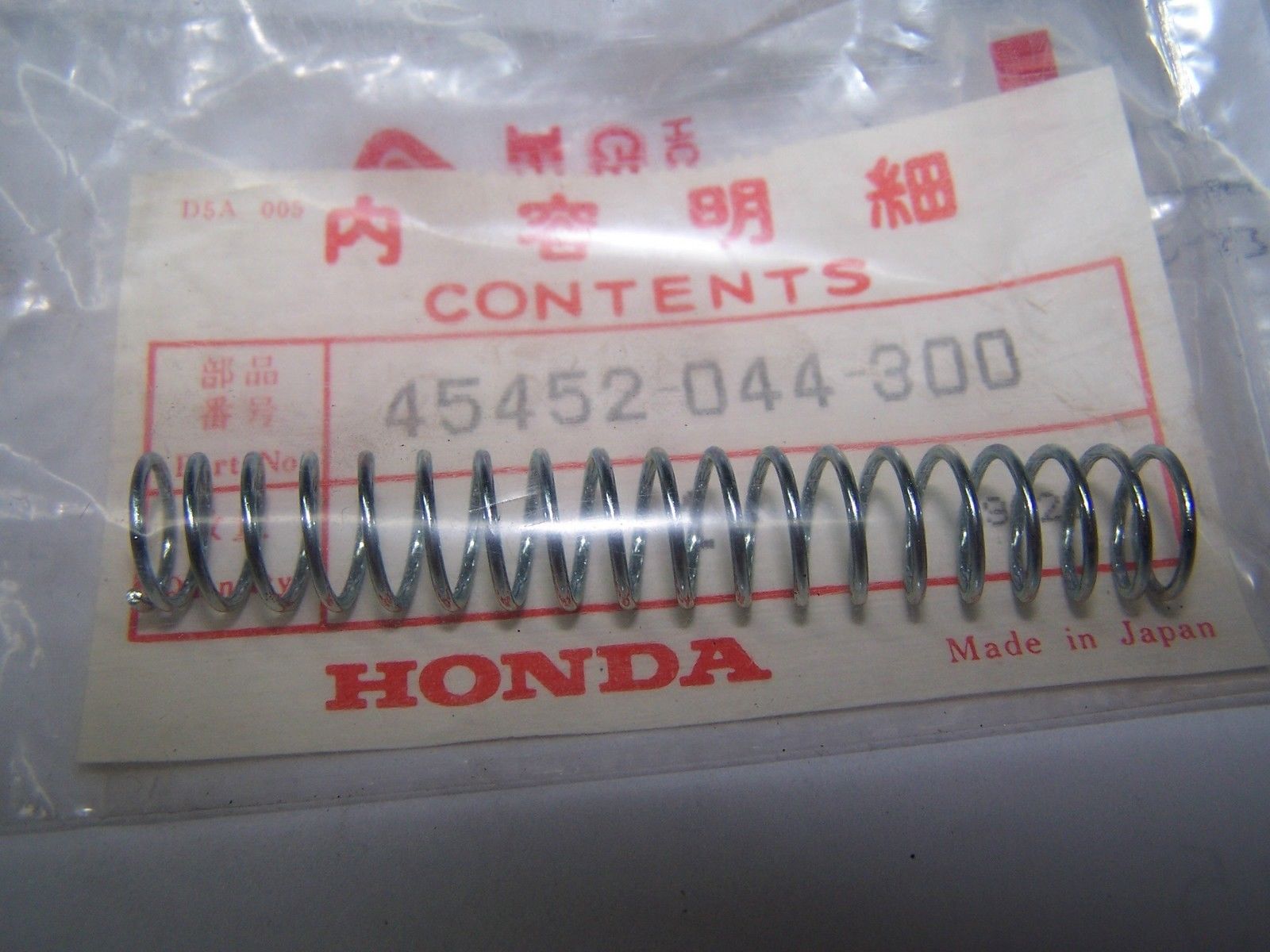

45452-044-300 rear brake spring

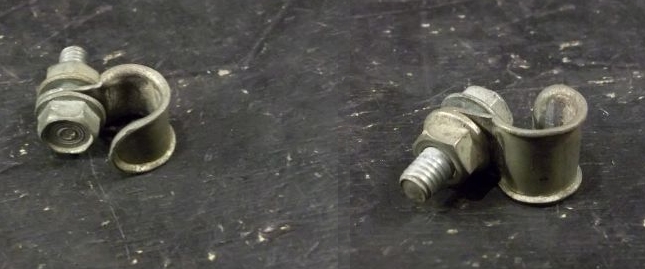

45465-329-010 cable guide

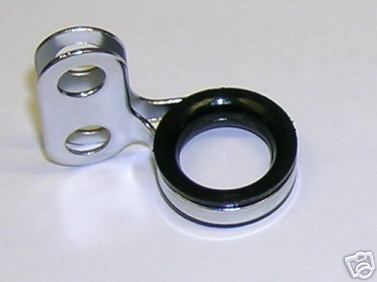

45466-329-000 and 45468-329-000 cable guide

45467-385-000 with 45466-329-000 cable guide

45468-329-000 with 45466-329-000 cable guide

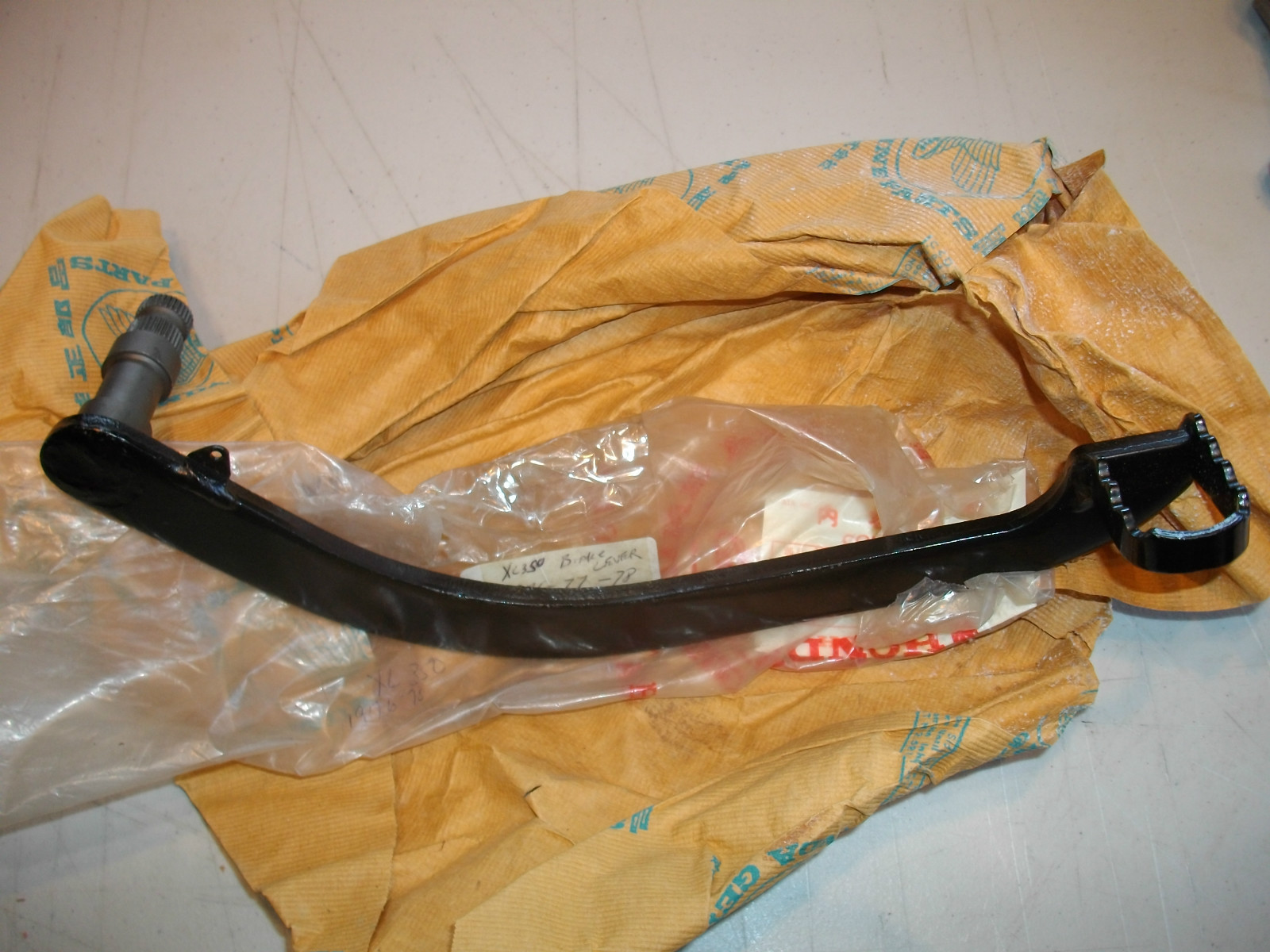

46500-385-000 rear brake pedal

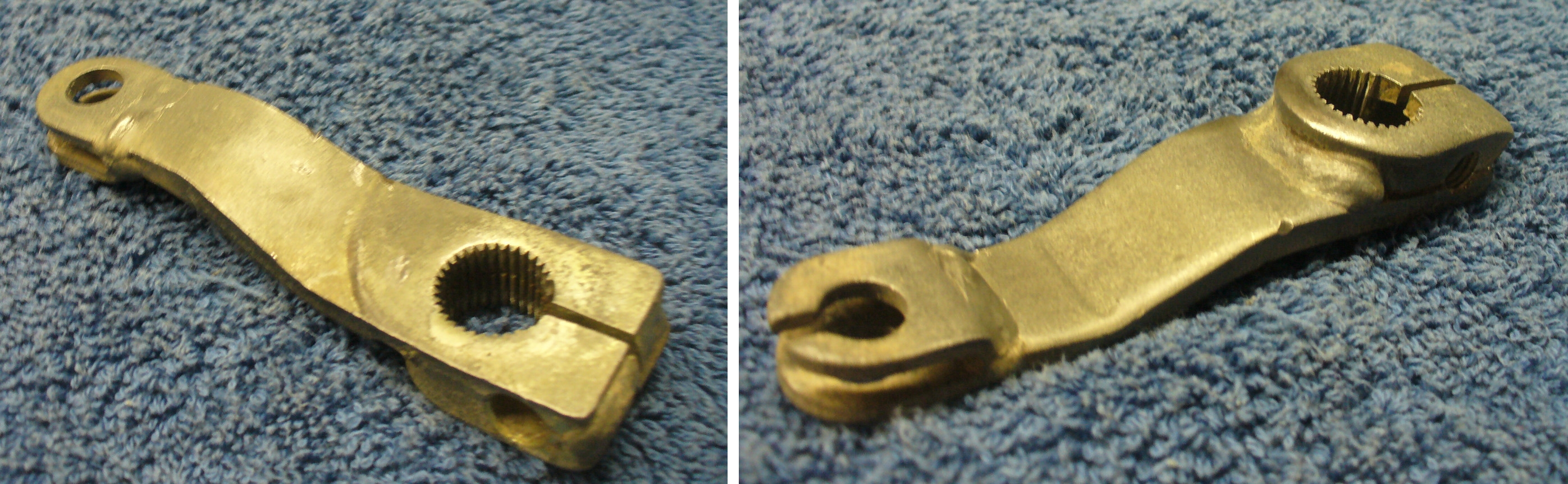

46501-385-000 rear brake arm (pedal end)

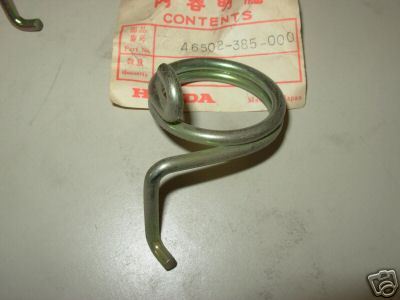

46502-385-000 rear brake pedal spring

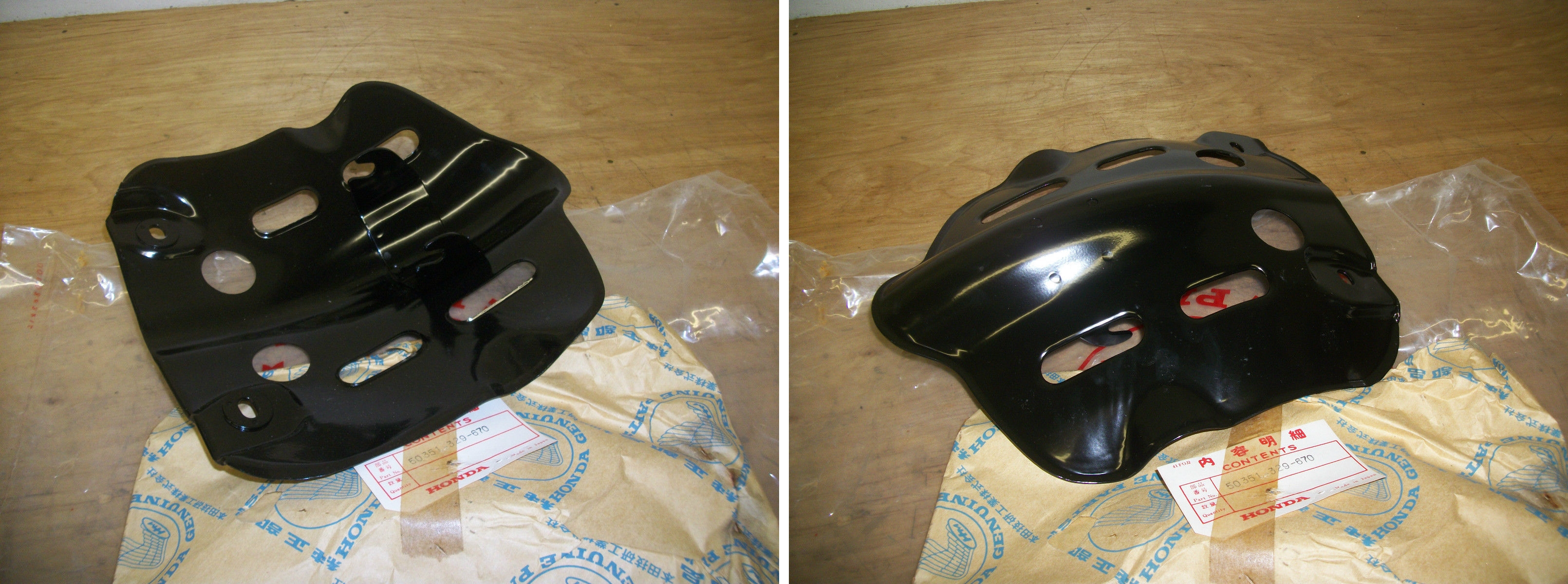

50351-329-670 earlier 250 sumpguard

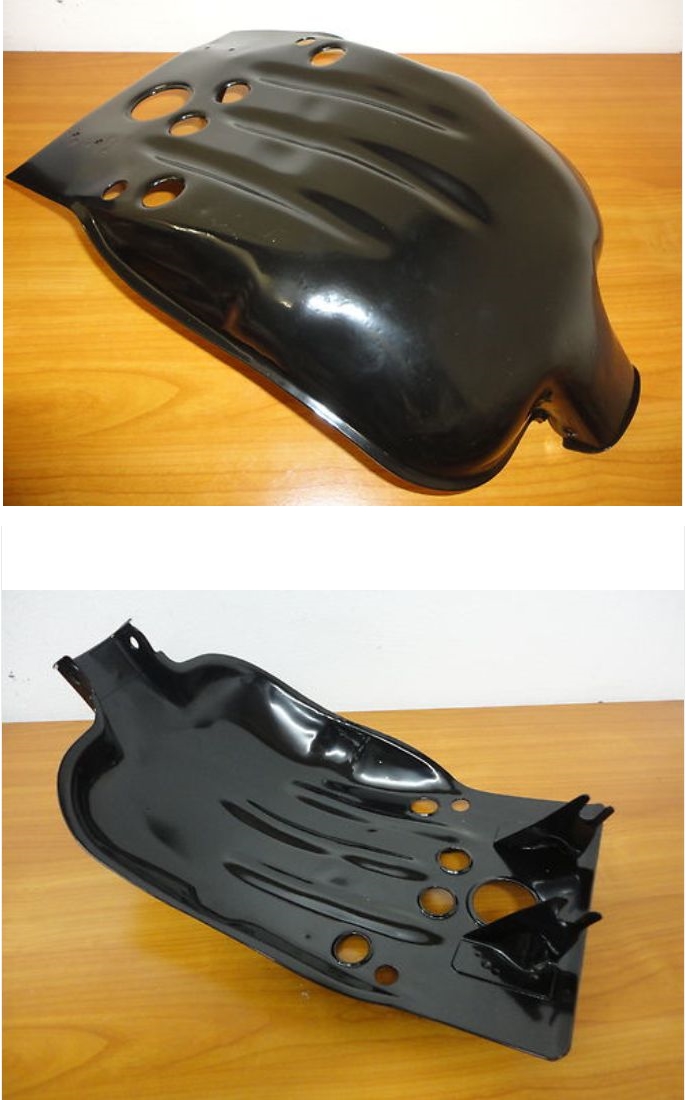

50351-385-000 sumpguard

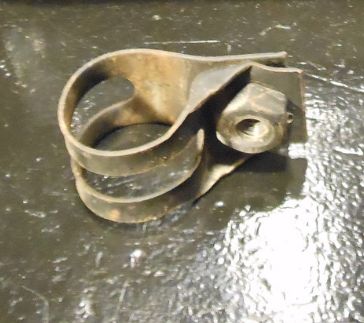

50358-358-000 toolbox mounting clamp

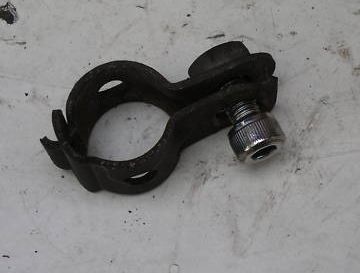

50358-313-010 and 50359-313-010 exhaust clamp

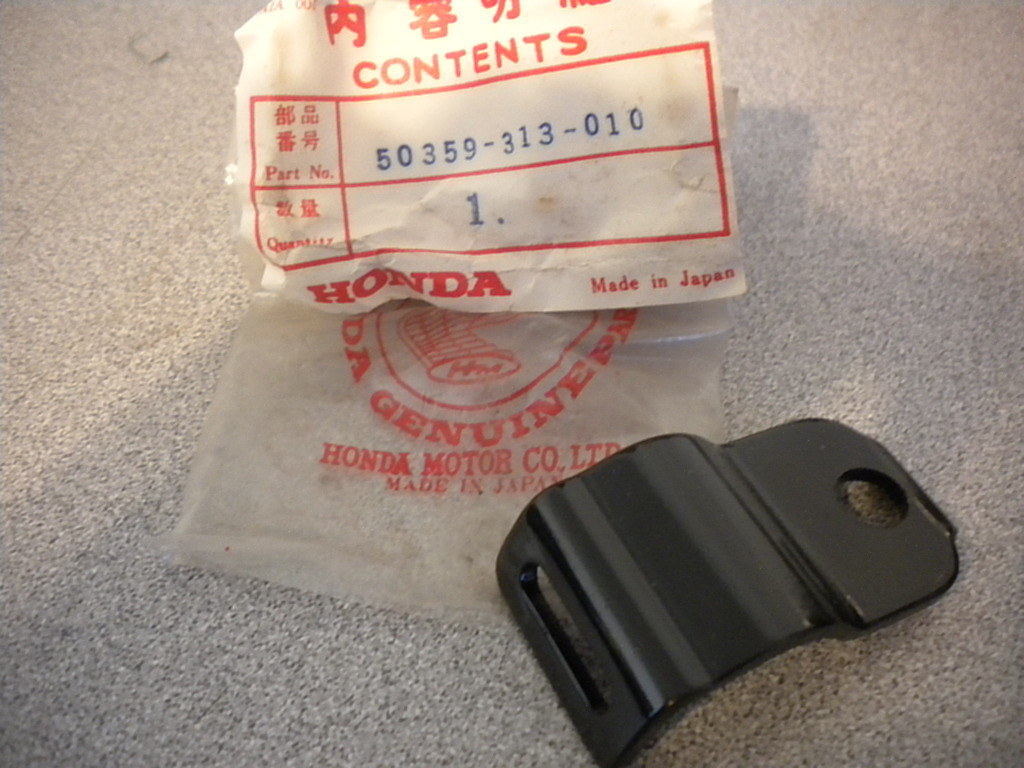

50359-313-010 half of exhaust clamp

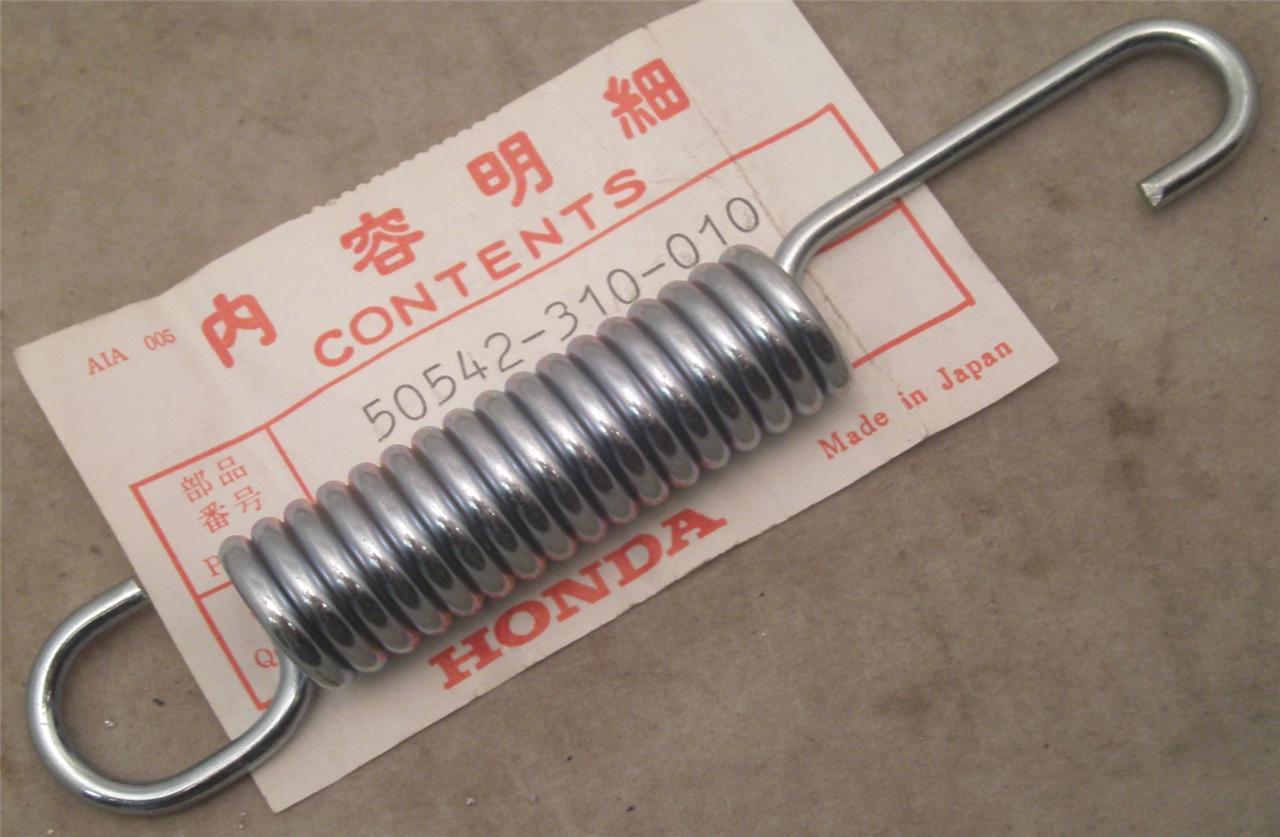

50542-310-010 sidestand spring

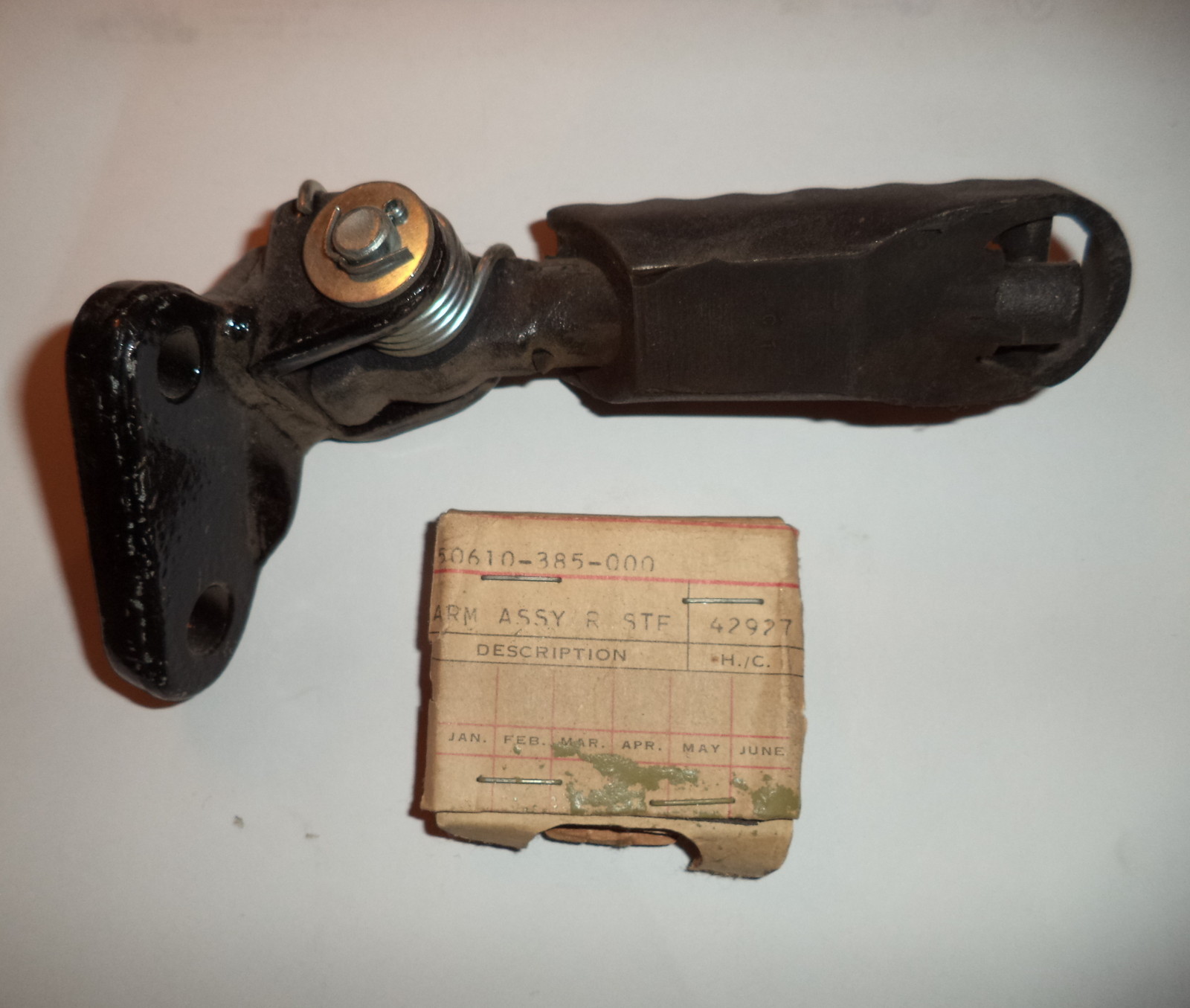

50610-385-000 footrest complete

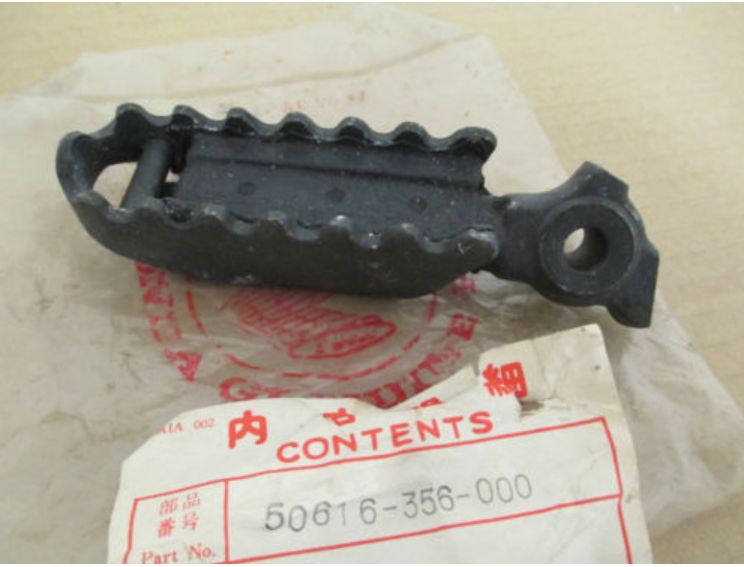

50616-356-000 footrest bar

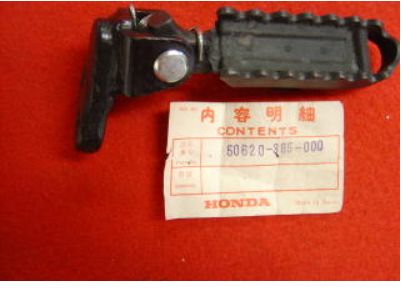

50620-385-000 footrest complete

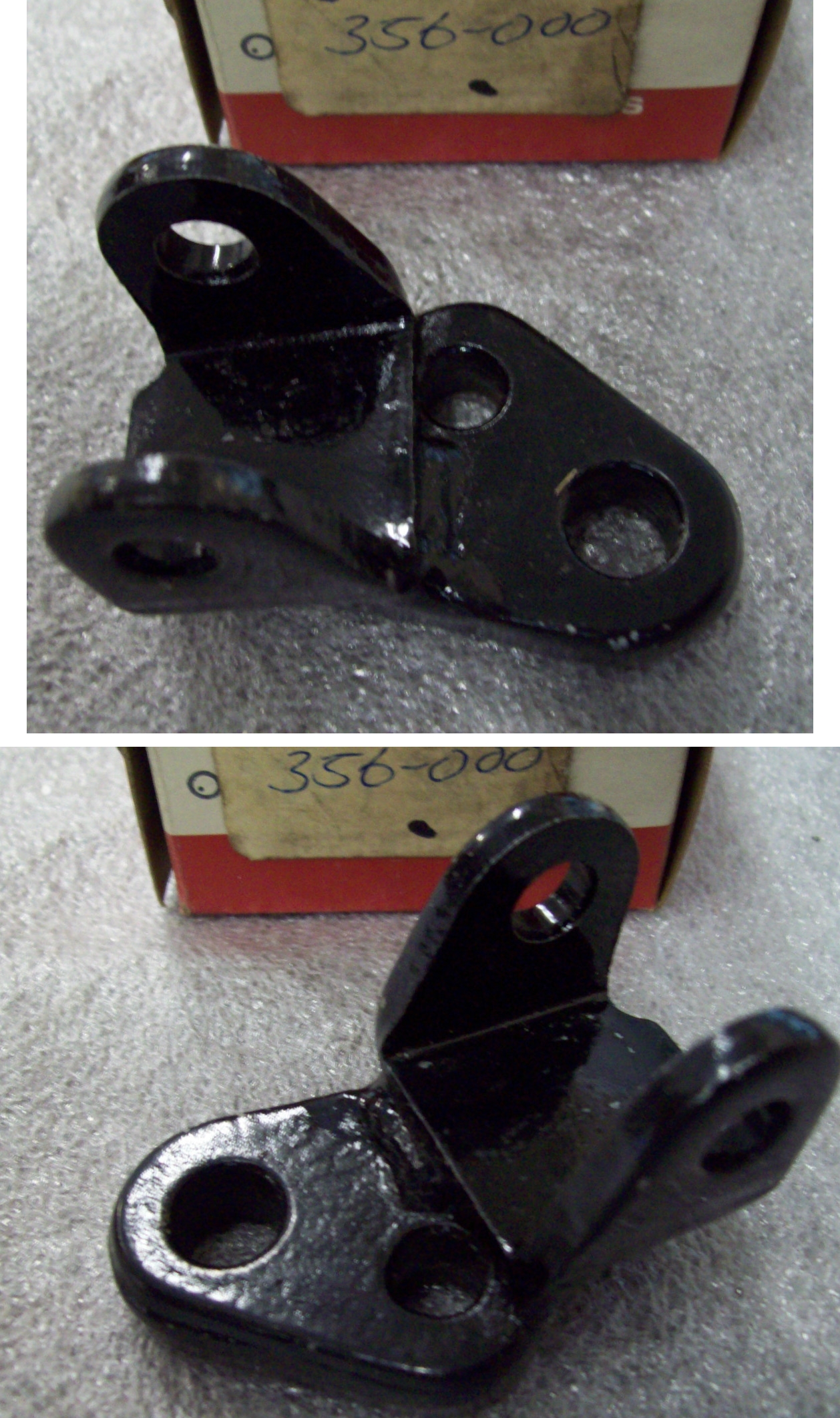

50624-356-000 footrest bracket

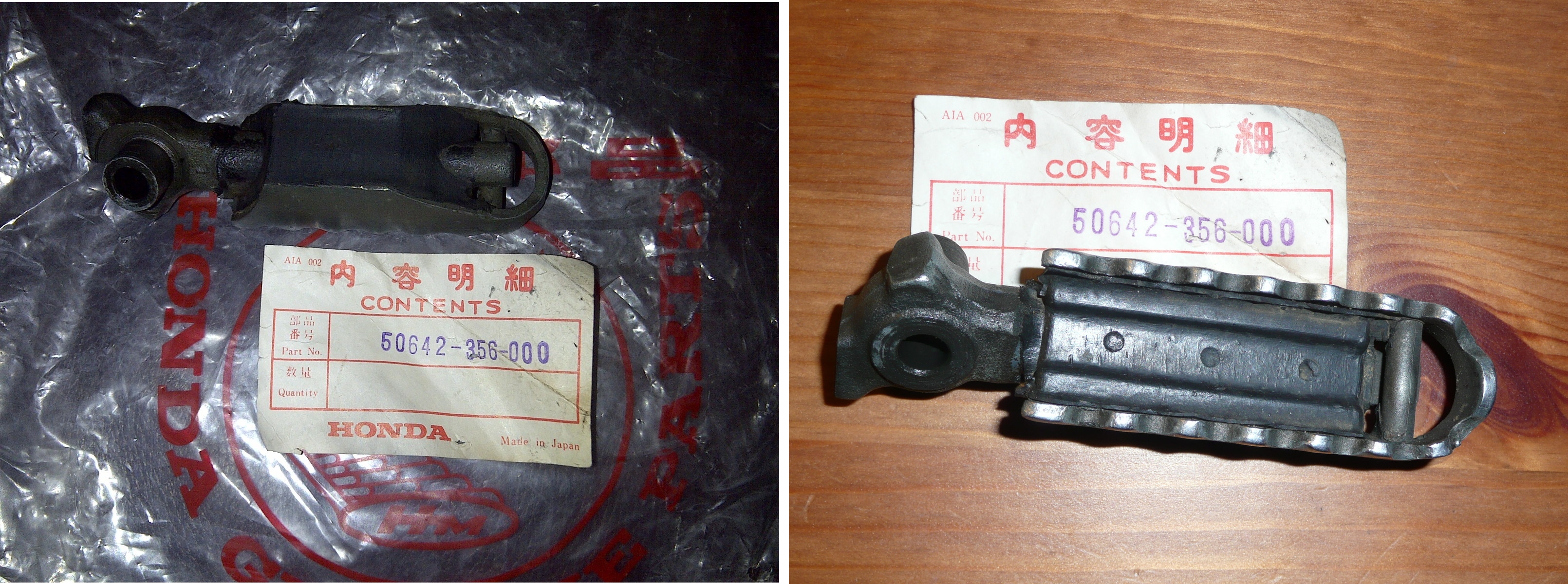

50642-356-000 footrest bar

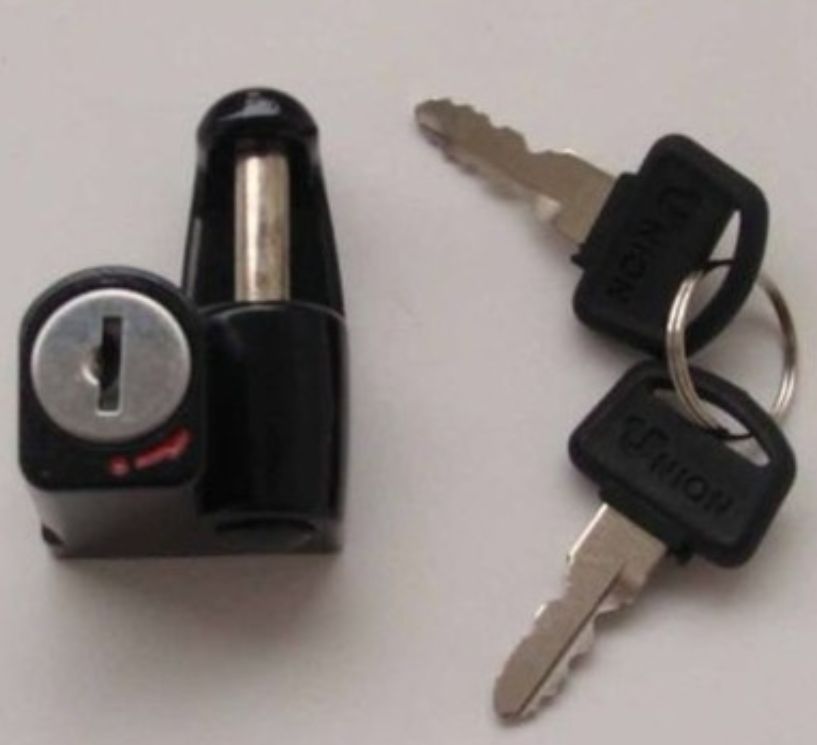

50710-086-007 helmet lock

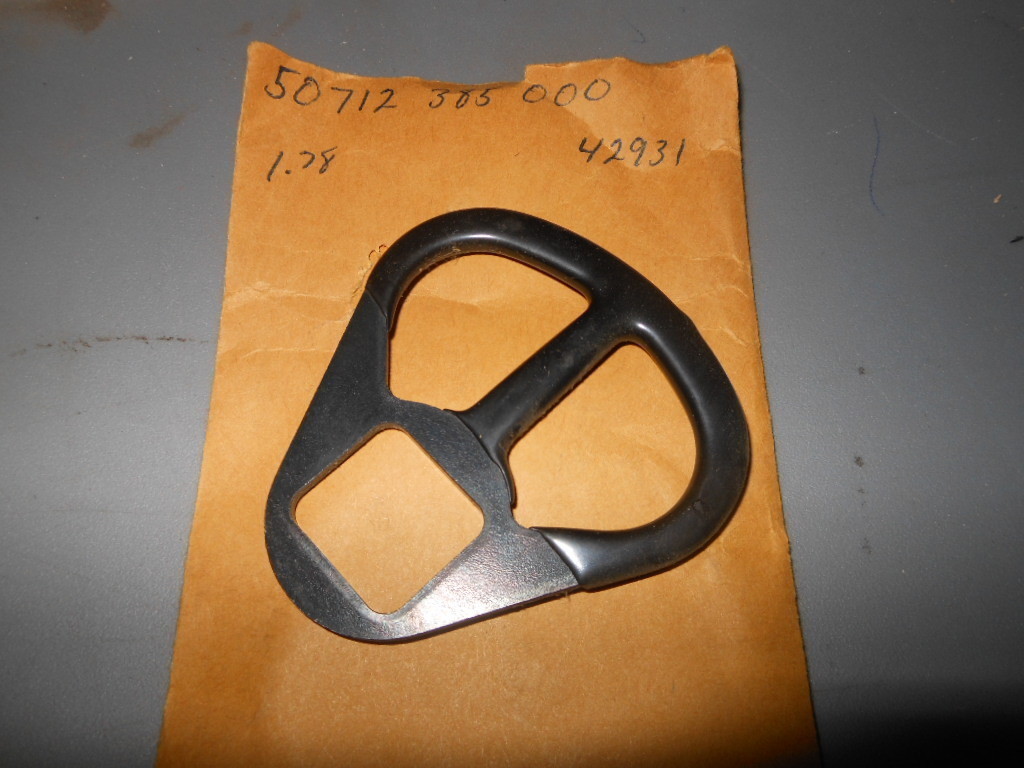

50712-385-000 footrest guard

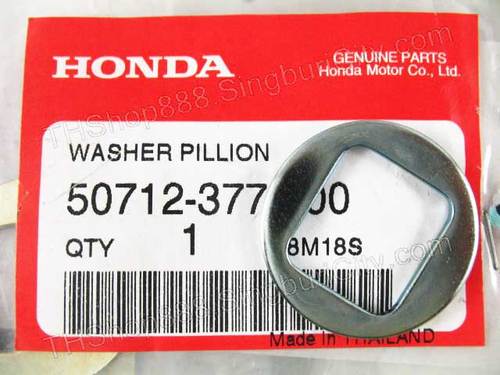

50712-377-000 footrest washer

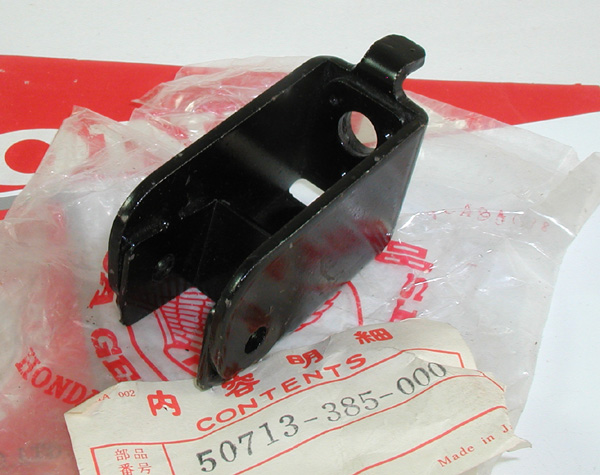

50713-385-000 footrest bracket

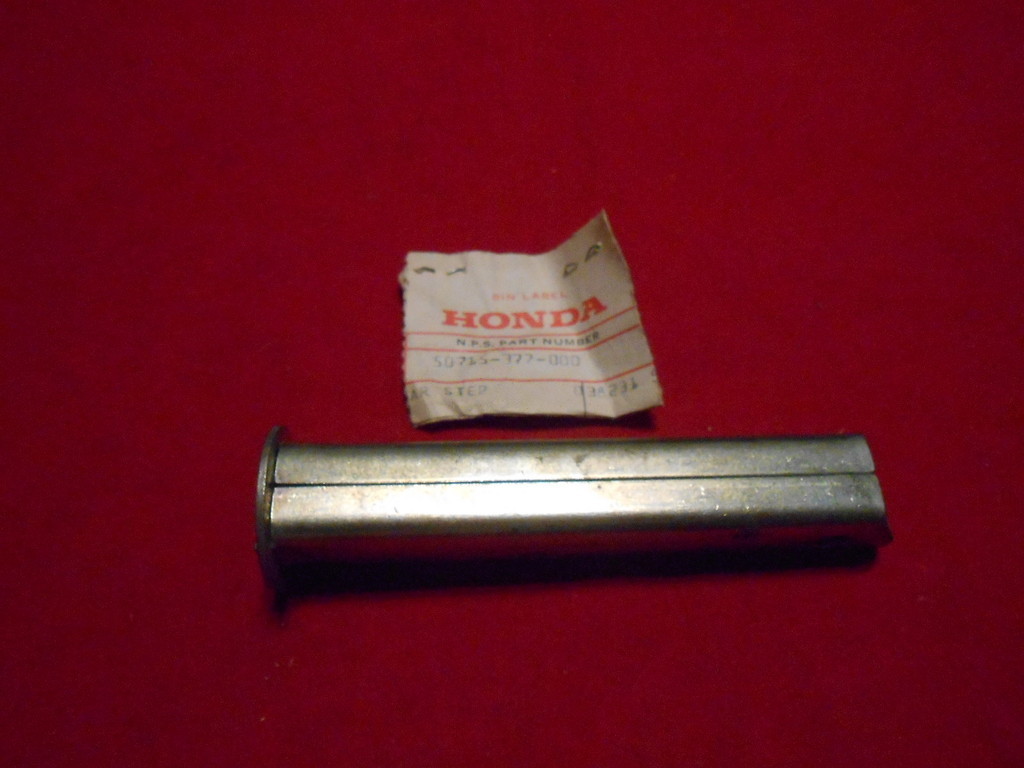

50715-377-000 footrest bar rear

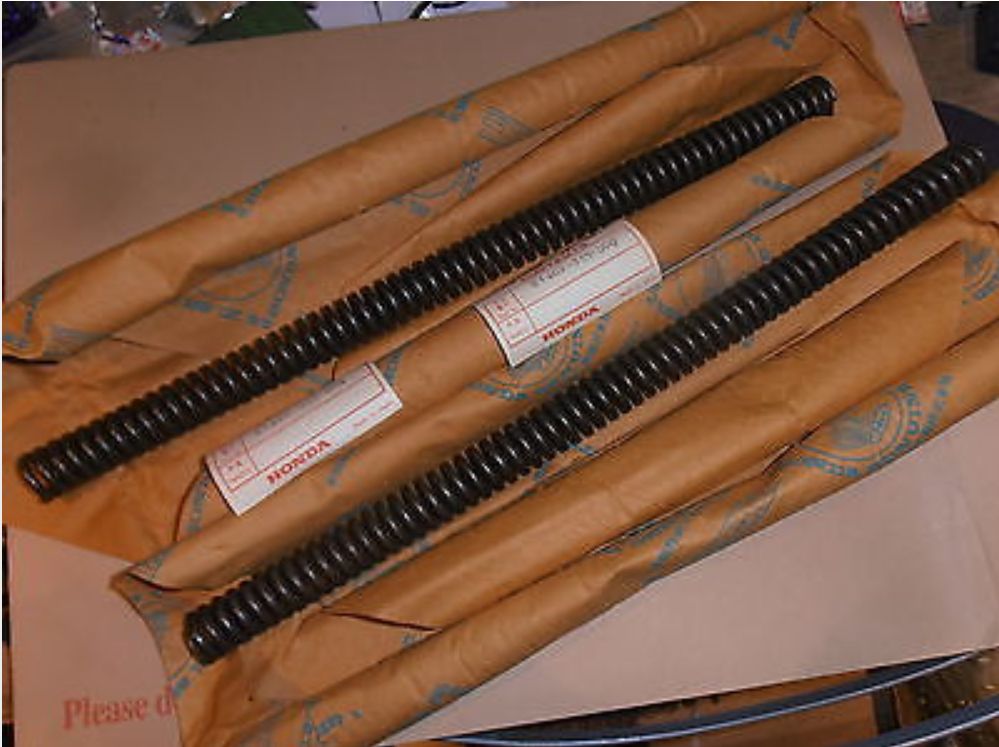

51402-385-000 front main spring

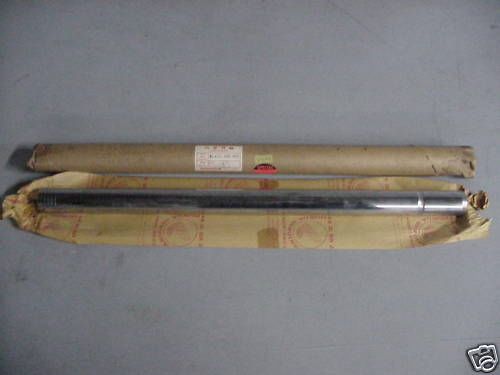

51420-356-000 fork leg/stanchion

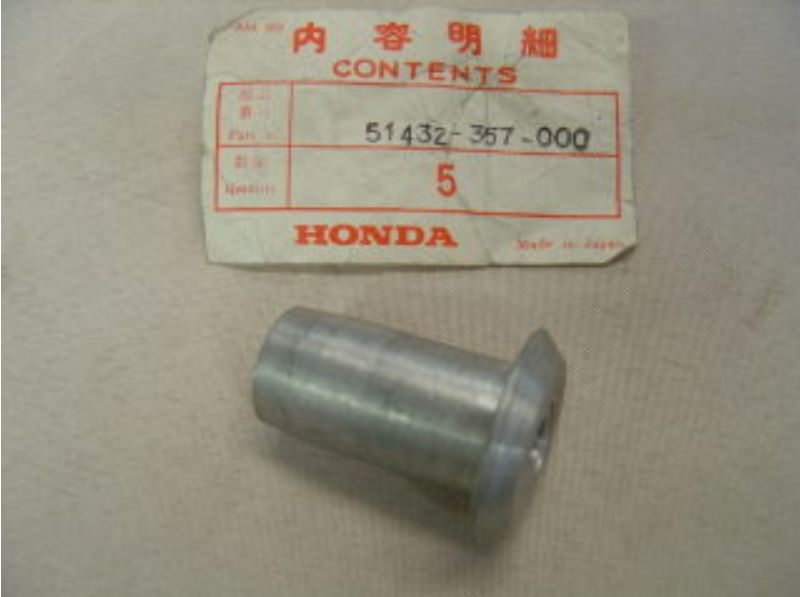

51432-357-000 oil lock piece

51440-385-003 fork pipe bottom

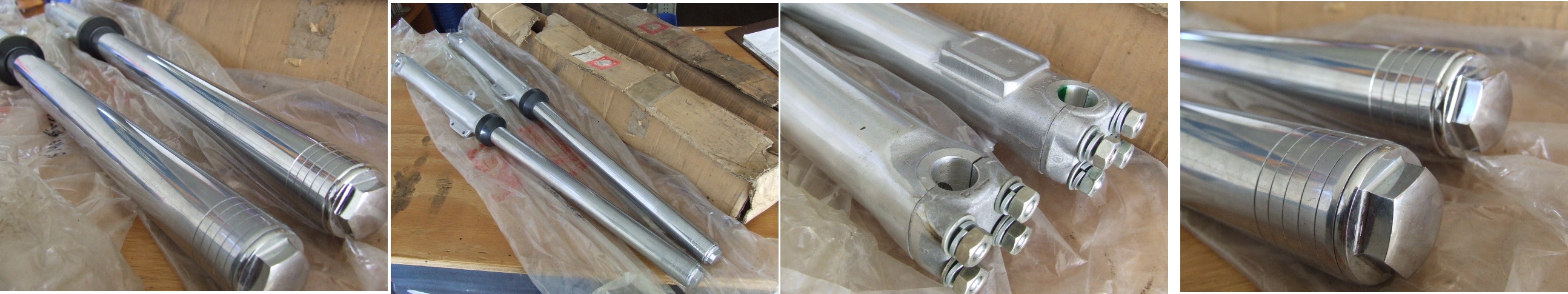

51500-356-010 forks complete XL350

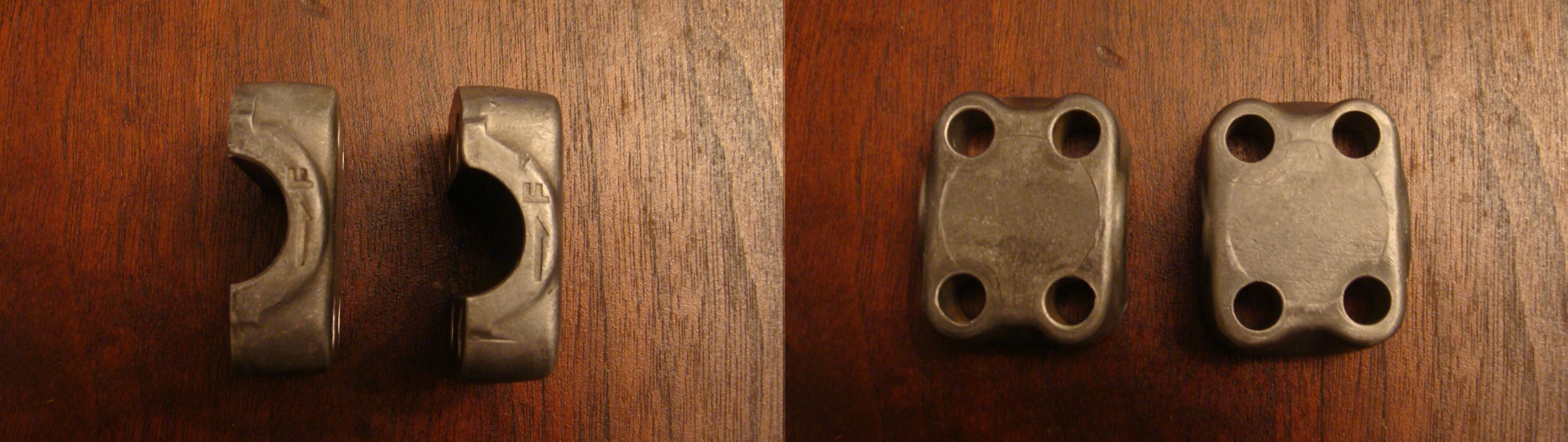

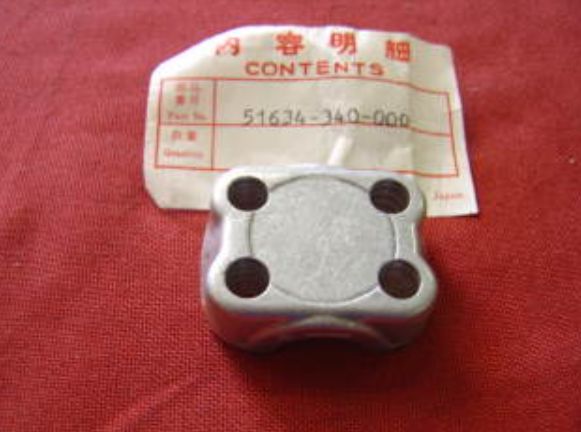

51634-340-000 fork stanchion bottom plate

51634-340-000 alternative fork stanchion bottom plate

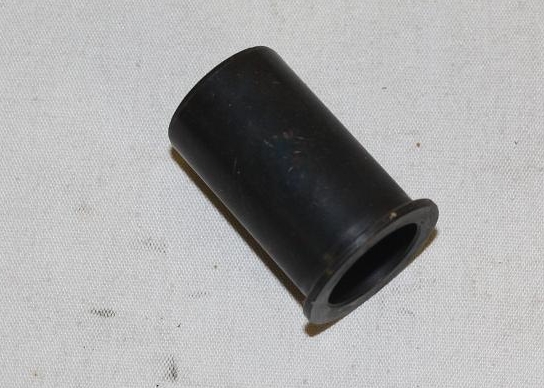

52108-457-300 swinging arm bush

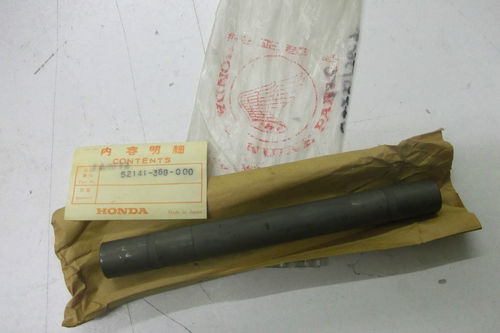

52141-369-000 swinging arm bush/sleeve

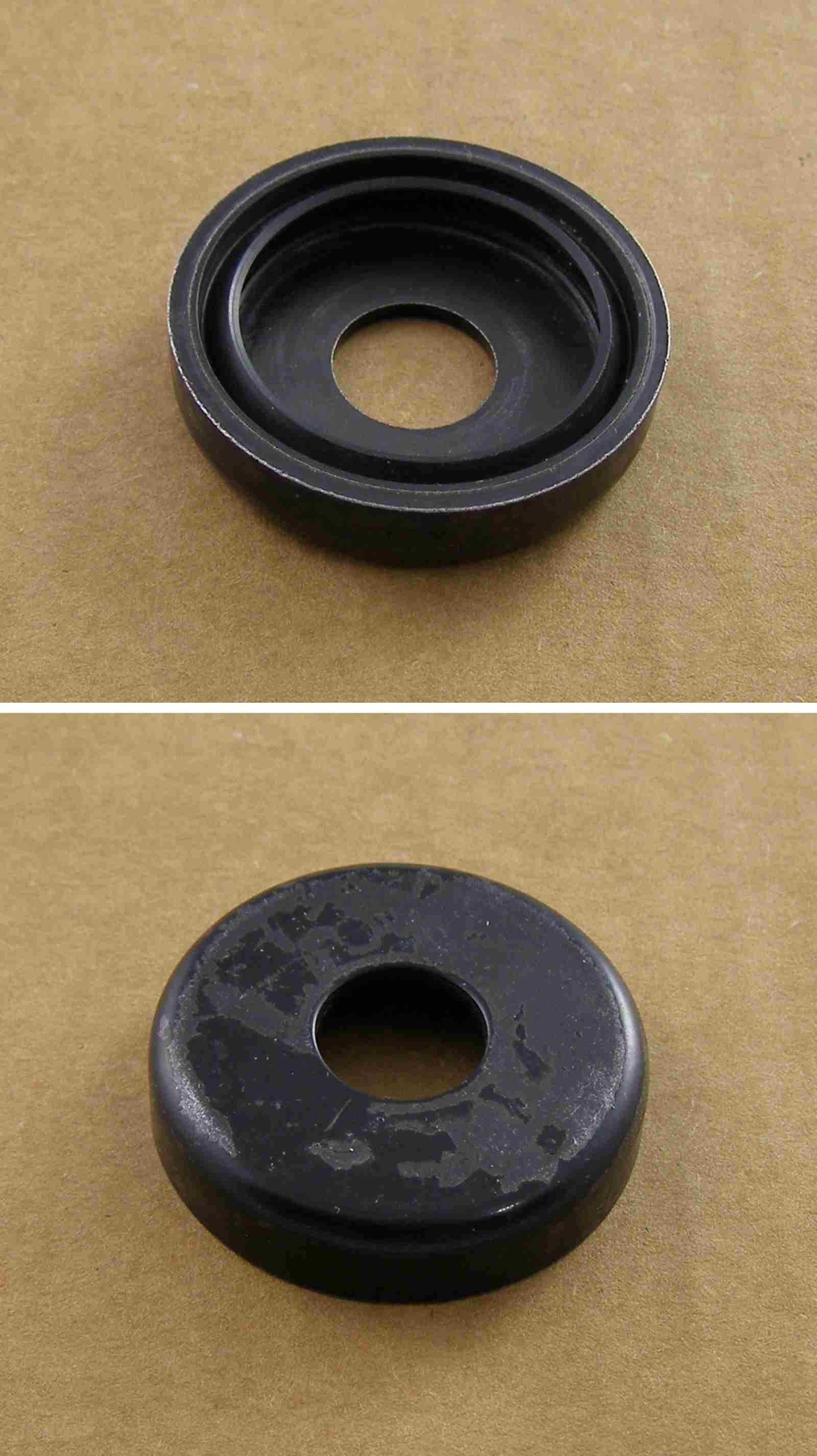

52144-362-000 swinging arm end cap

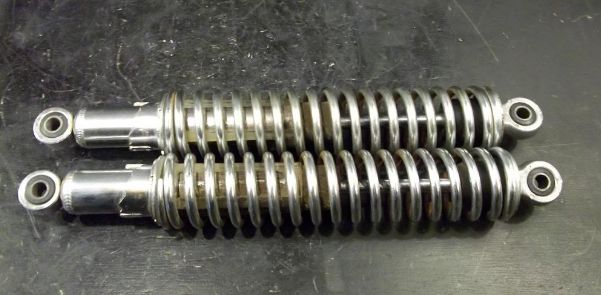

52400-385-000 rear shock absorbers

52403-391-671 rear shock absorber top

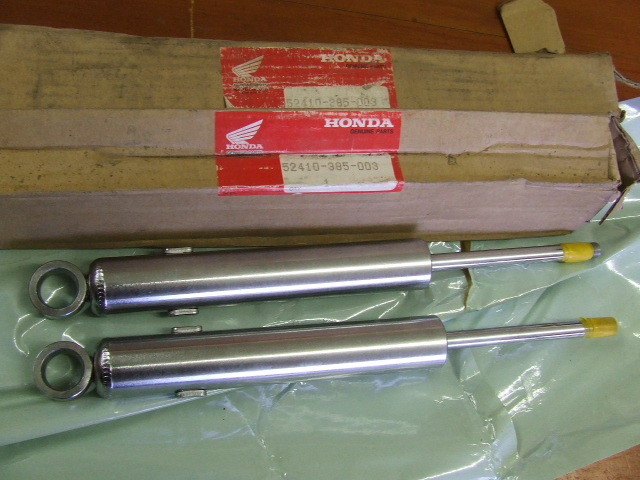

52410-385-003 rear shock absorbers damper

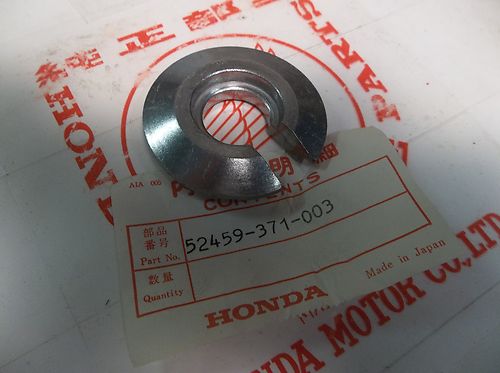

52459-371-003 rear shock absorbers collar

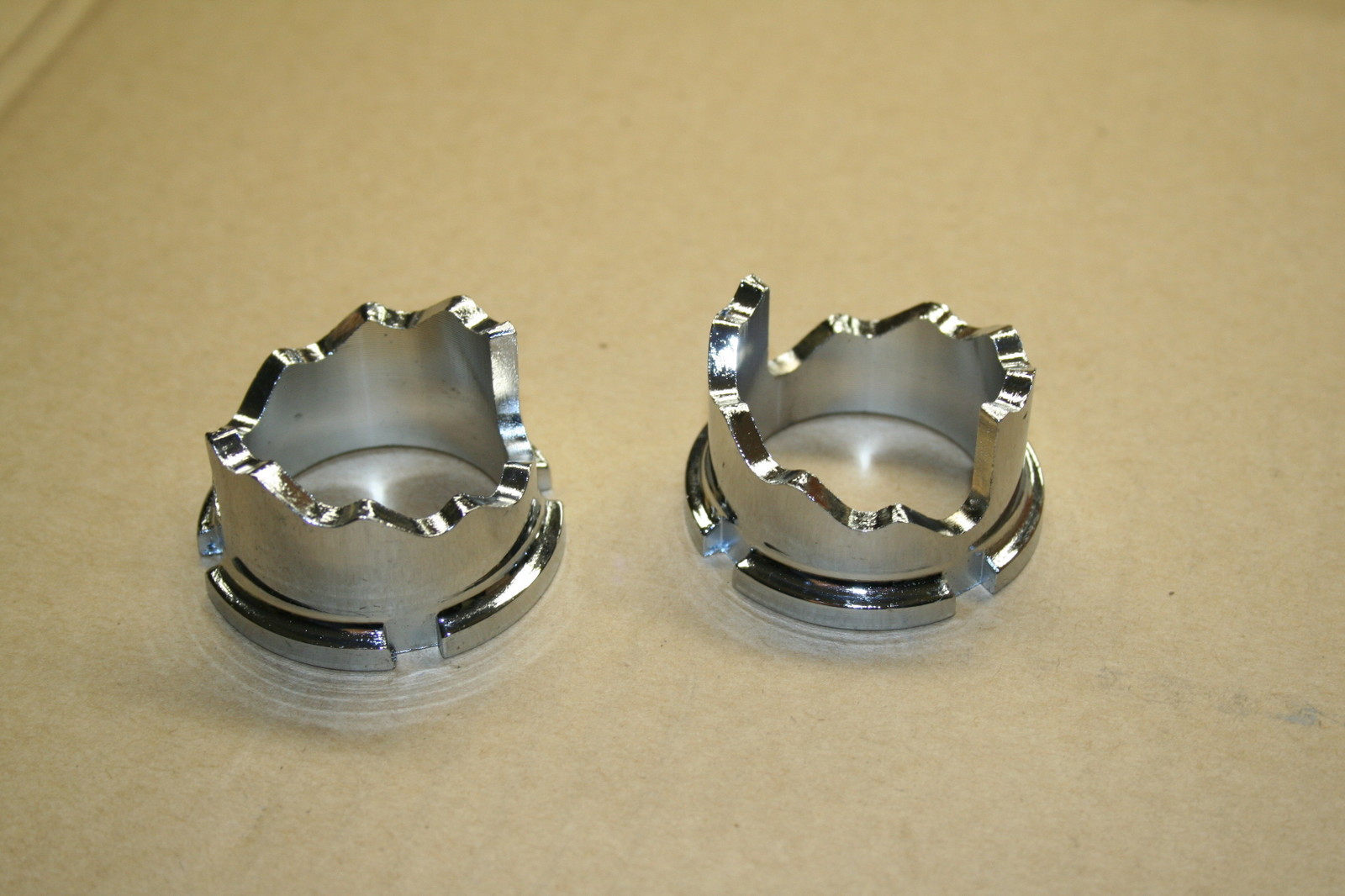

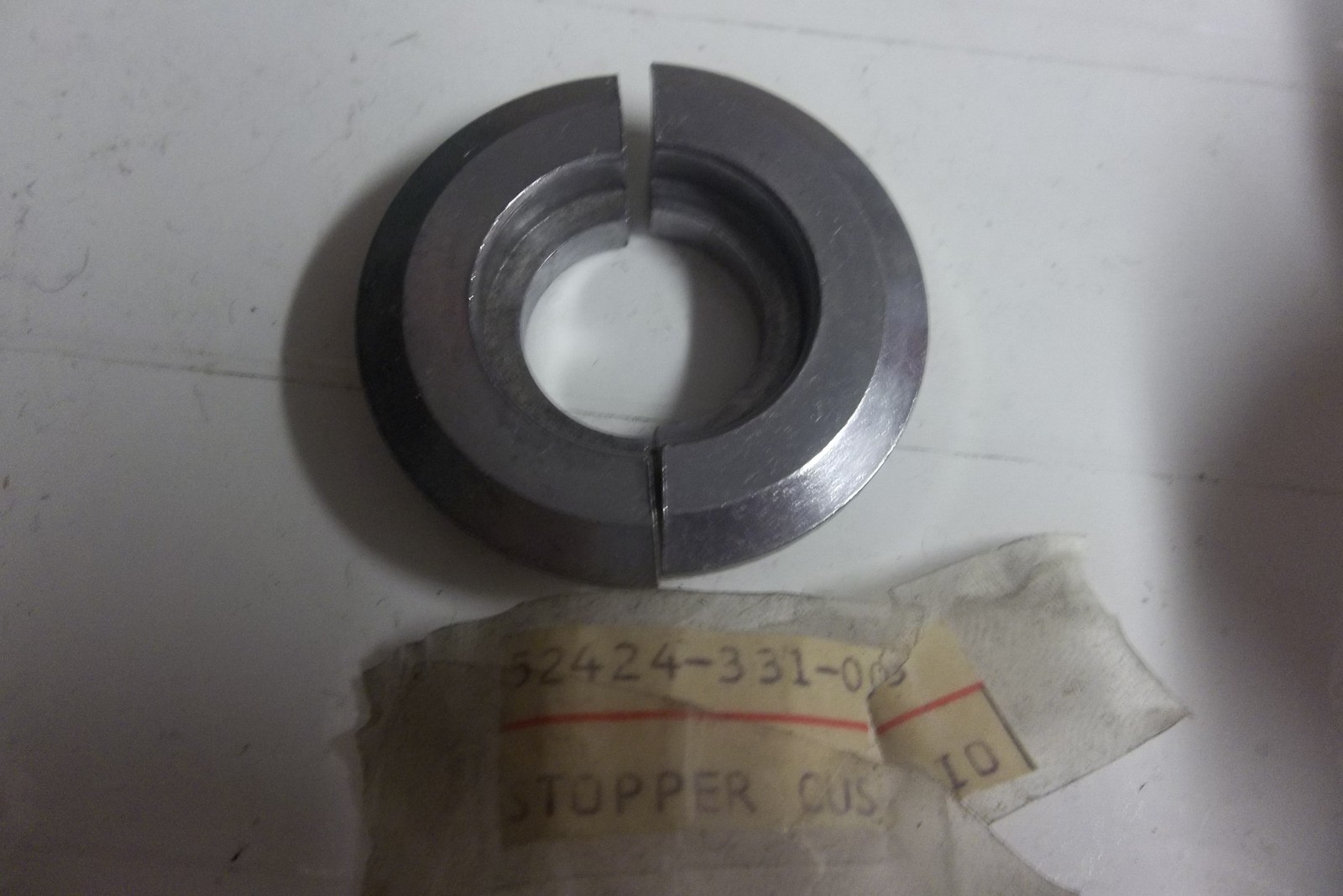

52422-390-003 rear shock absorber adjusters

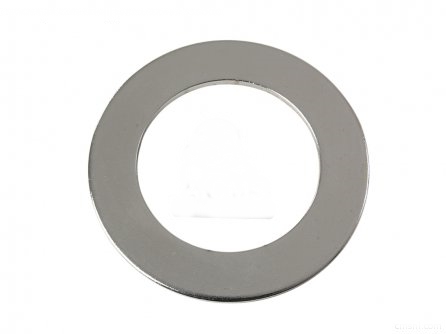

52457-356-000 rear shock absorber washer

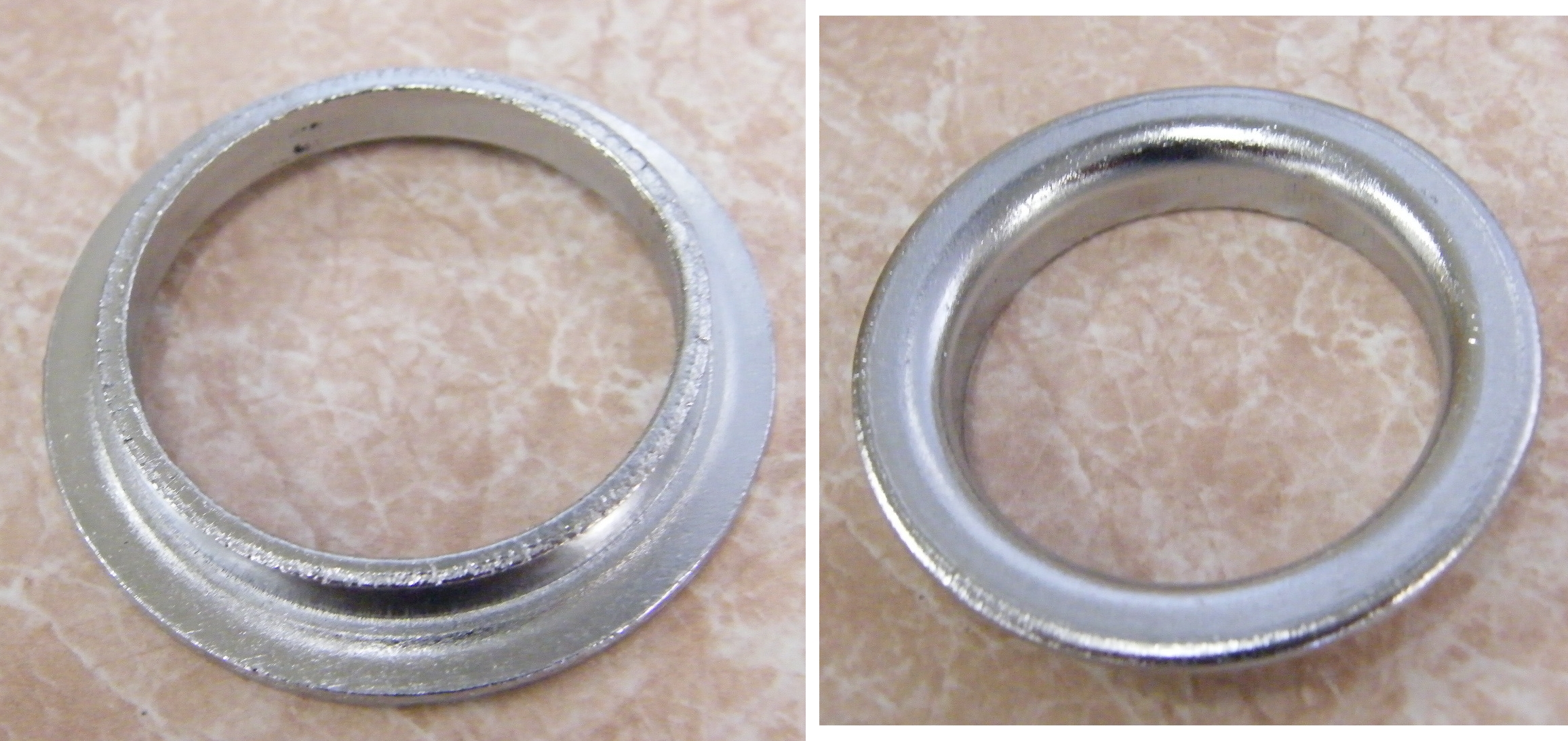

52459-312-003 rear shock absorber spring seat

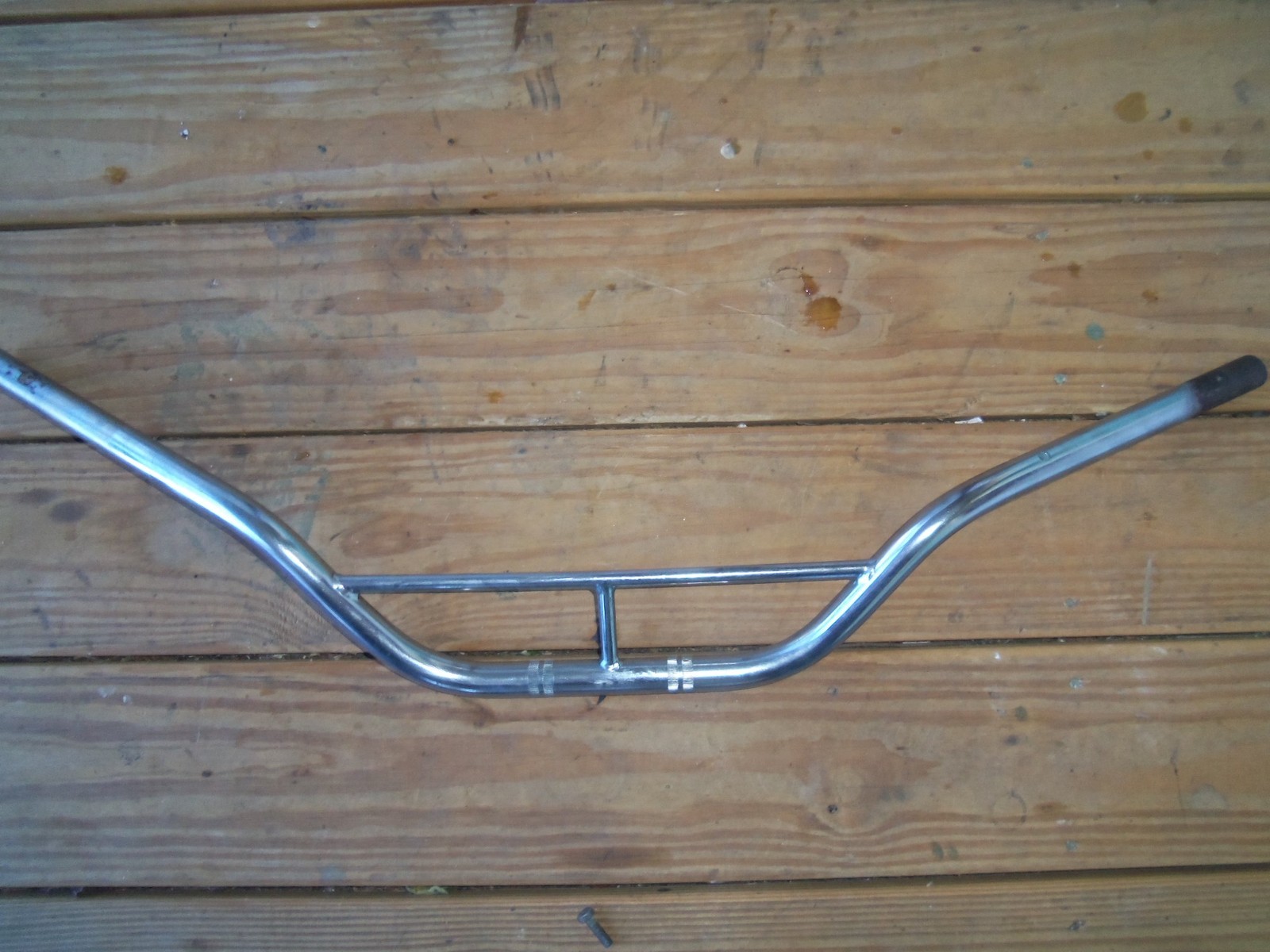

53100-385-000 handlebar

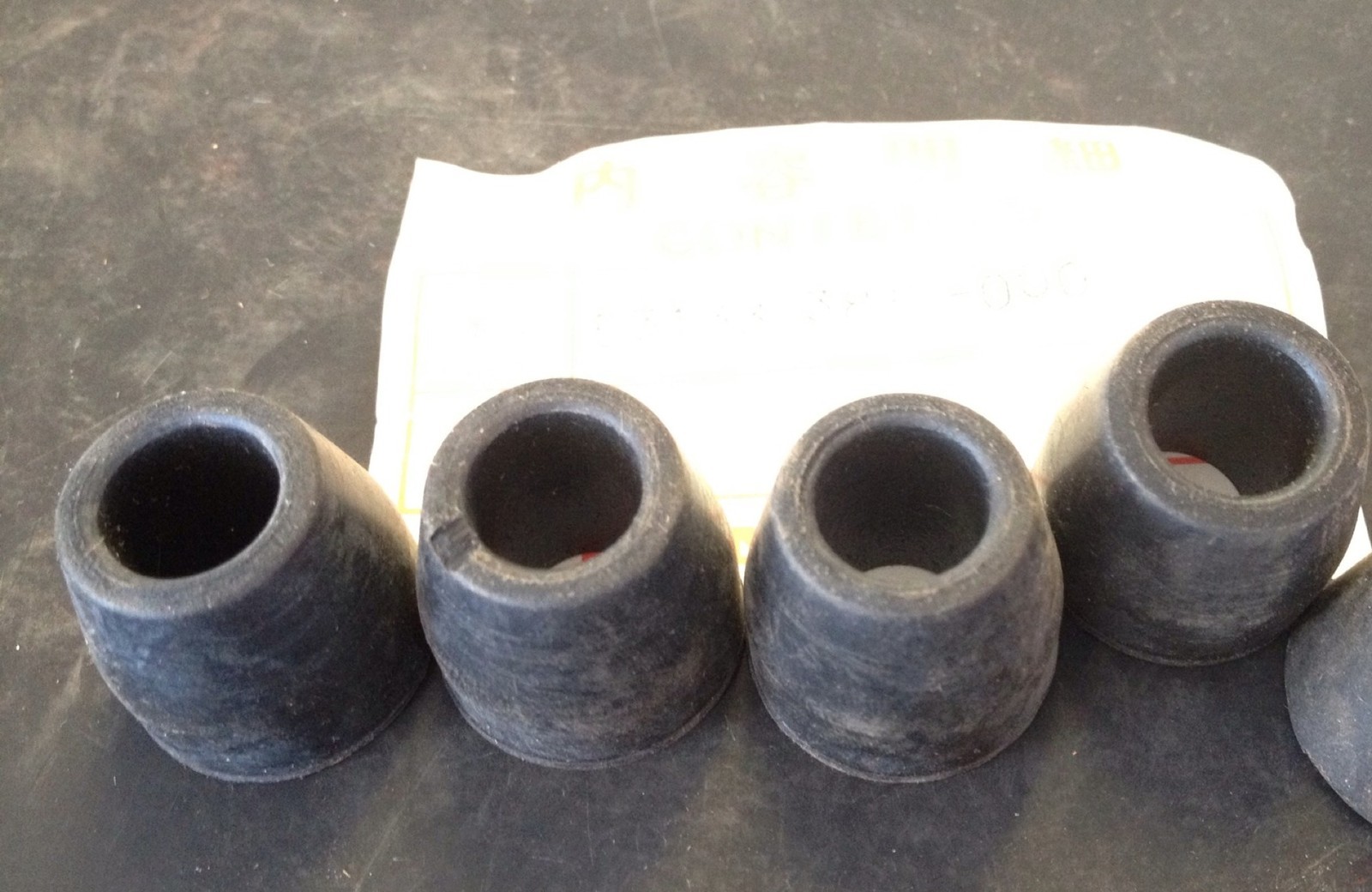

53133-385-000 handlebar mount rubbers

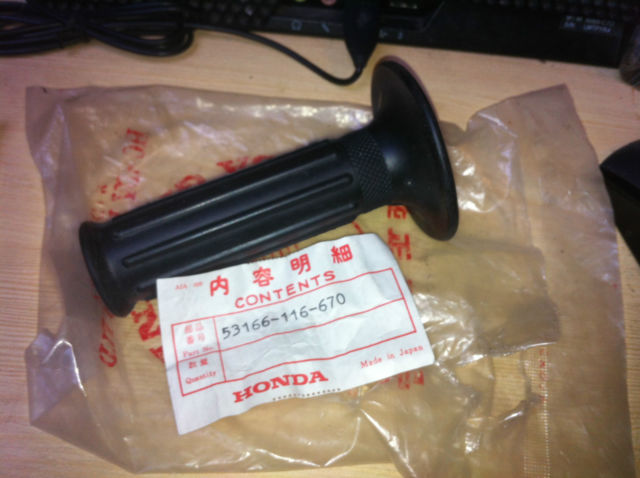

53166-116-670 left hand handlebar grip

53165-116-670 RIGHT AND 53166-116-670 LEFT pair of handlebar grips; the right hand one is obviously wider as it fits on the twistgrip body not the handlebars direct

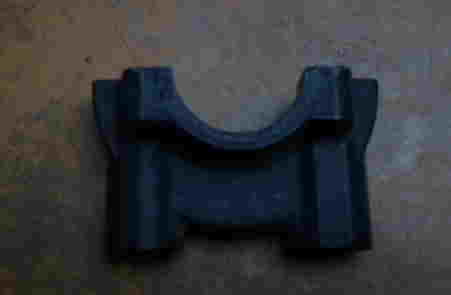

53167-385-000 lower twistgrip case

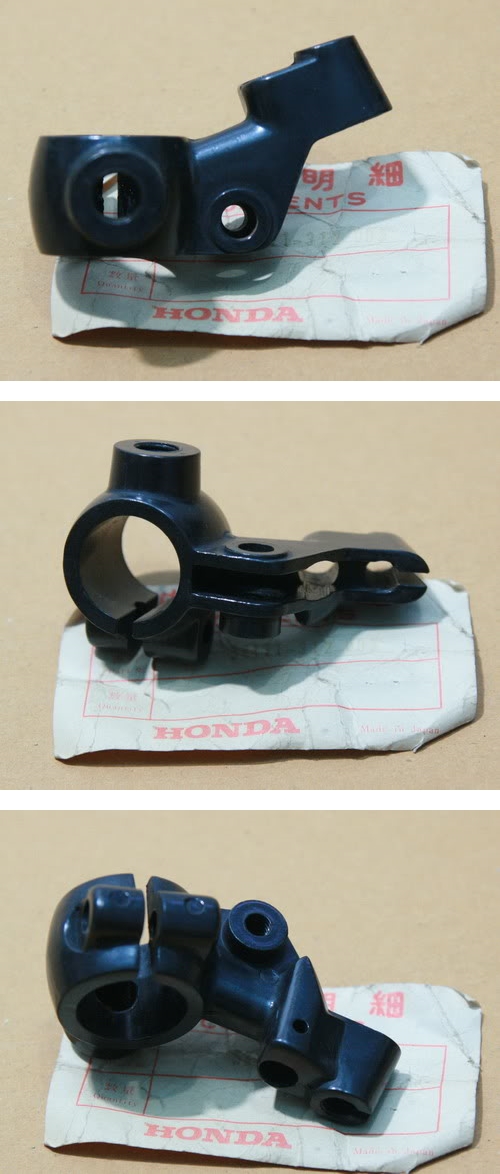

53171-312-003 brake lever handlebar bracket

53192-312-000 handlebar cable adjuster

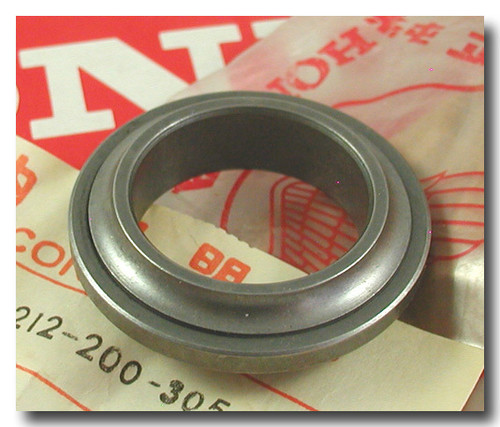

53212-200-305 steering race

53424-331-000 rear shock absorber alt top

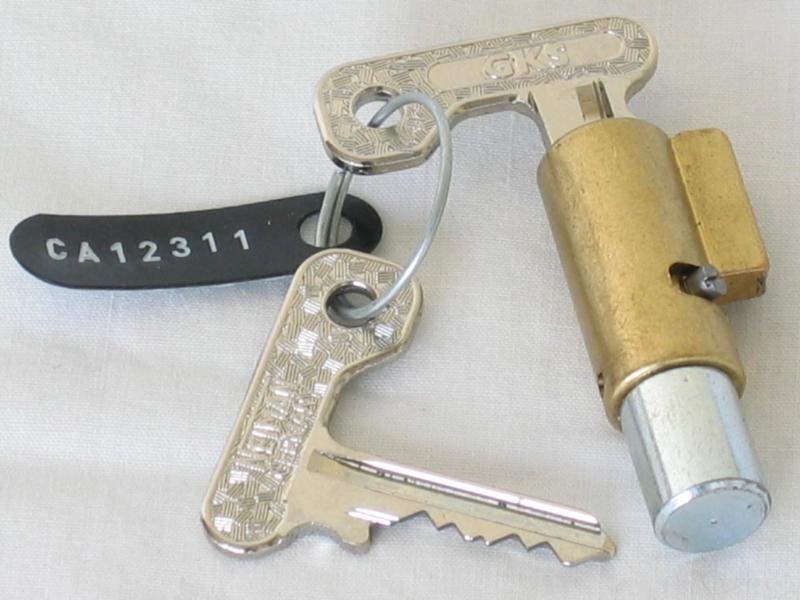

53600-404-611HE steering lock

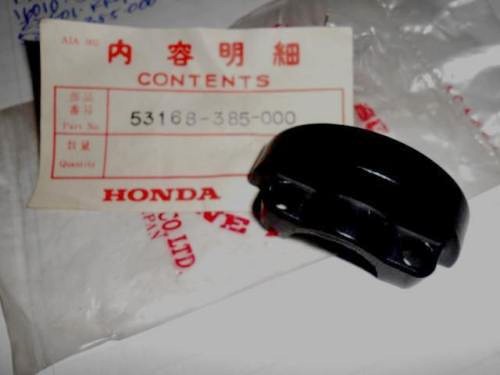

53168-385-000 twistgrip top housing

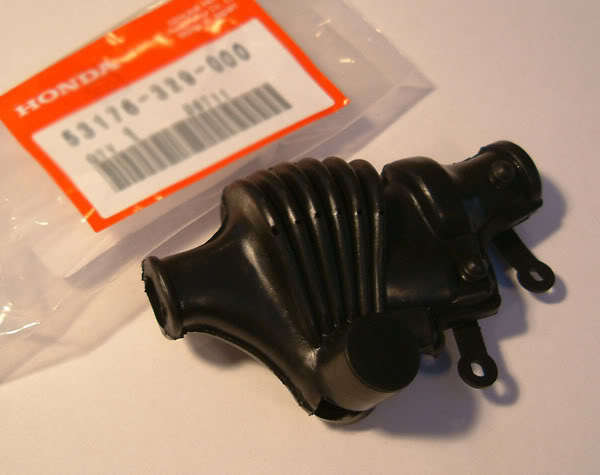

53176-329-000 lever dust cover

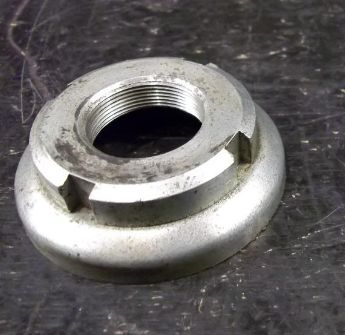

53220-303-000 headstock nut

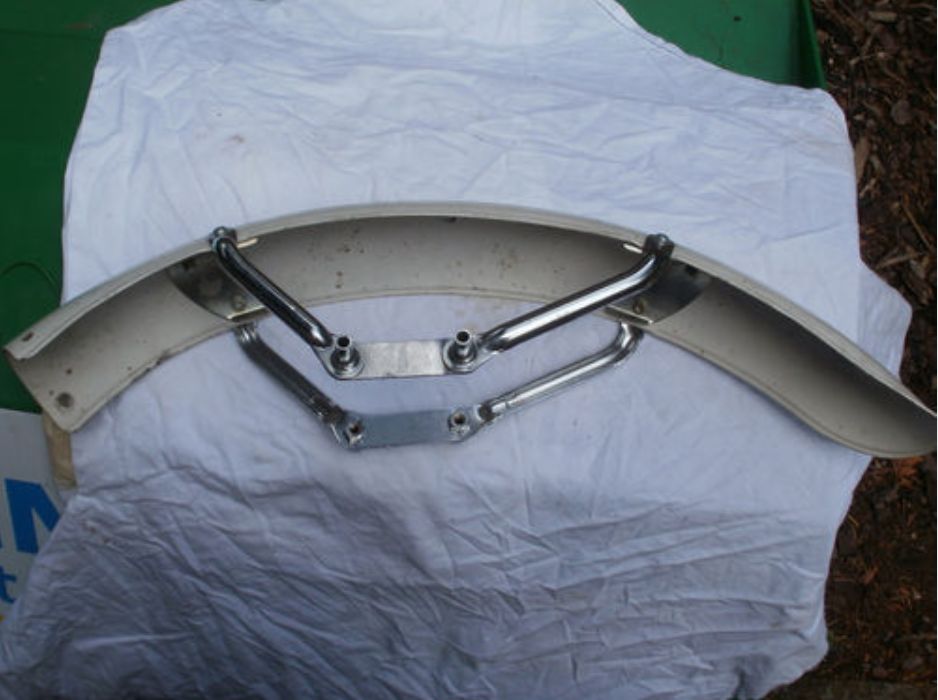

61100-386-600 front mudguard

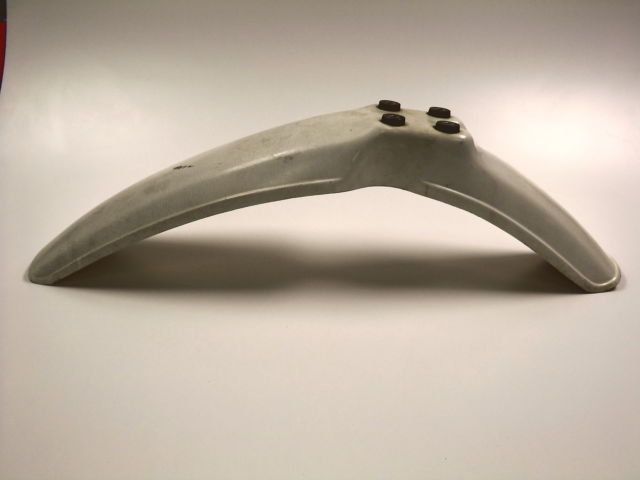

61100-385-670 front mudguard US

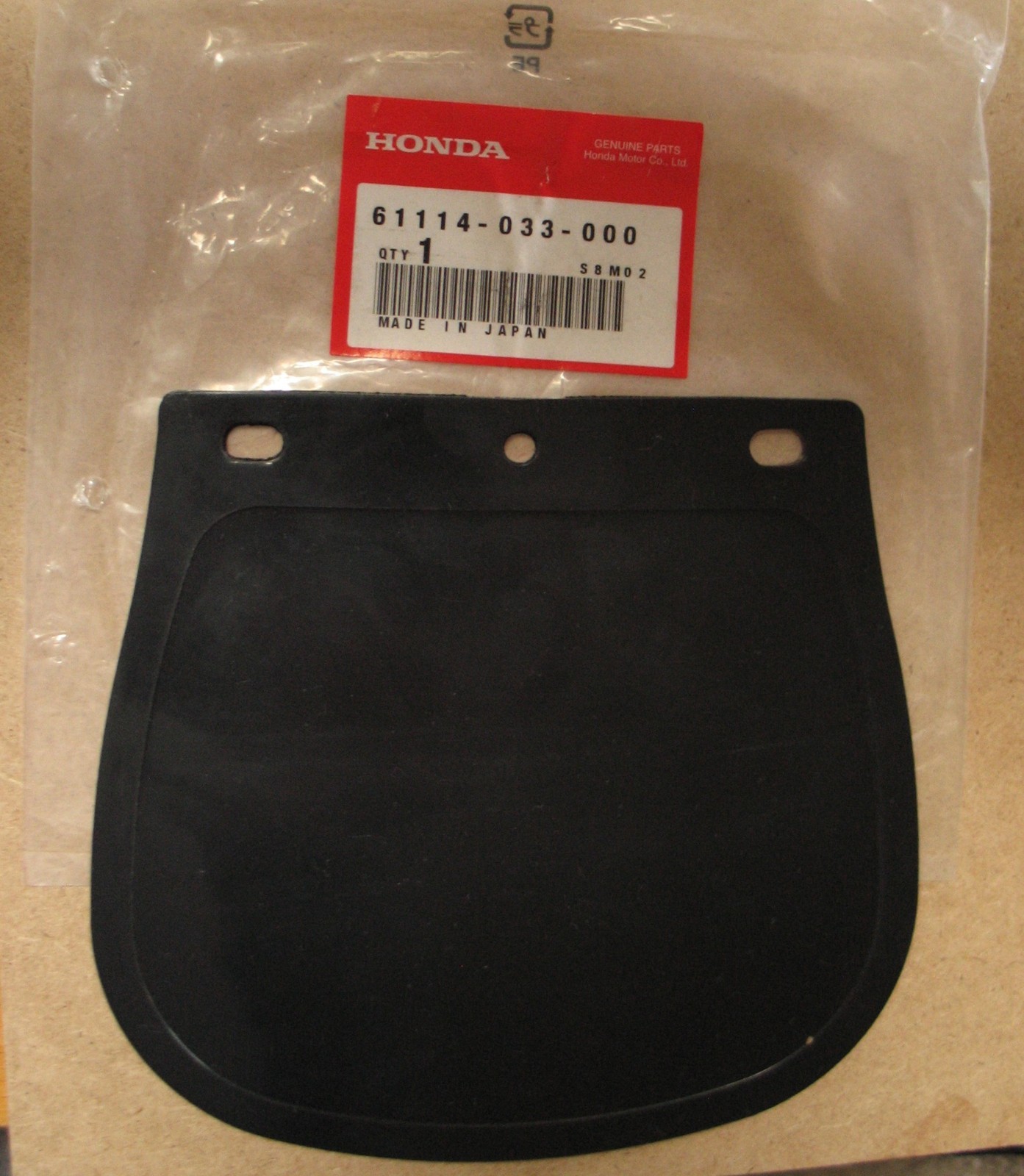

61114-033-000 front mudguard mudflap

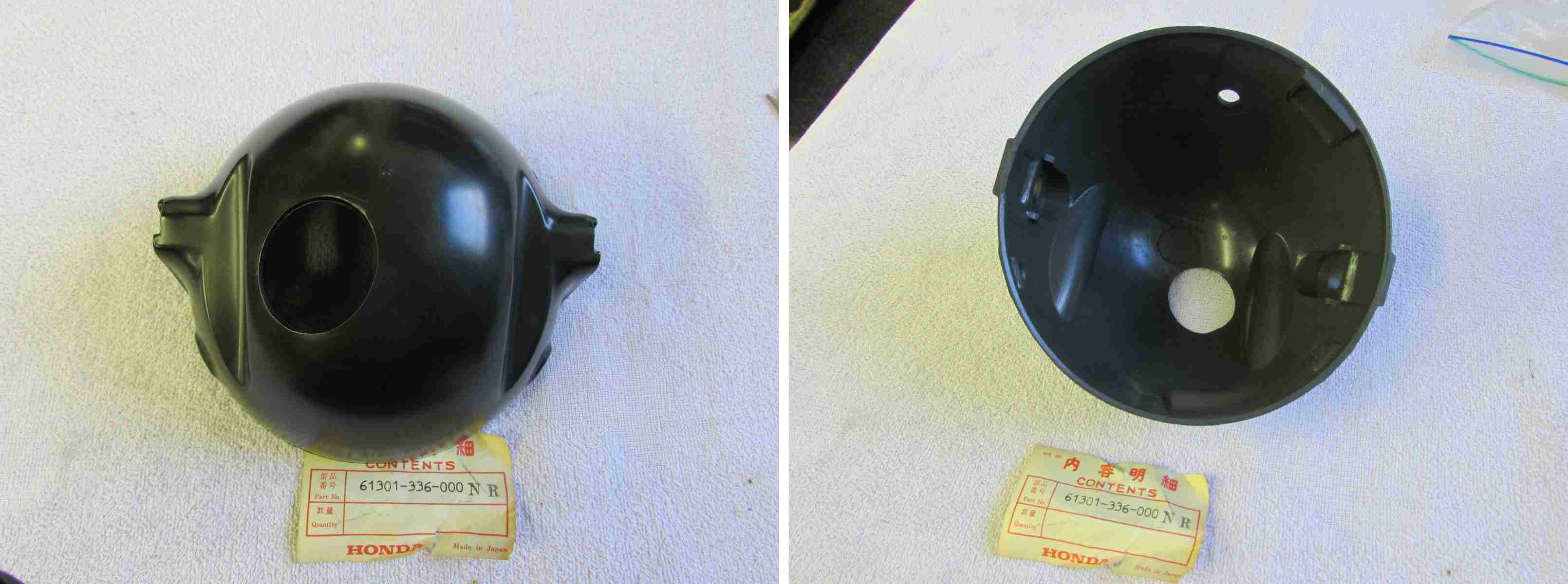

61301-336-000NR US headlight bucket/shell (plastic)

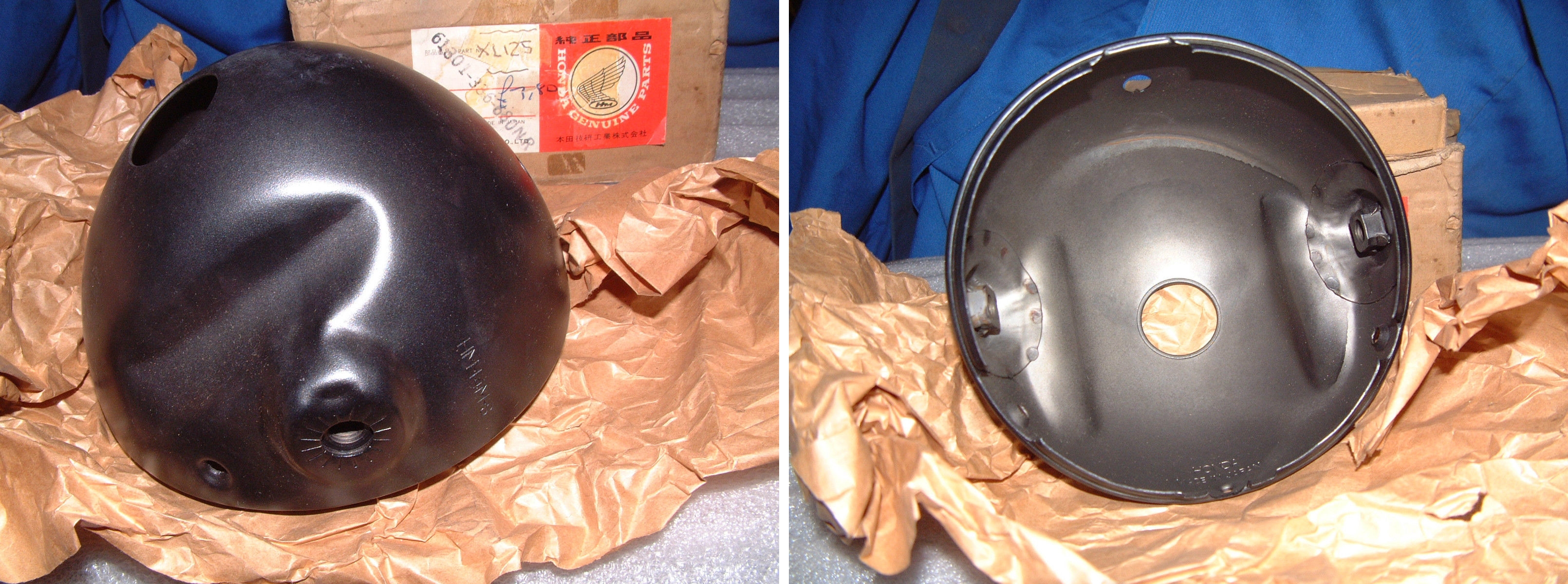

61301-336-680 headlight shell

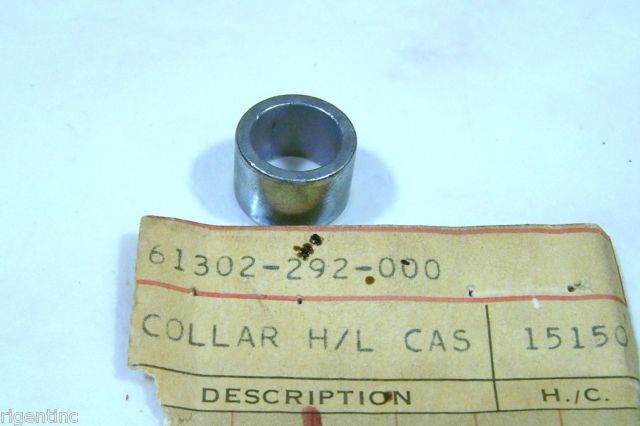

61302-292-000 headlight case collar US

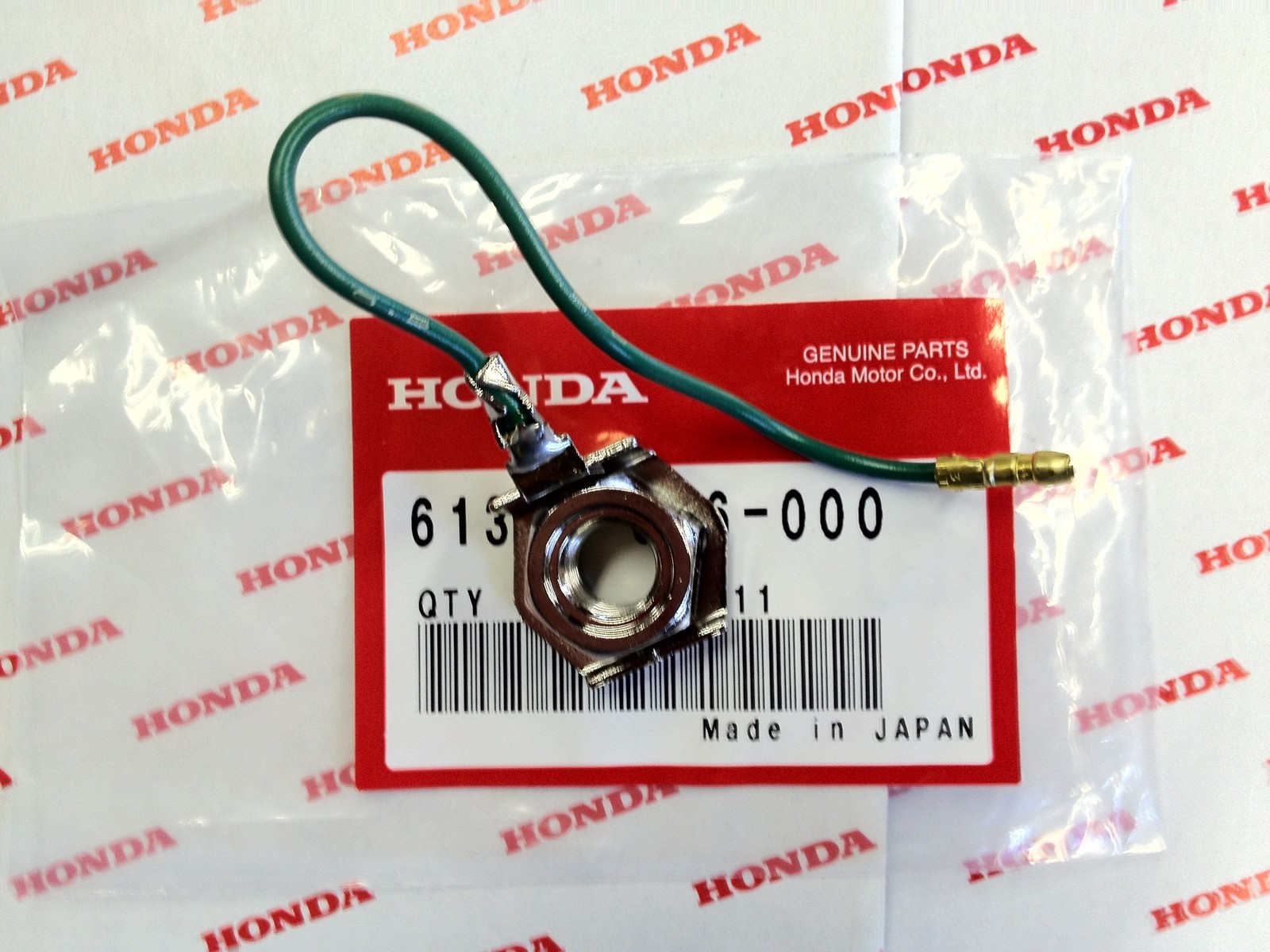

61303-336-000 headlight case ground nut

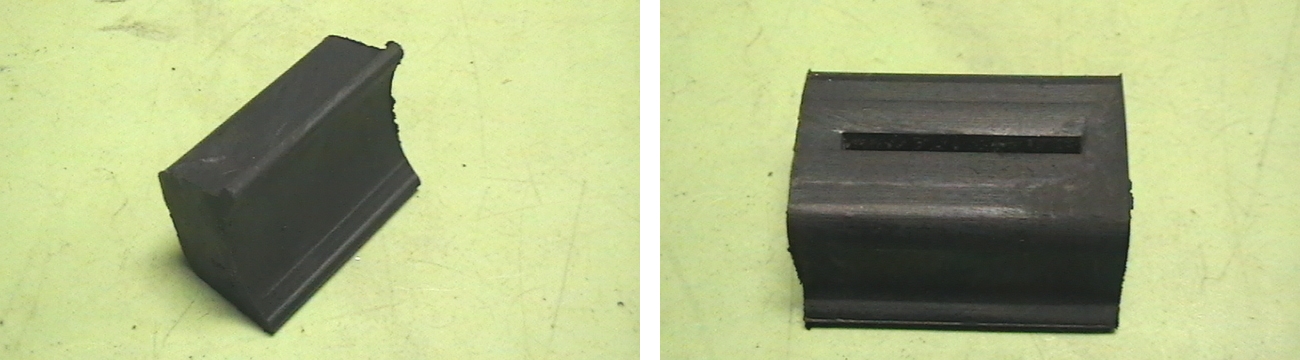

61316-361-000 headlight bracket rubber mount

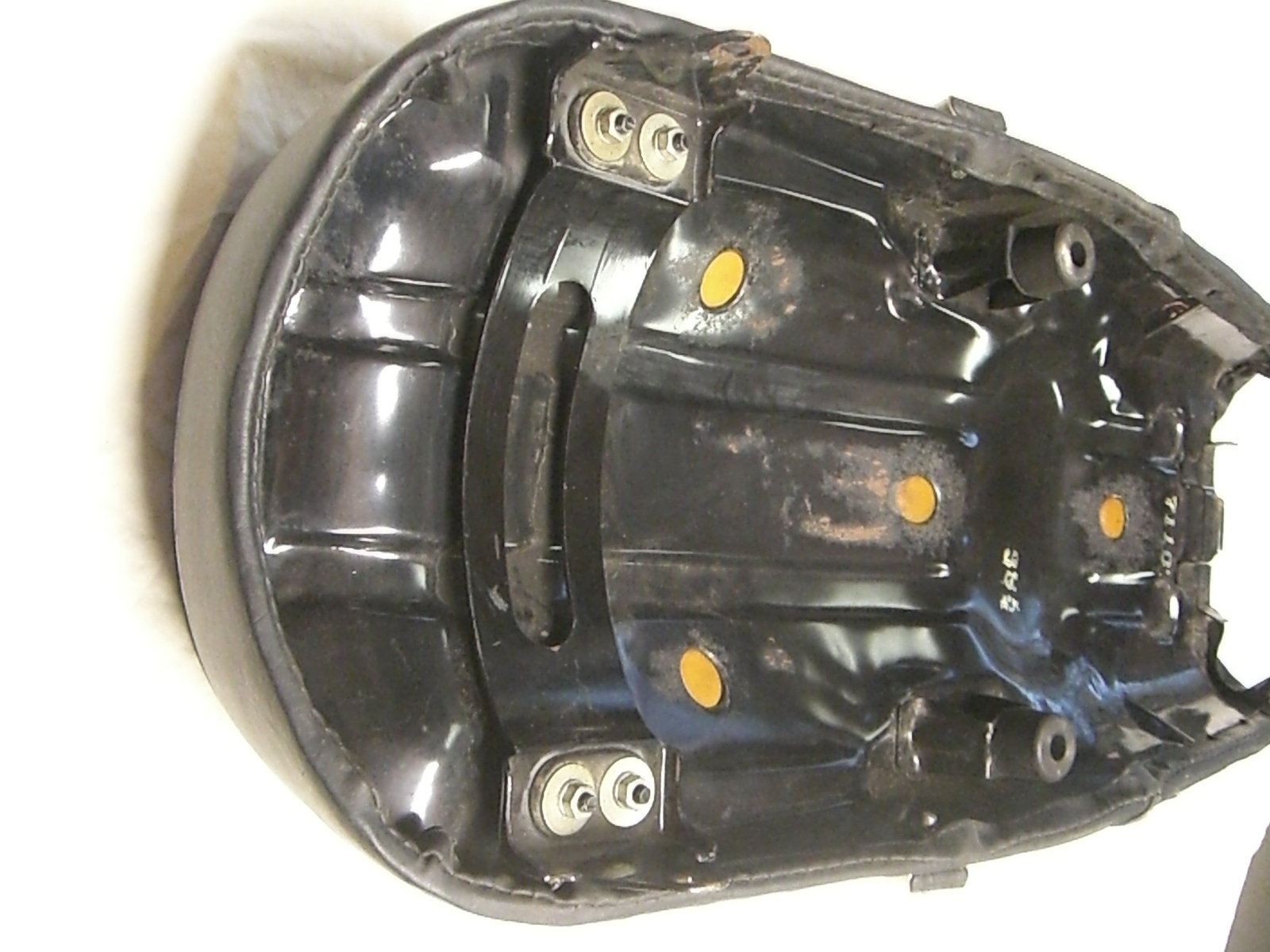

7720-385-000 seat fitting

80100-385-000 rear mudguard

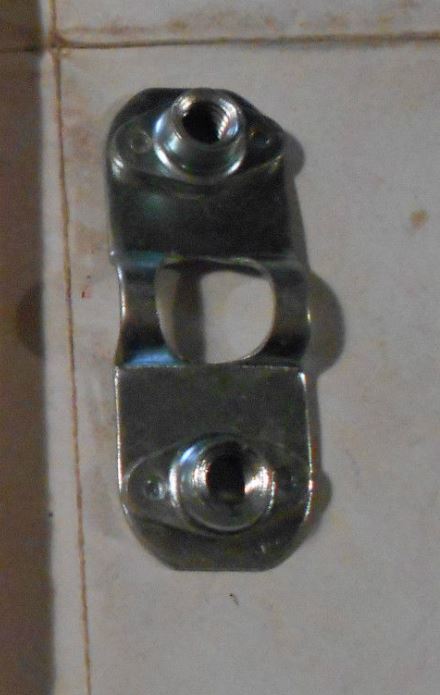

80109-340-000 number plate/rear light bracket nut plate

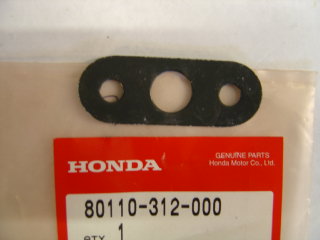

80110-312-000 rear number plate washer plate

80111-329-010 rear mudguard bracket

80112-329-010 rear mudguard bracket rubber mount

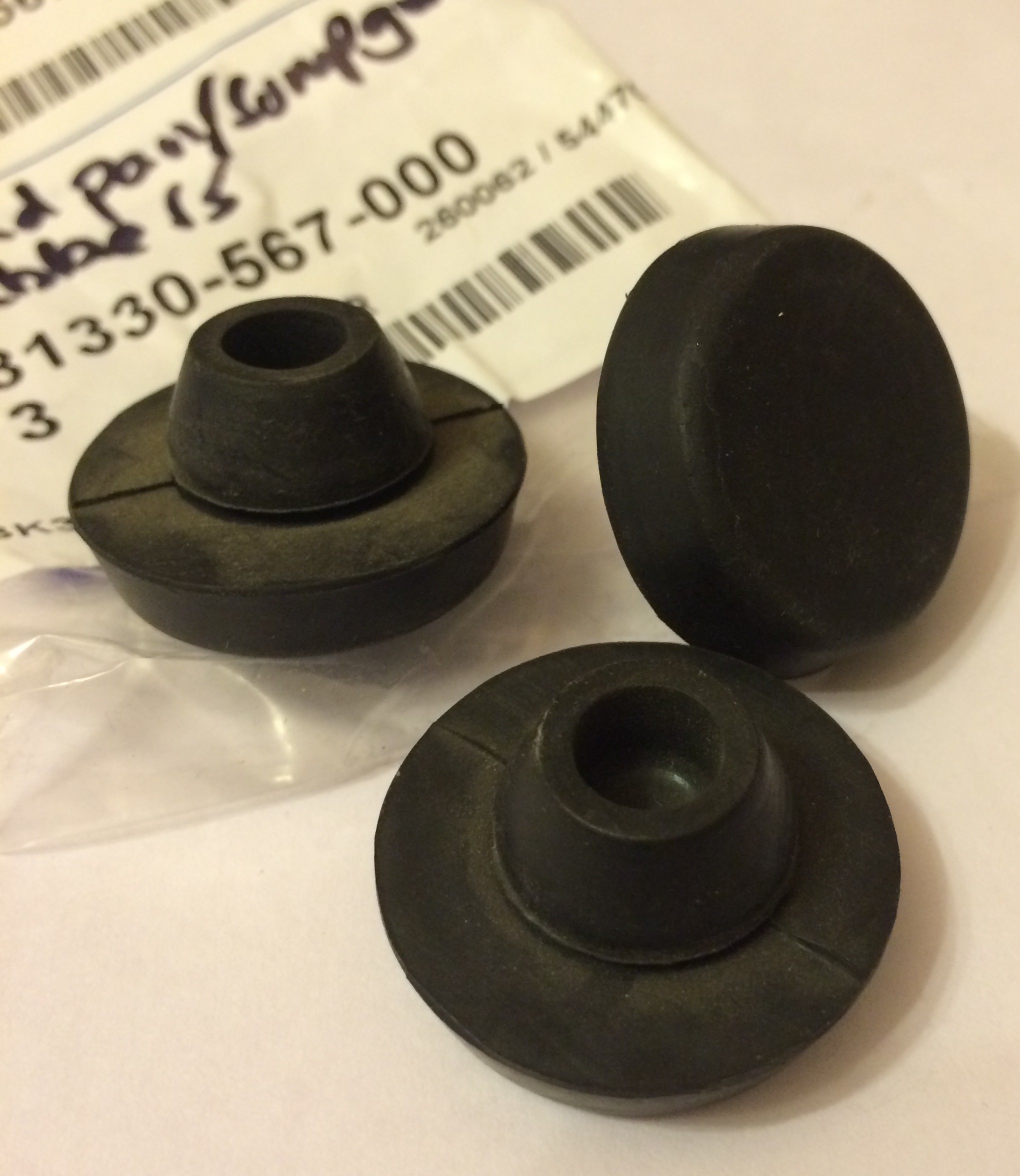

81330-567-000 sump guard rubber

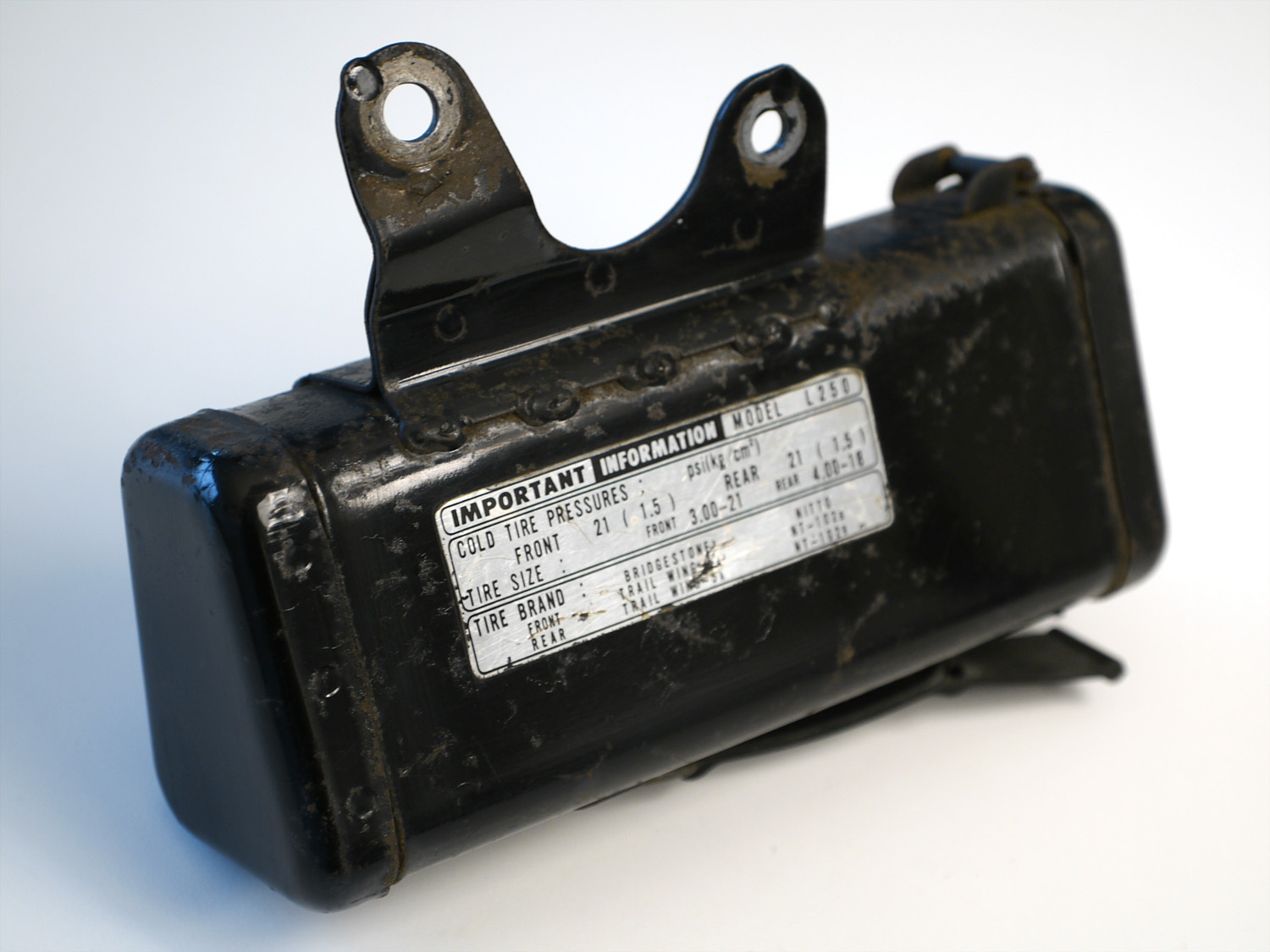

83500-385-000 tool box, used, complete

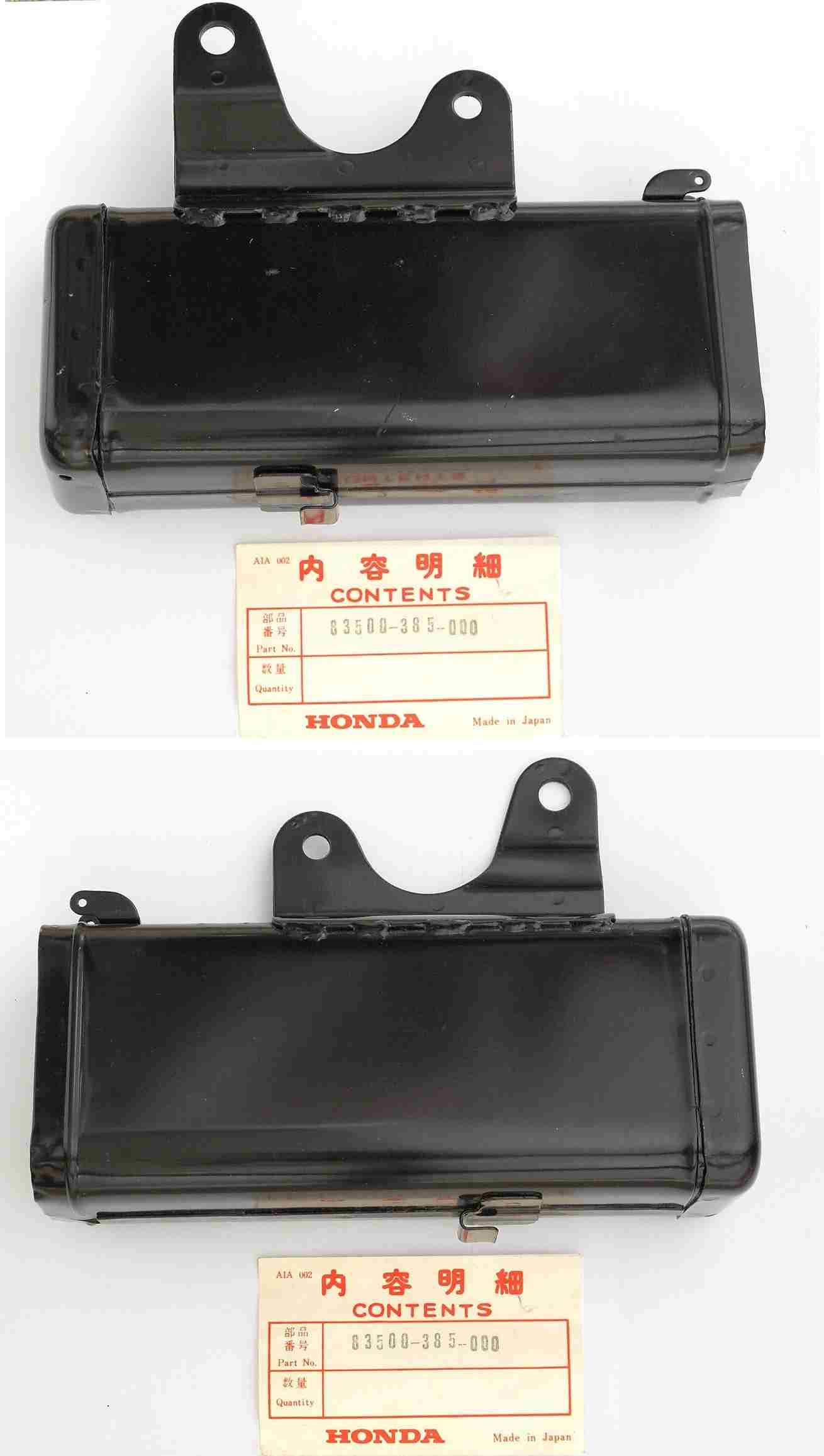

83500-385-000 tool box main body new (to complete needs 2mm split pin 94201-20350, lid 83541-385-000, rubber strap 83606-356-000, and tyre sticker 87505-386-670)

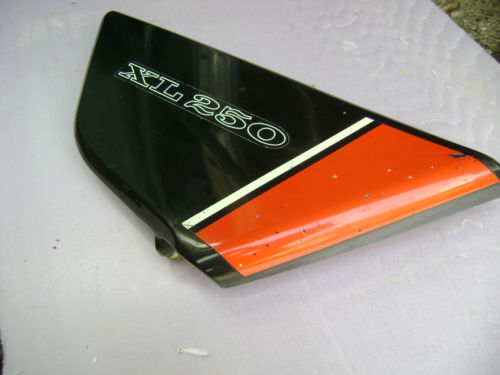

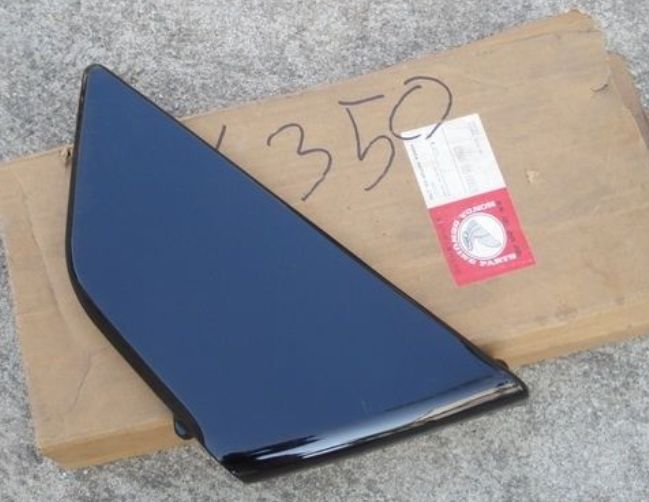

83540-385-000za side cover bare as supplied by Honda, then you fit the decals

83540-385-000za side cover, right, complete with 87123-386-670

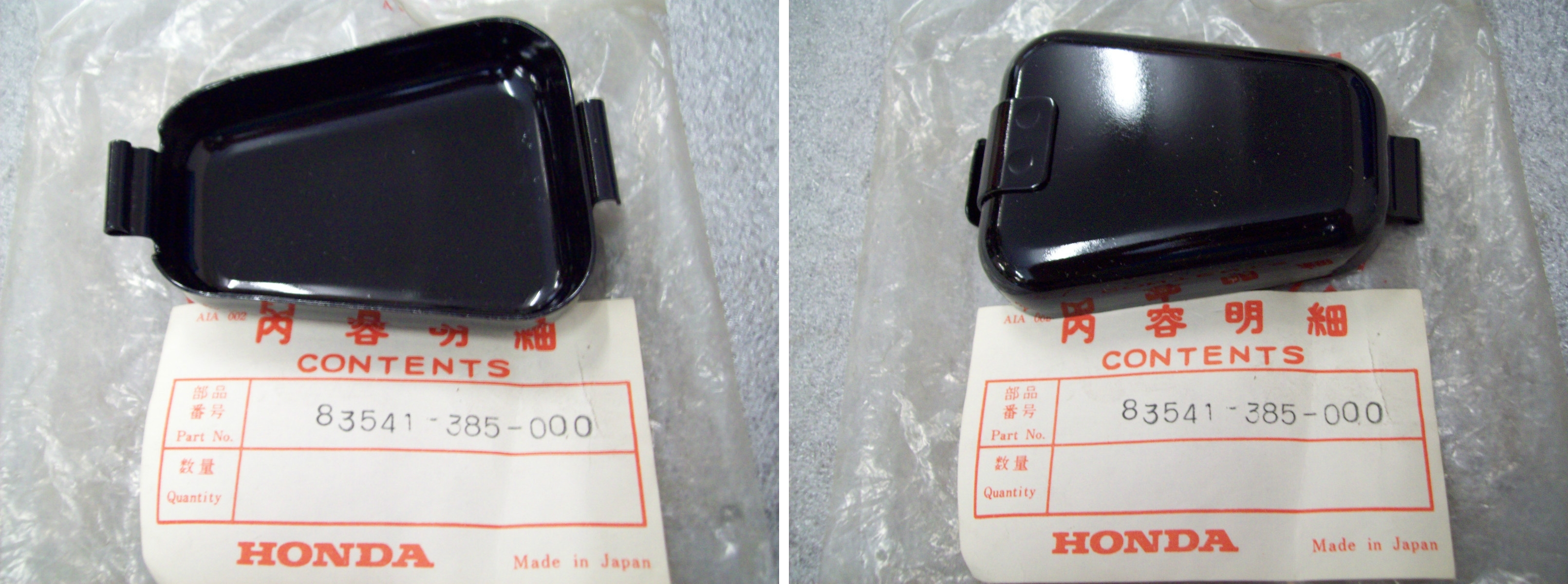

83541-385-000 tool box lid

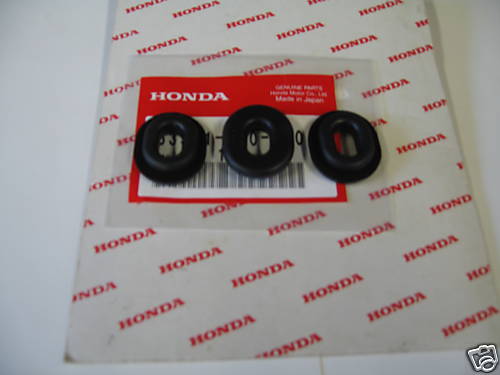

83551-300-000 side panel rubber oval mount

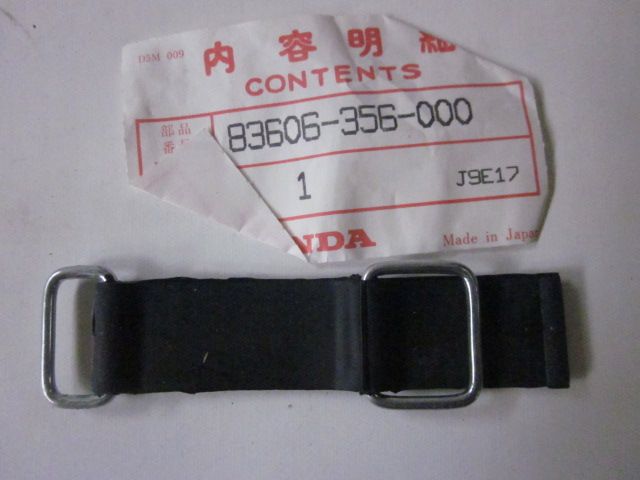

83606-356-000 tool box strap

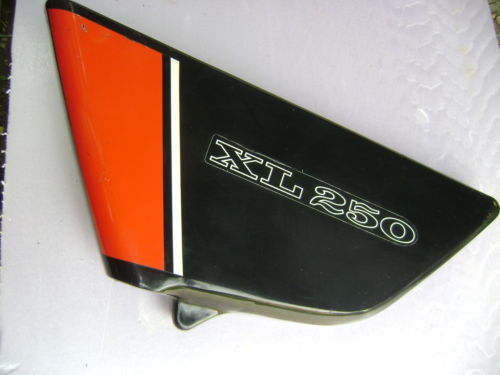

83640-385-000za left side cover, left, complete with 87123-386-670

84701-340-670 rear light bracket US

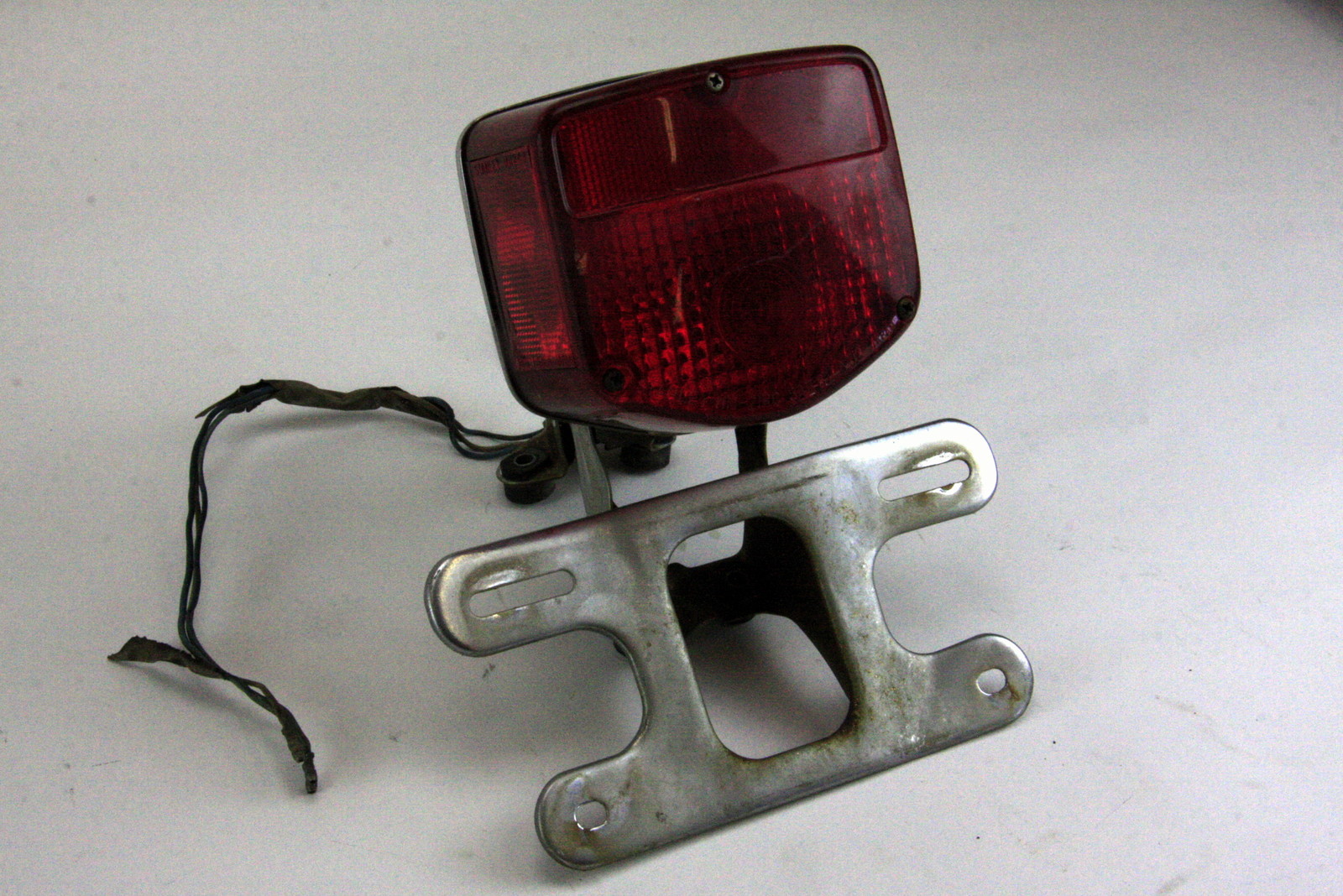

84701-340-670 rear light bracket US complete with lamp

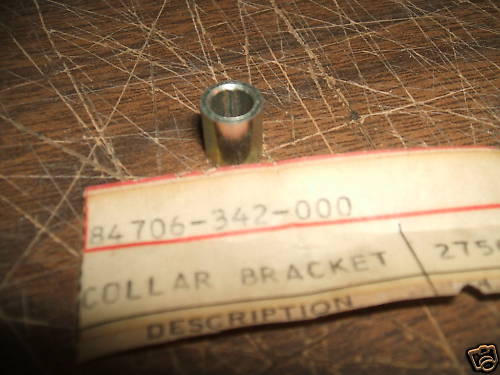

84706-342-000 collar, rear light bracket mount

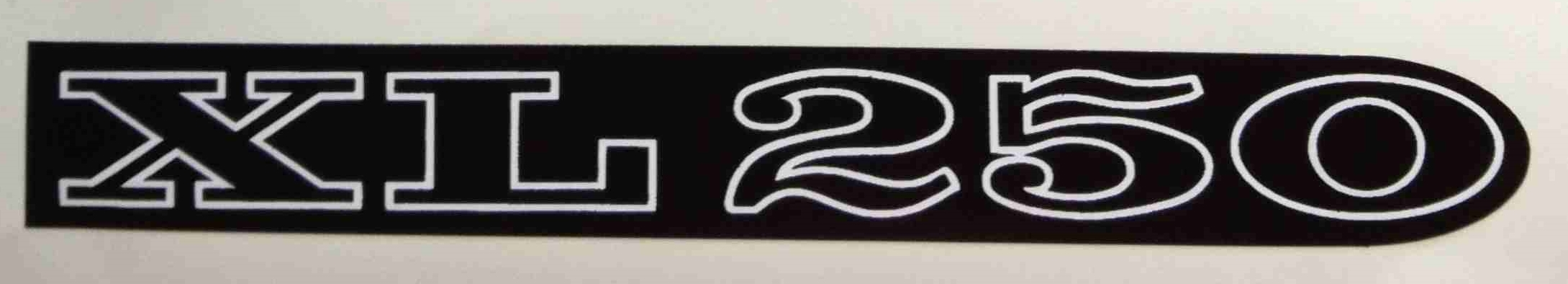

87123-386-000 side panel decal

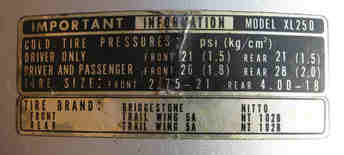

87505-386-000 warning label

87506-340-670 and 17220-385-000 air box lid and label

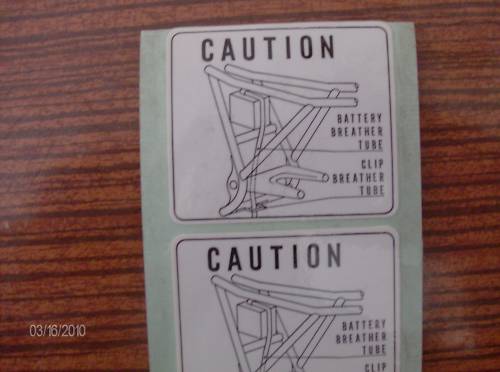

87506-385-670 battery breather warning label

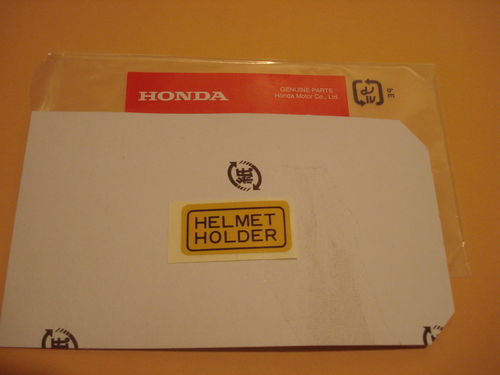

87511-323-670 helmet holder label

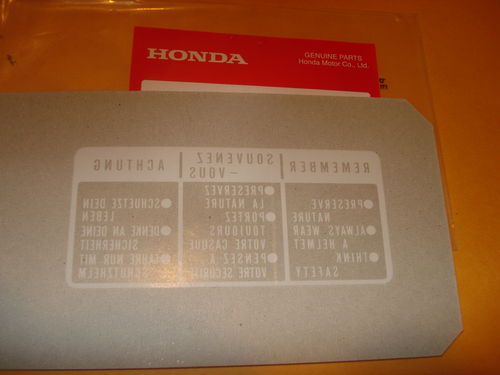

87560-375-680A tank safety label

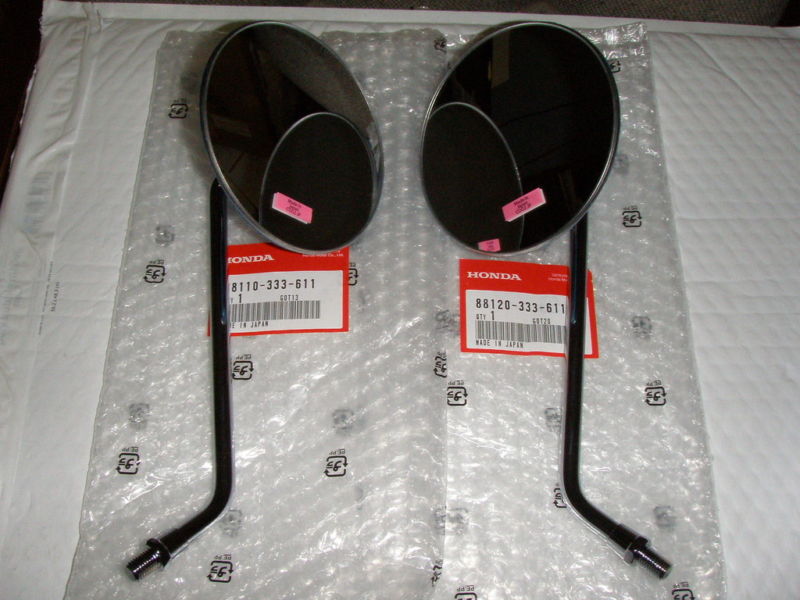

88110-323-610 and 88120-323-610 mirrors

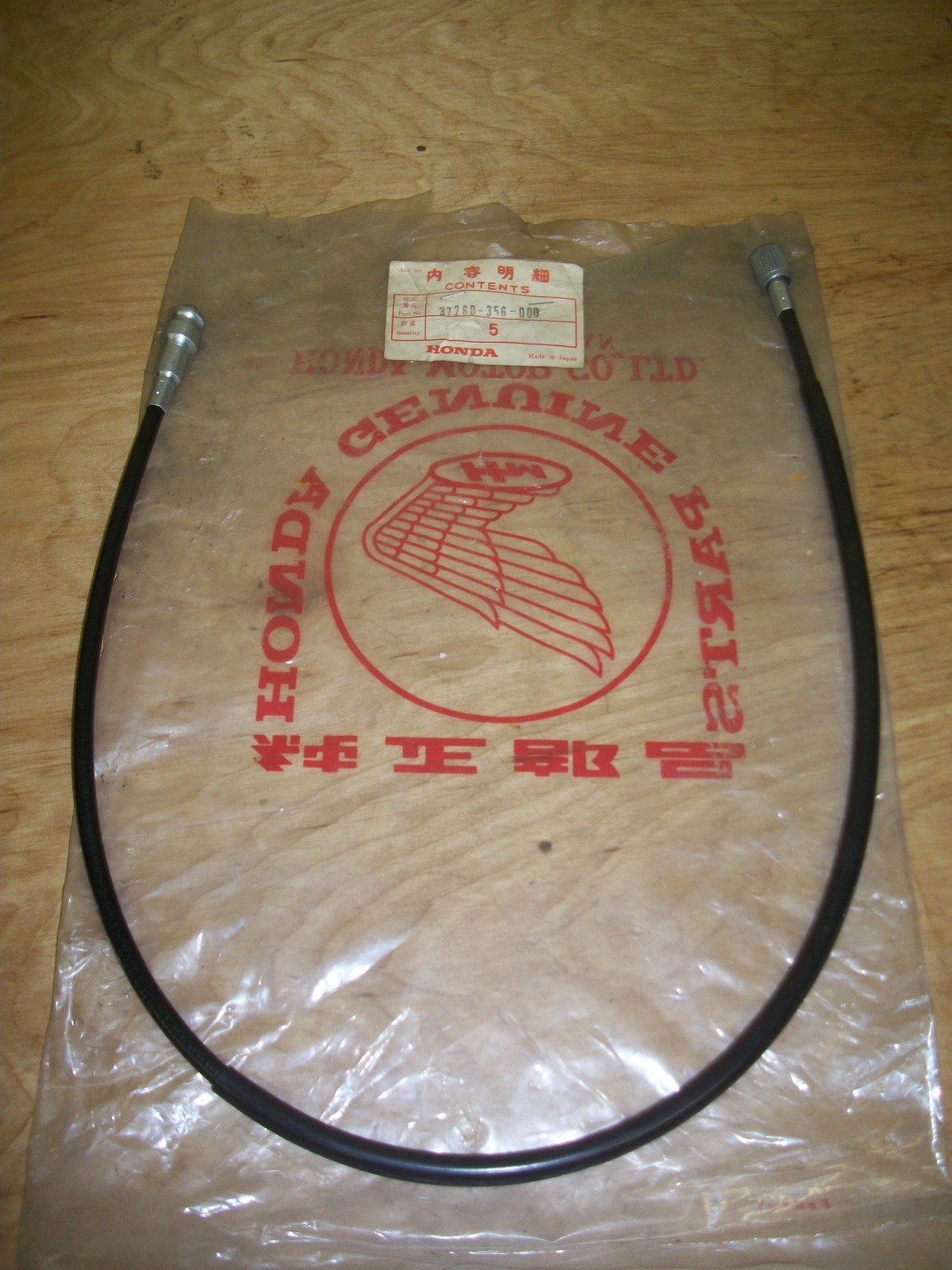

88430-356-000 speedo cable

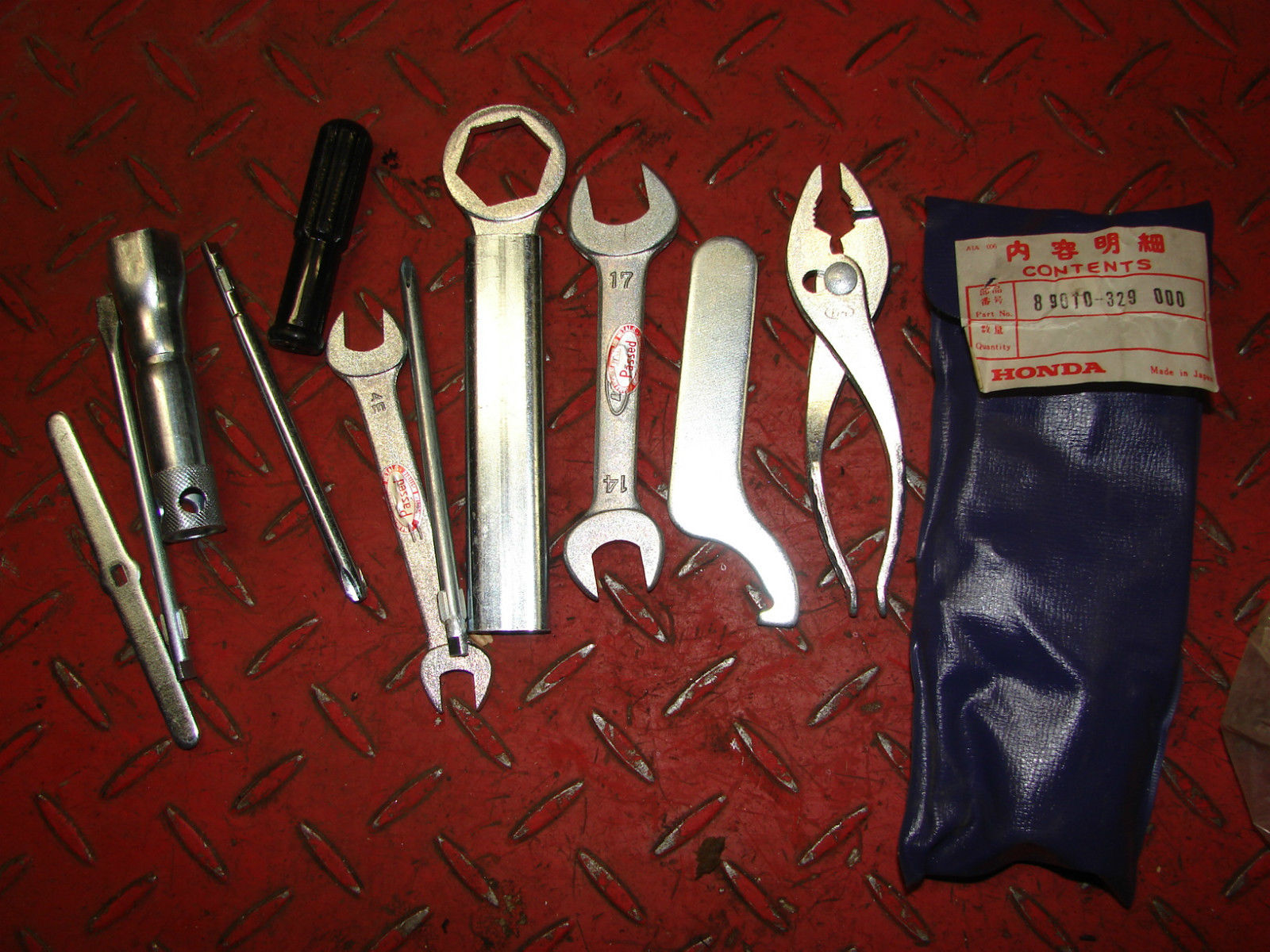

89010-329-000 early toolkit such a nice photo I have put it here - the toolkit is now in my garage!

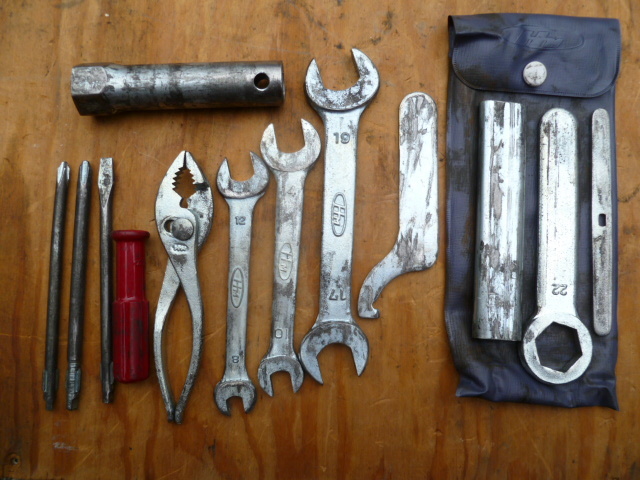

89010-385-000 xl350 tools (used)

89216-376-000 plug spanner

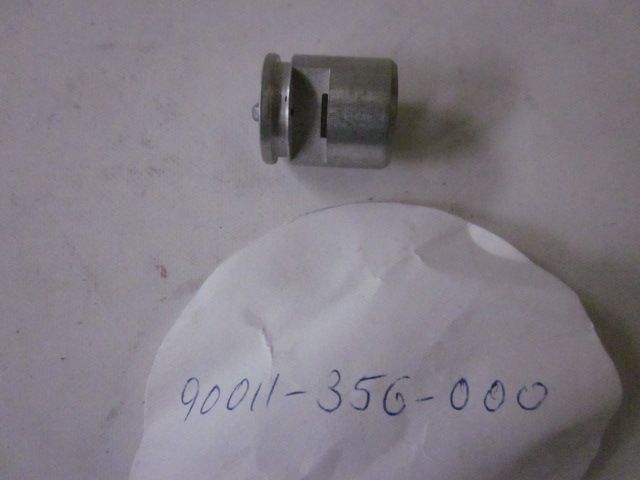

90011-356-000 rocker shaft cap

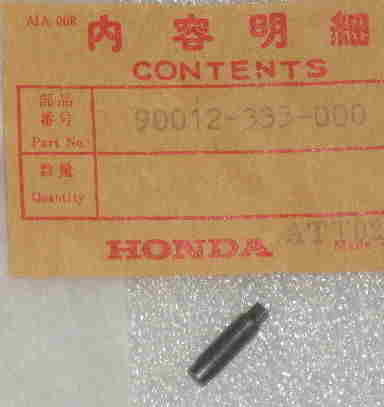

90012-333-000 tappet adjuster

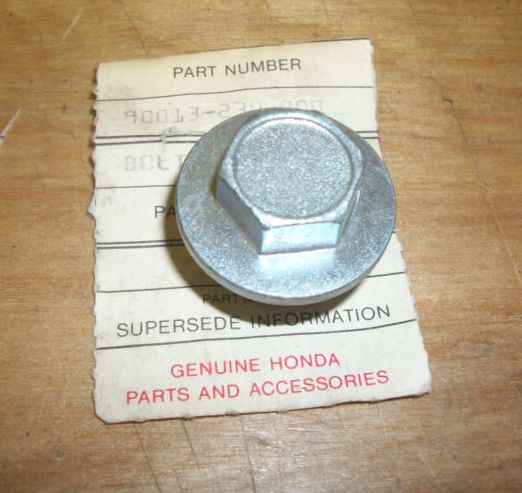

90013-230-000 oil drain screw

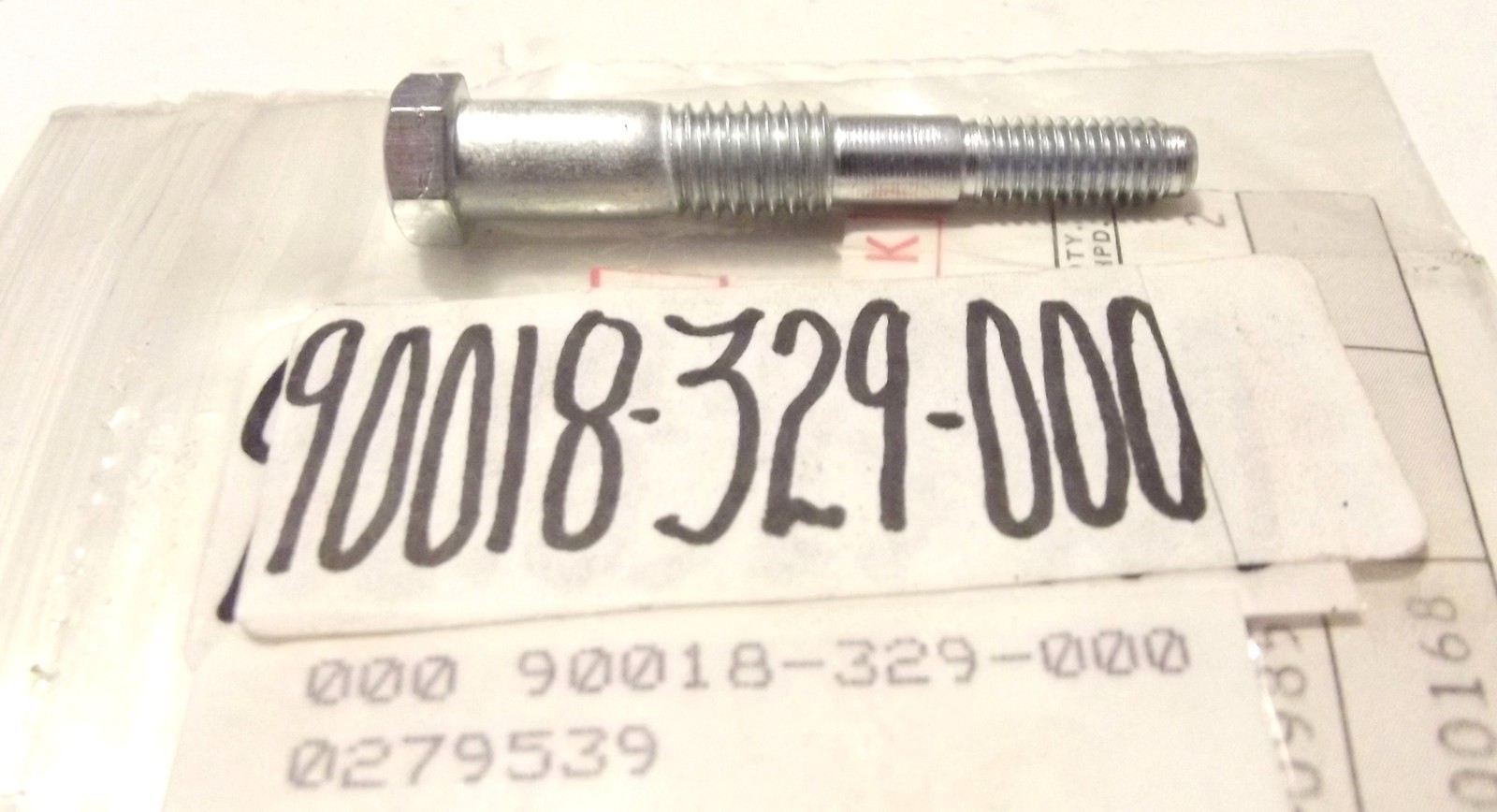

90018-329-000 bolt

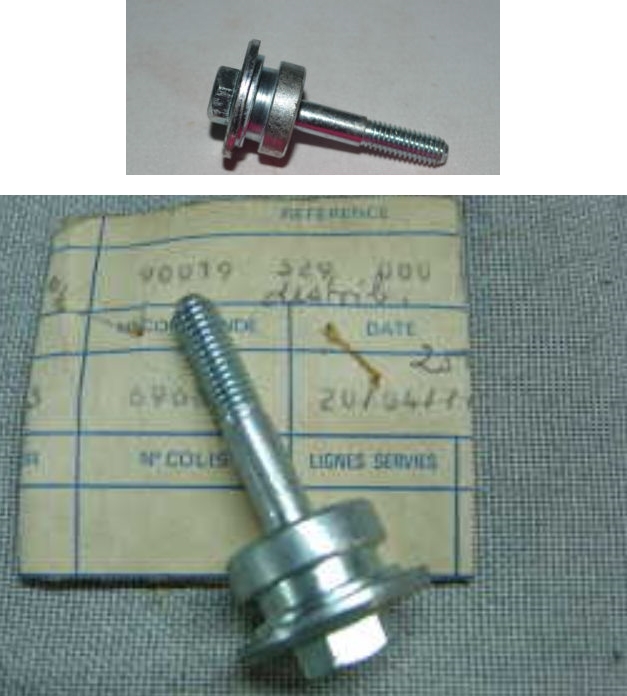

90019-329-000 cam bolt

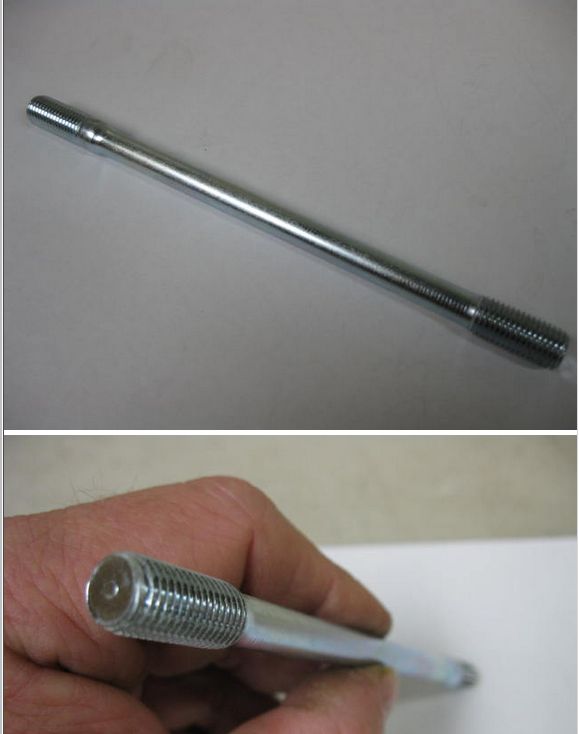

90031-329-000 cylinder head stud

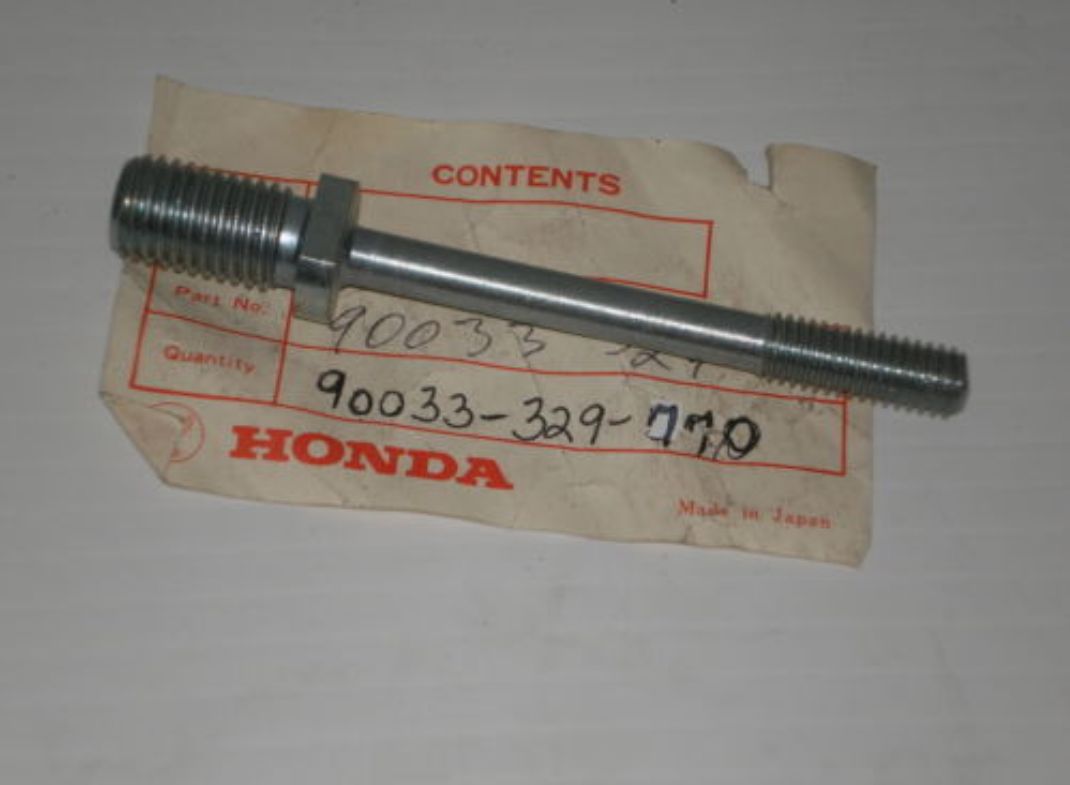

90033-329-770 special cylinder head bolt

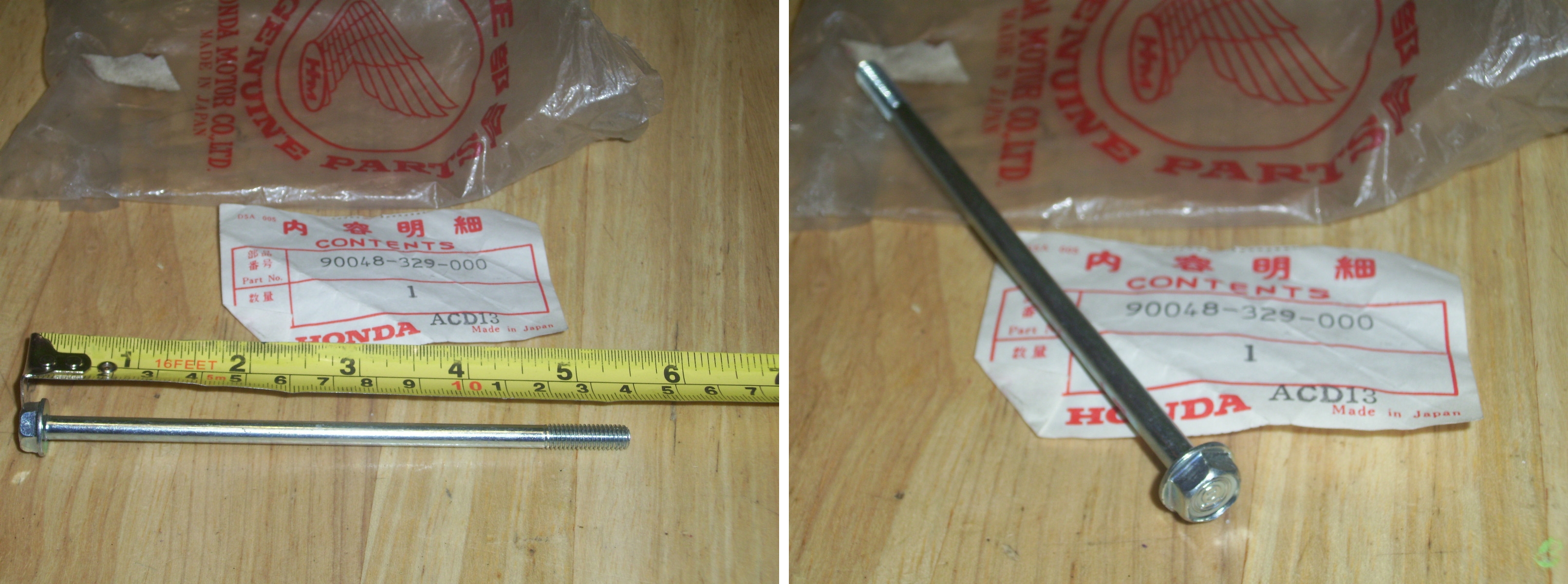

90048-329-000 bolt

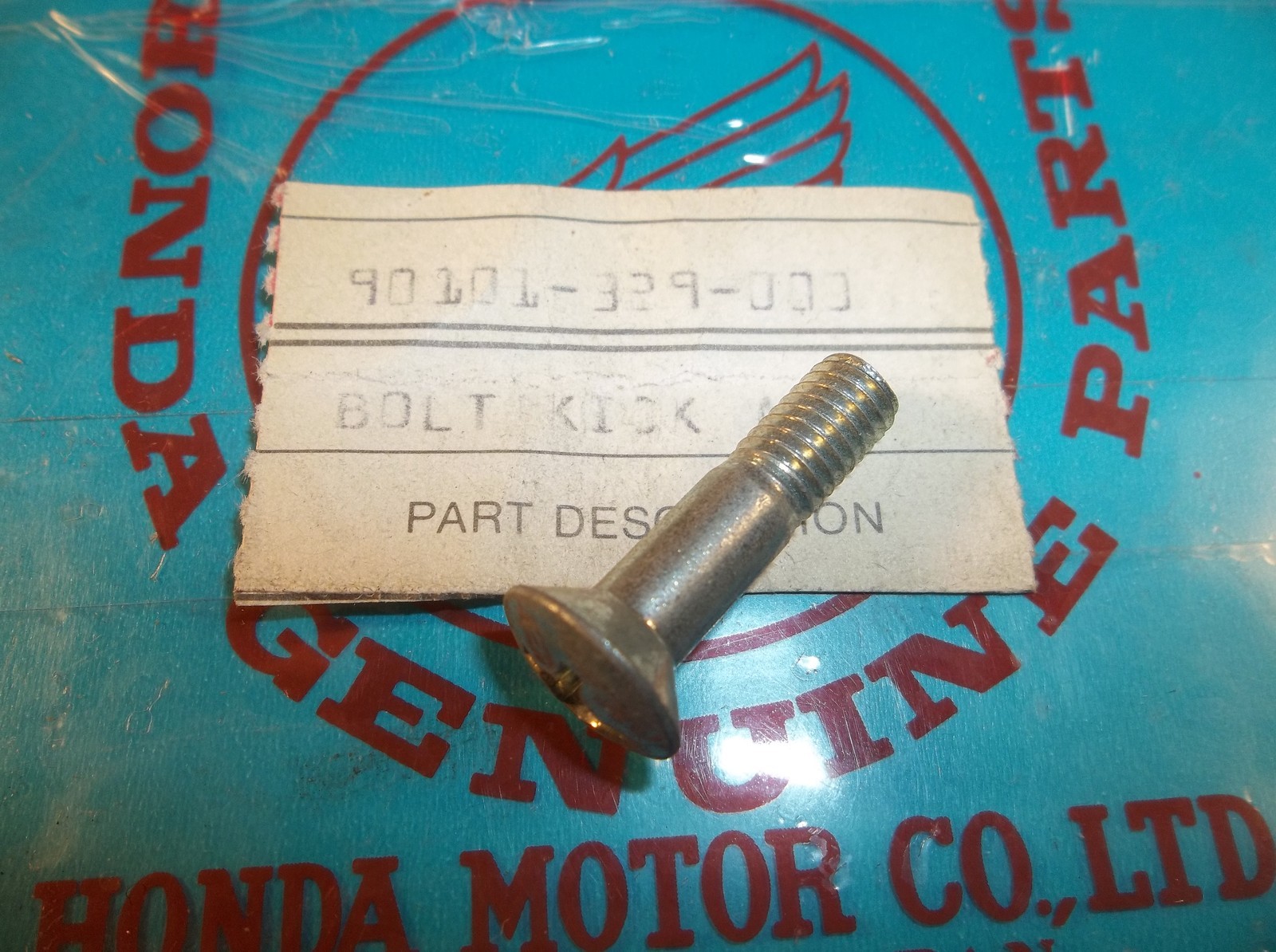

90101-369-000 kick start screw

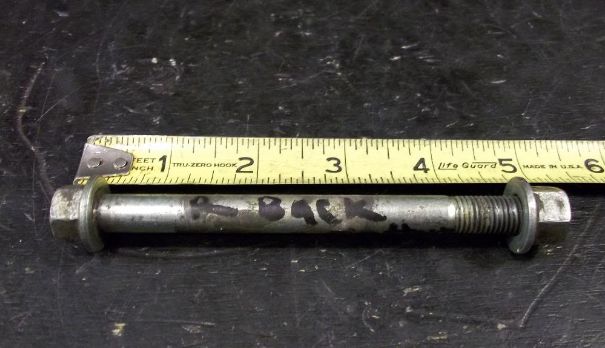

90103-286-000 rear engine hanger bolt

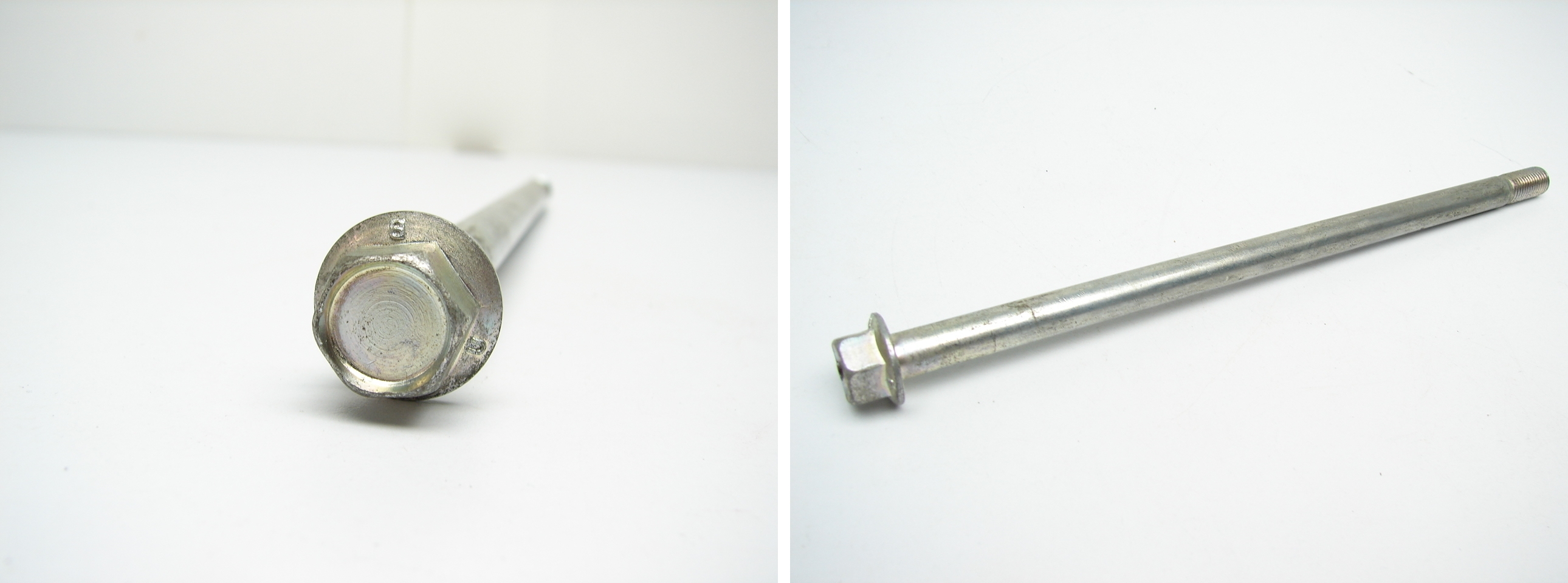

90104-376-000 lower engine mount bolt M10

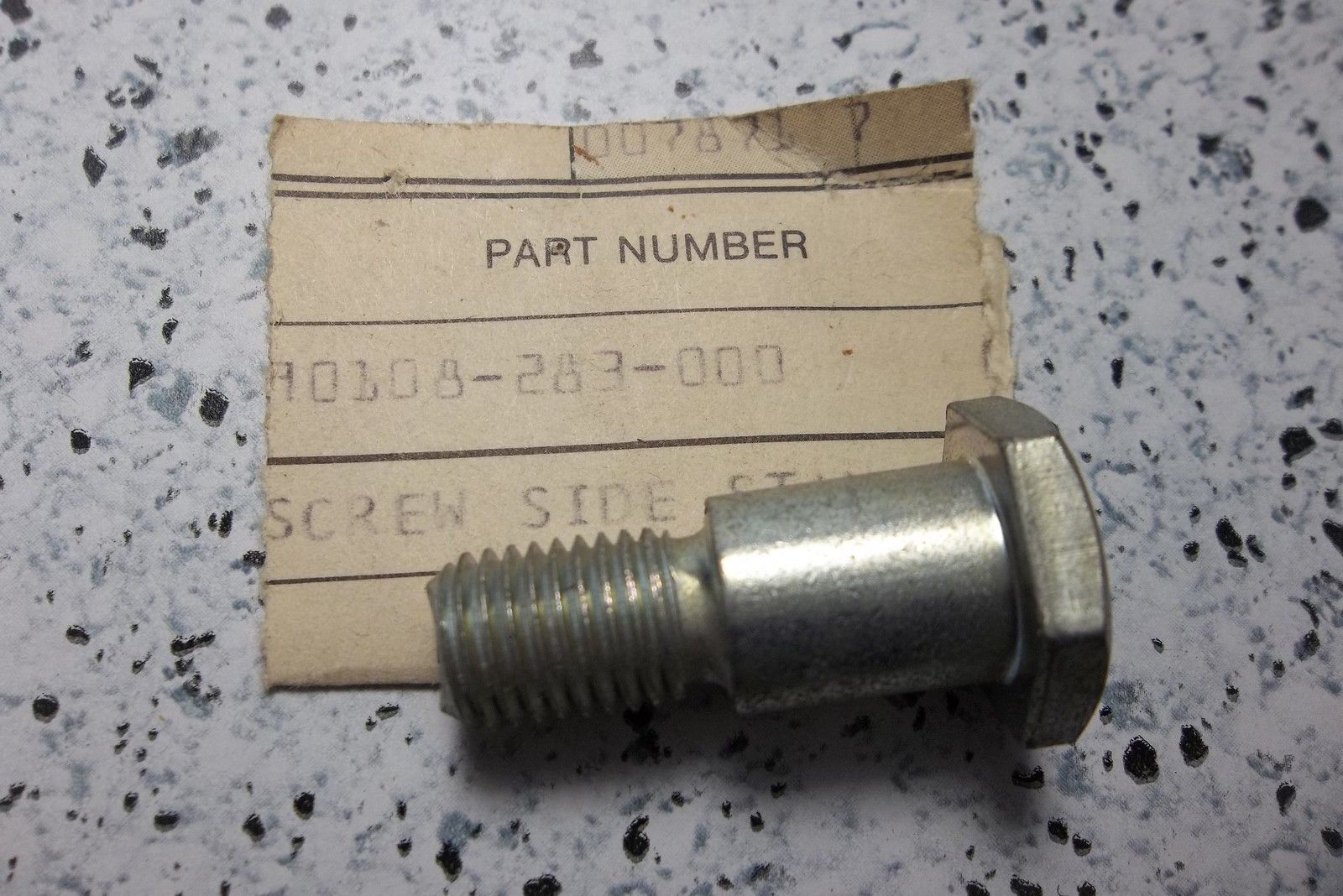

90108-283-000 screw side stand pivot

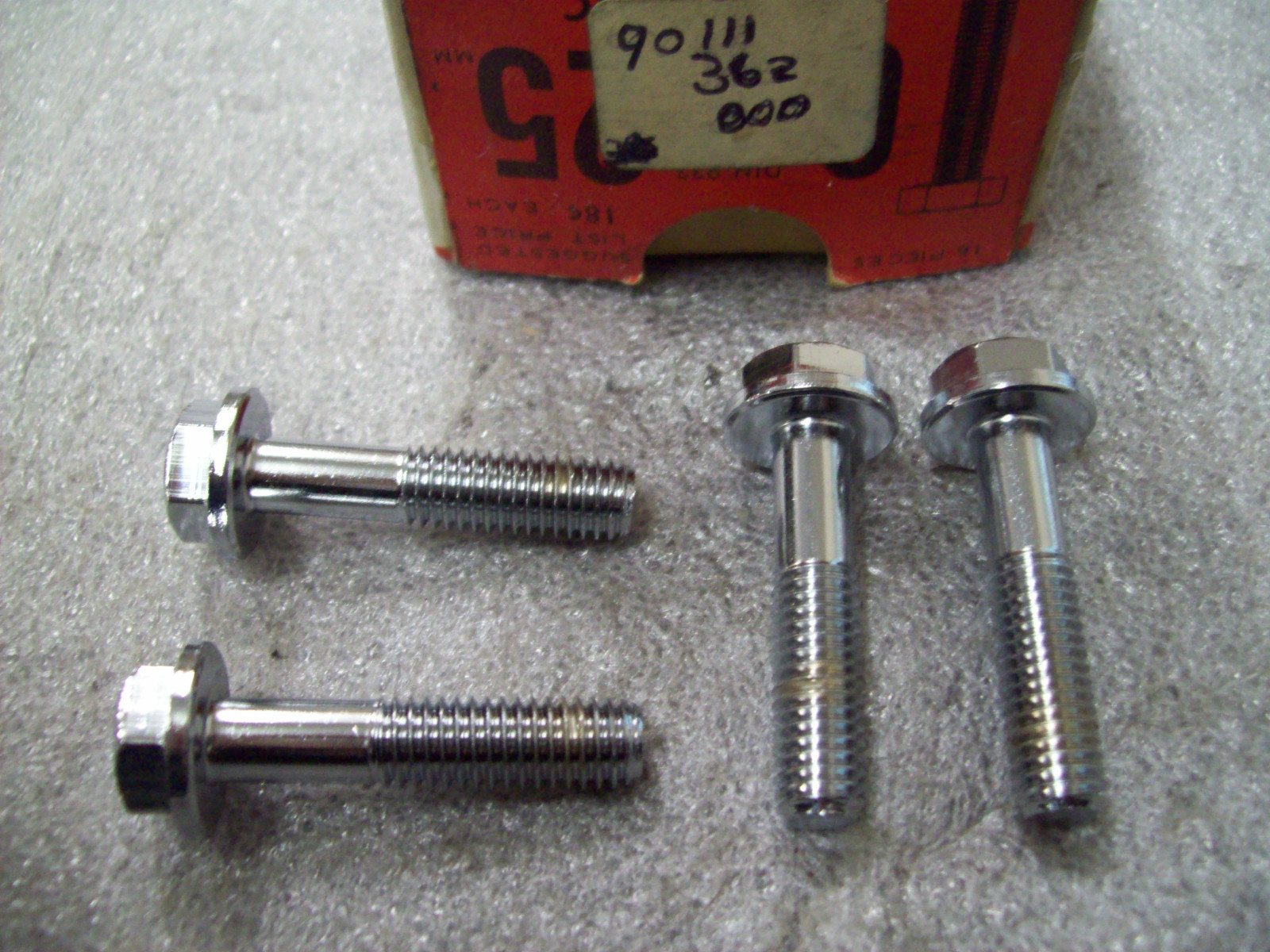

90111-362-000 handlebar clamp bolts

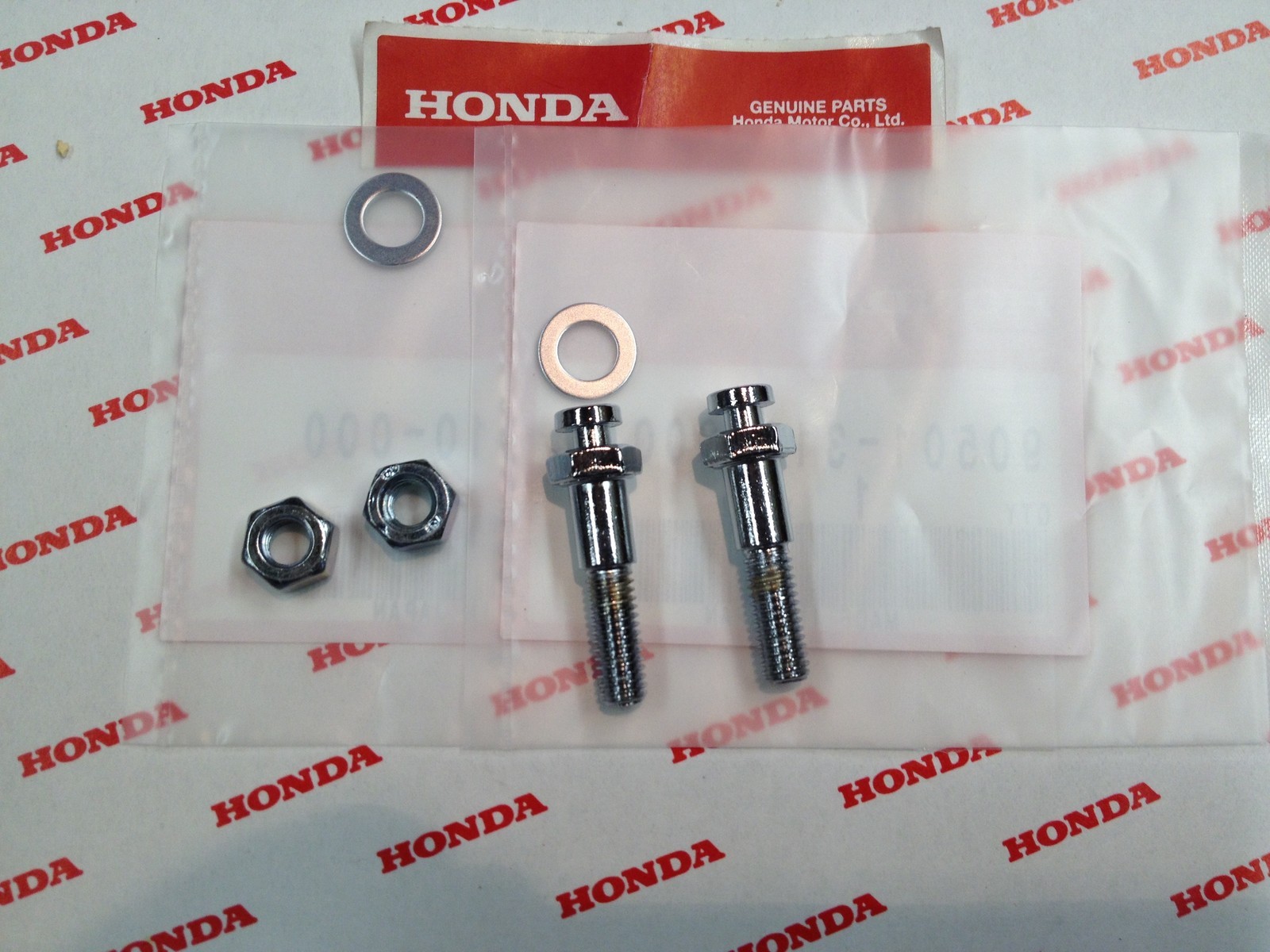

90114-329-000 handlebar lever bolt

90116-391-670 and 18371-385-000 exhaust clamp and M8 socket bolt

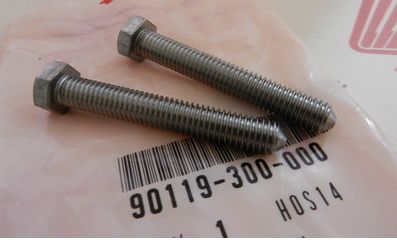

90119-300-000 chain adjuster bolts

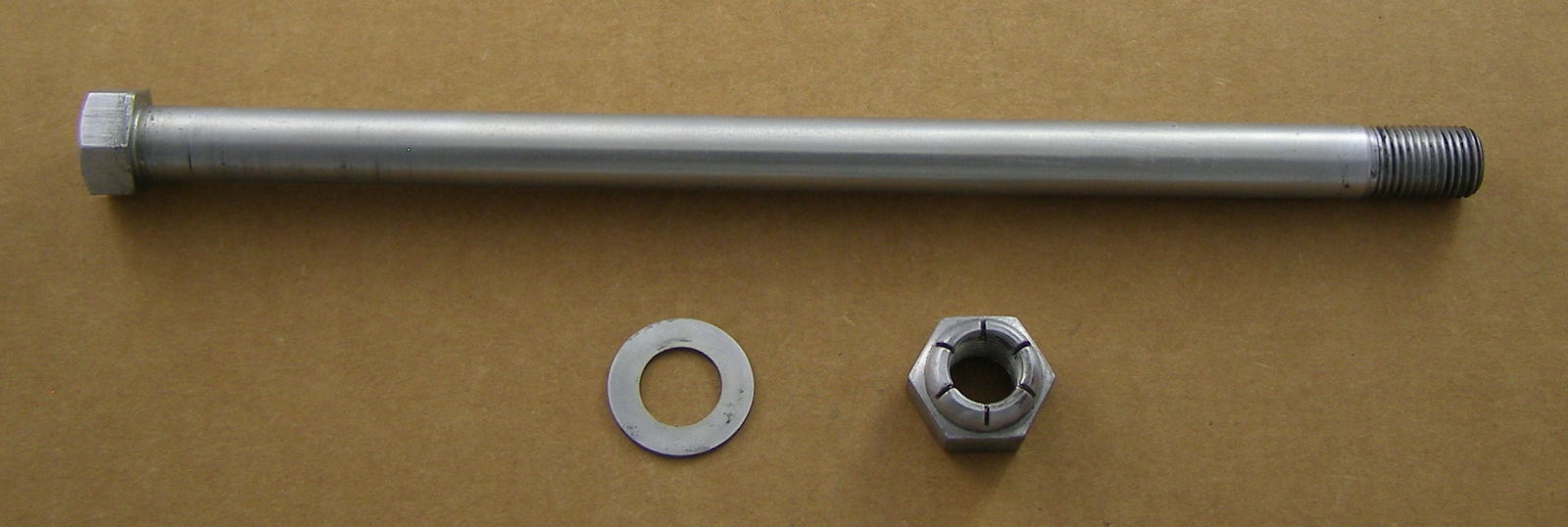

90121-356-000 swinging arm spindle (washer 90527-634-670 and nut 90354-268-000 also shown)

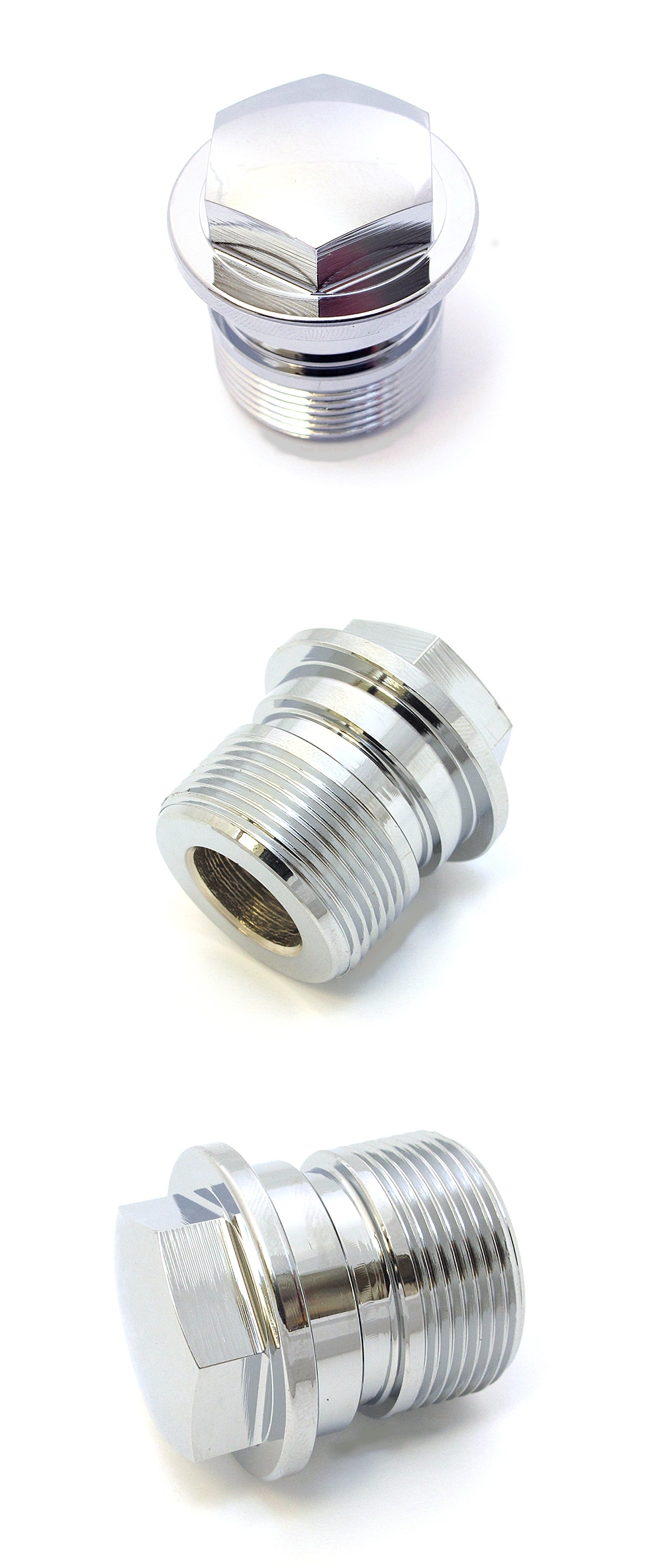

90123-300-000 fork top bolts

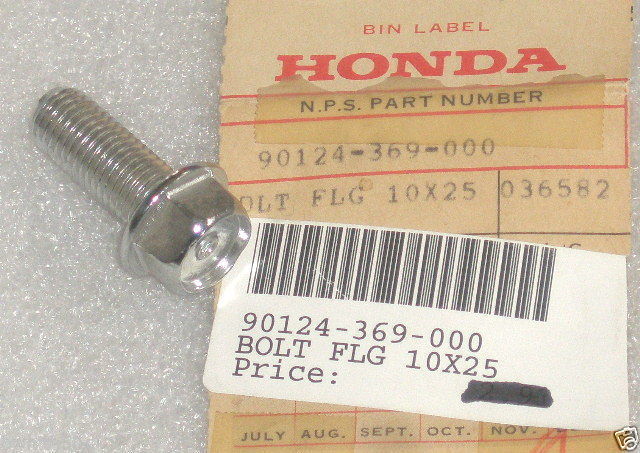

90124-369-000 bolt headlight mount

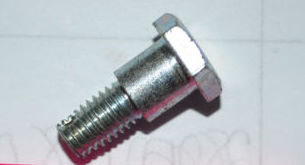

90133-028-010 brake stay bolt

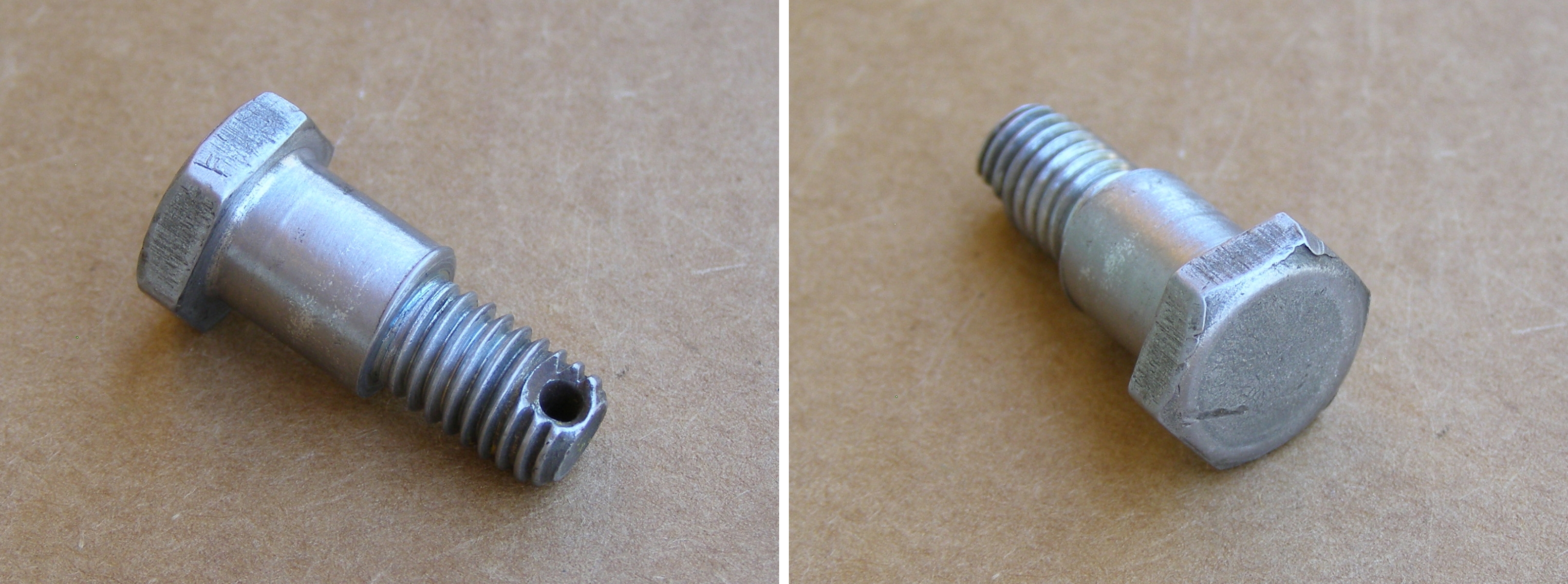

90133-107-000 brake stay bolt

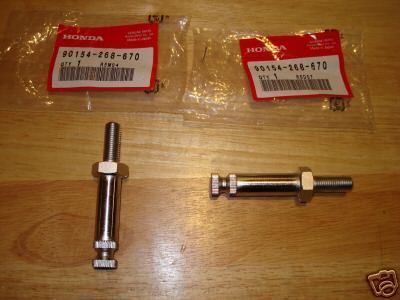

90154-268-670 indicator stalk

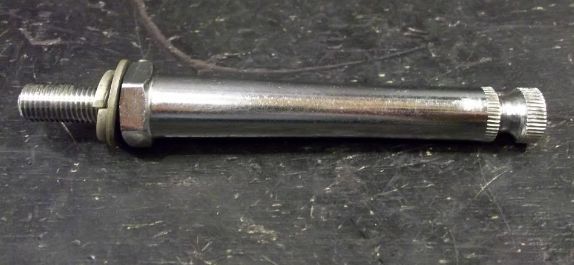

90154-455-670 front indicator stalk

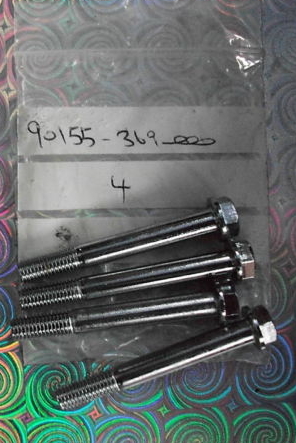

90155-369-000 yoke top bolts M7

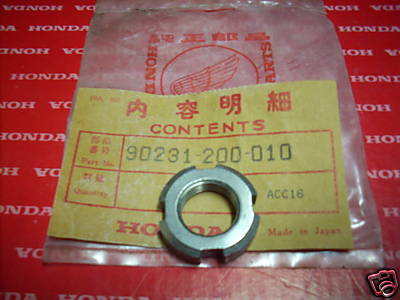

90231-200-010 headstock lock nut

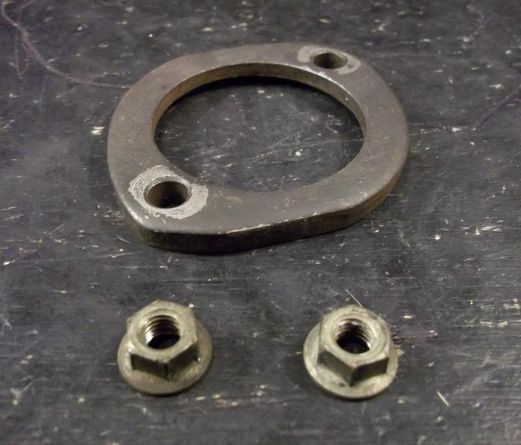

90236-300-000 with 18231-329-000 exhaust flange and nuts

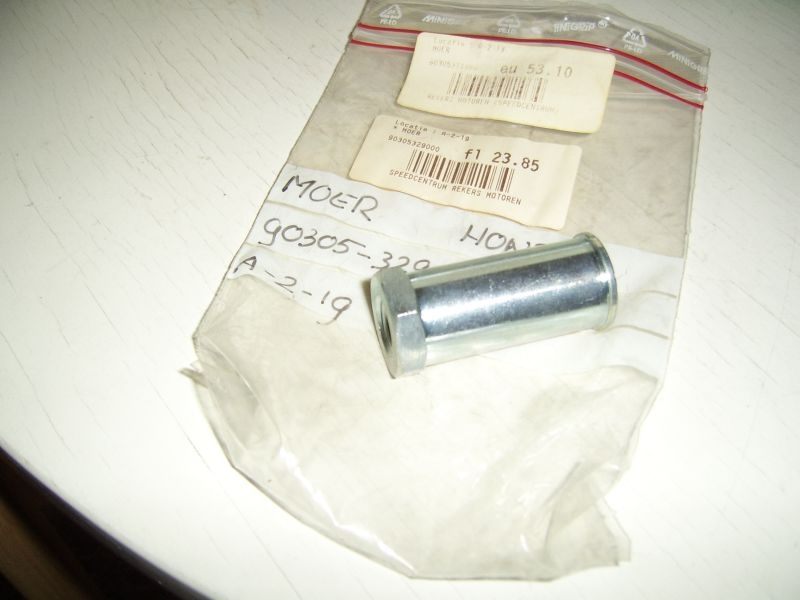

90305-329-000 front wheel nut

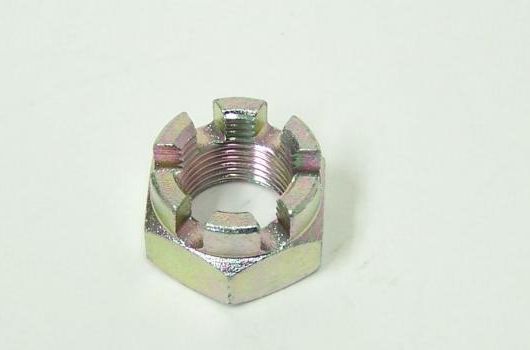

90306-329-770 rear wheel nut

90321-315-670 front lever cable adjuster slotted locking nut

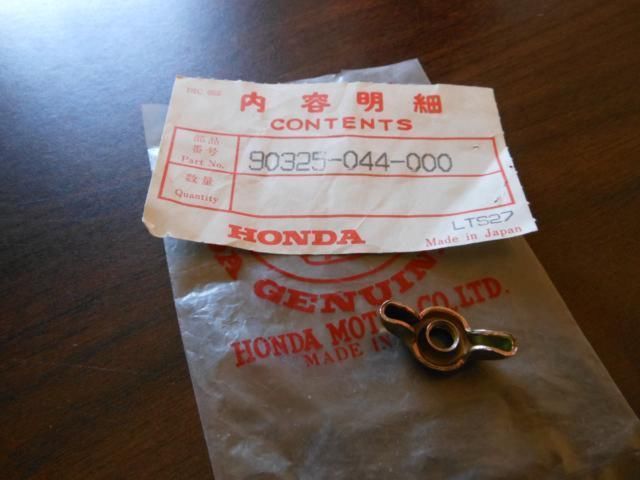

90325-044-000 wing nuts air filter cover

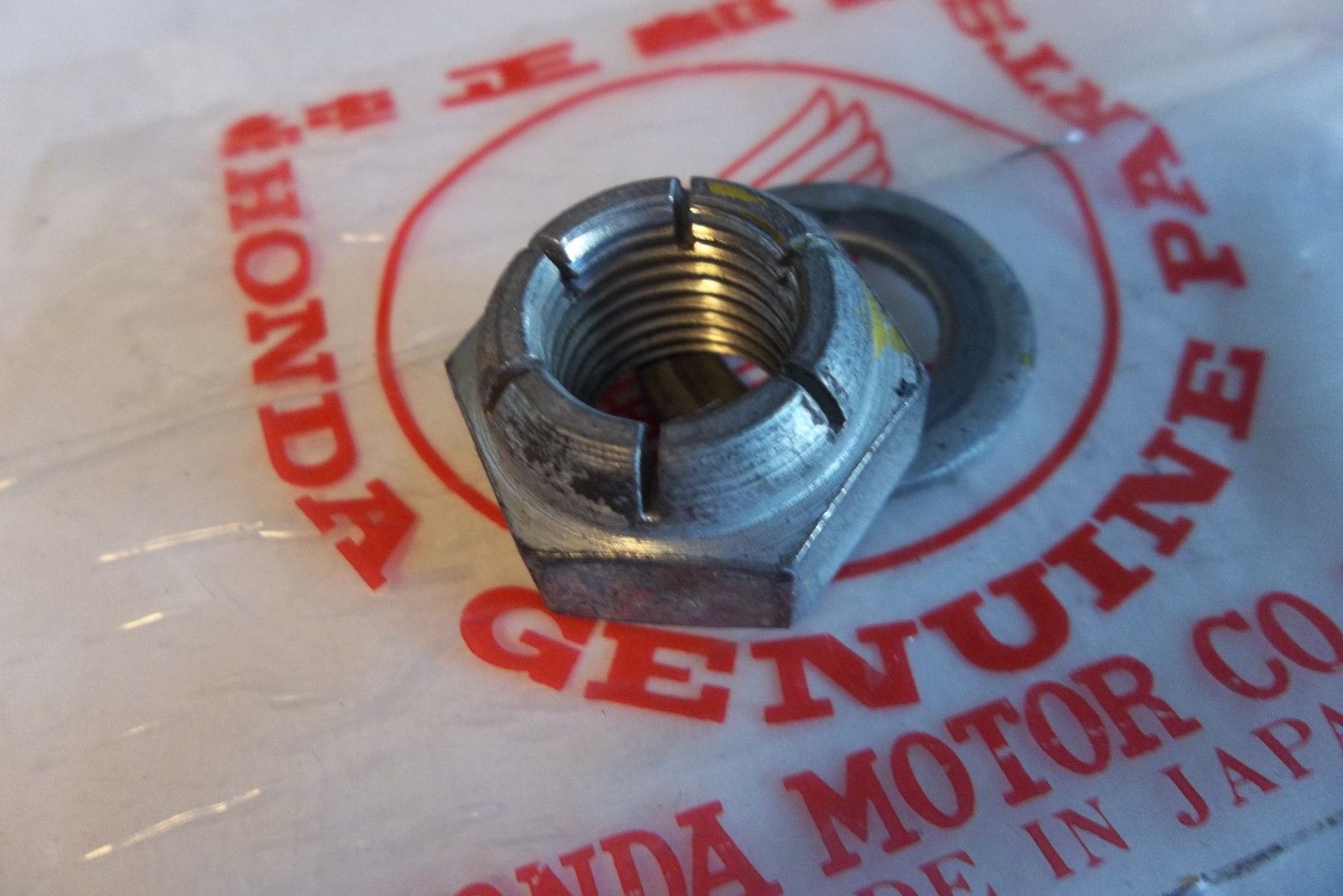

90354-268-000 swinging arm nut

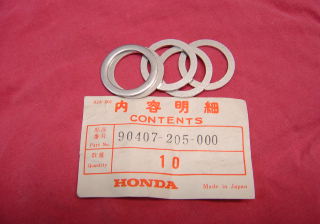

90407-205-000 oil drainplug gasket

90434-329-000 locking washer

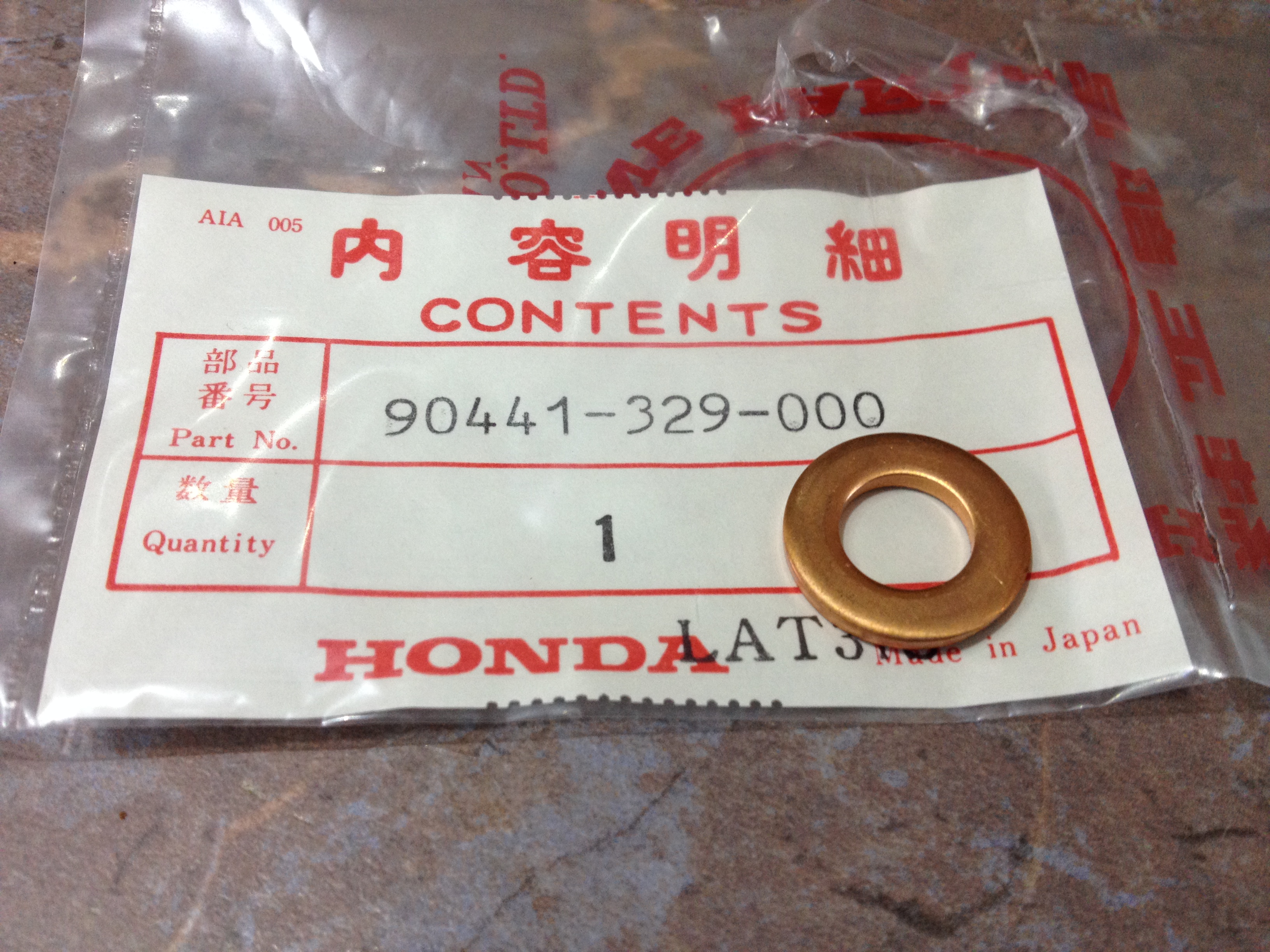

90441-329-000 copper washer, goes under domed cylinder head nuts

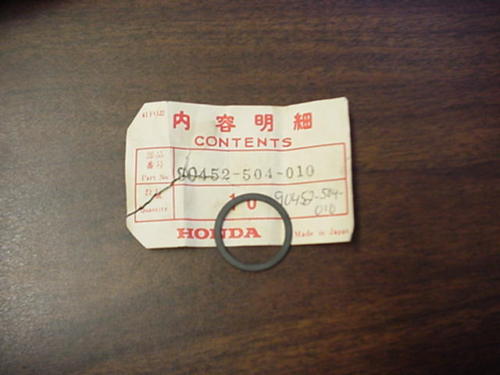

90452-504-010 washer

90503-222-000 steering stem washer

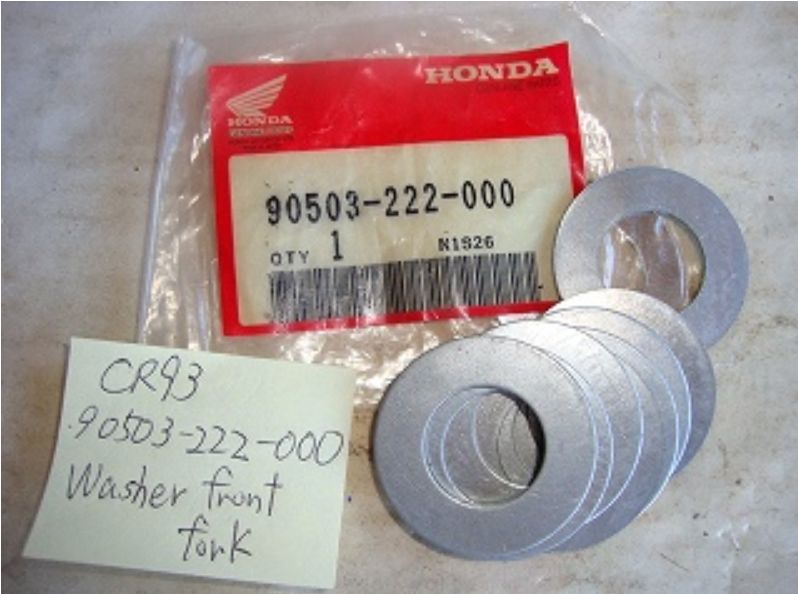

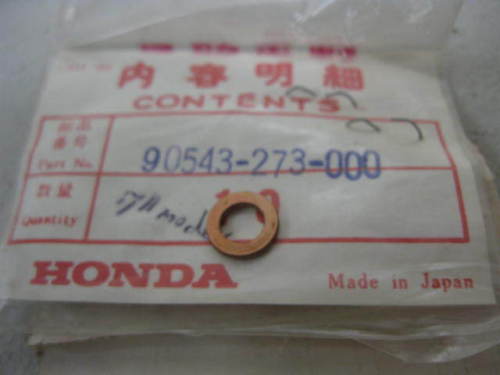

90543-272-000 washer

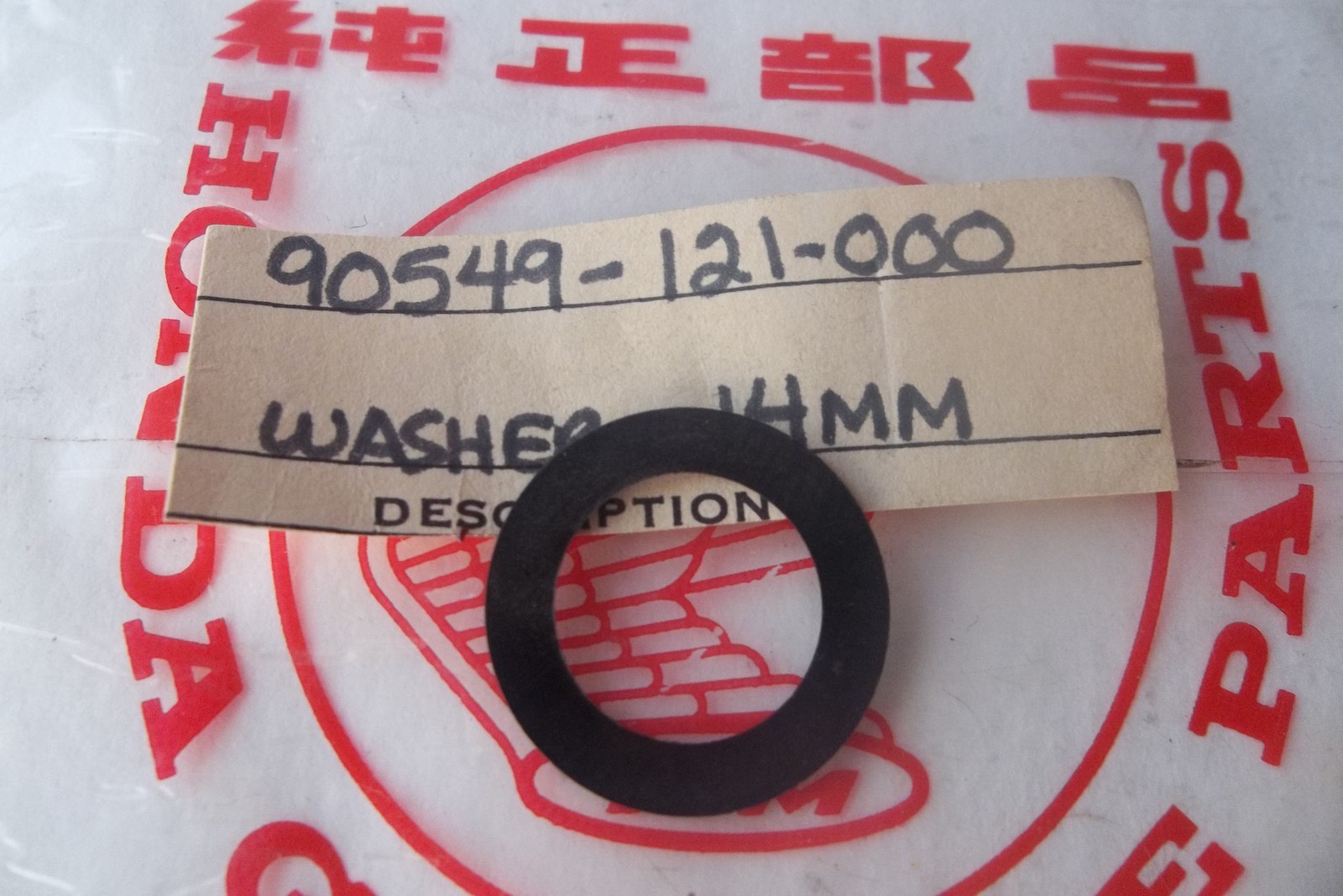

90549-121-000 washer

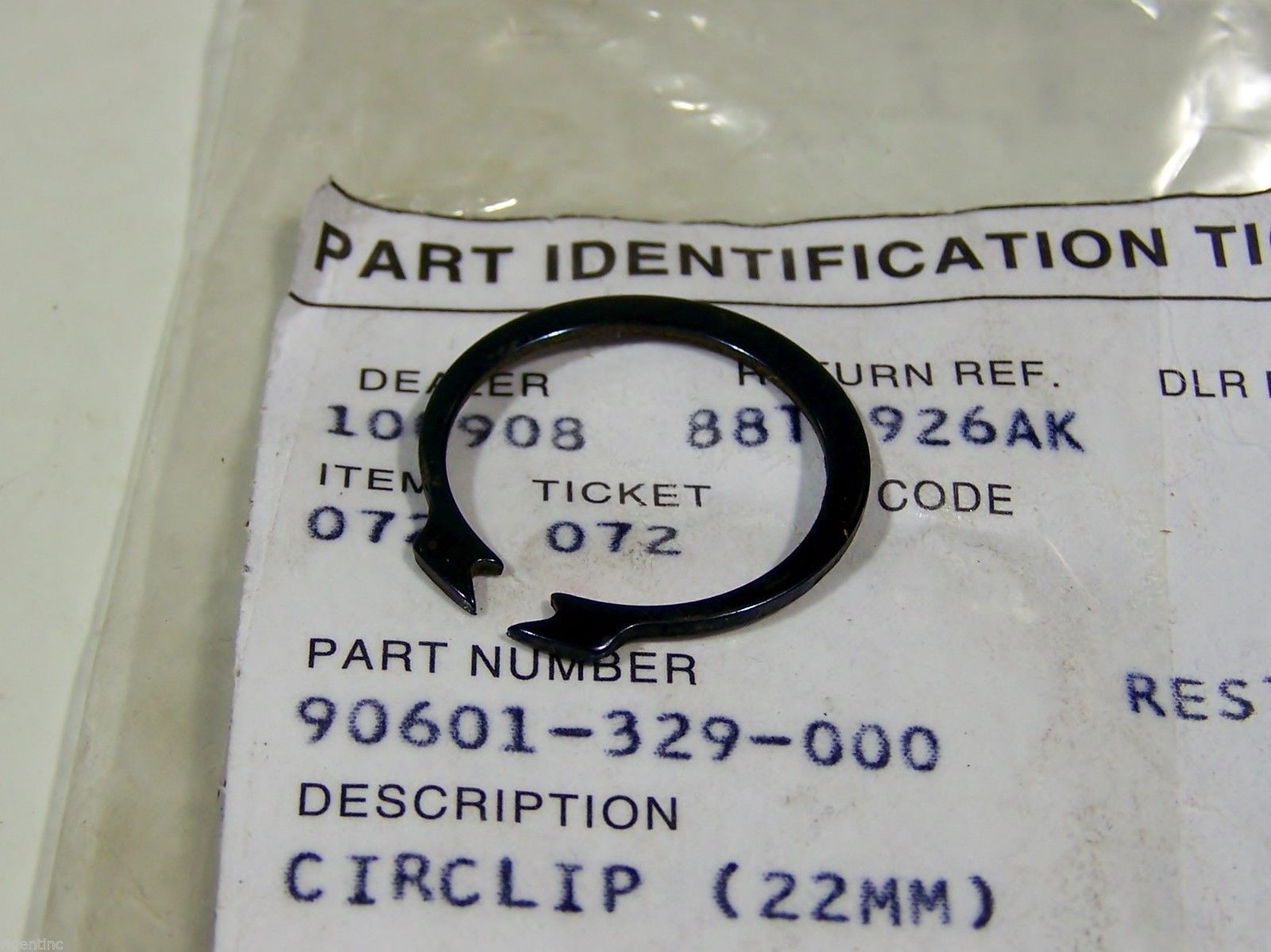

90601-329-000 kick start circlip 22mm

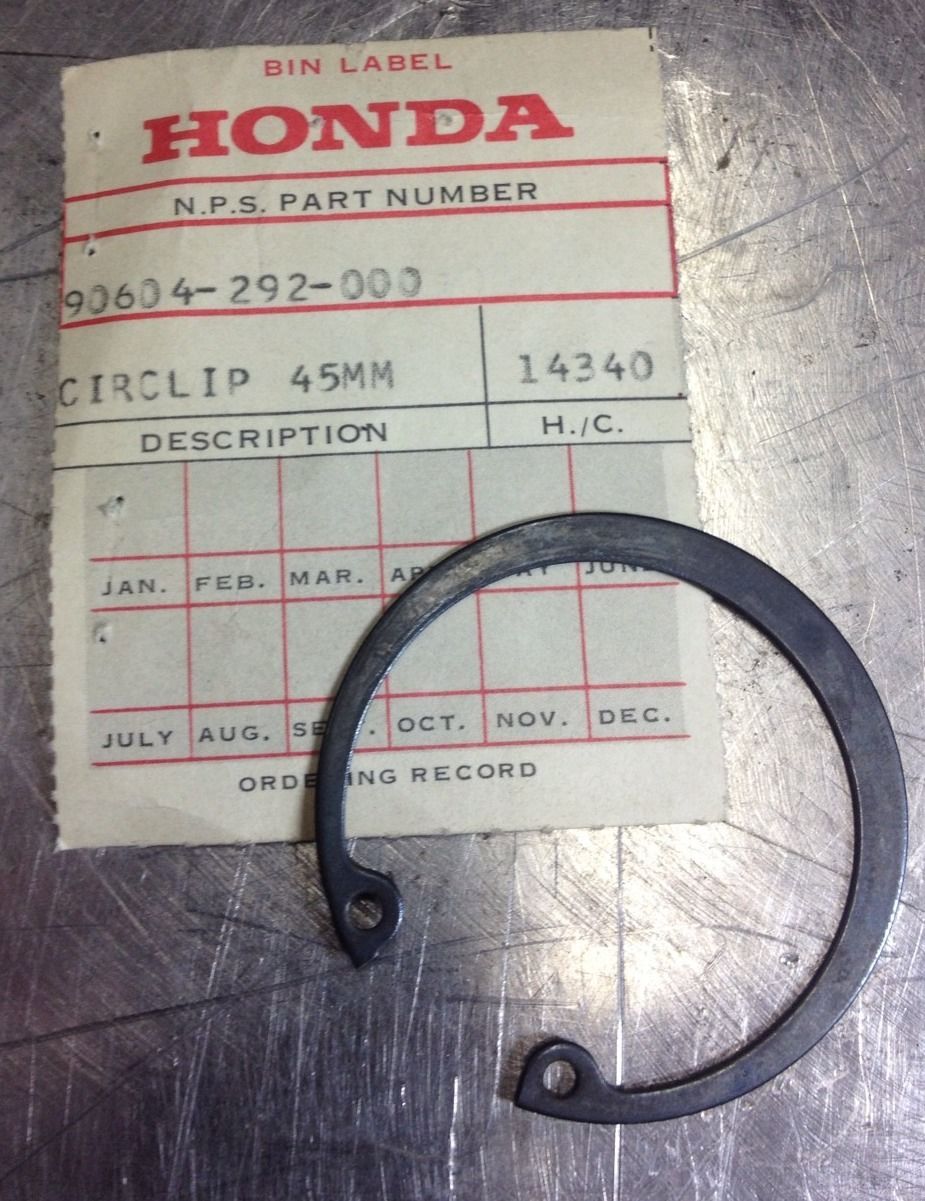

90604-292-000 oil pump circlip

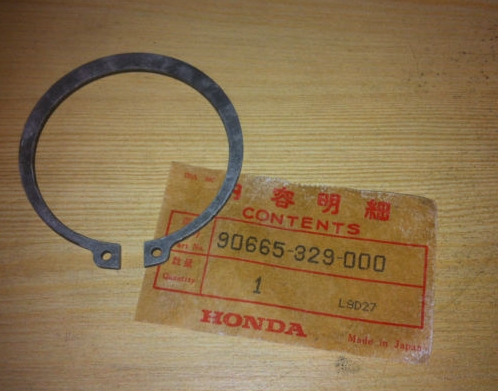

90665-329-000 circlip rear wheel

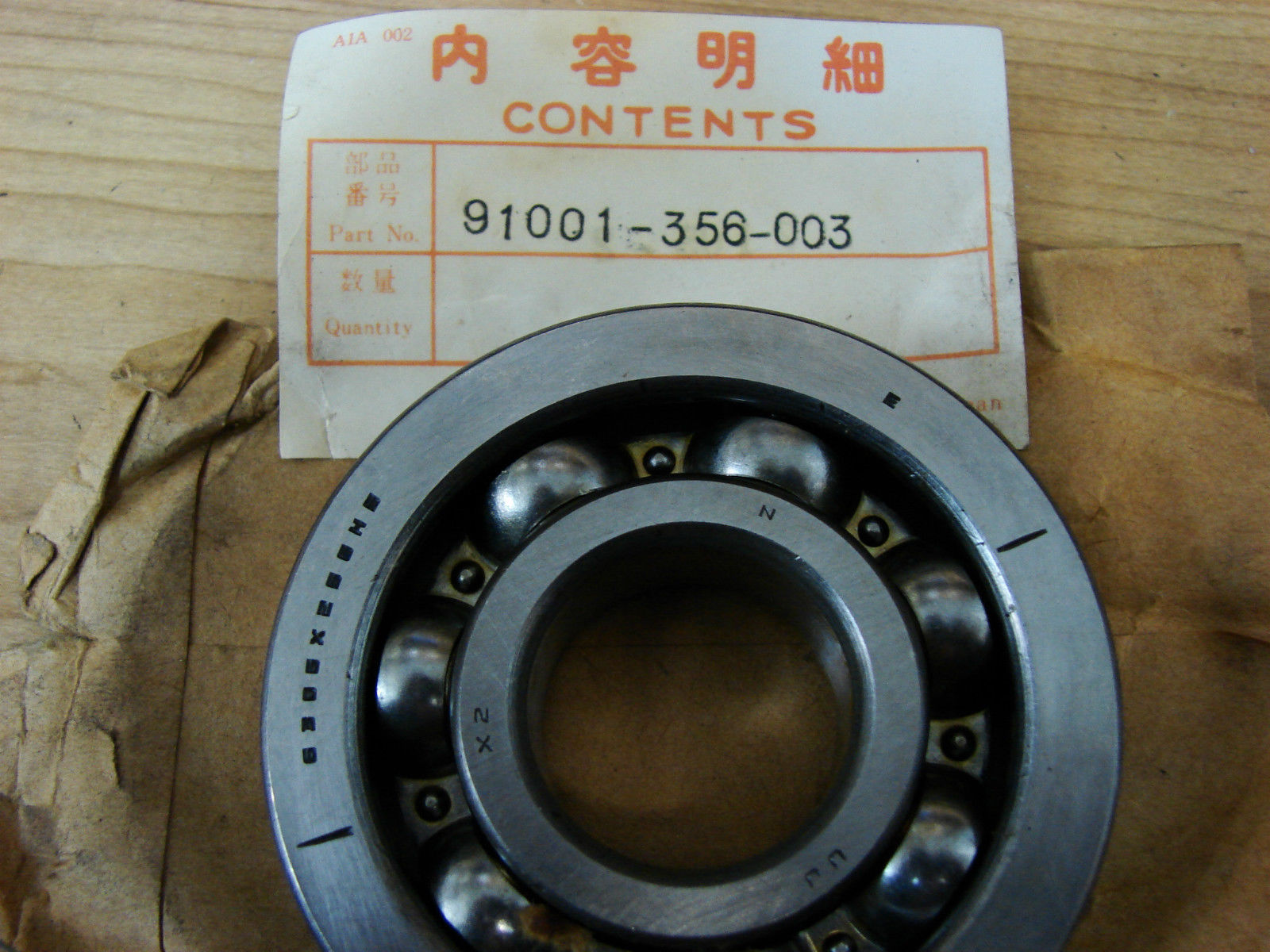

91001-356-000 main bearing

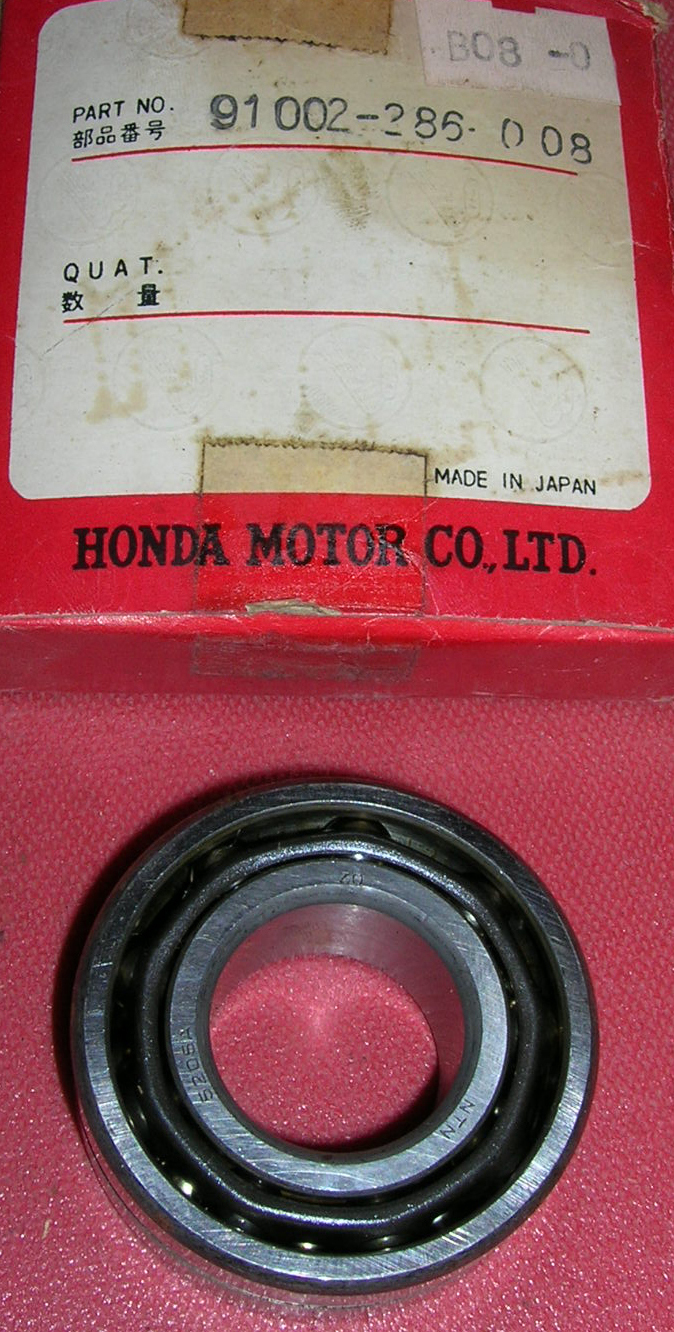

91002-286-008 bearing

91021-356-018 bearing

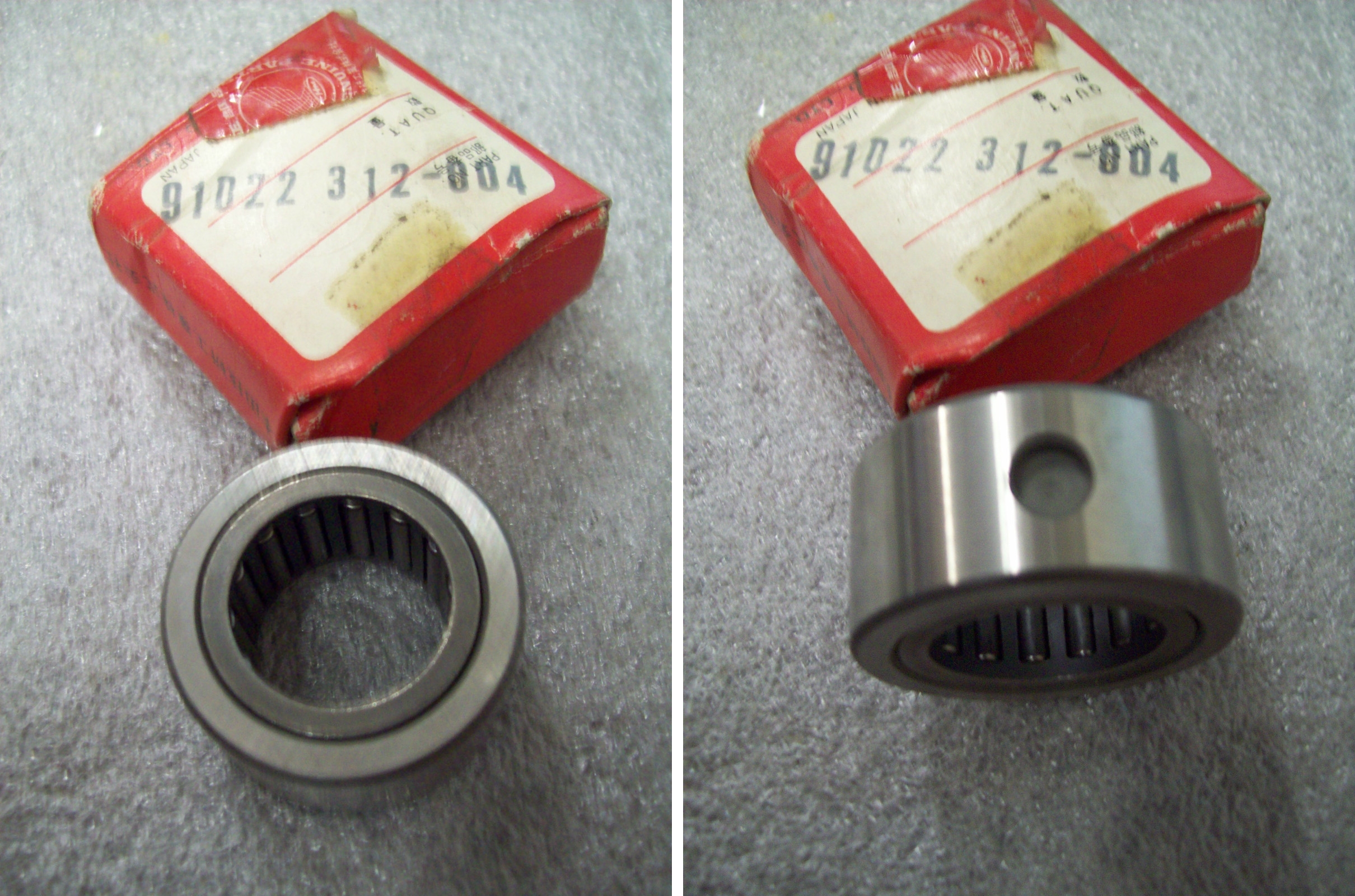

91022-312-000 bearing

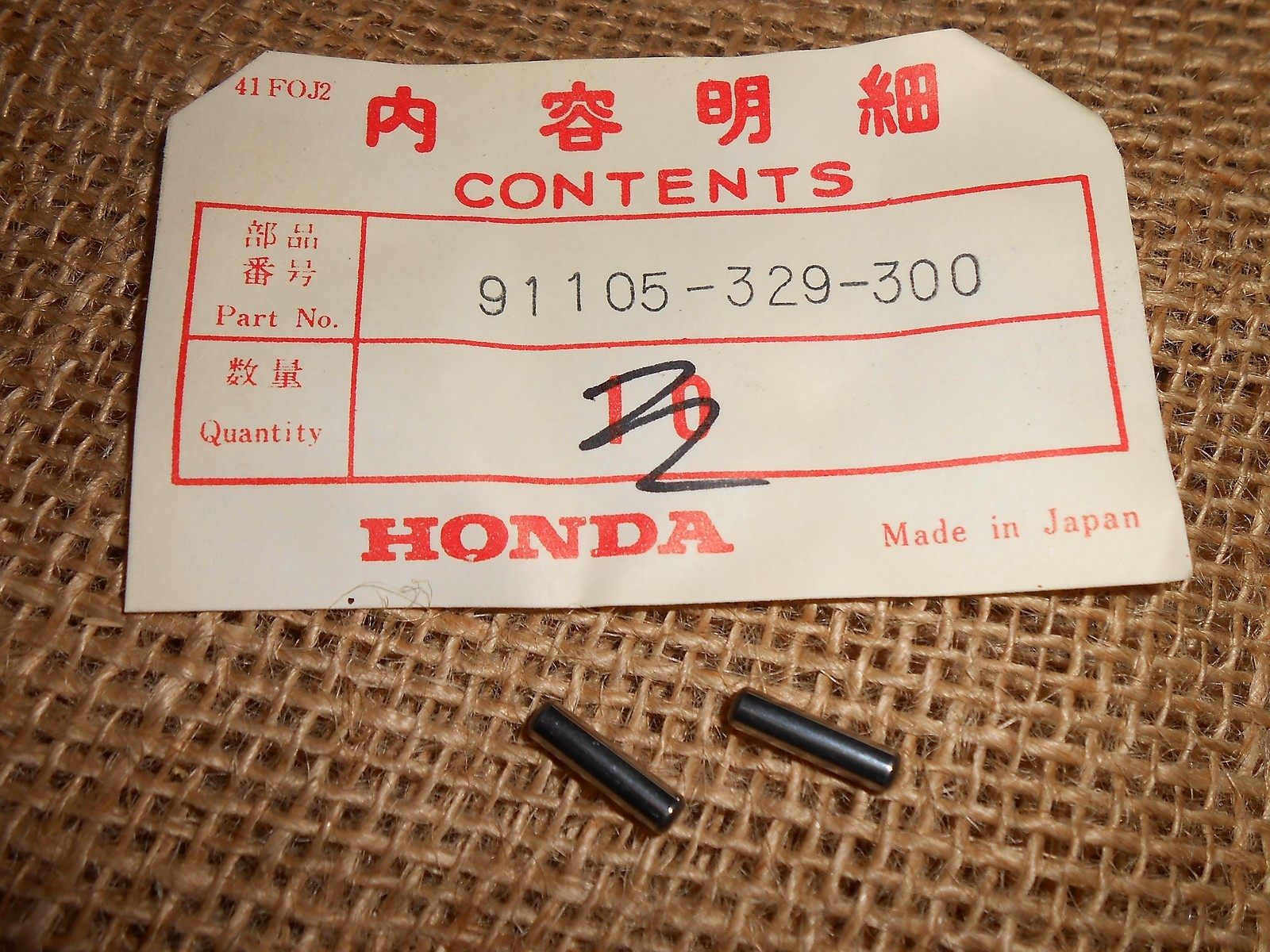

91105-329-300 needle bearing

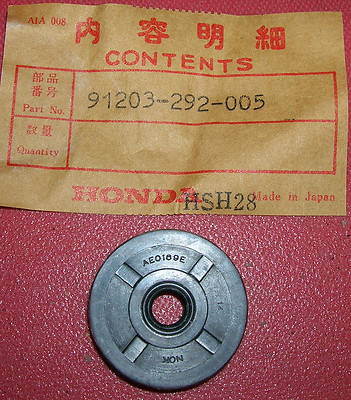

91203-292-005 oil seal

91204-286-003 oil seal

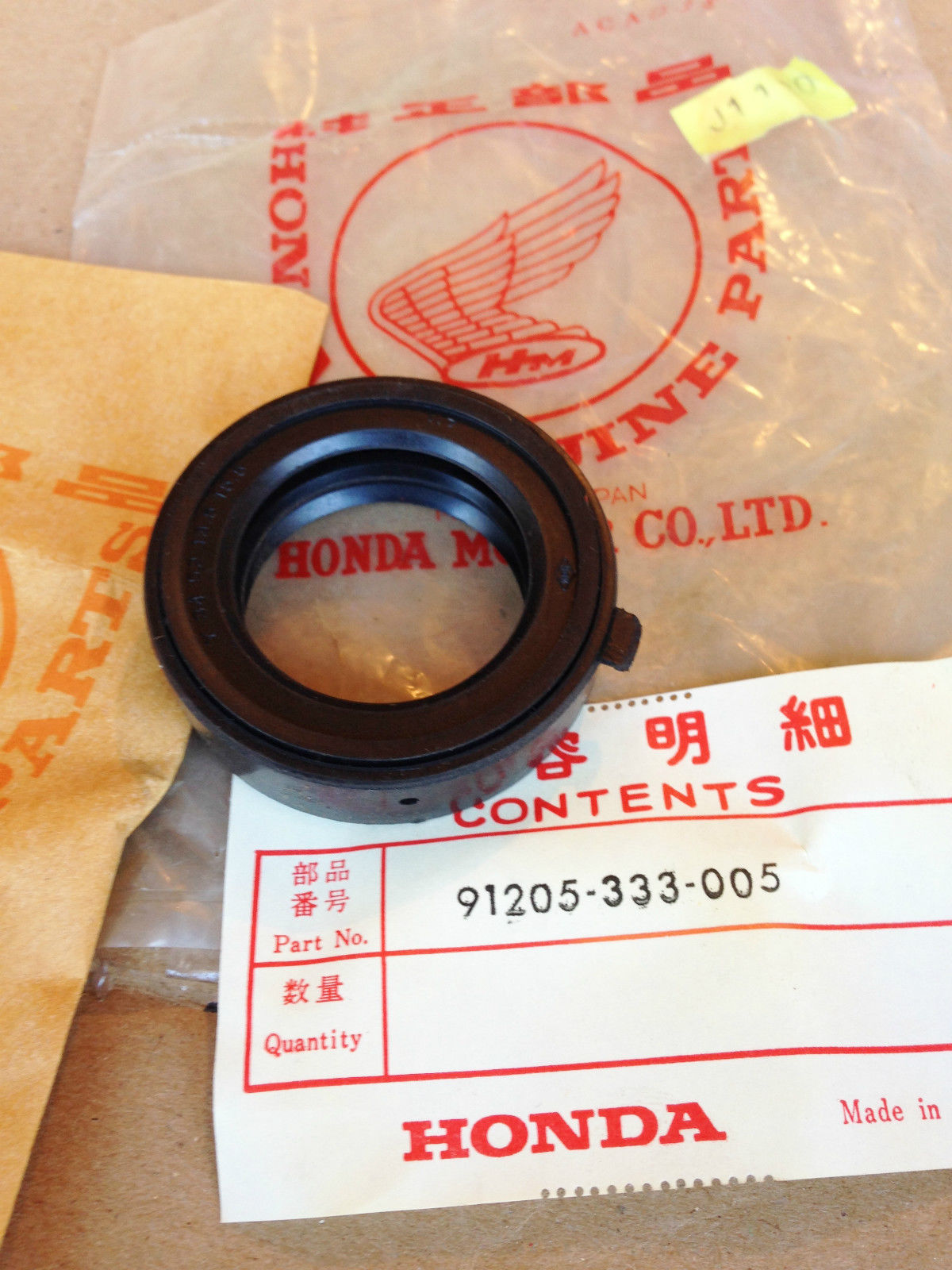

91205-333-005 drive sprocket oil seal

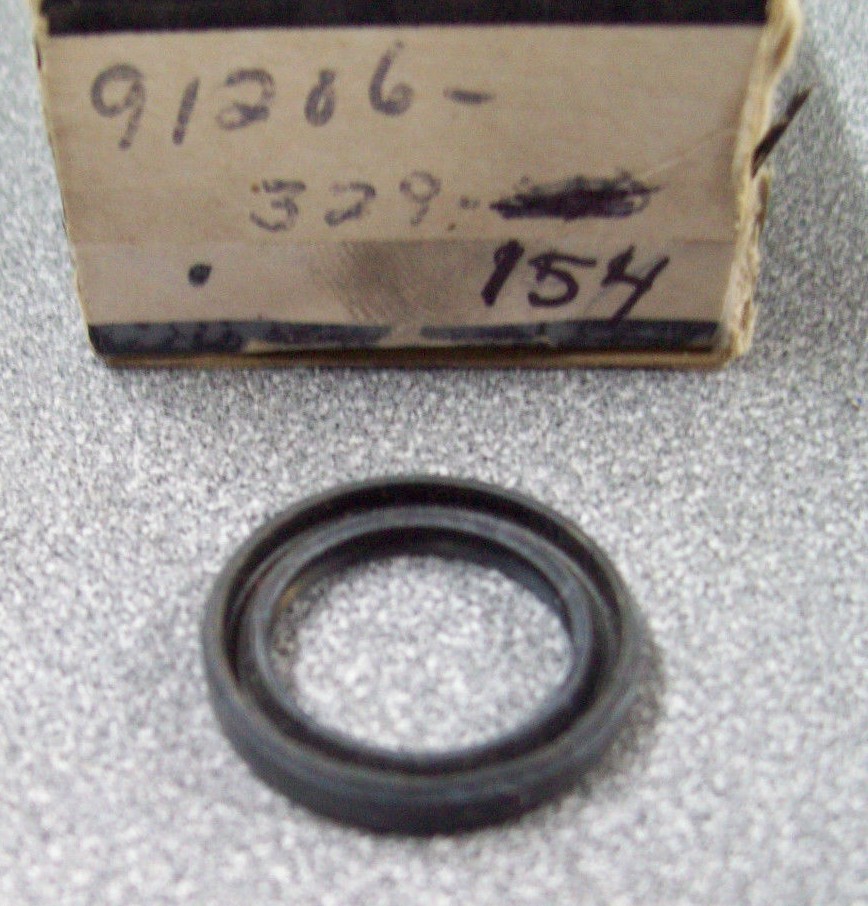

91206-329-154 oil seal clutch actuator top

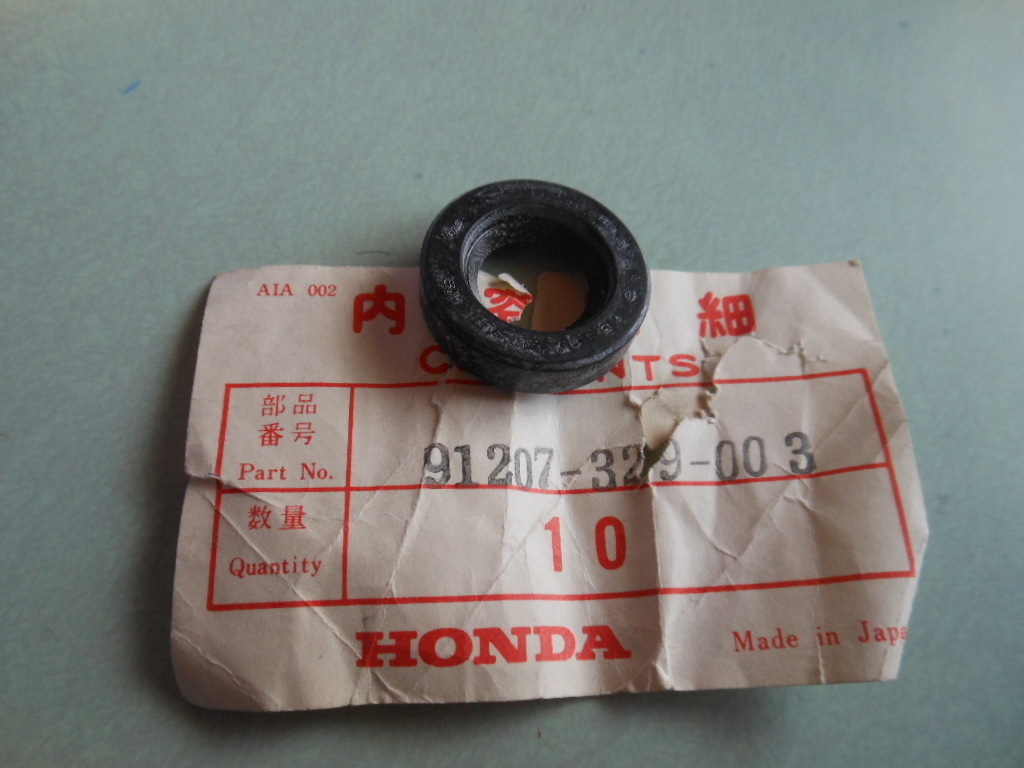

91207-329-003 oil seal

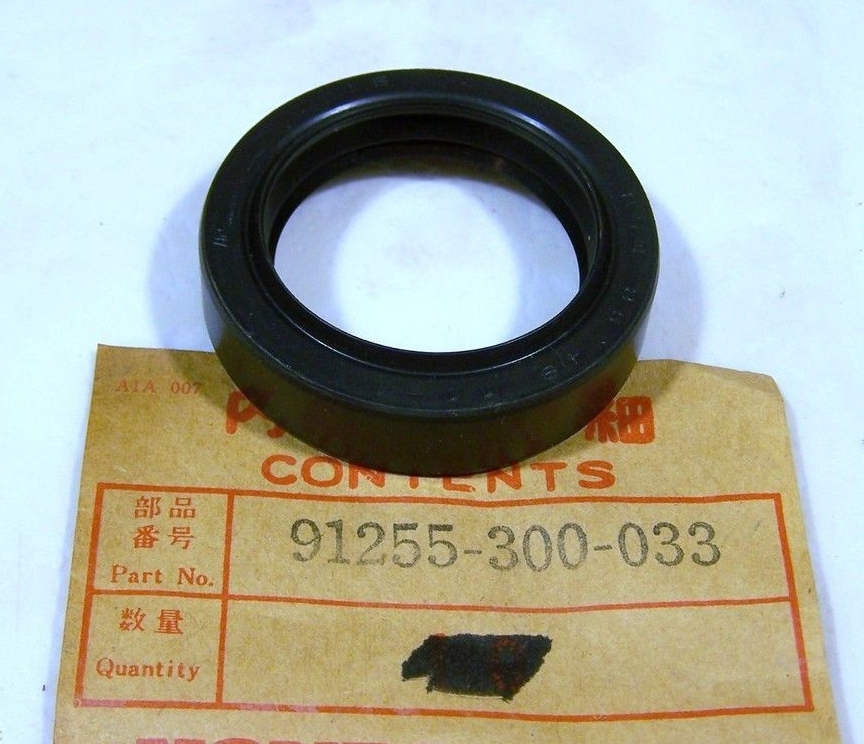

91255-300-033 fork oil seal

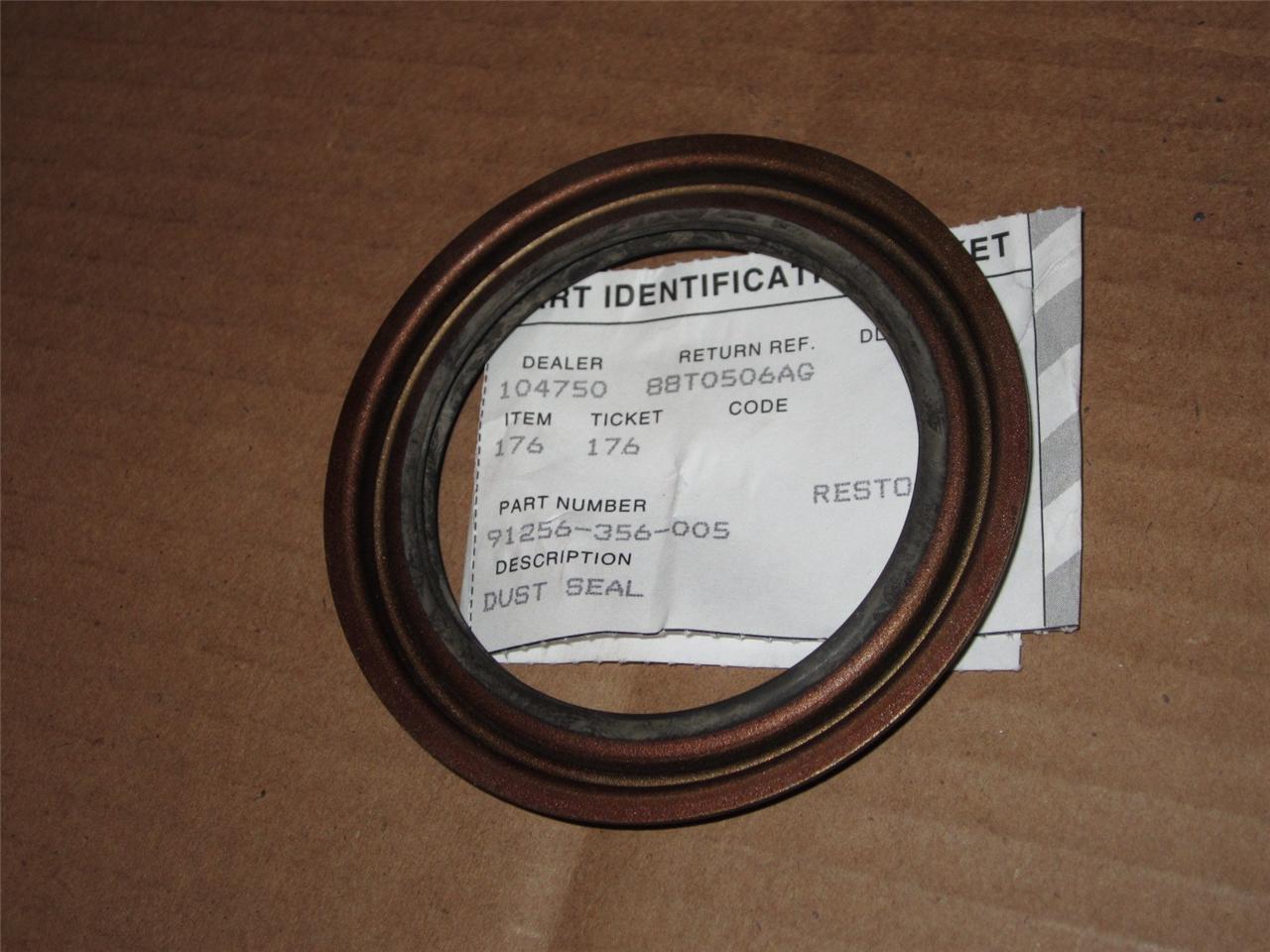

91256-356-005 oil seal rear wheel

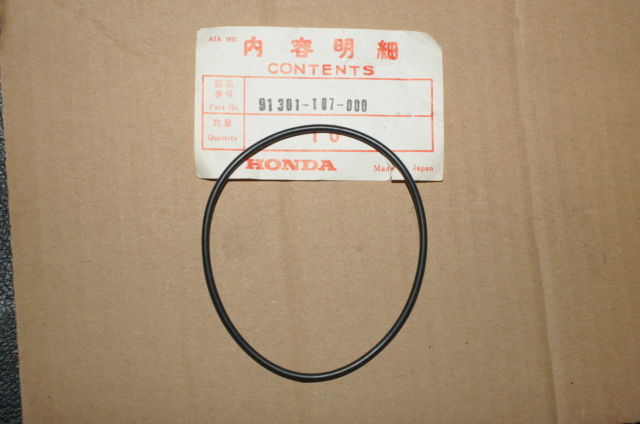

91301-107-000 O ring cylinder base

91301-200-000 O ring

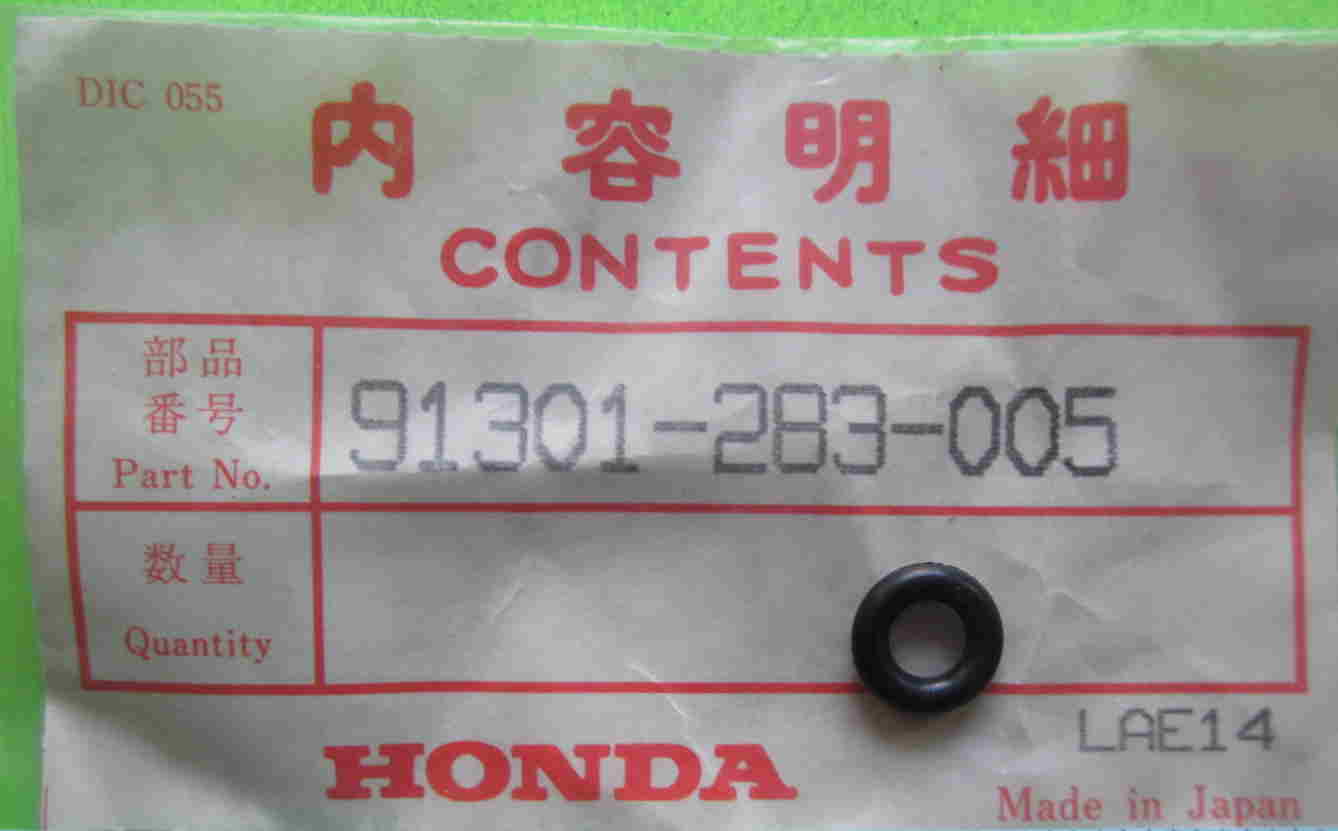

91301-283-005 O ring

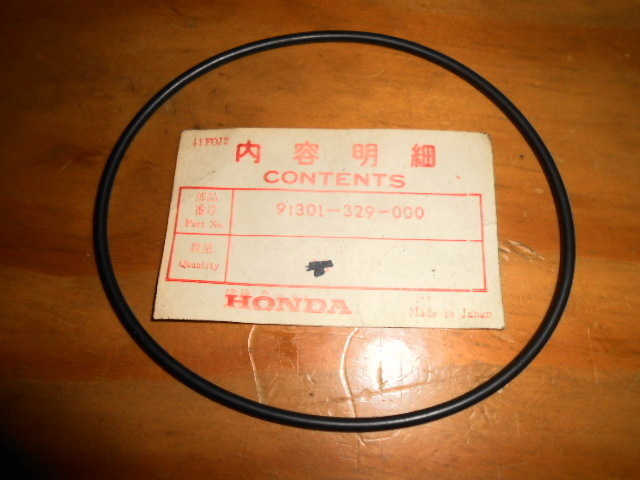

91301-329-000 O ring

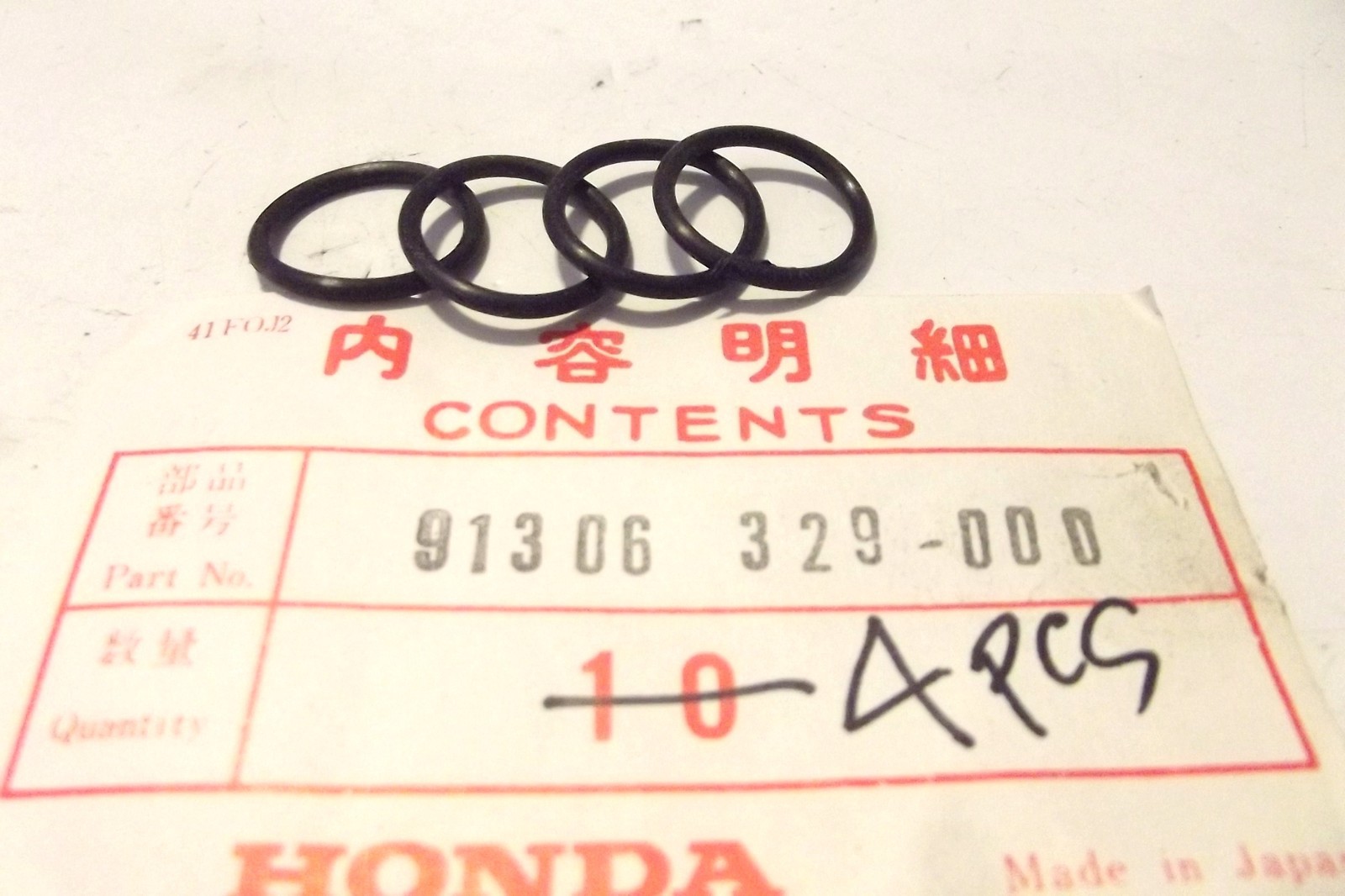

91306-329-000 O ring

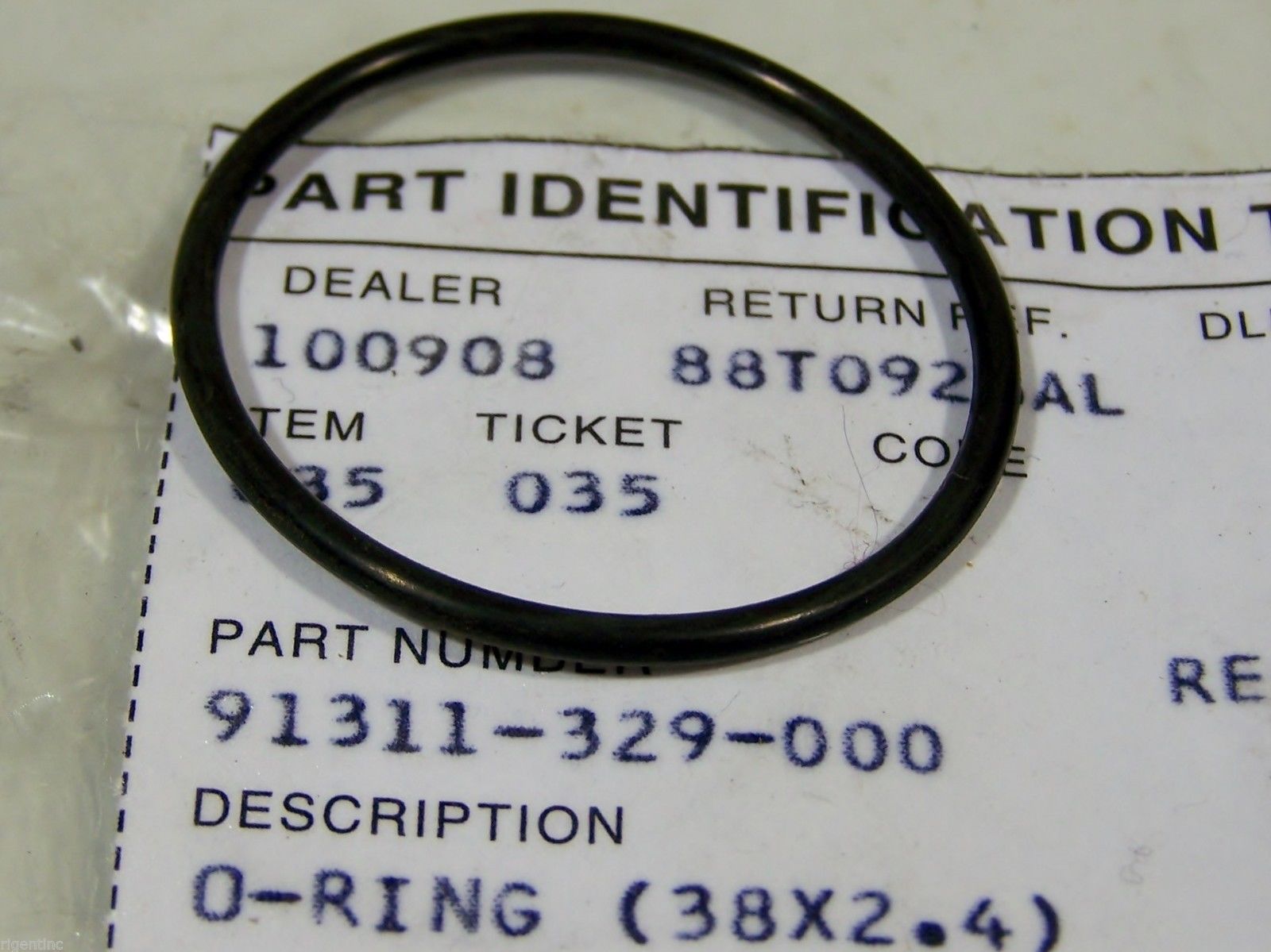

91311-329-000 carb isolator O ring

9200-006-012 sprocket lock washer

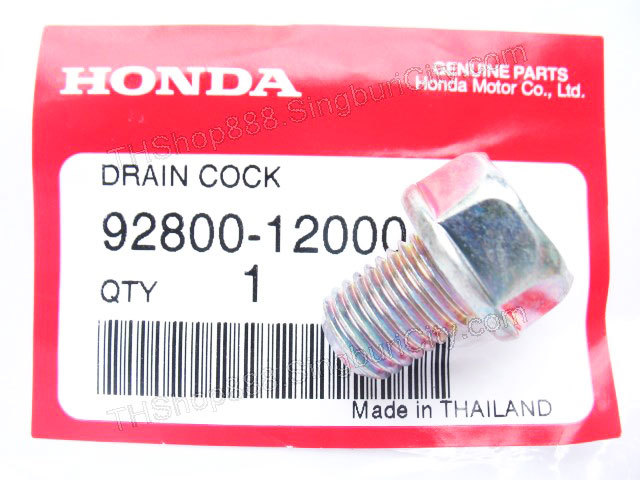

92800-12000 drain nut

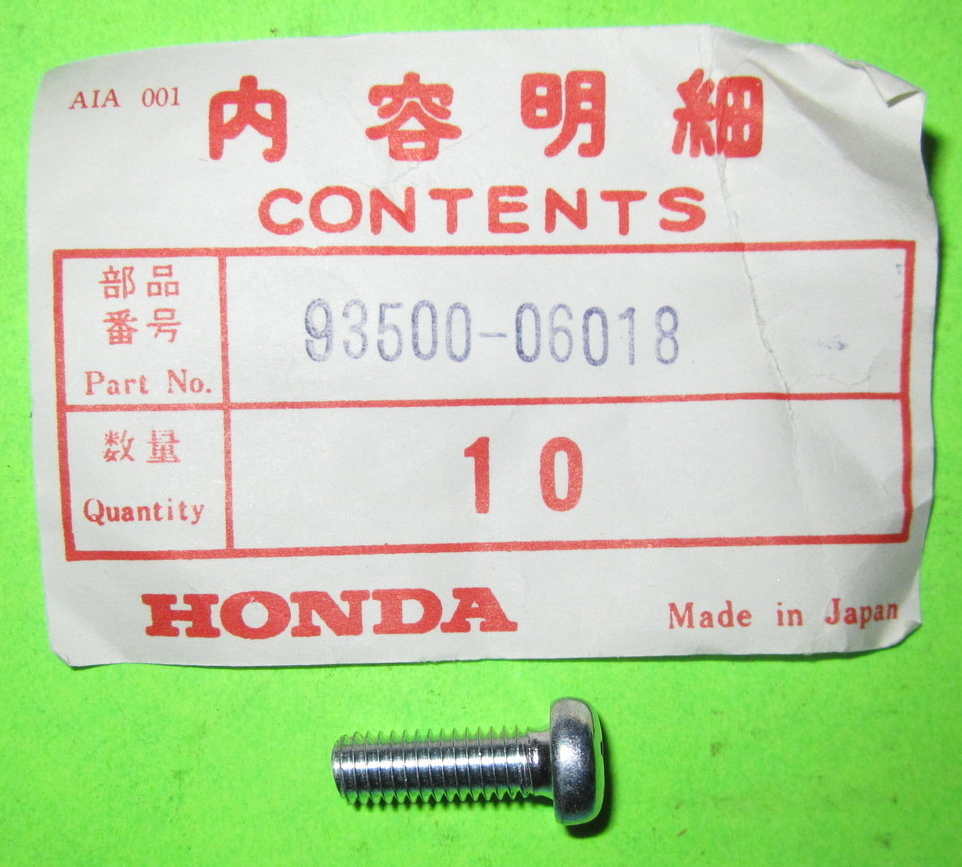

93500-06018-10 JIS screw crankcase cover

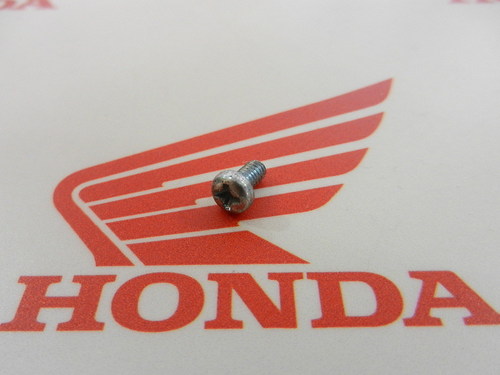

93500-03006 JIS screw

93700-050220A points cover screw M5

93700-060-1202 and 93700-06016 exhaust heat guard screws and insulator

93700-060-1207 exhaust heat guard screws and insulator

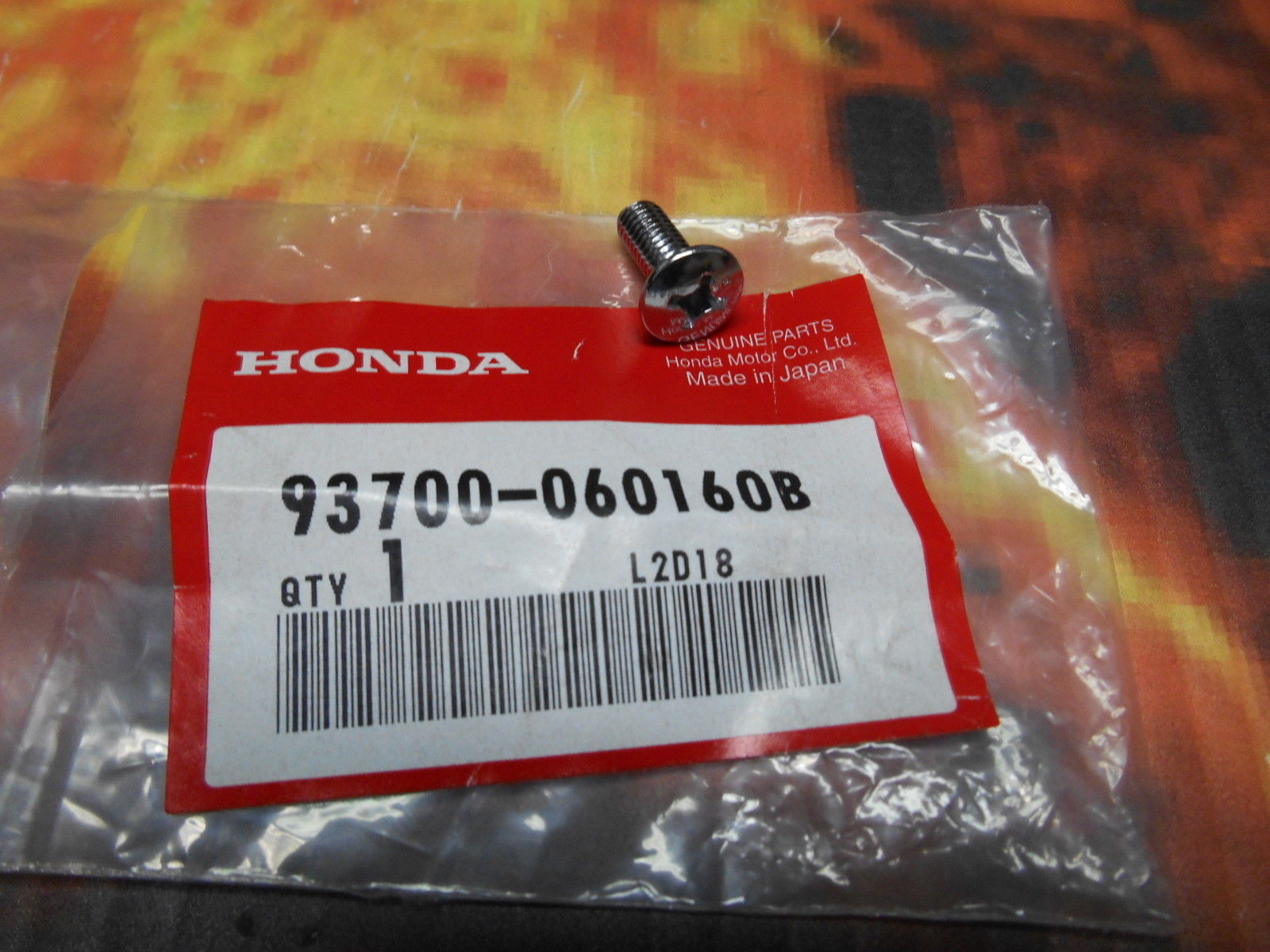

93700-06016 M6 screw, oval head

94012-06020 dome nut

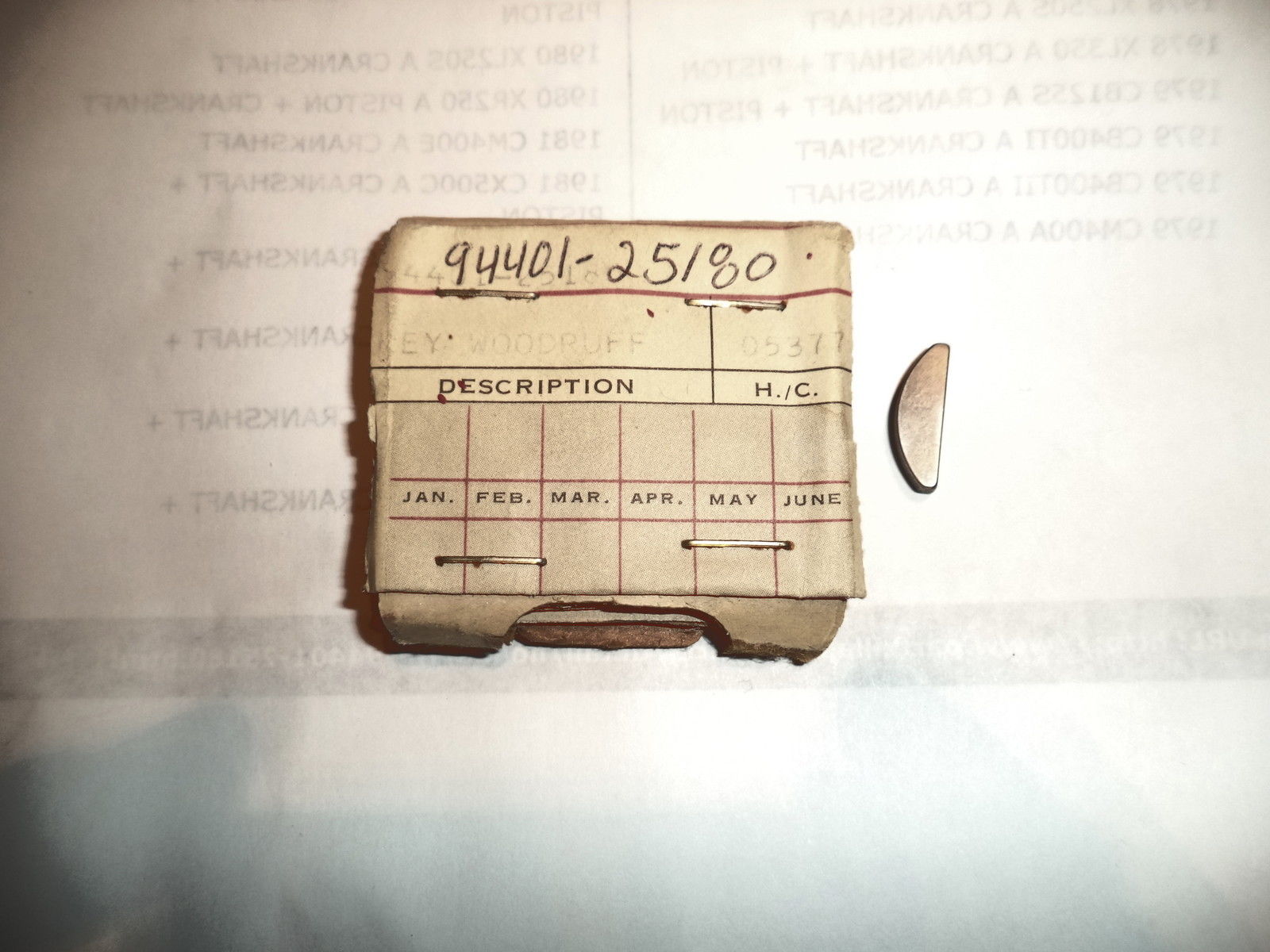

94401-25180 woodruff key

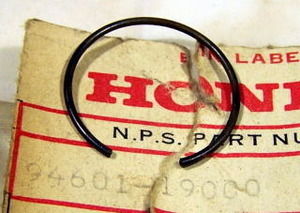

94601-19000 wire clip. gudgeon pin

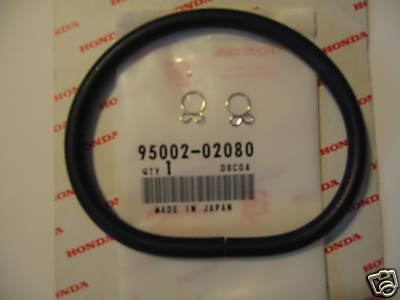

95002-02080 fuel pipe and clips

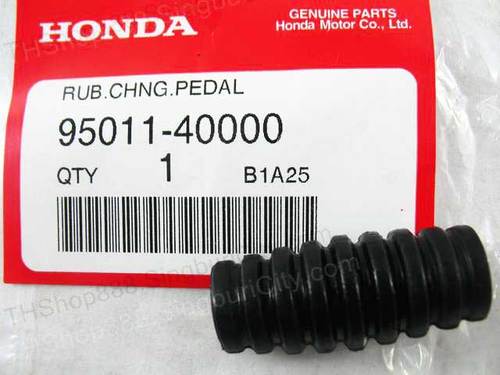

95011-40000 gear change pedal rubber

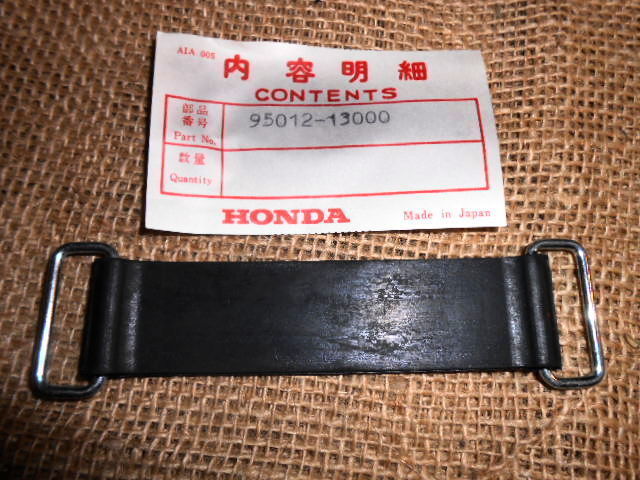

95012-13000 battery rubber strap

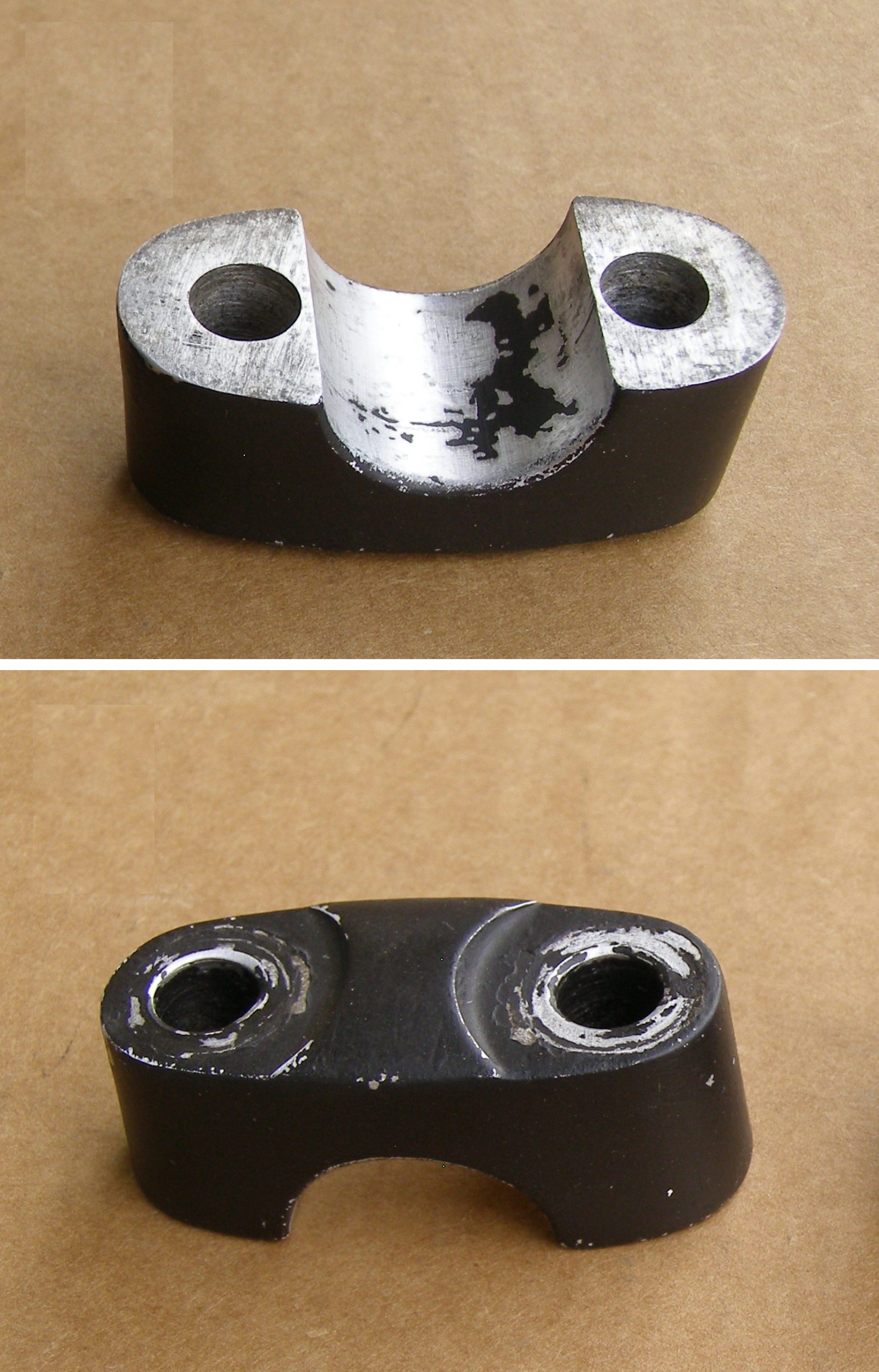

95014-22200 top handlebar mount

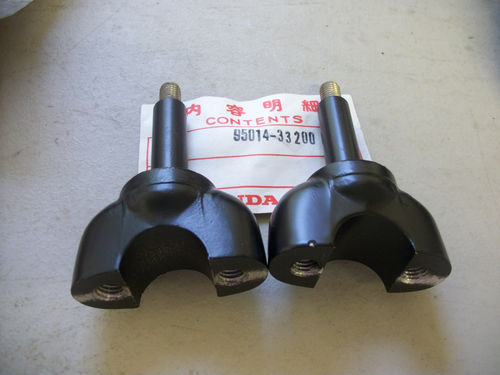

95014-33200 lower handlebar mount

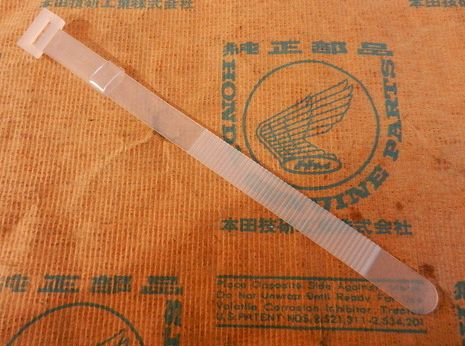

95014-62100 cable tie

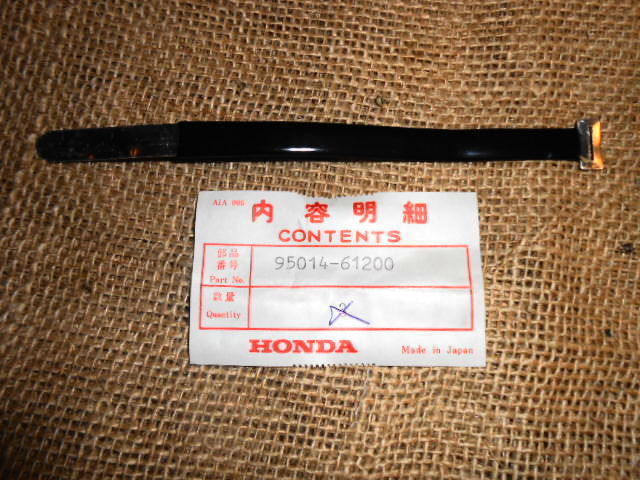

95014-61200 cable clamp, frame

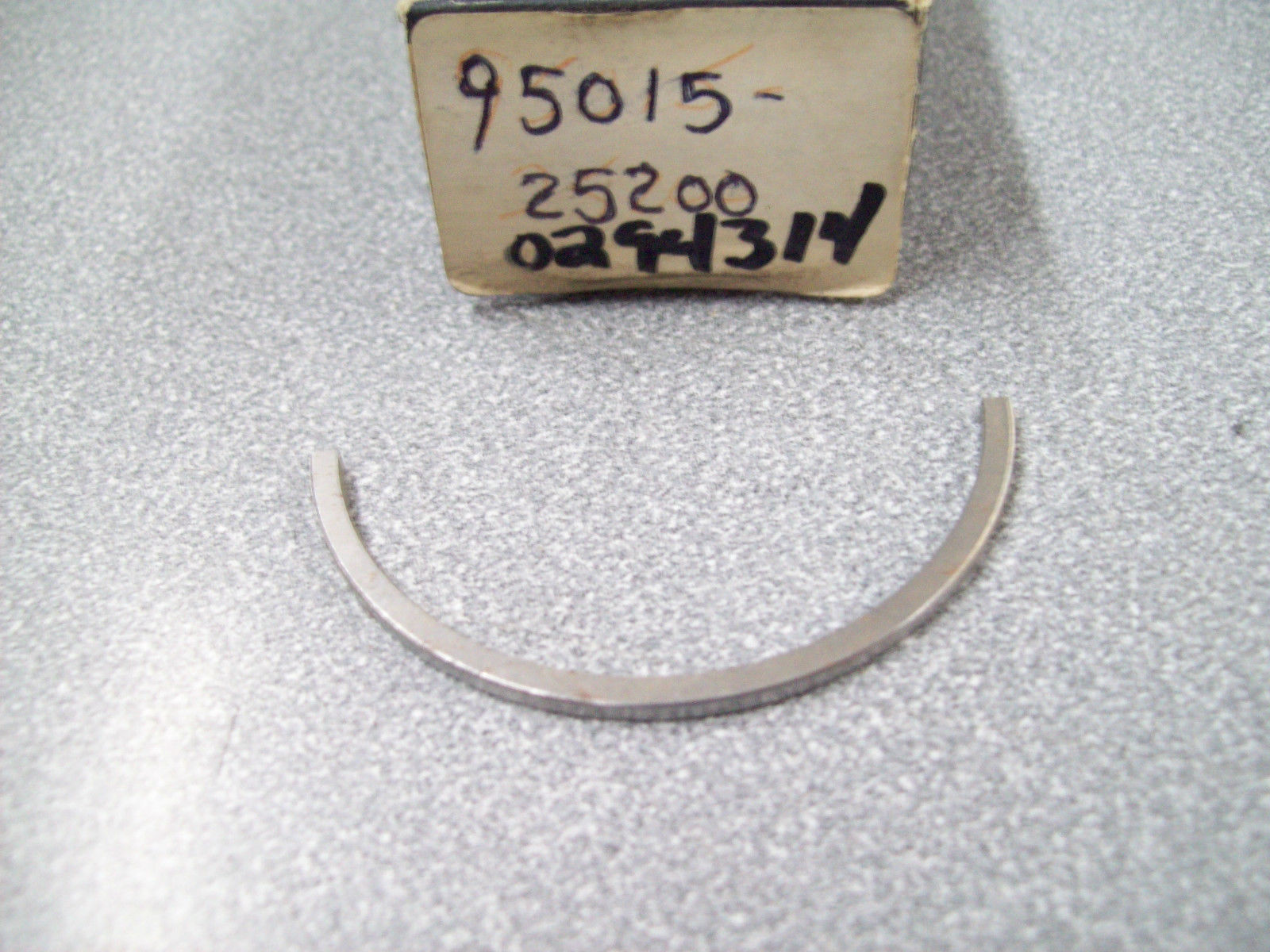

95015-25200 thrust washer

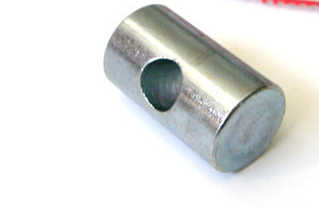

95015-32001 brake pedal adjuster pivot

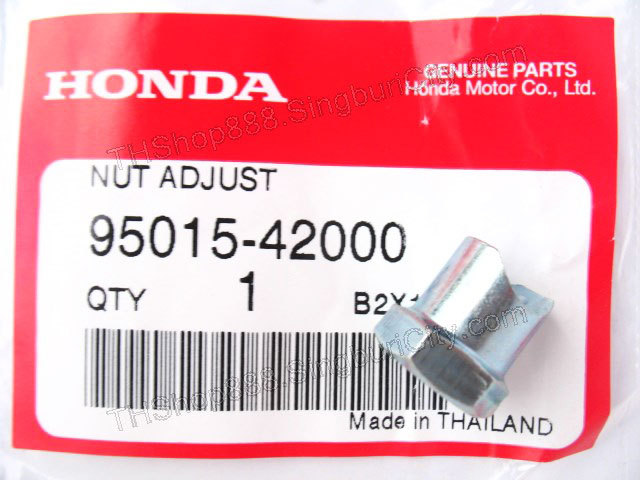

95015-42000 brake pedal adjuster

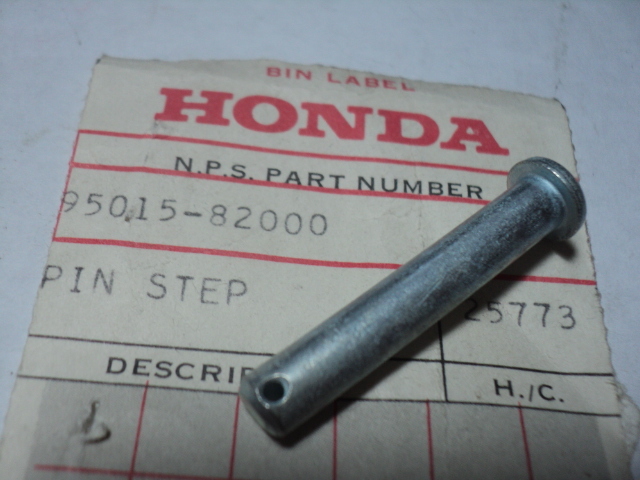

95015-82000 rear footrest pivot pin

95701-080-2500 and 95700-080-1600 and 90428-844-650 bolts and washer

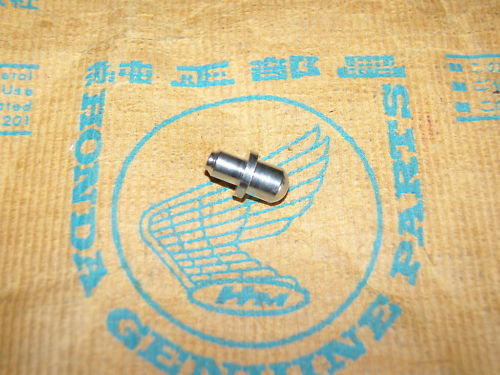

96201-30001 clutch arm grease nipple

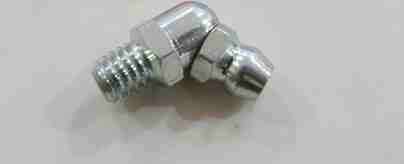

96201-80000 swinging arm grease nipple

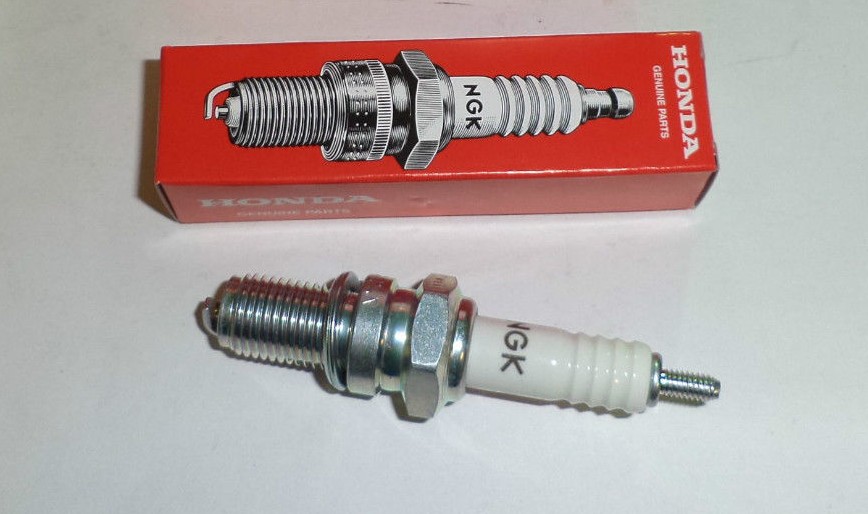

98069-38710 (now 98069-58717) spark plug

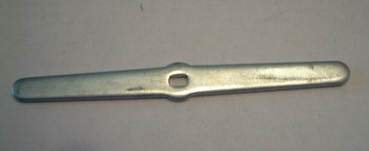

9900-340-000 handle

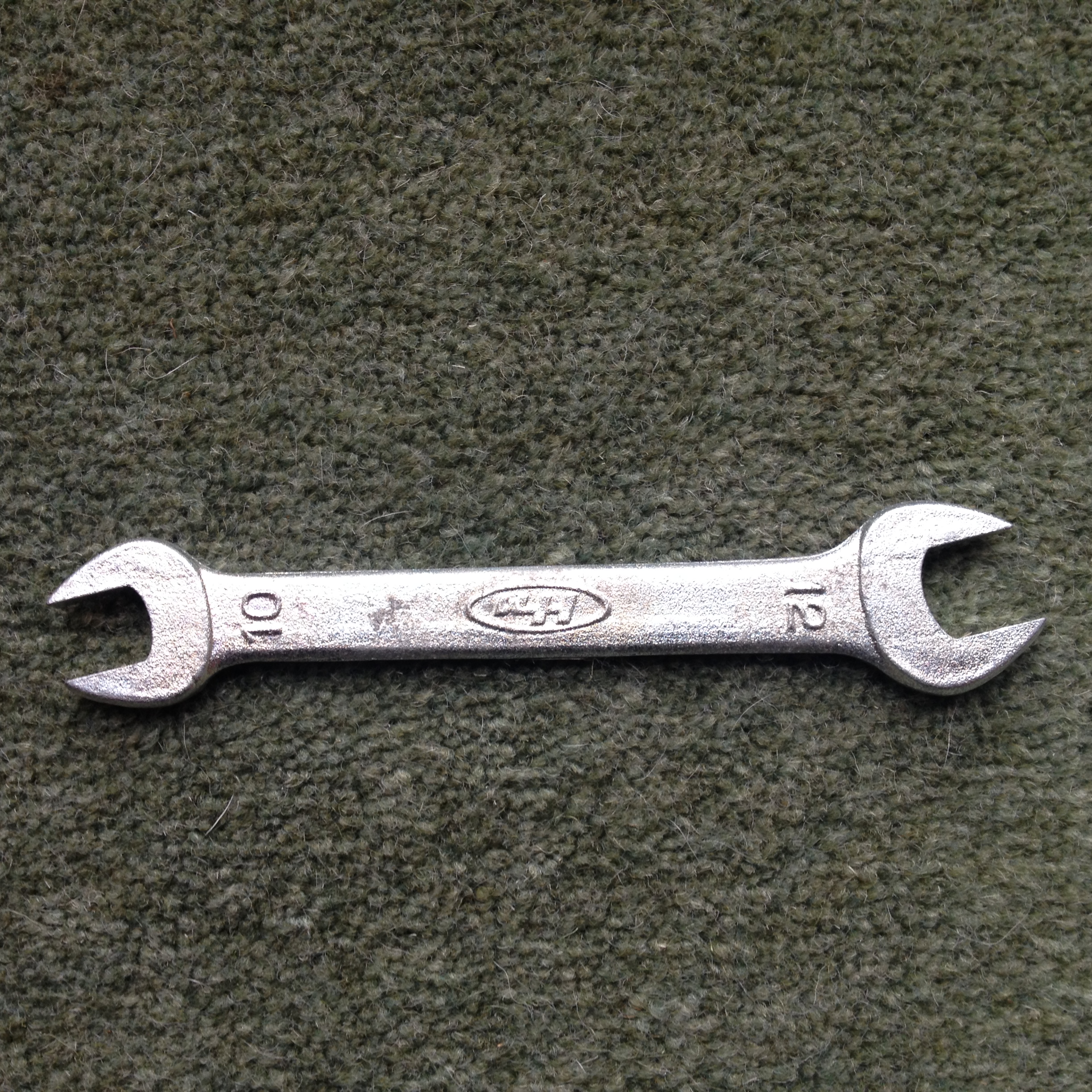

99001-10120 spanner 10mm x 12mm

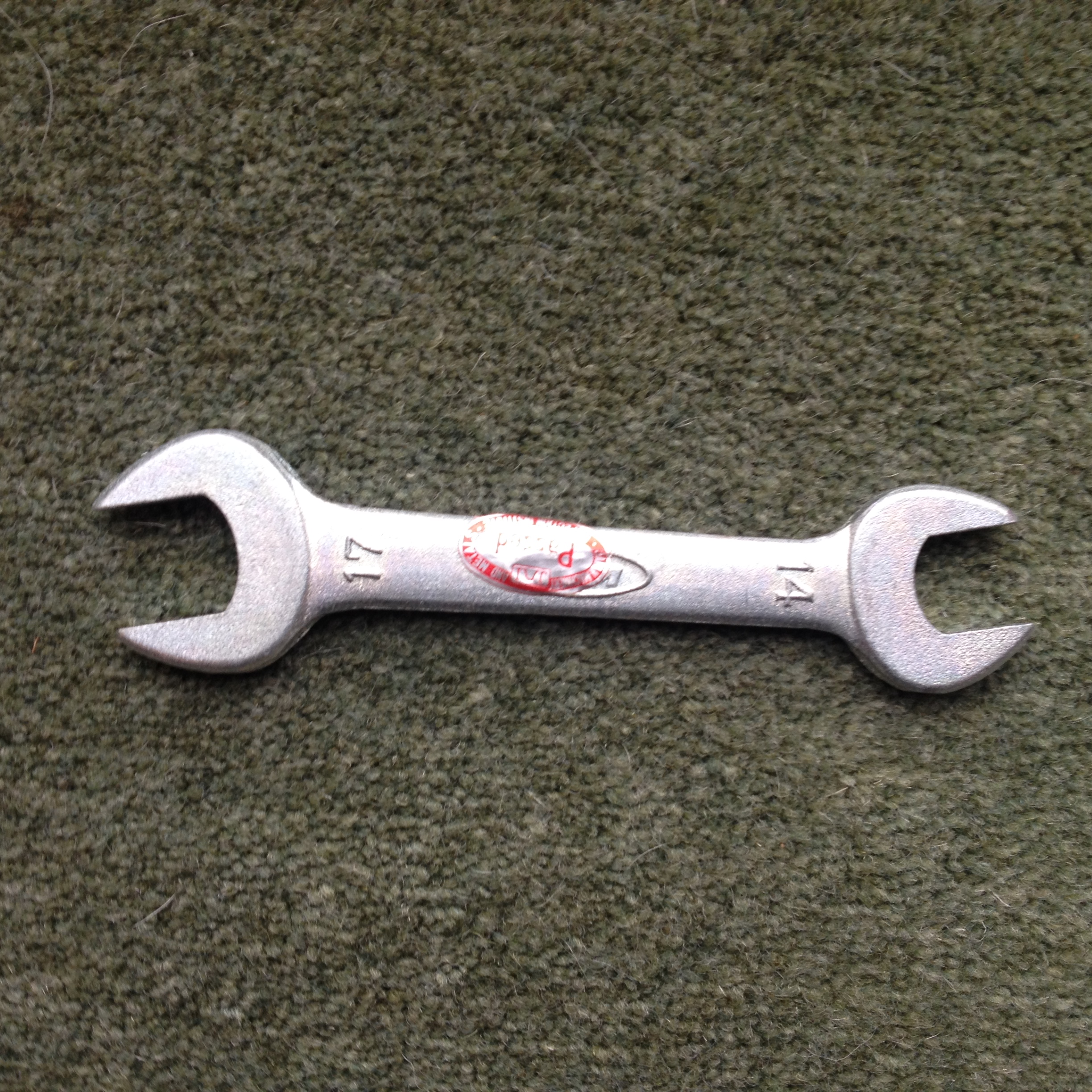

99001-14170 spanner 14mm x 17mm

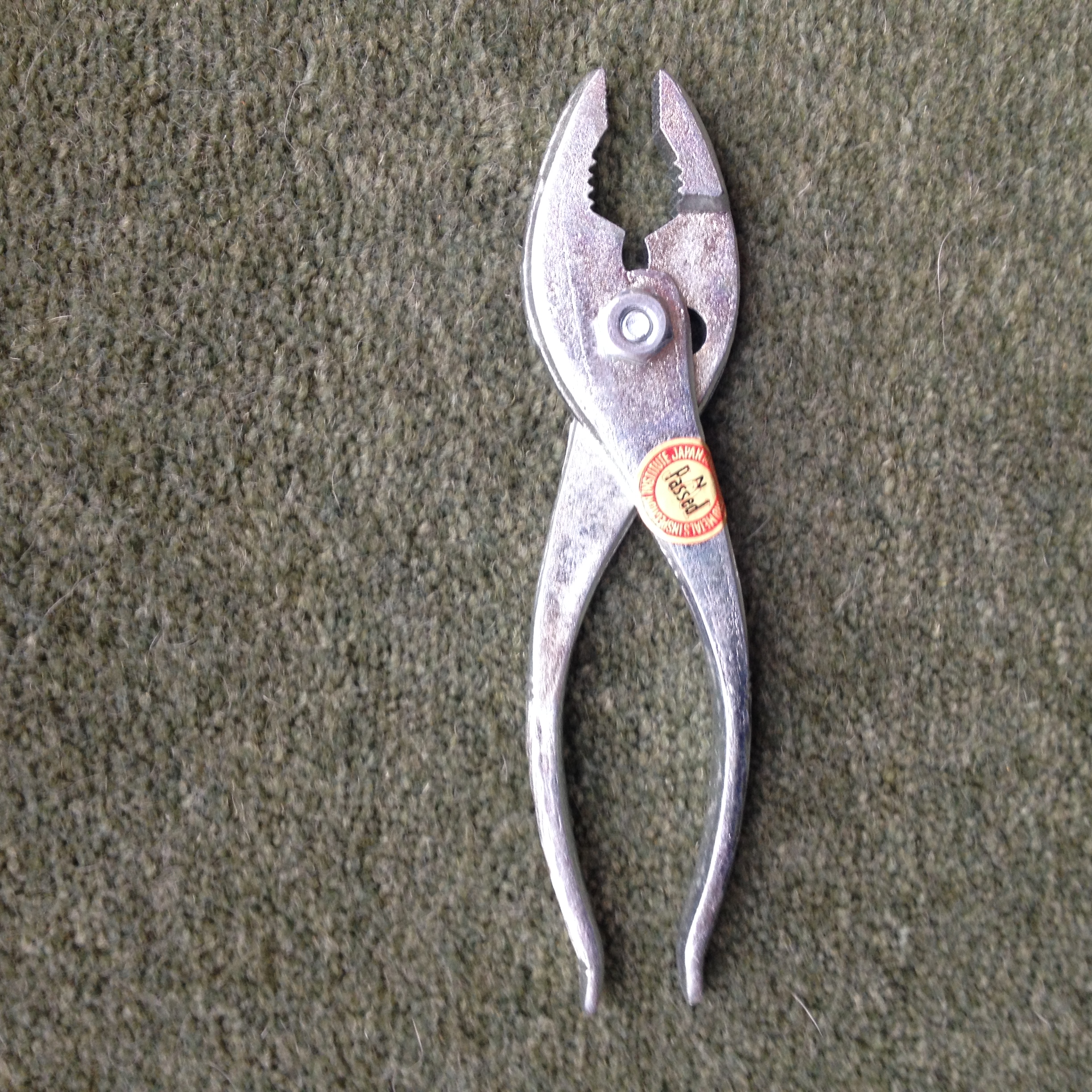

99002-13500 pliars

99003-10000 Screwdriver blade. The whole set and handles are shown

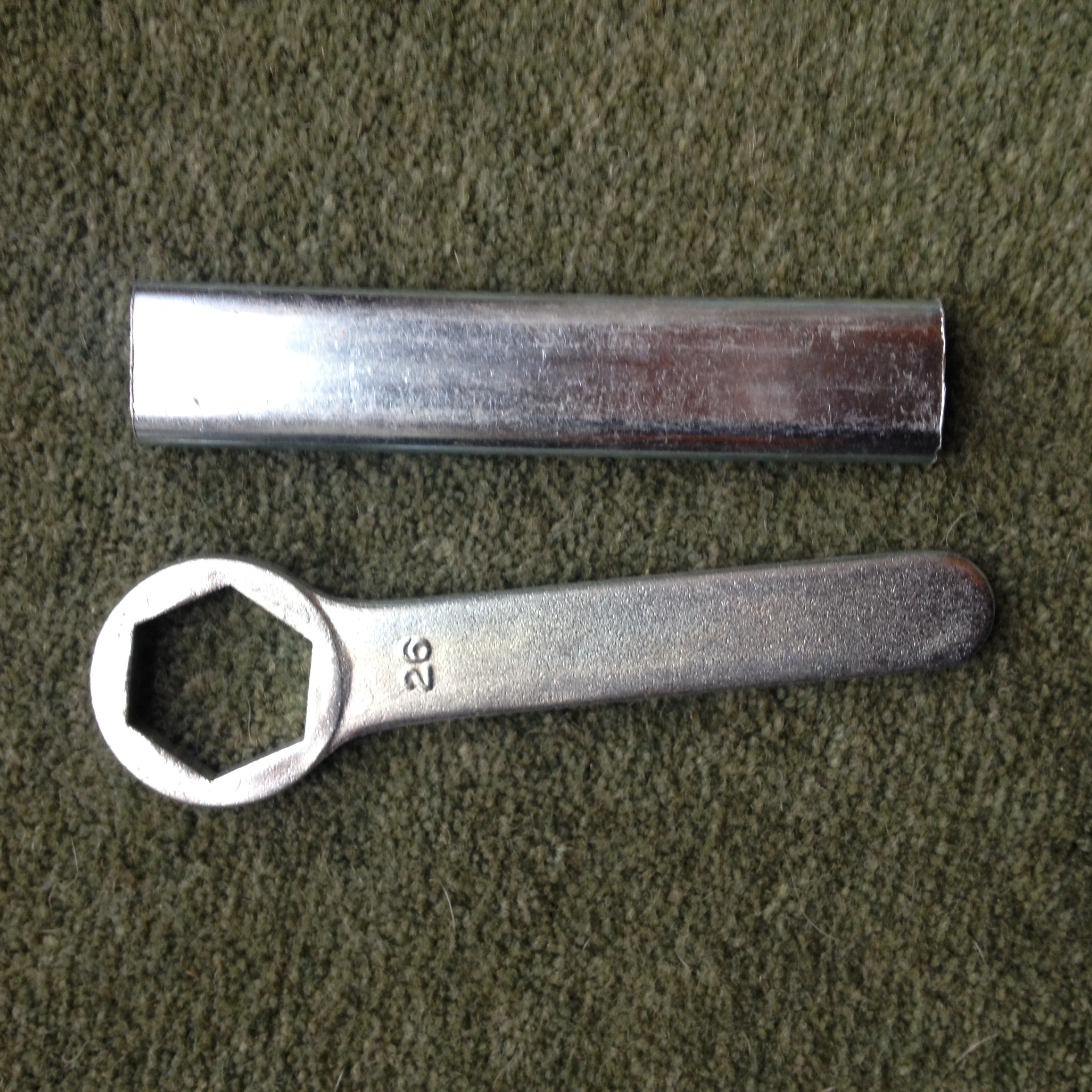

99006-26000 rear wheel nutspanner (and extension bar 99006-12000)

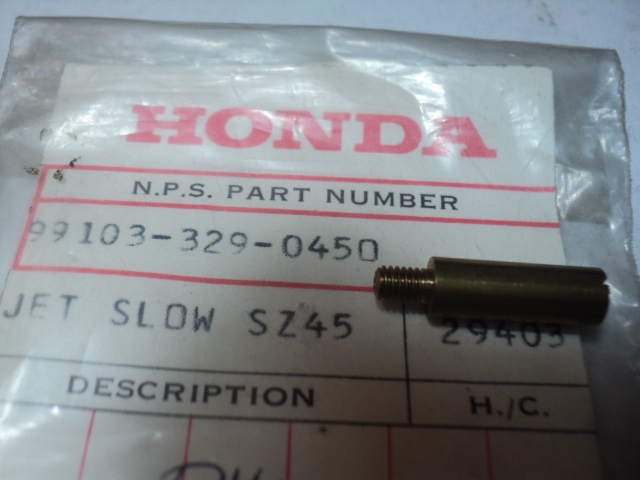

99103-329-045 slow jet



last updated today
